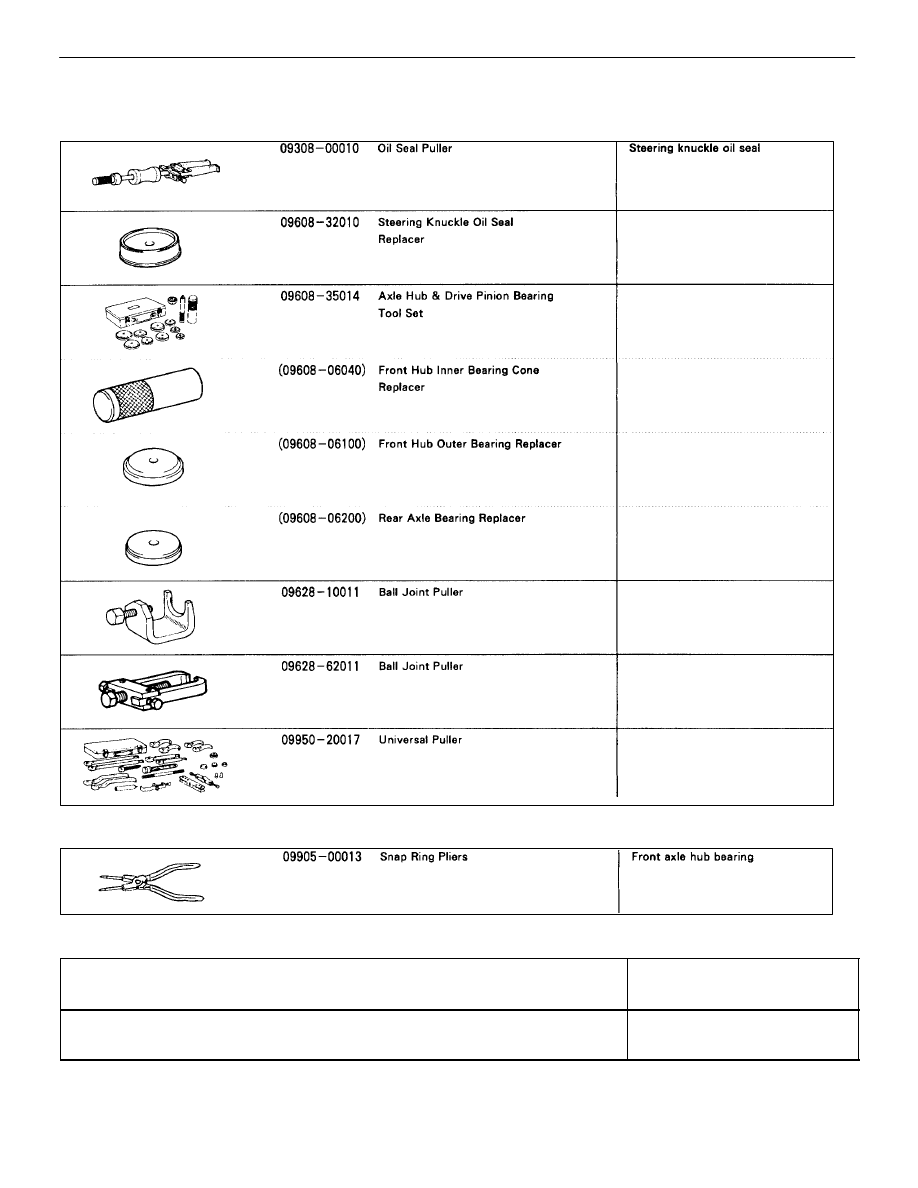

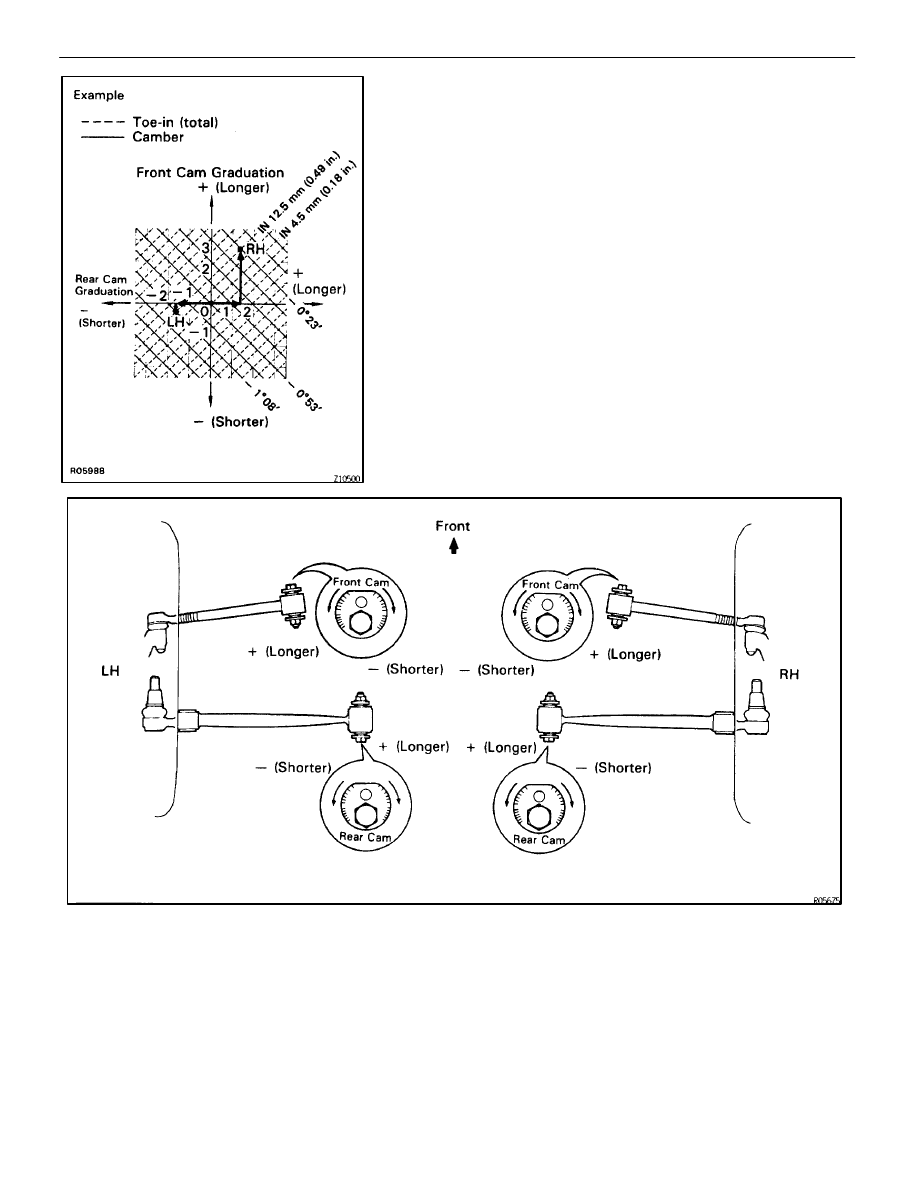

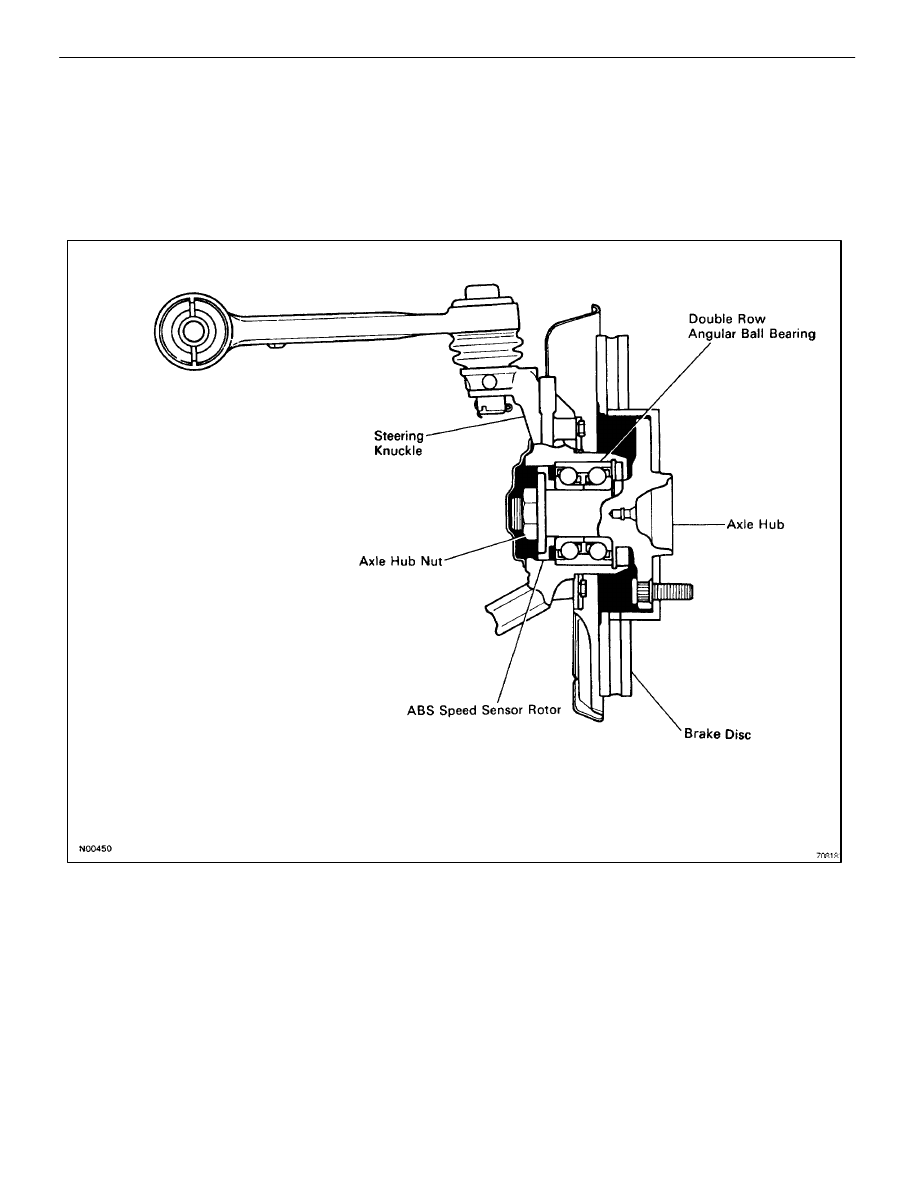

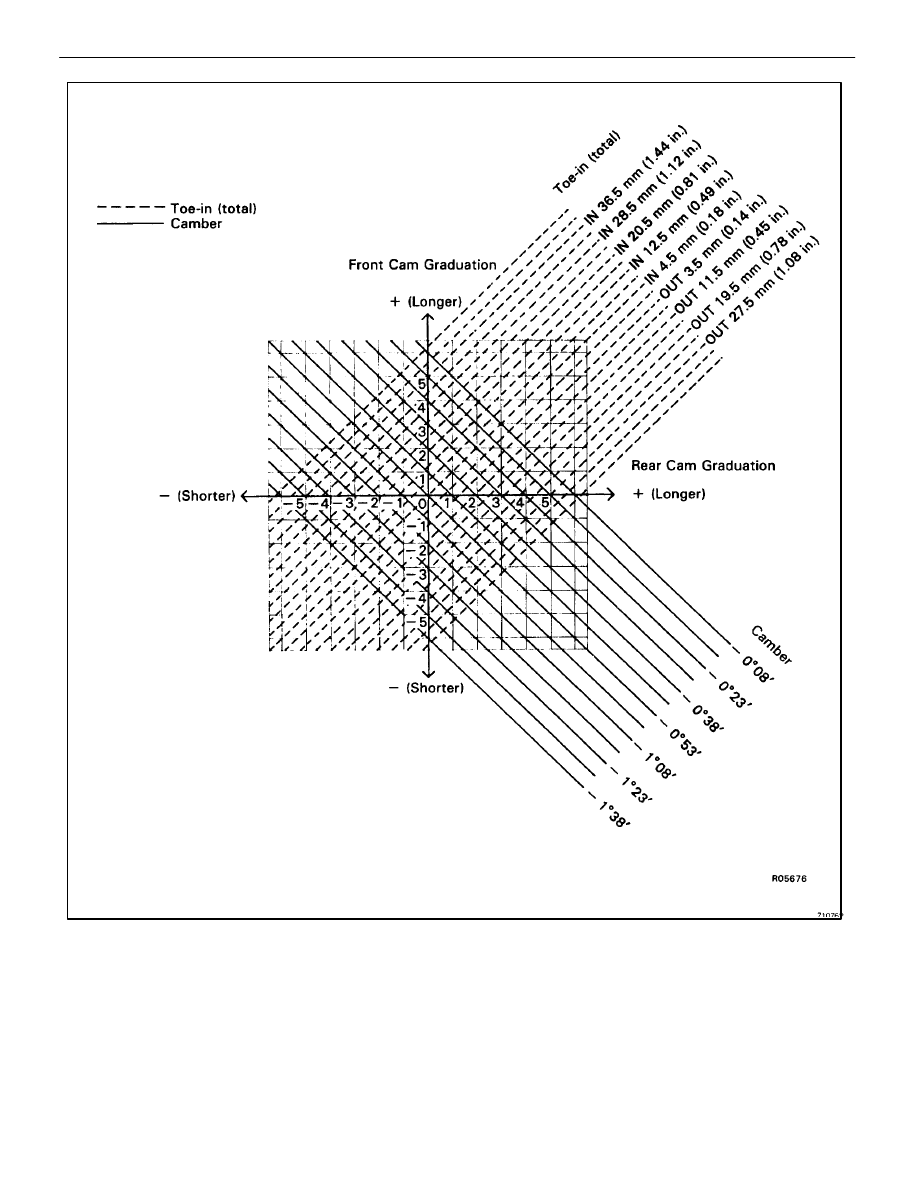

ADJUSTMENT CHART SA0VA–09 HOW TO READ ADJUSTMENT CHART (a) Mark on the graph the measurements taken from the vehicle. Example: Camber (LH) –1 08 ’ Camber (RH) –0 23 ’ Toe–in 12.5 mm (0.49 in.) (b) As shown the illustration, from the graph the amounts by which the front and/or rear cam are to be adjusted. Amount to turn adjusting cam (by graduation): (LH Front cam) Decrease 0.3 (Shorter) (LH Rear cam) Increase 1.7 (Longer) (RH Front cam) Increase 2.8 (Longer) (RH Rear cam) Increase 1.3 (Longer) SA–12 – SUSPENSION AND AXLE WHEEL ALIGNMENT |
