5. CONNECT

ABS

SPEED

SENSOR

TO

STEERING

KNUCKLE
Connect the sensor to the steering knuckle with the bolt.

Torque: 7.8 N

⋅

m (80 kgf

⋅

cm, 69 in.

⋅

lbf)

6.

INSTALL FRONT WHEEL AND LOWER VEHICLE

Torque: 103 N

⋅

m (1,050 kgf

⋅

cm, 76 ft

⋅

lbf)

7.

CHECK FRONT WHEEL ALIGNMENT
(See page

SA–5

)

FRONT WHEEL HUB BOLT
REPLACEMENT

SA1A1–01

1.

JACK UP VEHICLE AND REMOVE FRONT WHEEL

2.

REMOVE FRONT BRAKE CALIPER AND DISC
(See page

SA–30

)

3.

REMOVE HUB BOLT

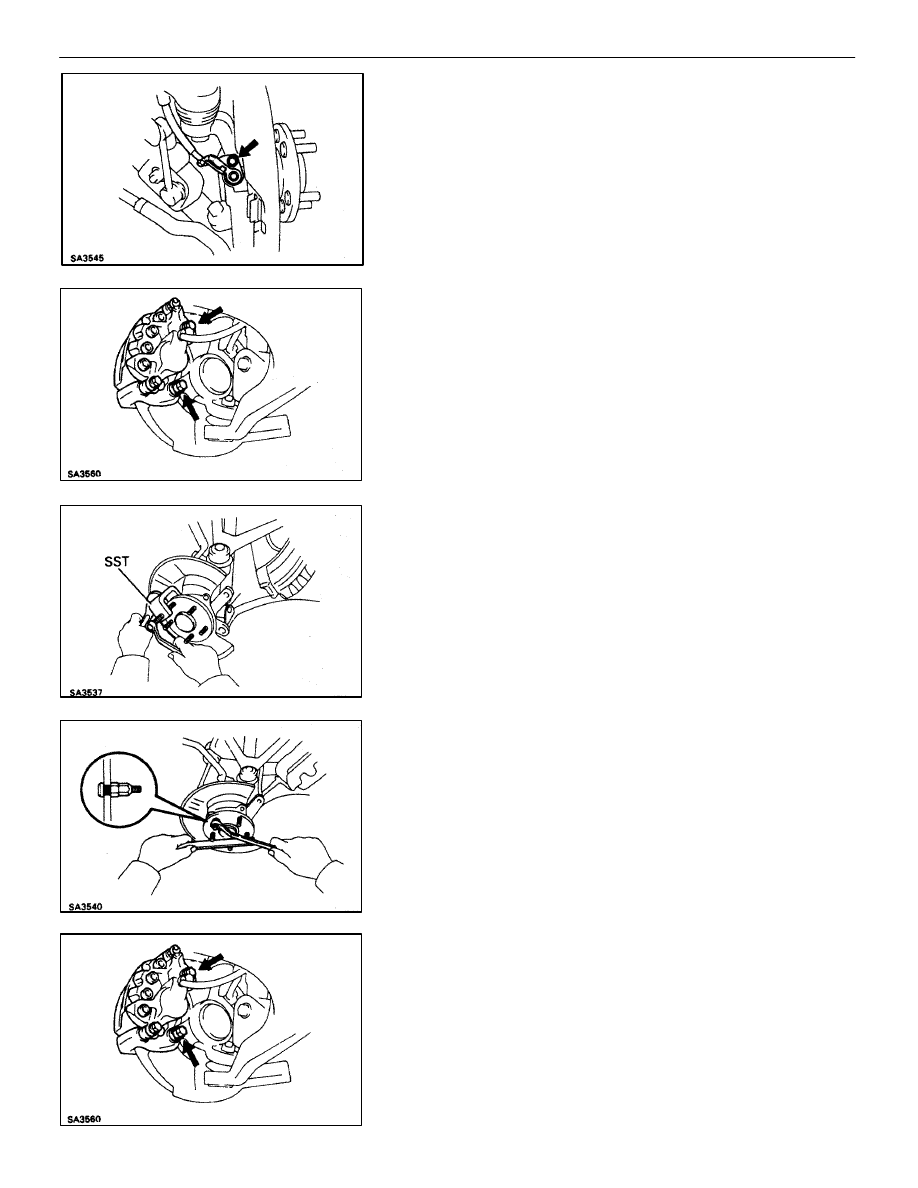

Using SST, remove the hub bolt.
SST 09628–10011

4.

INSTALL HUB BOLT
Install a washer and nut to the bolt, as shown in the illustra-
tion, and install a new hub bolt by torquing the nut.

5.

INSTALL FRONT BRAKE DISC AND CALIPER
(See page

SA–36

)

6.

INSTALL FRONT WHEEL AND LOWER VEHICLE

Torque: 103 N

⋅

m (1,050 kgf

⋅

cm, 76 ft

⋅

lbf)

SA–24

–

SUSPENSION AND AXLE

FRONT AXLE HUB

FRONT SUSPENSION

DESCRIPTION

SA008–04

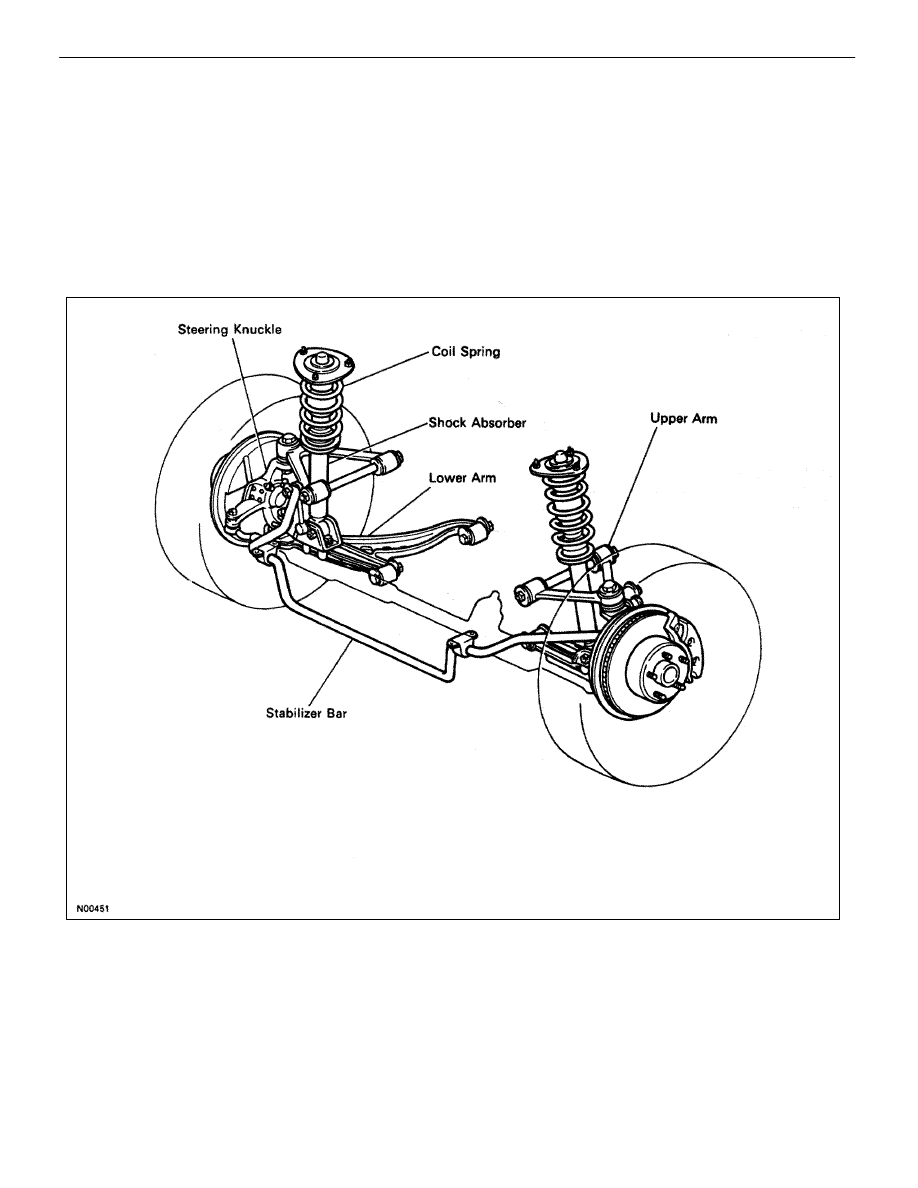

A double wishbone type independent suspension is used. It ensures the greater design freedom, permits
and ideal wheel alignment selection.
The result is an outstanding straight–forward stability at high speeds, turning and braking stability.
Suspension friction is also reduced at each portion of the suspension for good vehicle controllability, stabil-
ity and riding comfort.

–

SUSPENSION AND AXLE

FRONT SUSPENSION

SA–25

PREPARATION

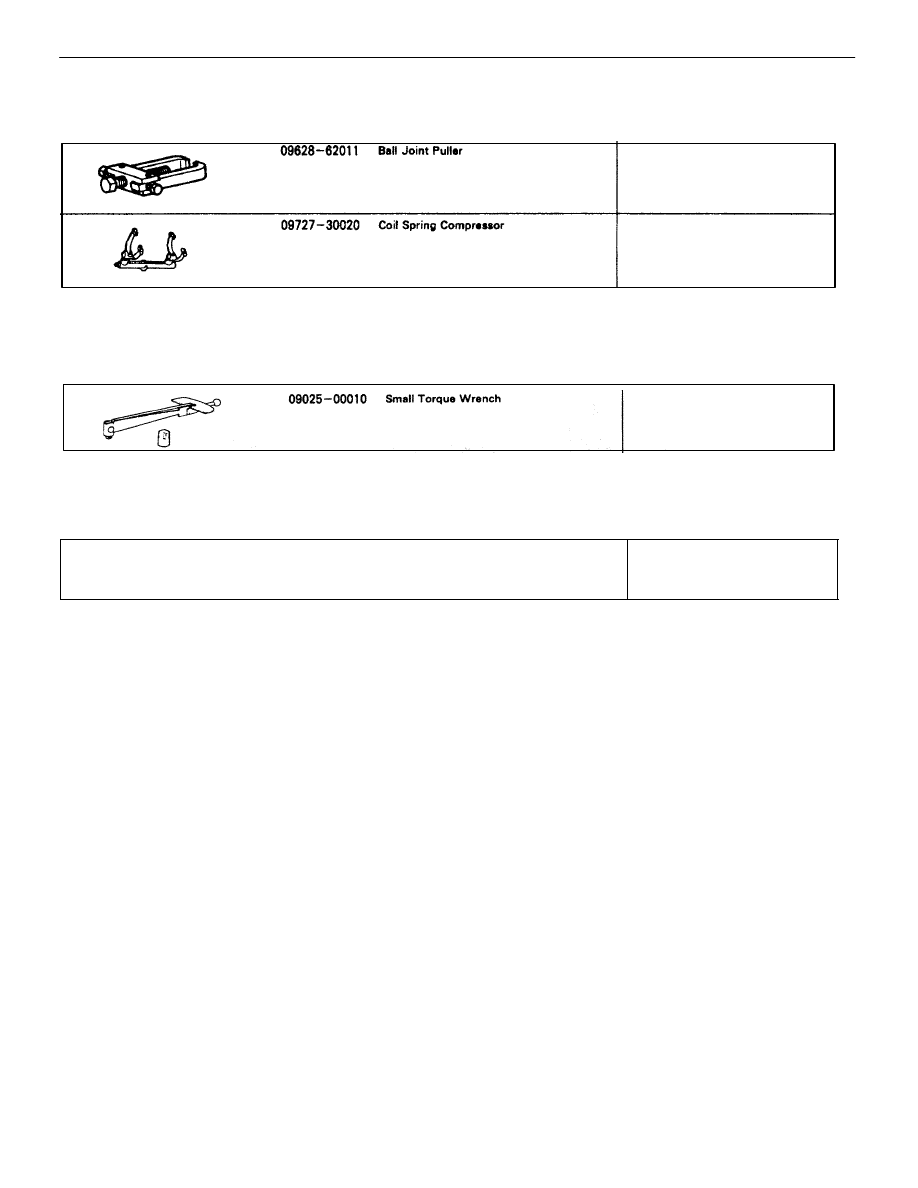

SST (SPECIAL SERVICE TOOLS)

SA02Q–07

RECOMMENDED TOOLS

SA06X–03

EQUIPMENT

SA02S–02

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Torque wrench

ÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑ

SA–26

–

SUSPENSION AND AXLE

FRONT SUSPENSION

FRONT SHOCK ABSORBER

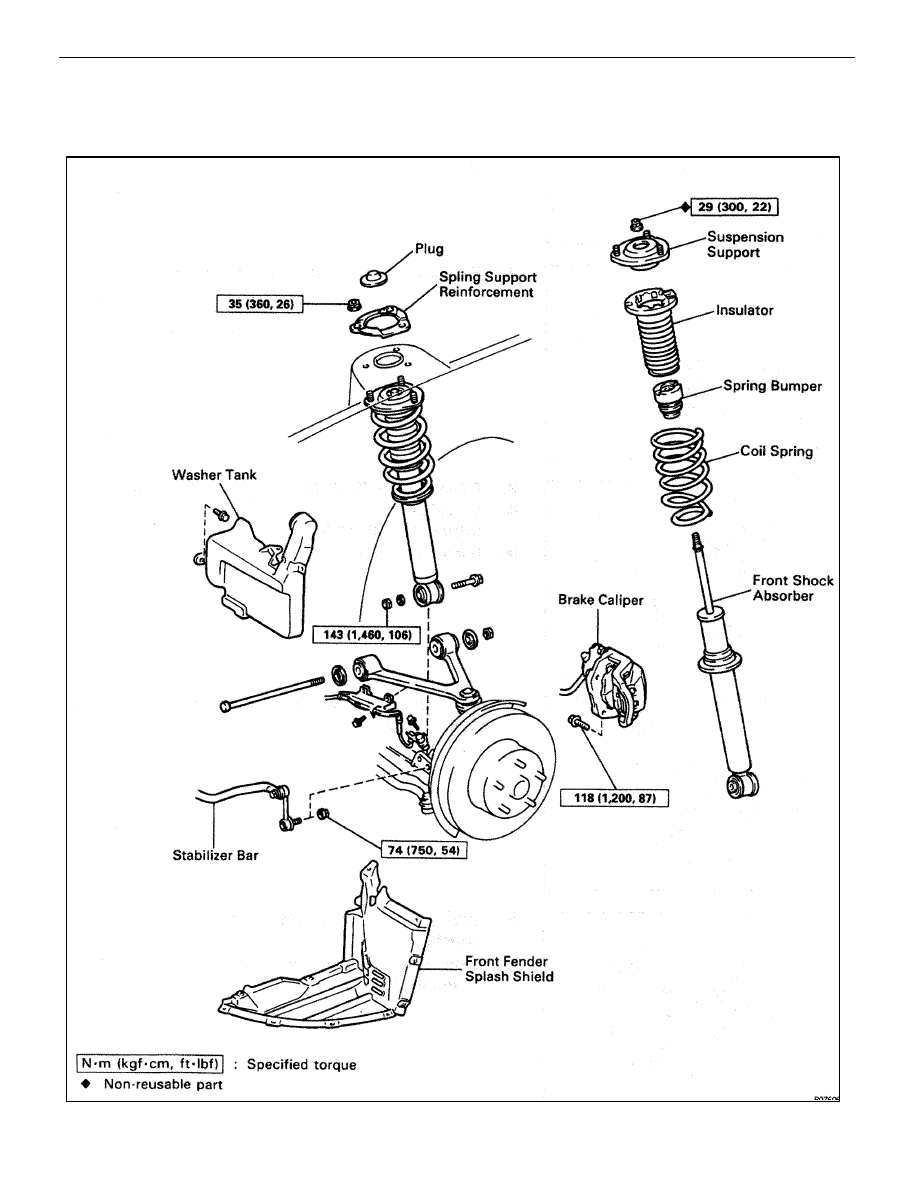

COMPONENTS

SA00A–0A

–

SUSPENSION AND AXLE

FRONT SUSPENSION

SA–27
