Lexus SC300 / Lexus SC400. Manual - part 304

REAR FLOOR NO. 1 CROSSMEMBER (ASSY),
REAR FLOOR NO. 2 CROSSMEMBER (ASSY)

REMOVAL (With the rear floor pan removed.)

1.

After removing the rear floor No. 1 cross-
member, disconnect the welding between
the rear floor crossmember reinforcement
and the rear floor side member.

BODY PANEL REPLACEMENT

RE-56

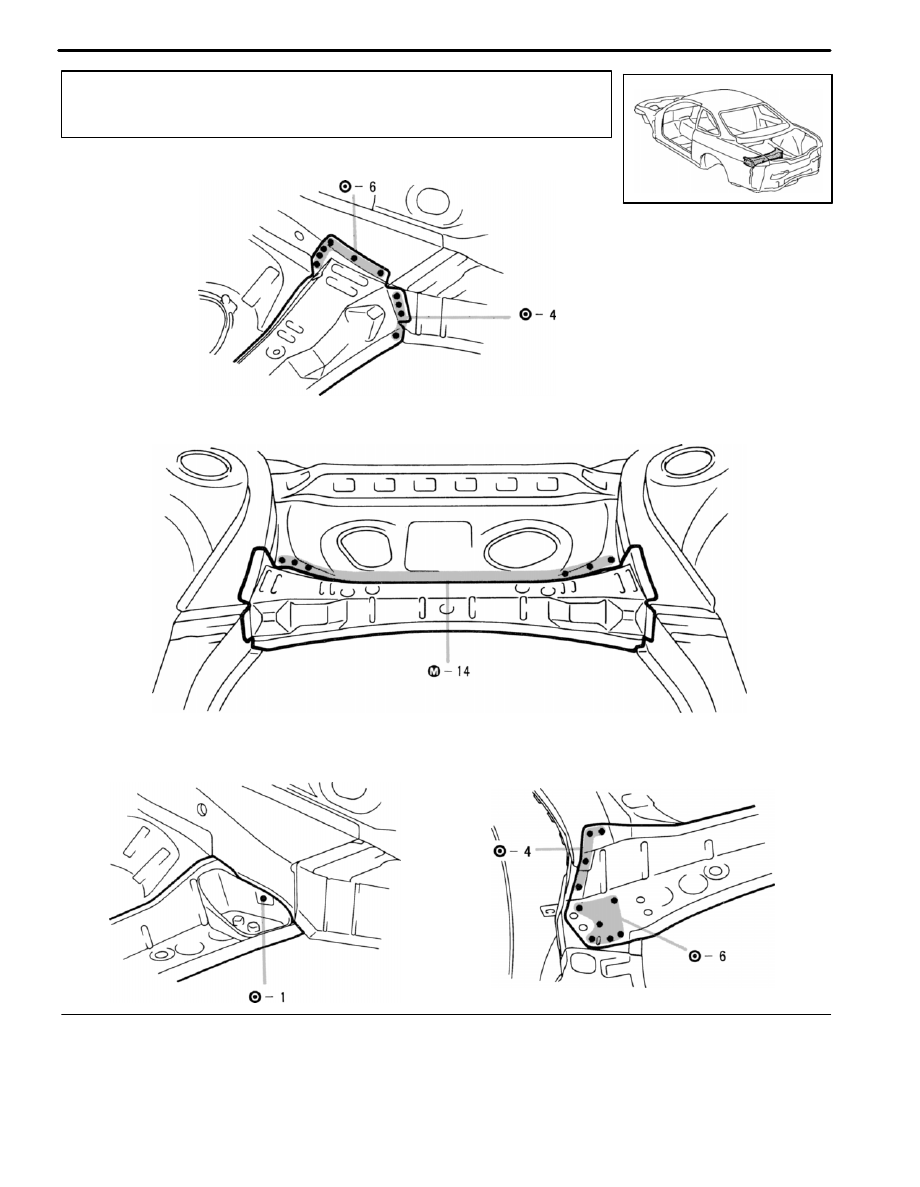

INSTALLATION

2.

After welding the rear floor No. 2 cross-
member, install the rear floor No. 1 cross-
member.

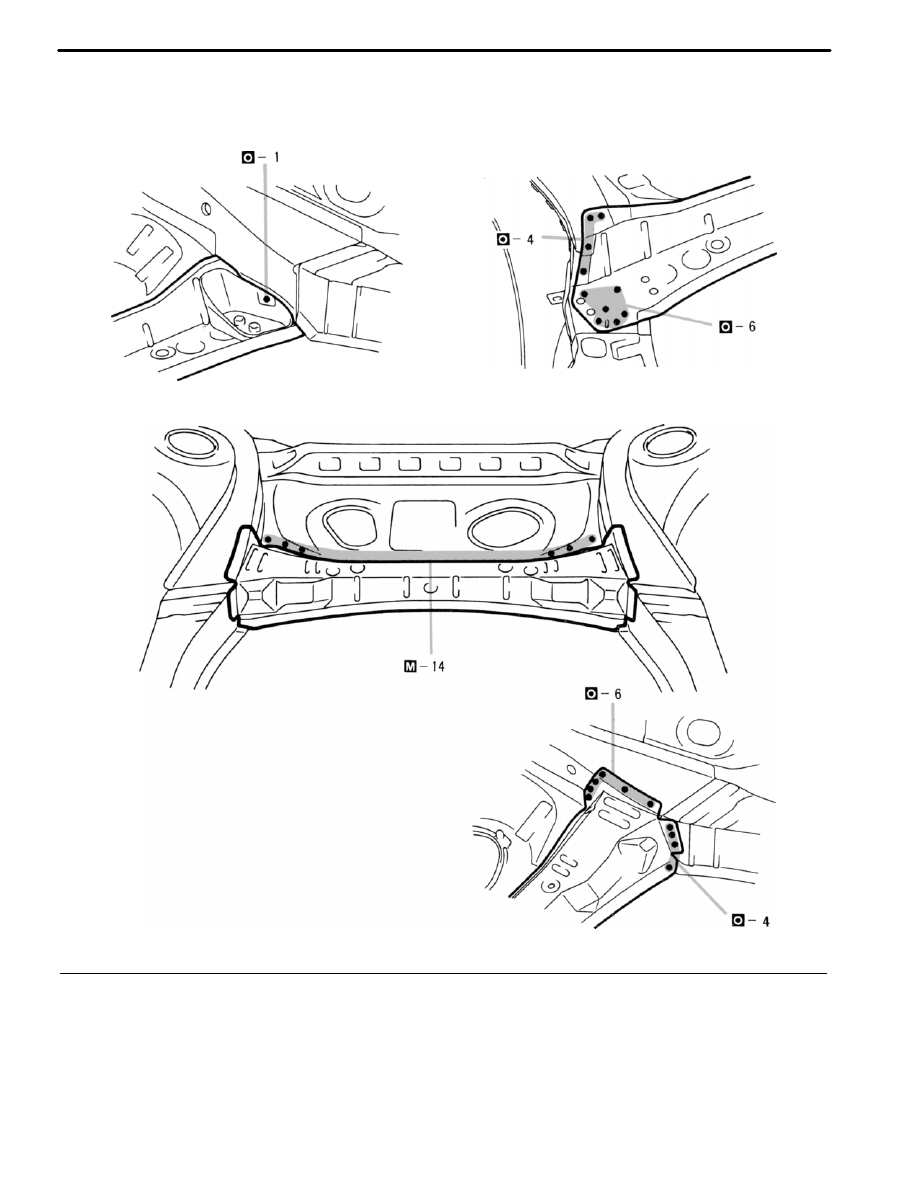

1.

Temporarily install the new parts and mea-
sure each part in accordance with the body
dimension diagram.

BODY PANEL REPLACEMENT

RE-57

Manual Name

Pub. No.

SC400 Repair Manual

SC400 Electrical Wiring Diagrar’s
Manual

Fundamental Painting Procedures

Fundamental Body Repair Procedures

BRM019U
BRM020U

M/Y Version
M/Y Version

FOREWORD

This repair manual has been prepared to provide information on
the repair methods (including cutting and welding operations,
but excluding painting) for collision- damaged body compo-
nents of the LEXUS SC400.

Applicable models: UZZ30 series

This manual consists of body repair methods, exploded dia-
grams and illustrations of the body components and other infor-
mation relating to body panel replacement such as handling
precautions, etc. However, it should be noted that the front fend-
ers of the LEXUS model is bolted on and require no welding.

For the repair procedures and specifications other than colli-
sion-damaged  body components of the LEXUS SC400 refer to
the following repair manuals.

If you require the above manuals, please contact your LEXUS
Dealer.

All information contained in this manual is the most up-to-date
at the time of publication. However, specifications and proce-
dures are subject to change without prior notice.

TOYOTA MOTOR CORPORATION

mm

in.

1
1.5
3.5
4
4.8
5
5.5
6

0.04
0.06
0.14
0.16
0.19
0.20
0.22
0.24

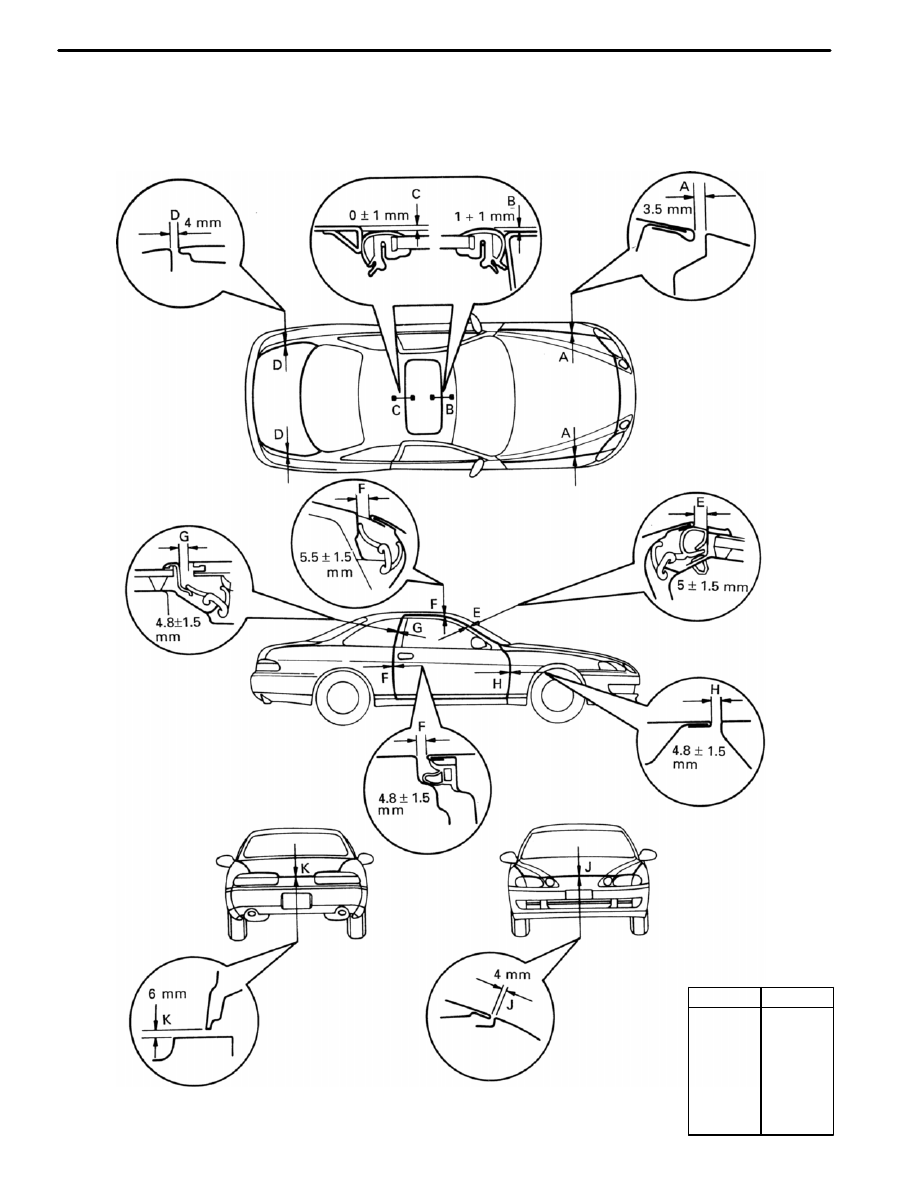

FIT STANDARDS

After doors and the engine hood are installed, be sure to perform flit adjustment to prevent abnormal wind
noise and ensure a good appearance.

APPENDIX

AP-2
