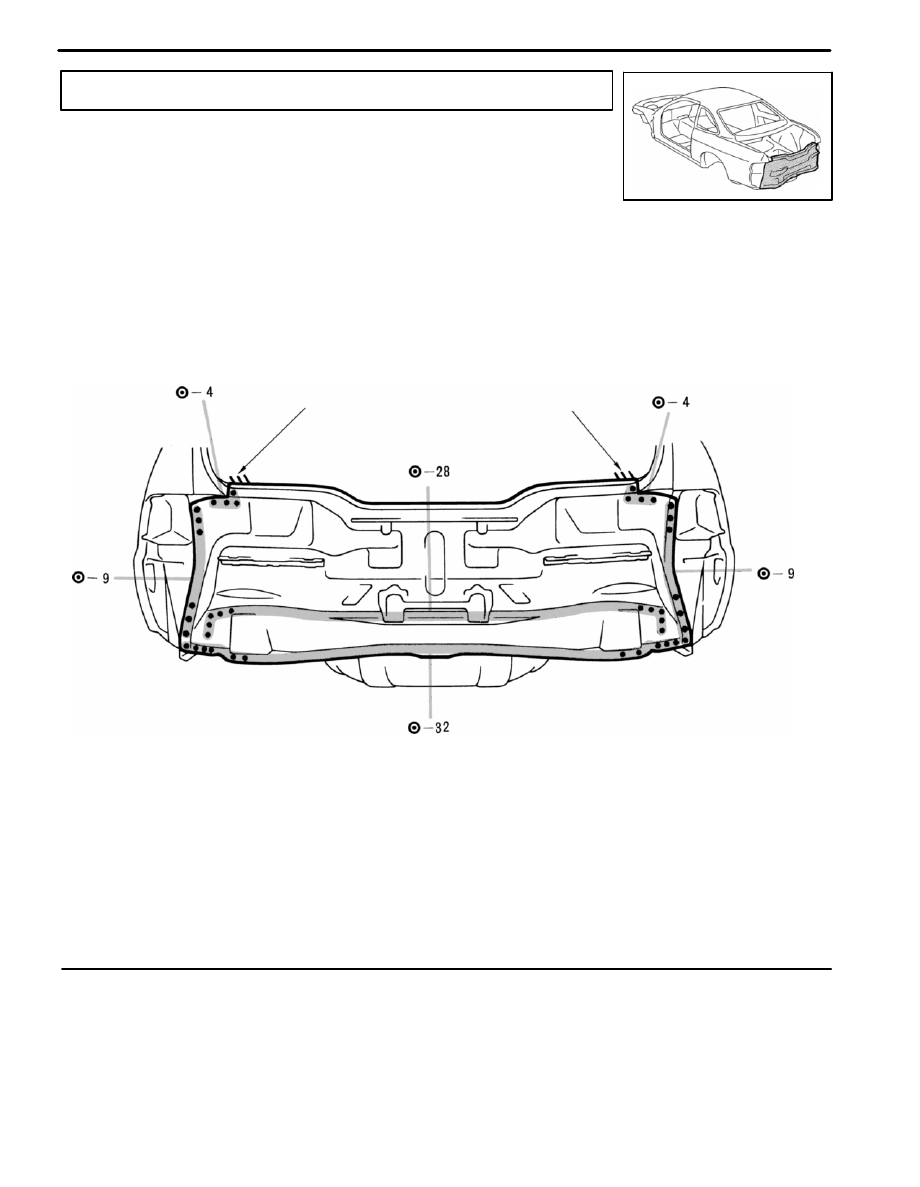

BODY LOWER BACK PANEL (ASSY)

REMOVAL

Braze

Braze

BODY PANEL REPLACEMENT

RE-48

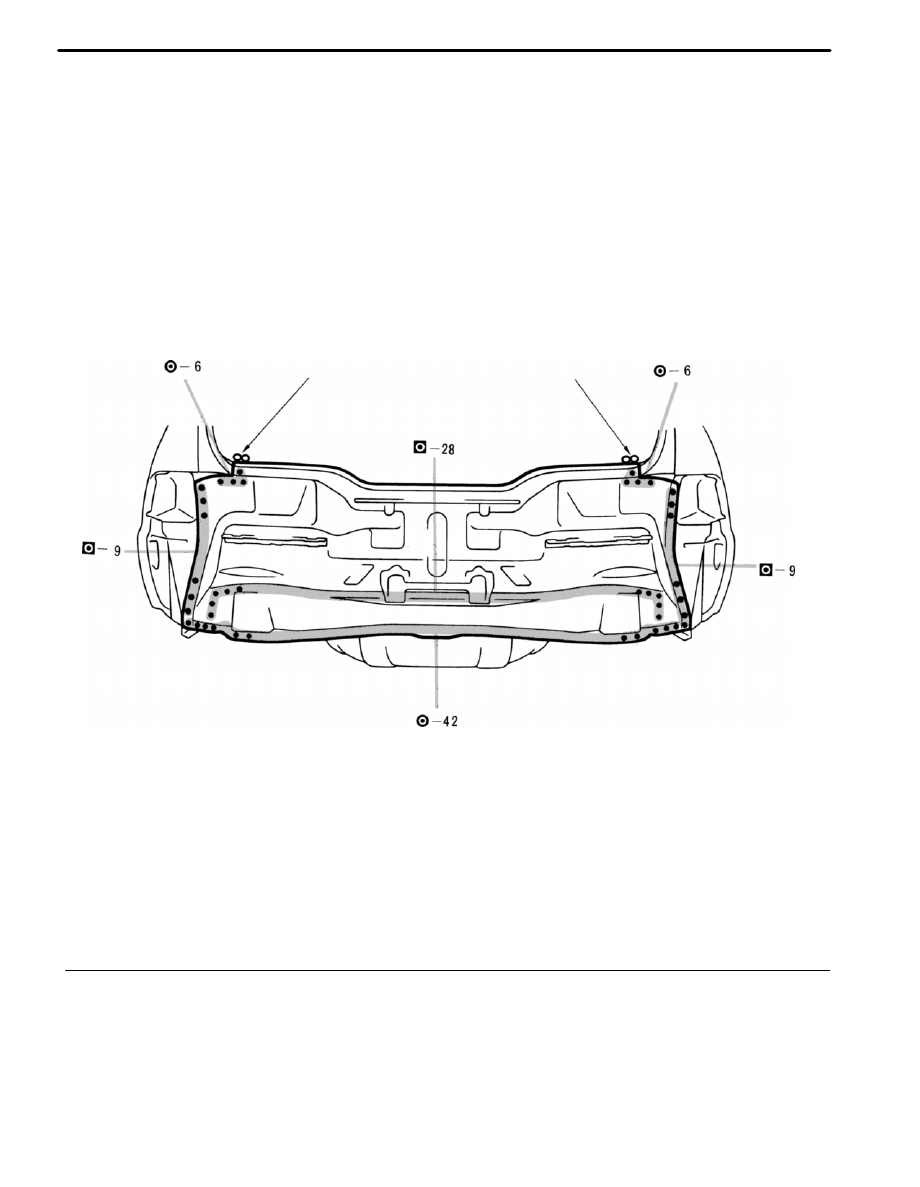

INSTALLATION

Braze

Braze

1.

Temporarily install the new parts and check the
fit of the luggage compartment door and rear
combination light.

BODY PANEL REPLACEMENT

RE-49

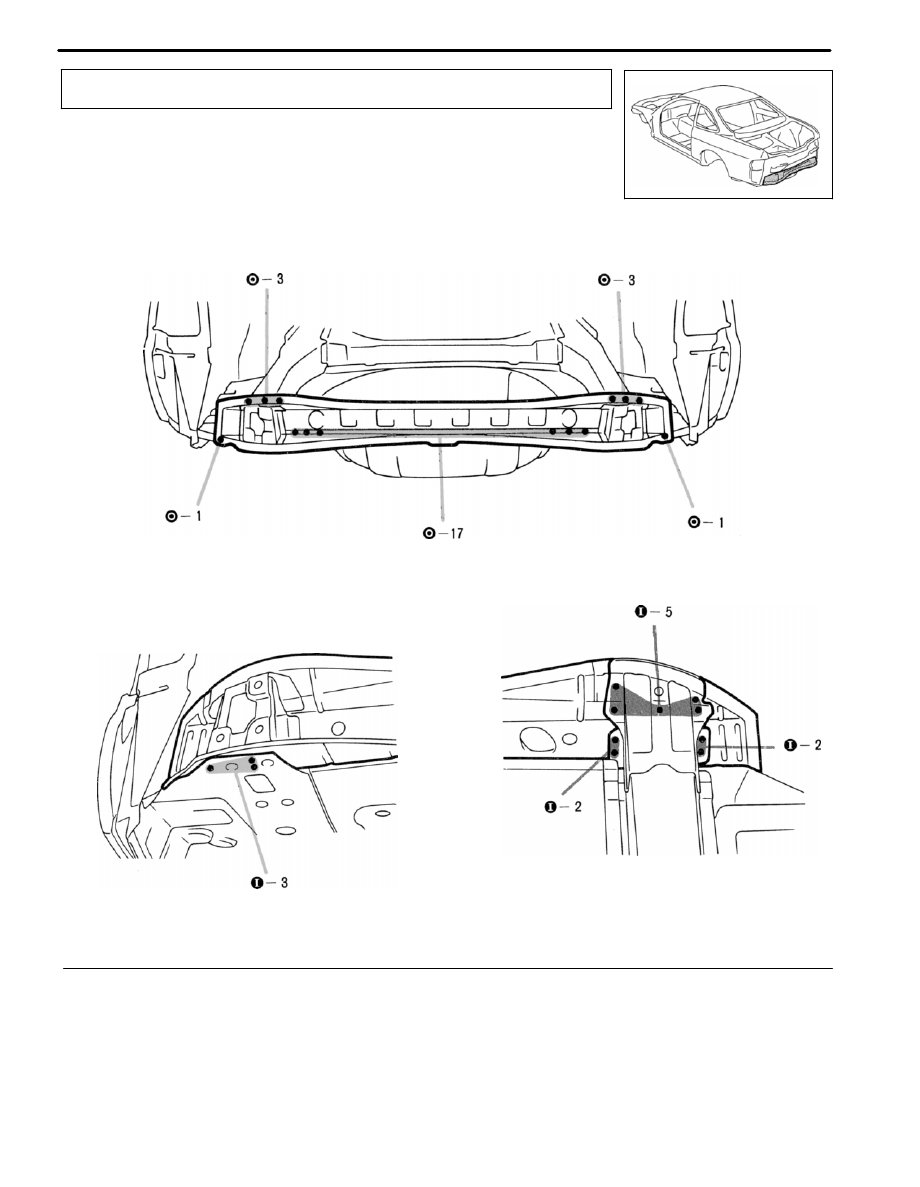

REAR FLOOR NO. 3 CROSSMEMBER (ASSY)

REMOVAL (With the body lower back panel removed.)

BODY PANEL REPLACEMENT

RE-50

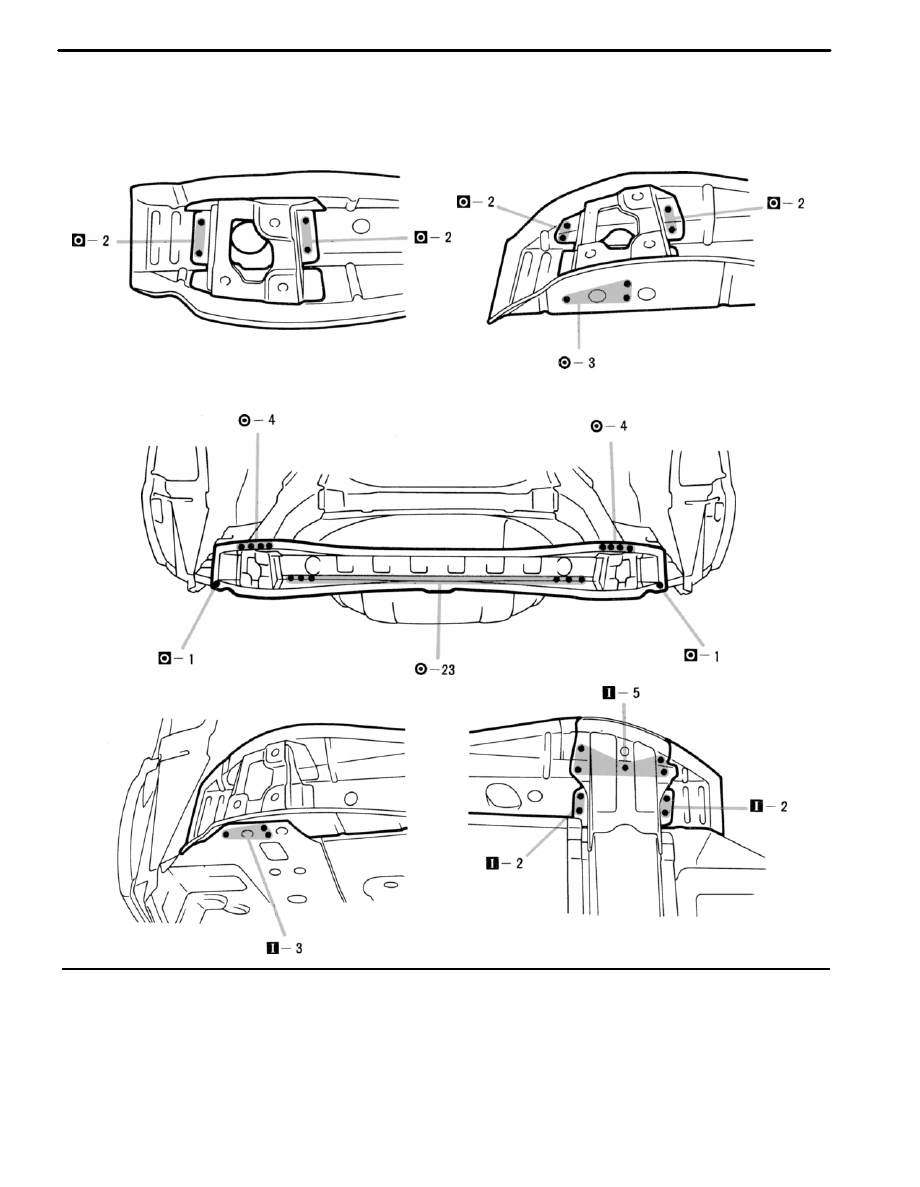

INSTALLATION

1.

Before welding the new parts, temporarily install
the body lower back panel and check the fit.

BODY PANEL REPLACEMENT

RE-51
