Lexus SC300 / Lexus SC400. Manual - part 303

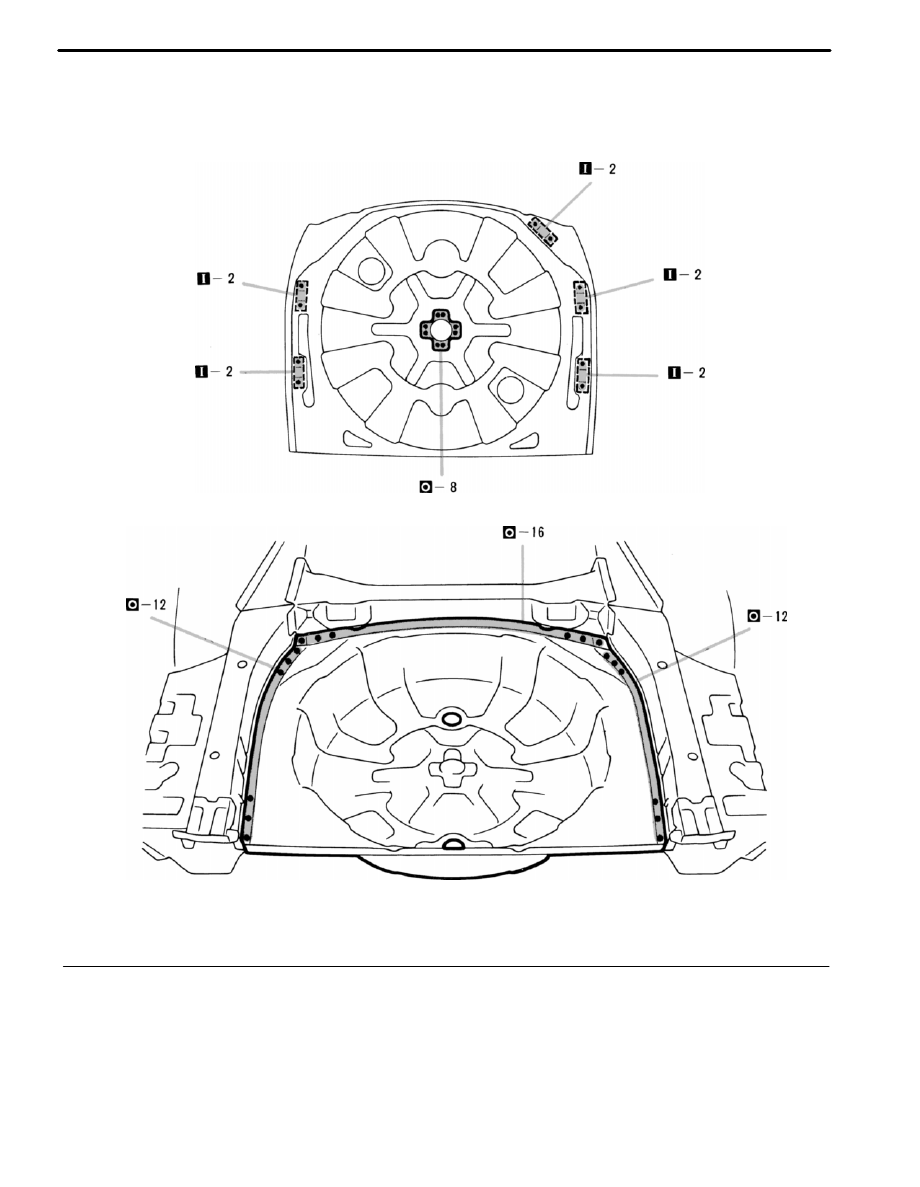

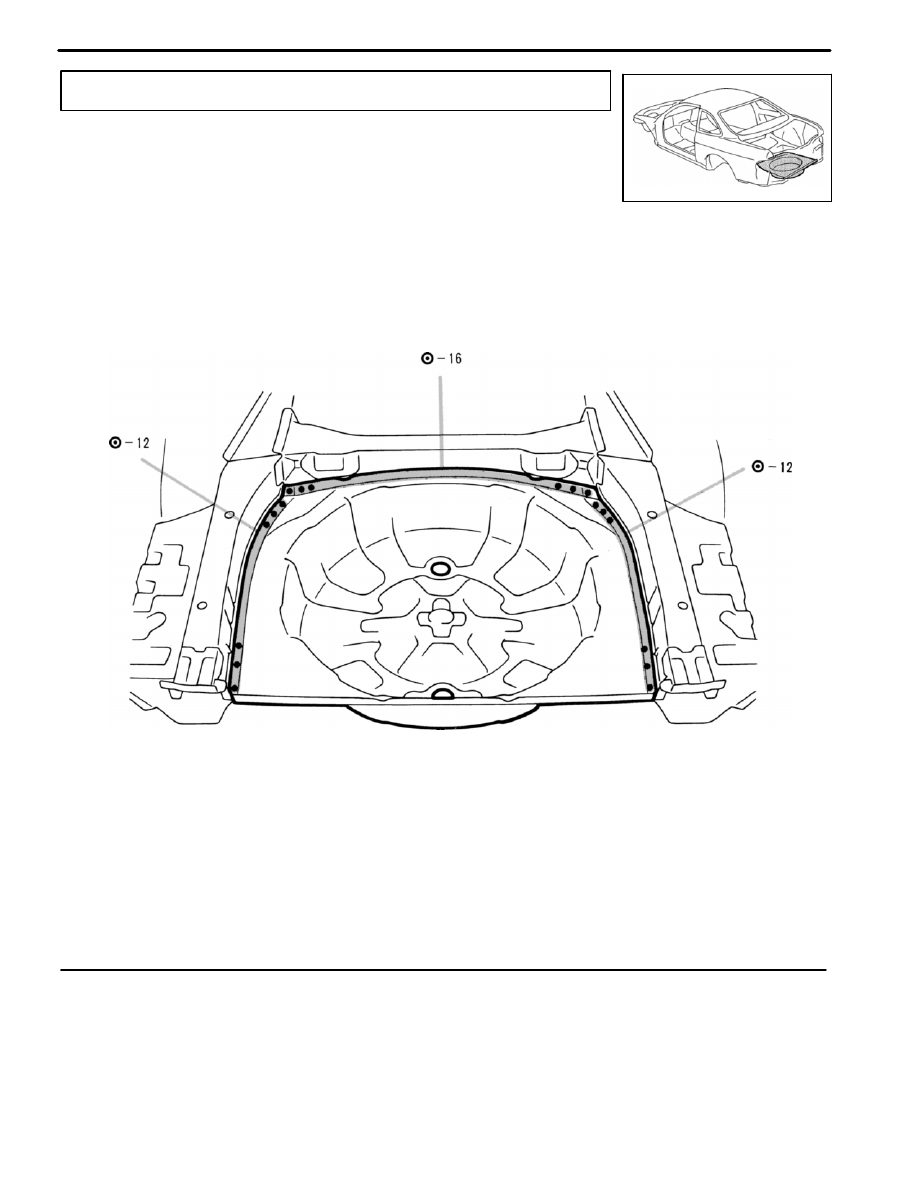

REAR FLOOR PAN (ASSY)

REMOVAL (With the rear floor No. 3 crossmember
removed.)

BODY PANEL REPLACEMENT

RE-52

INSTALLATION

BODY PANEL REPLACEMENT

RE-53

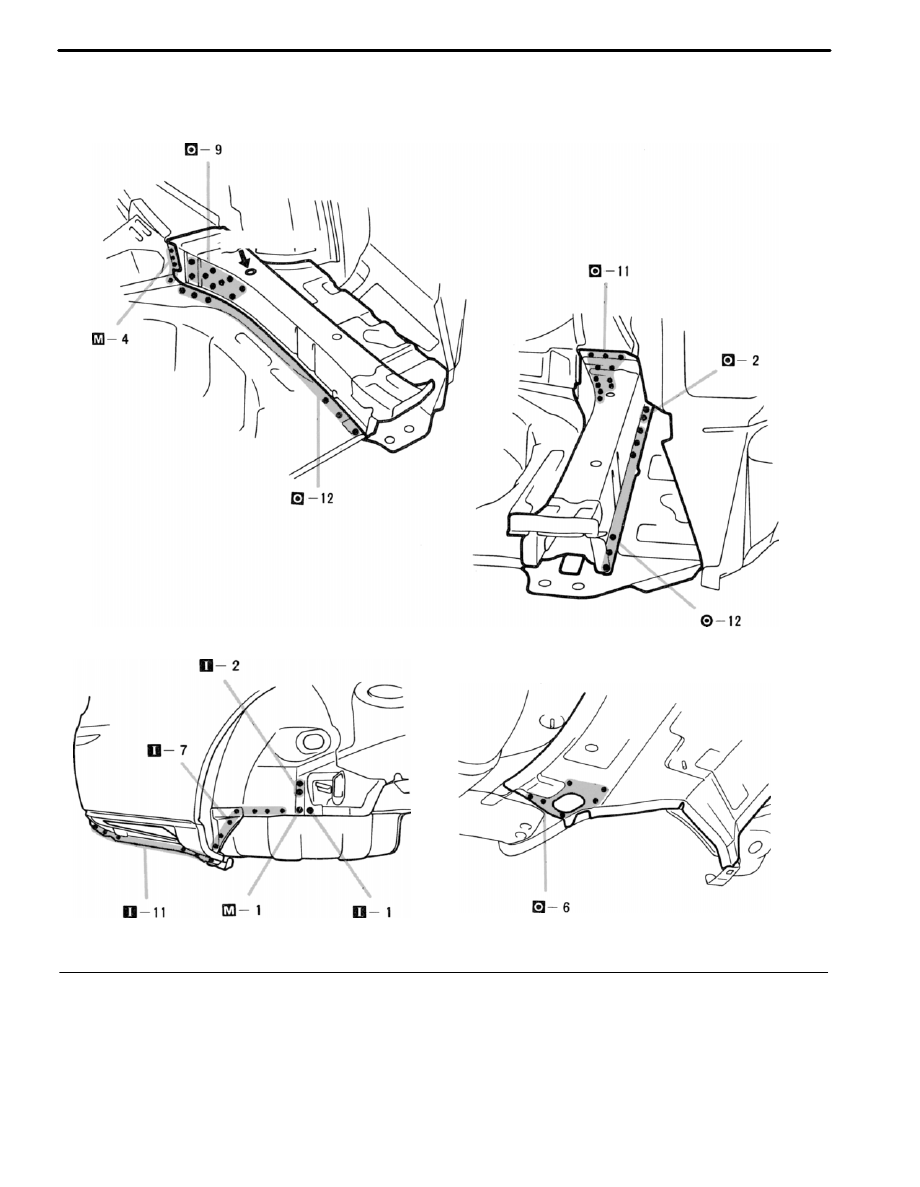

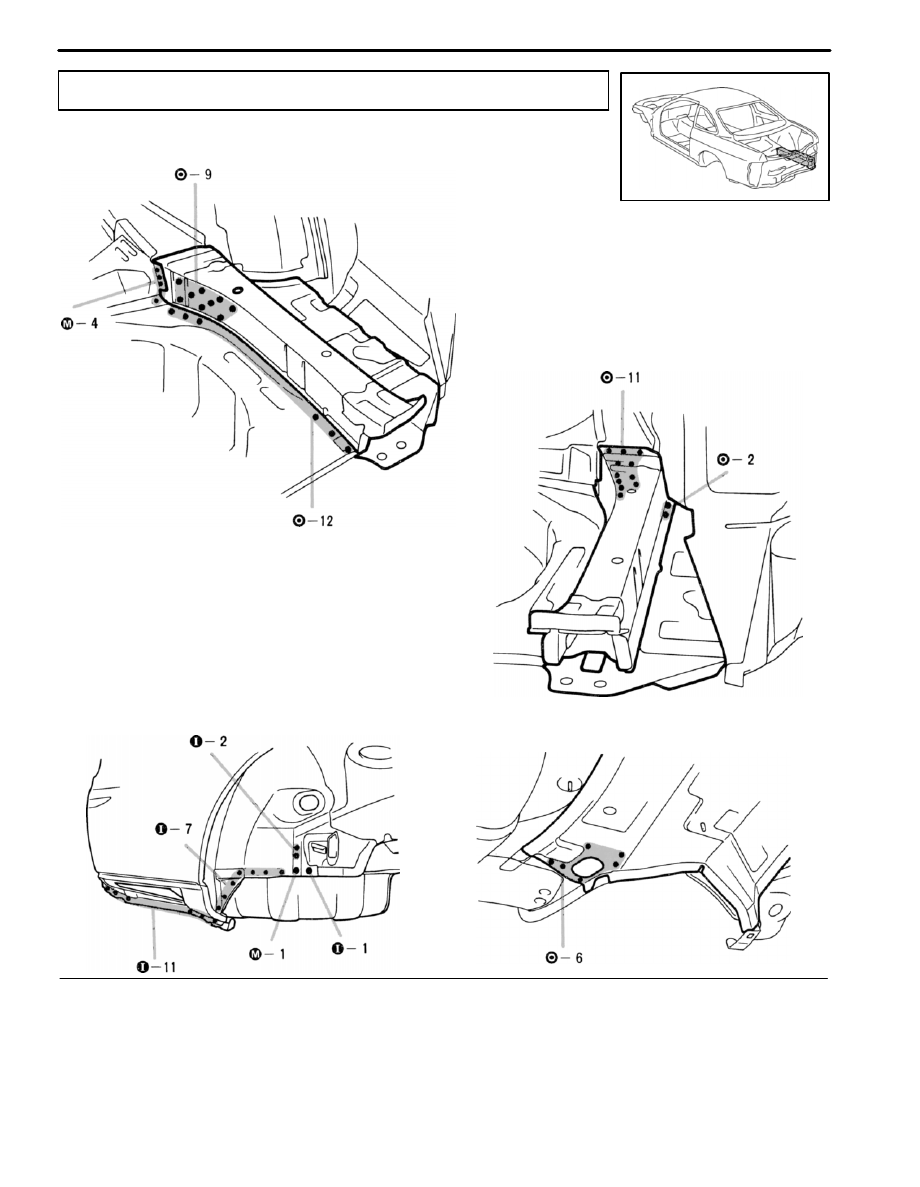

REAR FLOOR REAR SIDE MEMBER (ASSY)

REMOVAL (With the rear floor No. 3 crossmember
removed.)

1.

Replace the rear floor pan to quarter panel
extension at the same time.

BODY PANEL REPLACEMENT

RE-54

INSTALLATION

Assembly Mark

1.

When temporarily installing the new parts,
determine the installation position by the
assembly mark. Then, measure each part
in accordance with the body dimension dia-
gram.

BODY PANEL REPLACEMENT

RE-55
