Lexus SC300 / Lexus SC400. Manual - part 300

mm

in.

150
200
300

5.91
7.87
11.81

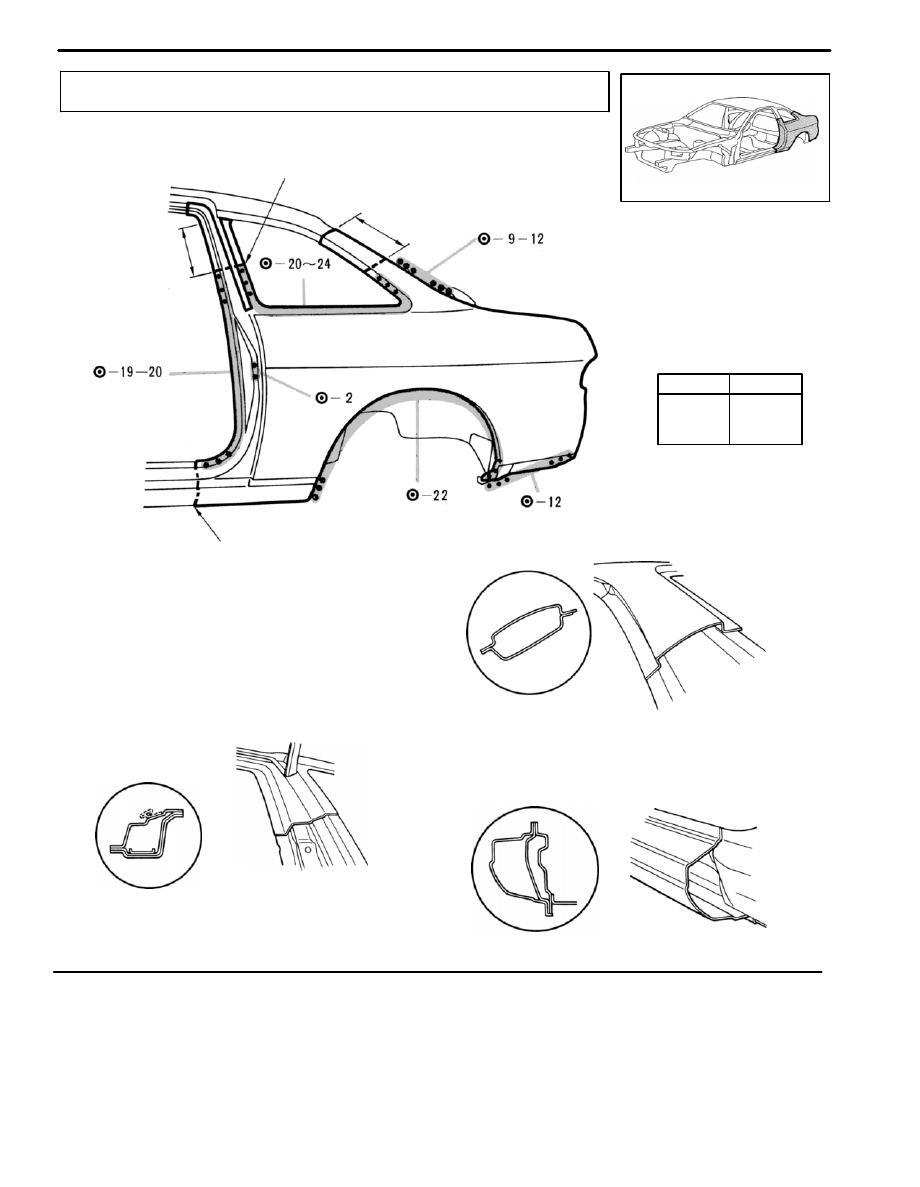

QUARTER PANEL (CUT)

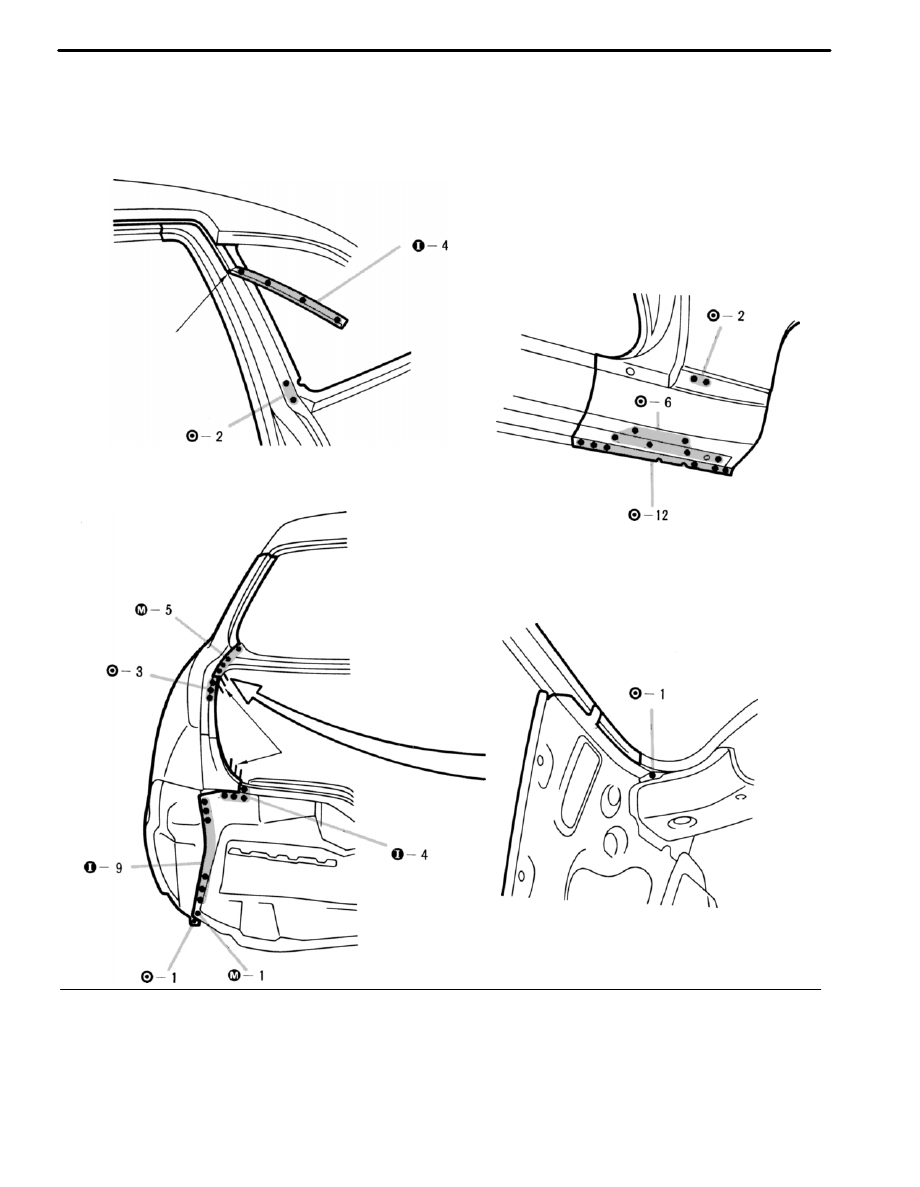

REMOVAL

Cut and Join Location

200 - 300 mm

150 - 200 mm

[Cut and Join Location]

Cut and Join Location
(Cut Location for Supply Parts)

1.

Cut and join the parts at the location shown
above.

HINT: Make incision and bend the roof drip channel
at the upper part of the cut and join location.

BODY PANEL REPLACEMENT

RE-40

Make incision

BODY PANEL REPLACEMENT

RE-41

mm

in.

5

0.20

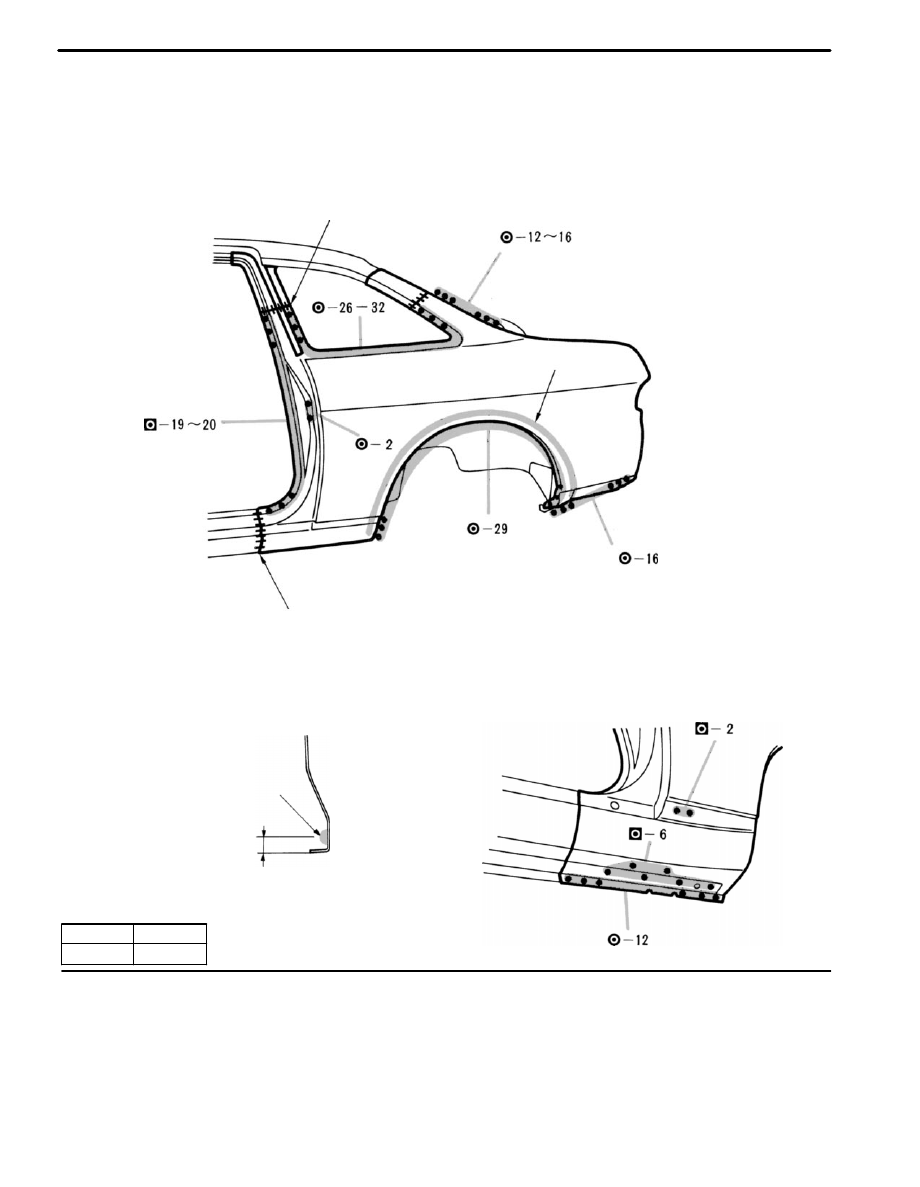

INSTALLATION

Butt Weld

Body Sealer

Butt Weld

Body Sealer

about 5 mm

1.

Before temporarily installing the new parts,
apply body sealer to the wheel arch.

HINT:
1)

Apply body sealer about 5 mm (0.20 in.) from
the flange, avoiding any oozing.

2)

Apply sealer evenly, about 3 - 4 mm (0.12 -
0.16 in.) in diameter.

3)

For other sealing points, refer to section AR.

2.

Temporarily install the new parts and check
the fit of the front door, luggage compartment
door and rear combination light.

3.

Apply foamed material to the pillar section.

HINT: For the foamed material application areas,
refer to page

AP-4

.

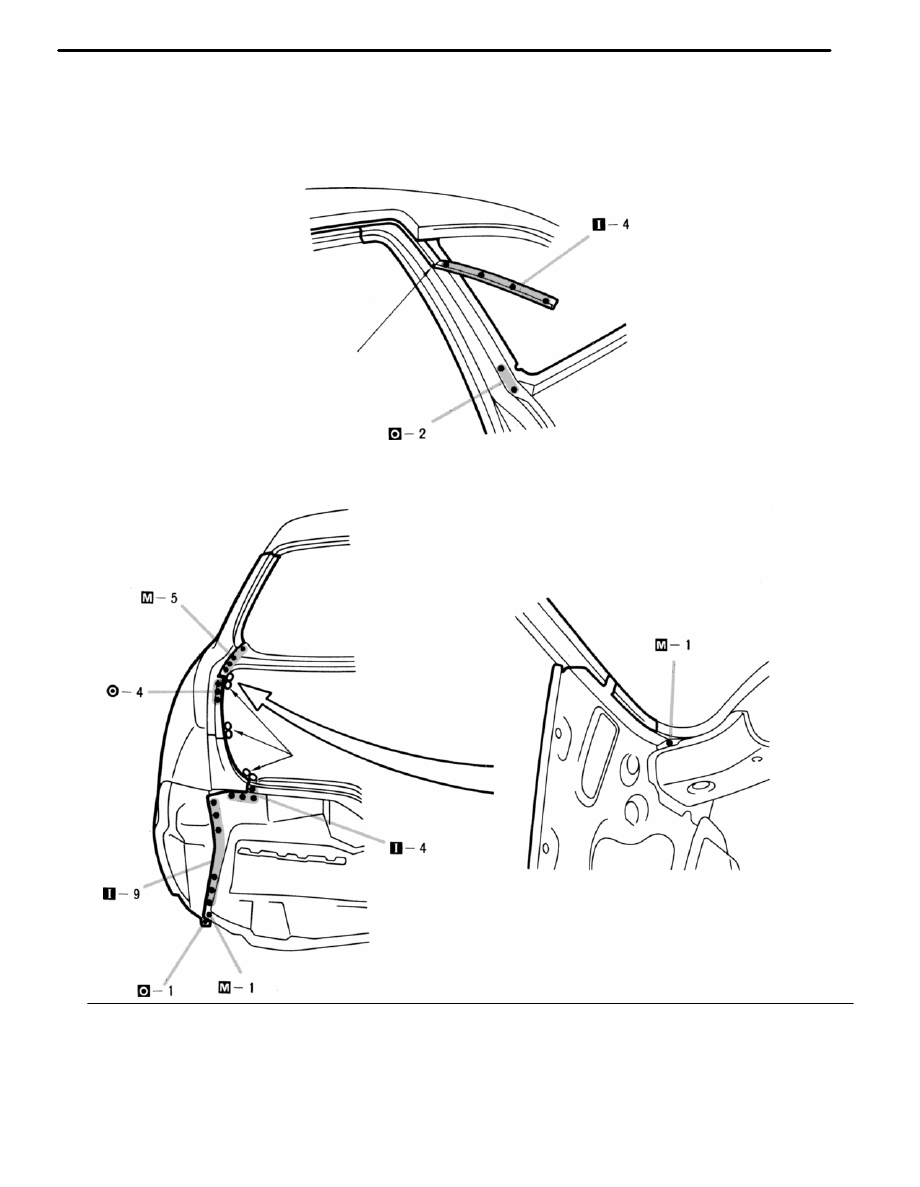

BODY PANEL REPLACEMENT

RE-42

Butt Weld

BODY PANEL REPLACEMENT

RE-43
