FRONT SIDE MEMBER (ASSY)

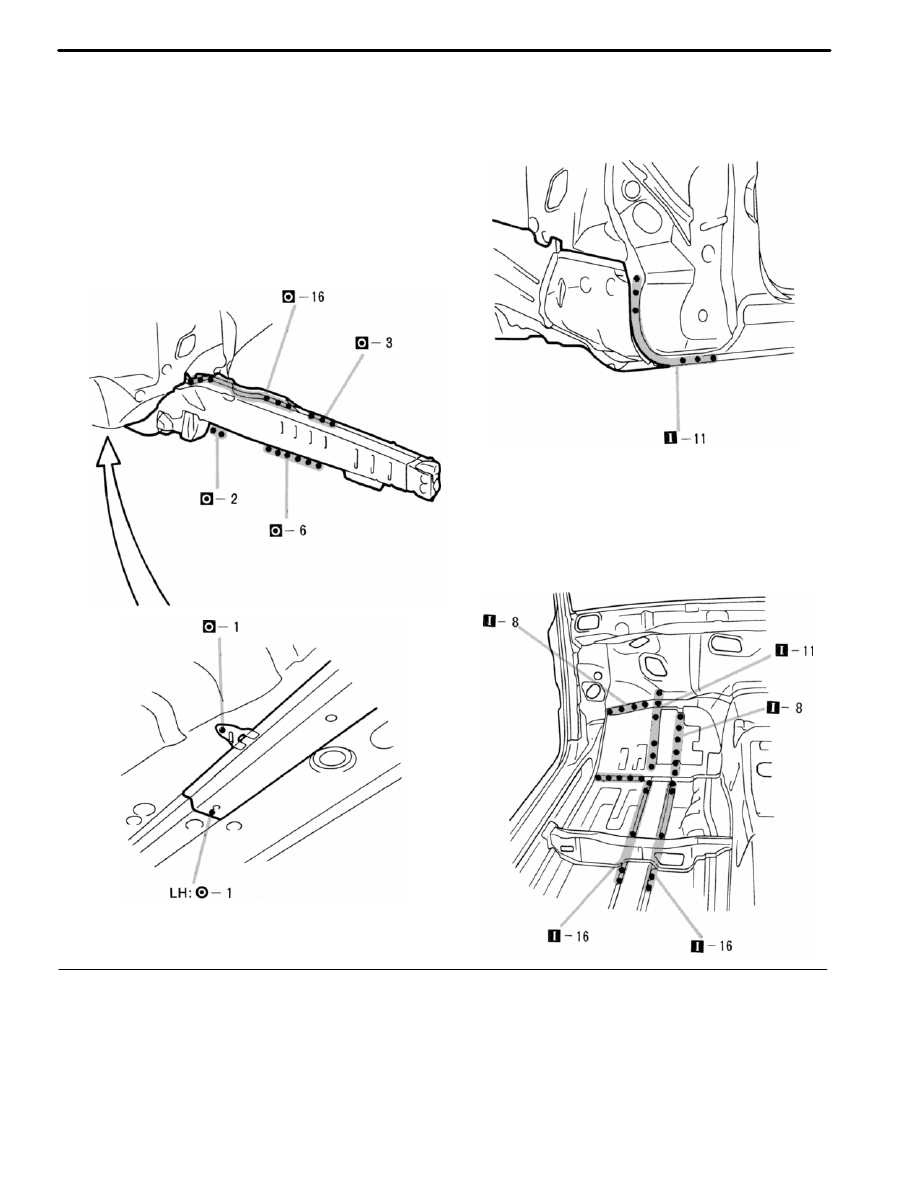

REMOVAL (With the front crossmember and the front
fender apron removed.)

LH:

1.

Replace the front side member No. 3 reinforce-
ment at the same time.

BODY PANEL REPLACEMENT

RE-17

INSTALLATION

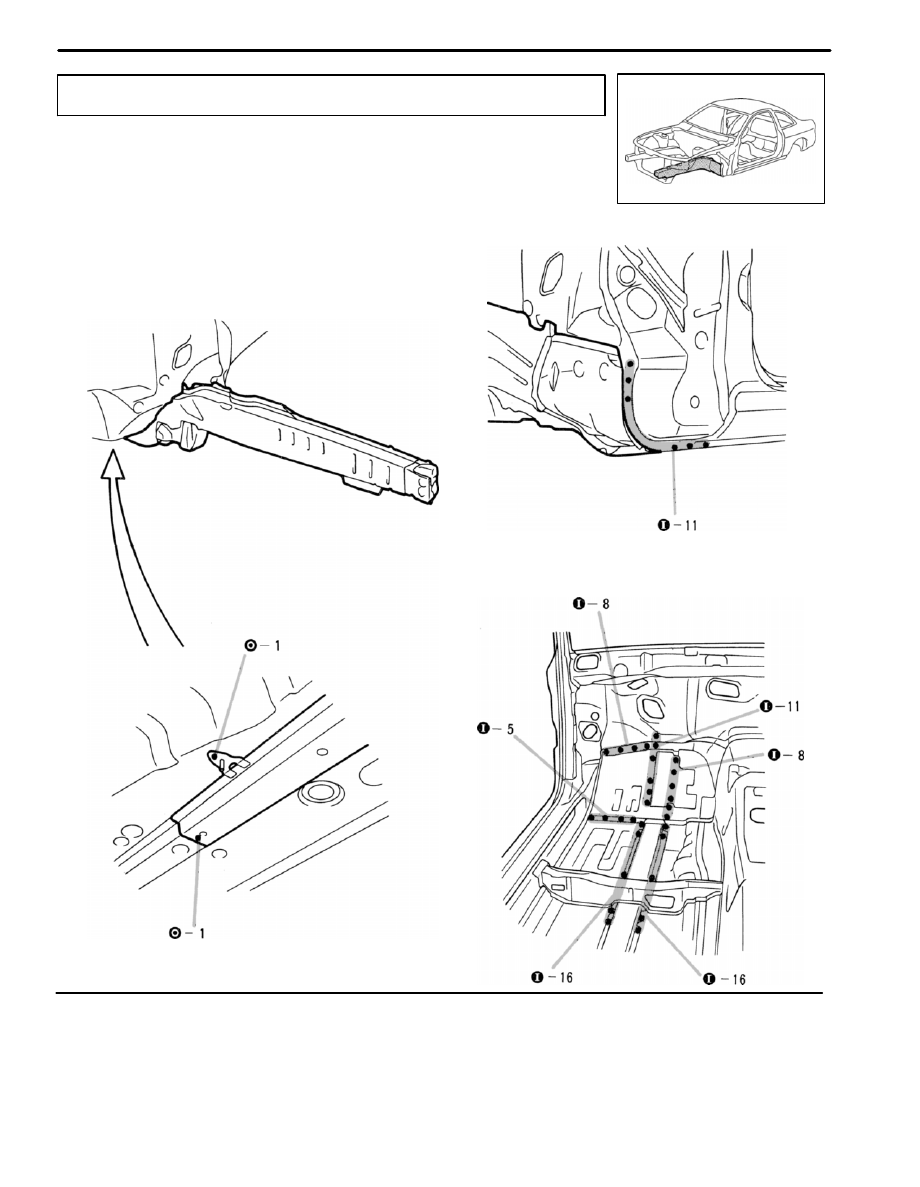

Front Side
Member

Front Side Member
No. 3 Reinforcement

Front Side Member
Plate

1.

Before temporarily installing the new front
side member, weld the front side member
No. 3 reinforcement with standard points.

2.

Temporarily install the new parts and measure
each part in accordance with the body dimen-
sion diagram.

NOTICE: Make sure each measurement is correct,
as this part affects the front wheel alignment.

BODY PANEL REPLACEMENT

RE-18

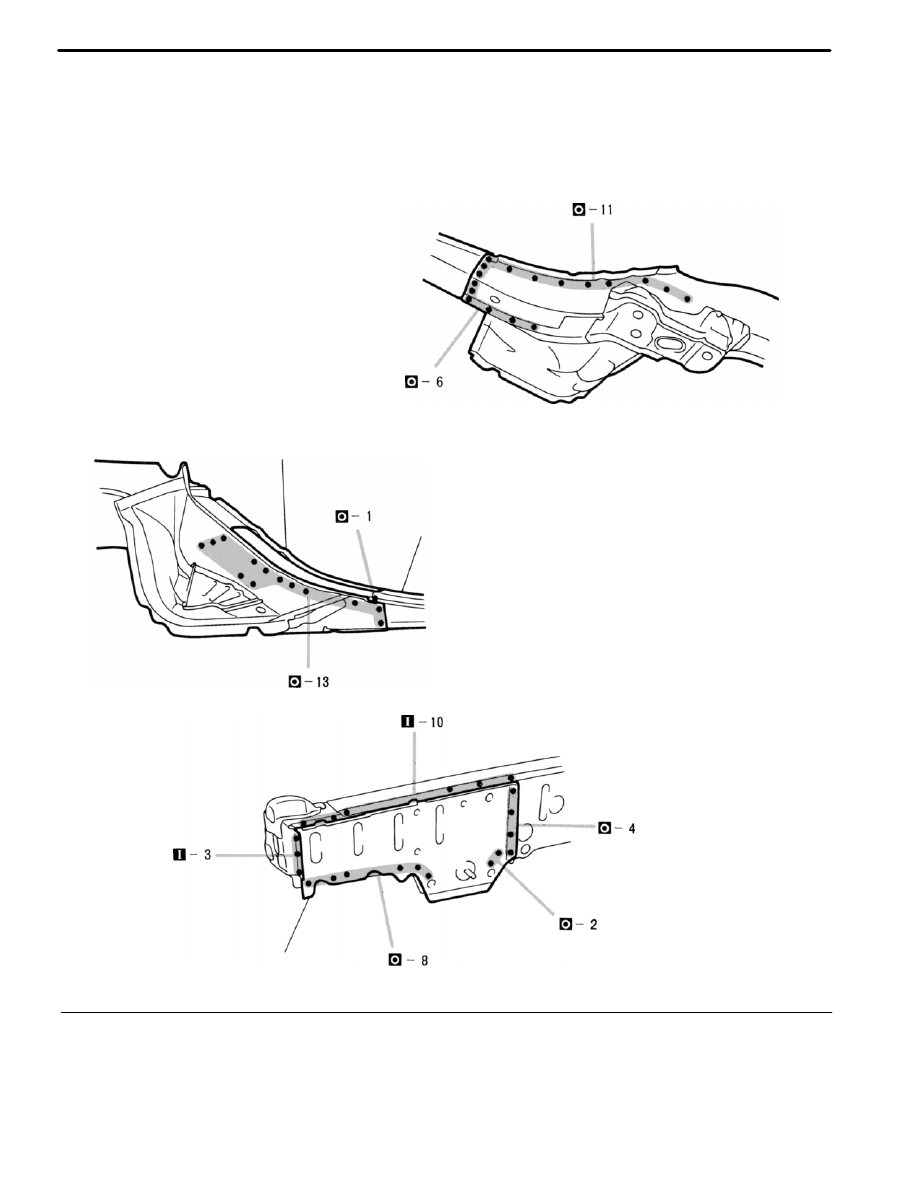

INSTALLATION

BODY PANEL REPLACEMENT
