FRONT APRON TO COWL SIDE UPPER
MEMBER (ASSY)

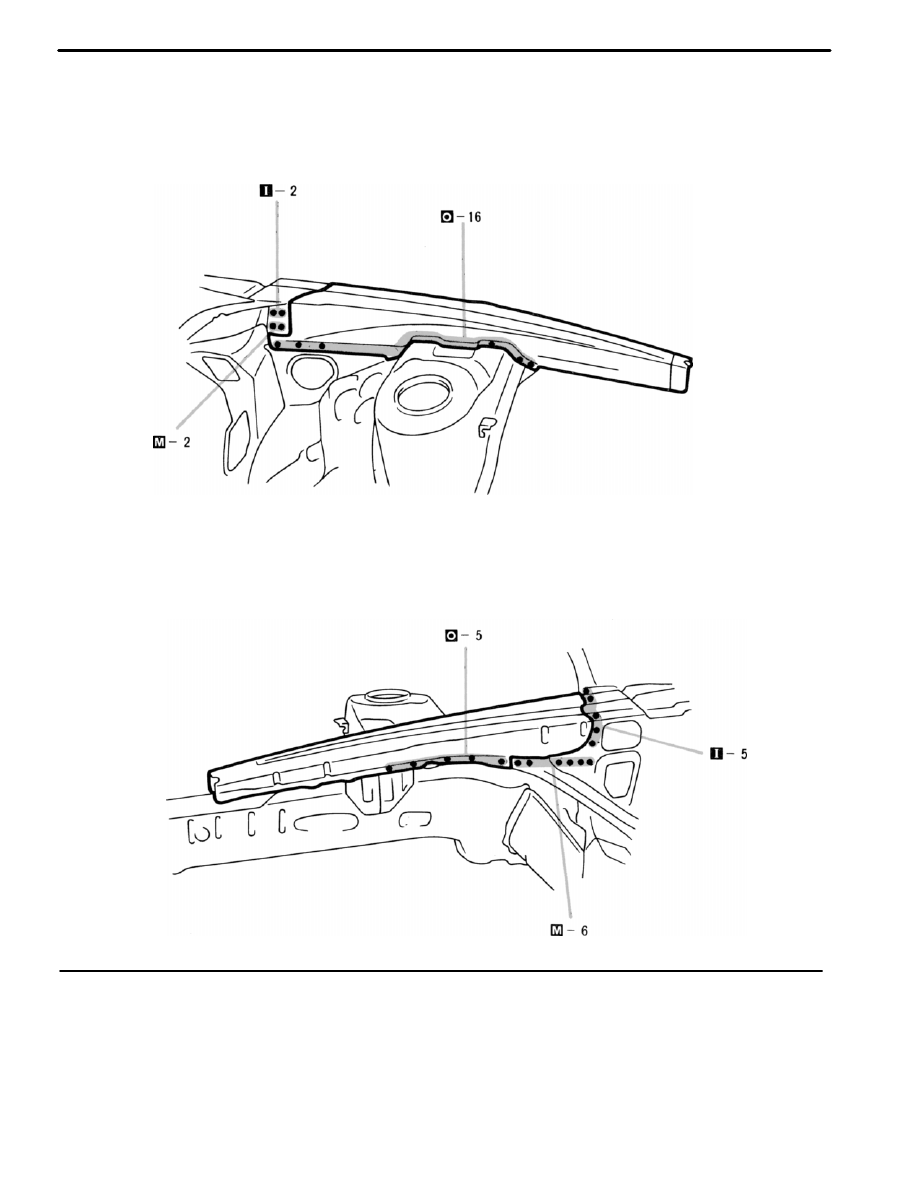

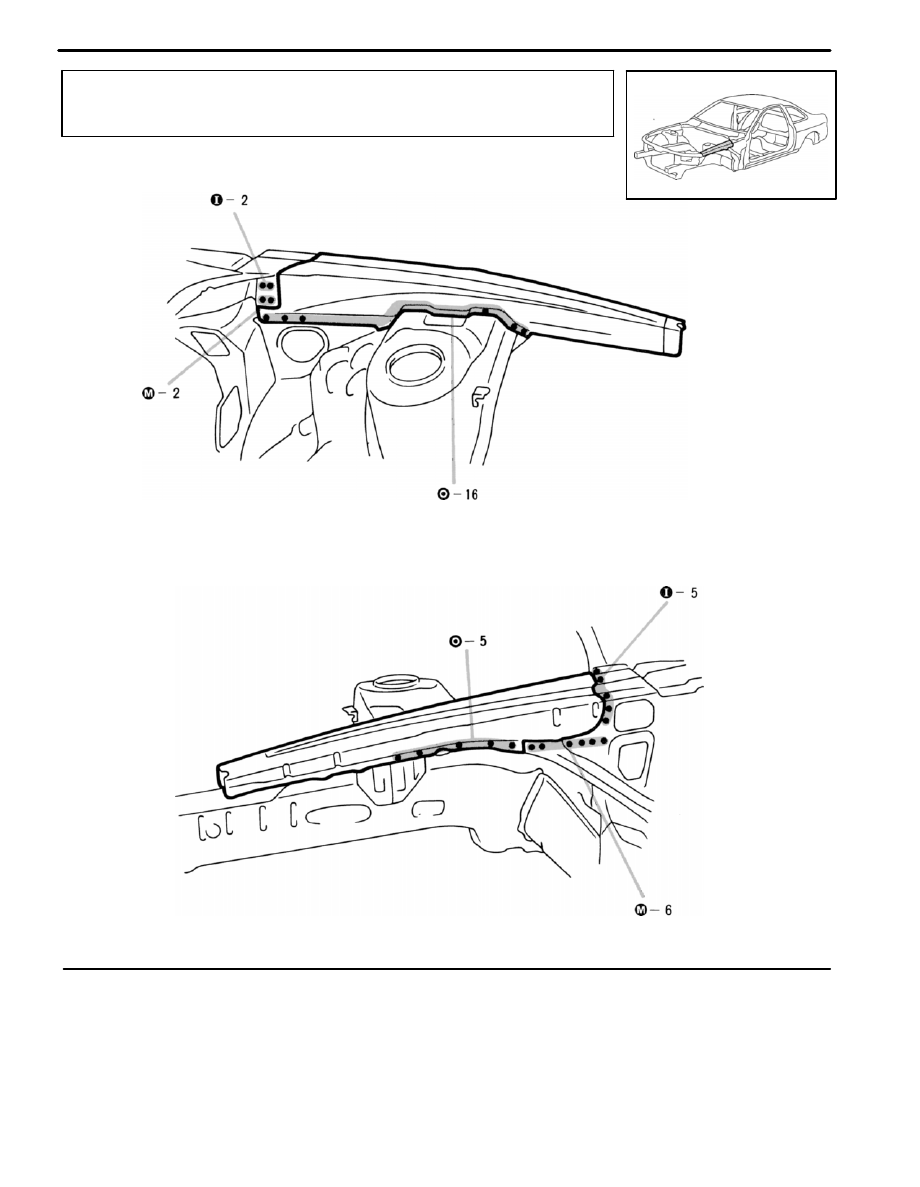

REMOVAL (With the front fender front apron removed.)

BODY PANEL REPLACEMENT

RE-8

INSTALLATION

1.

Temporarily install the new parts and mea-
sure each part in accordance with the body
dimension diagram.

2.

Temporarily install the front fender and the
hood, and check the fit.

BODY PANEL REPLACEMENT

RE-9

FRONT FENDER APRON (ASSY)

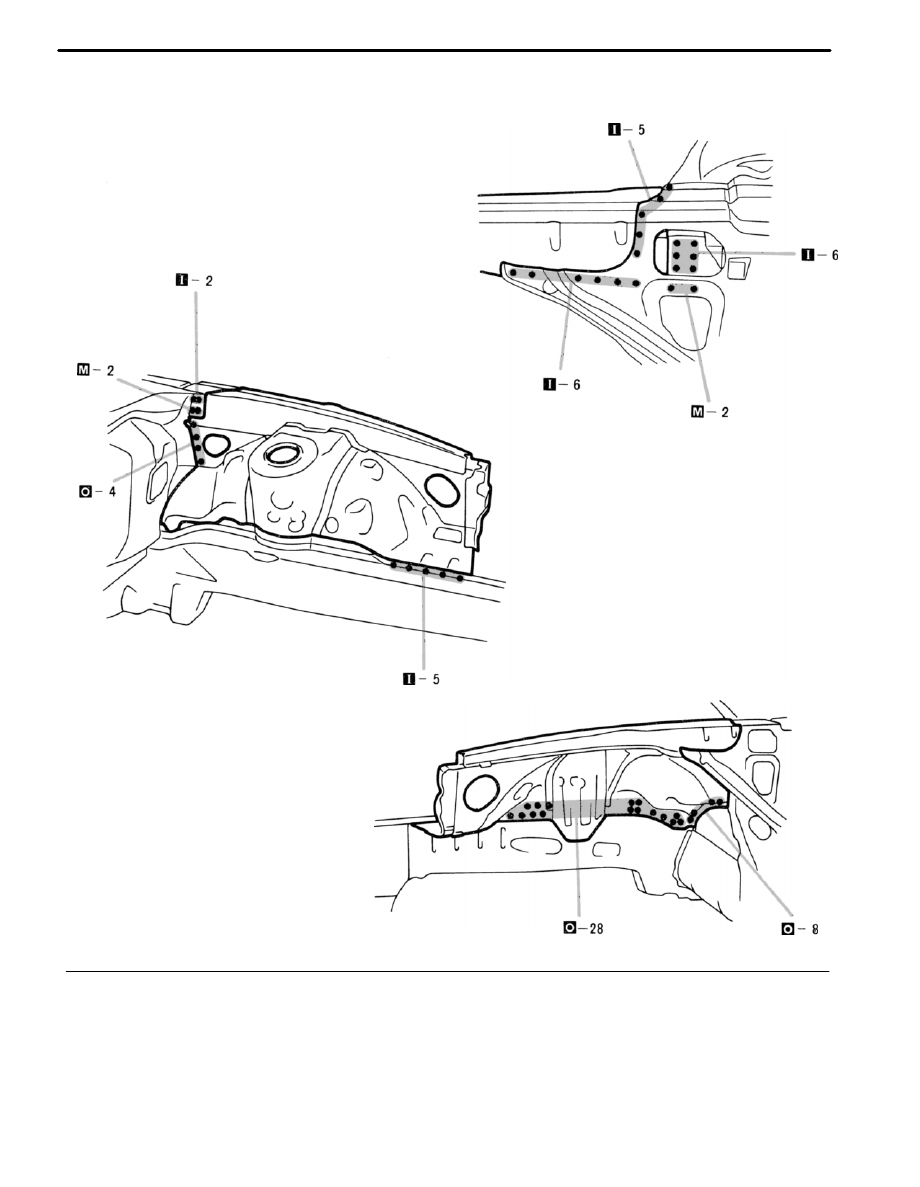

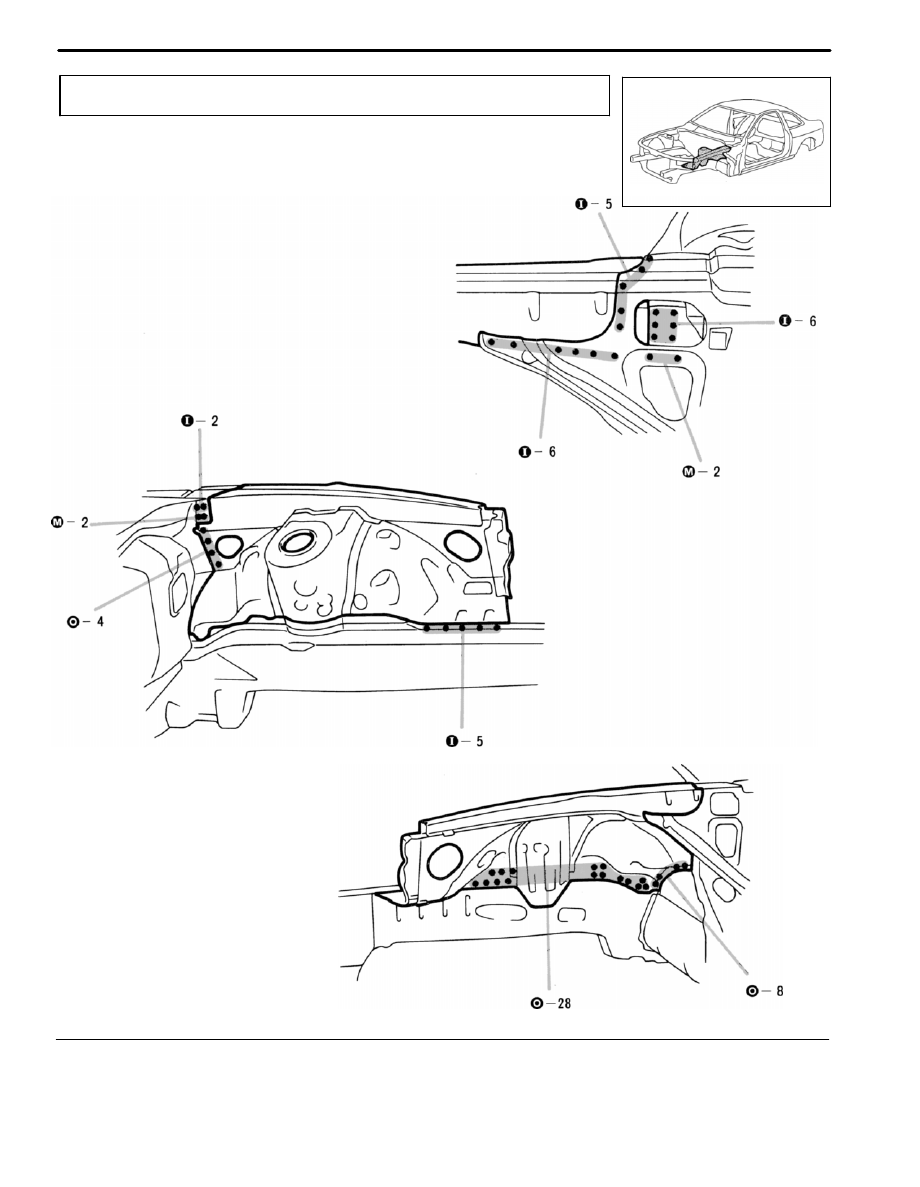

REMOVAL (With the radiator upper support removed.)

BODY PANEL REPLACEMENT

RE-10

INSTALLATION

2.

Temporarily install the front fender and the
hood, and check the fit.

1.

Temporarily install the new parts and mea-
sure each part in accordance with the body
dimension diagram.

NOTICE: Make sure each measurement is correct,
as this parts affects the front wheel alignment.

BODY PANEL REPLACEMENT

RE-11
