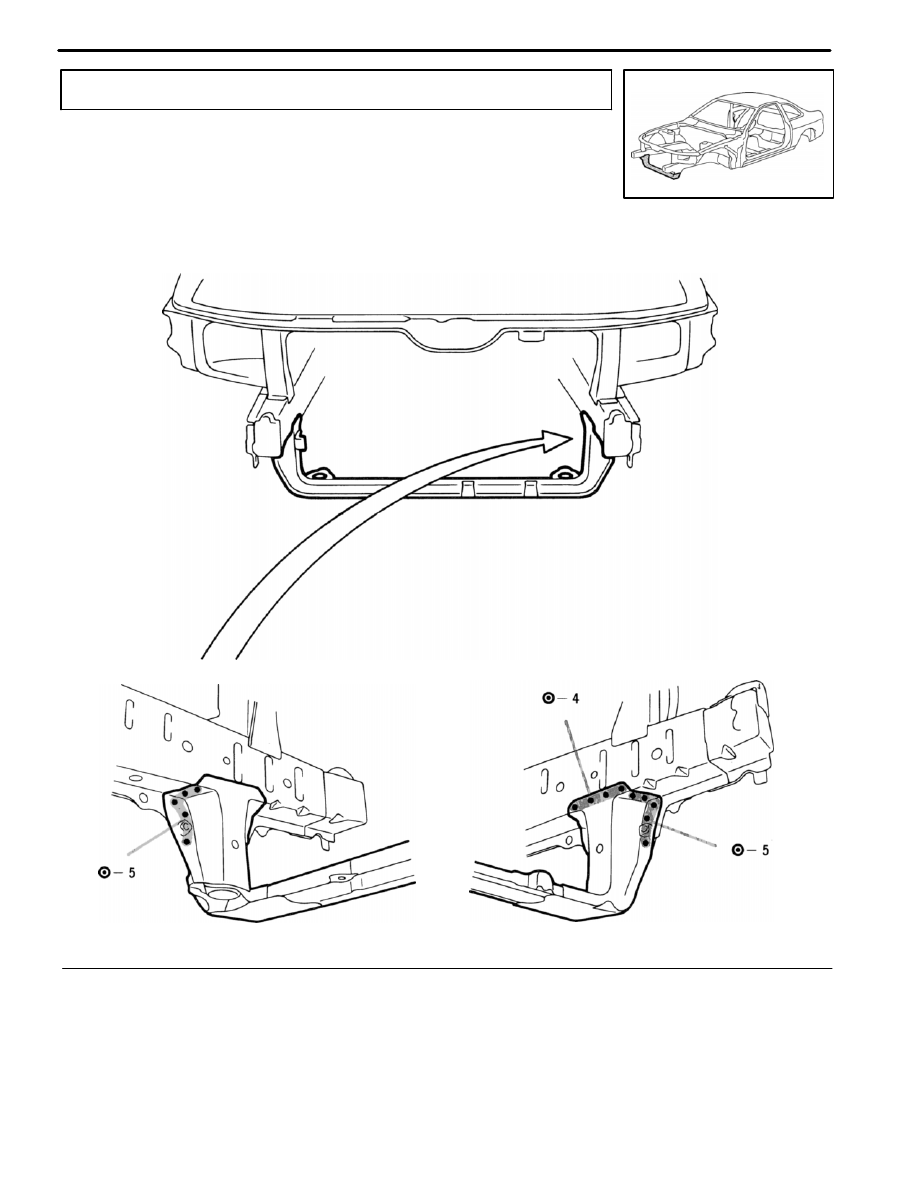

FRONT CROSSMEMBER (ASSY)

REMOVAL

BODY PANEL REPLACEMENT

RE-4

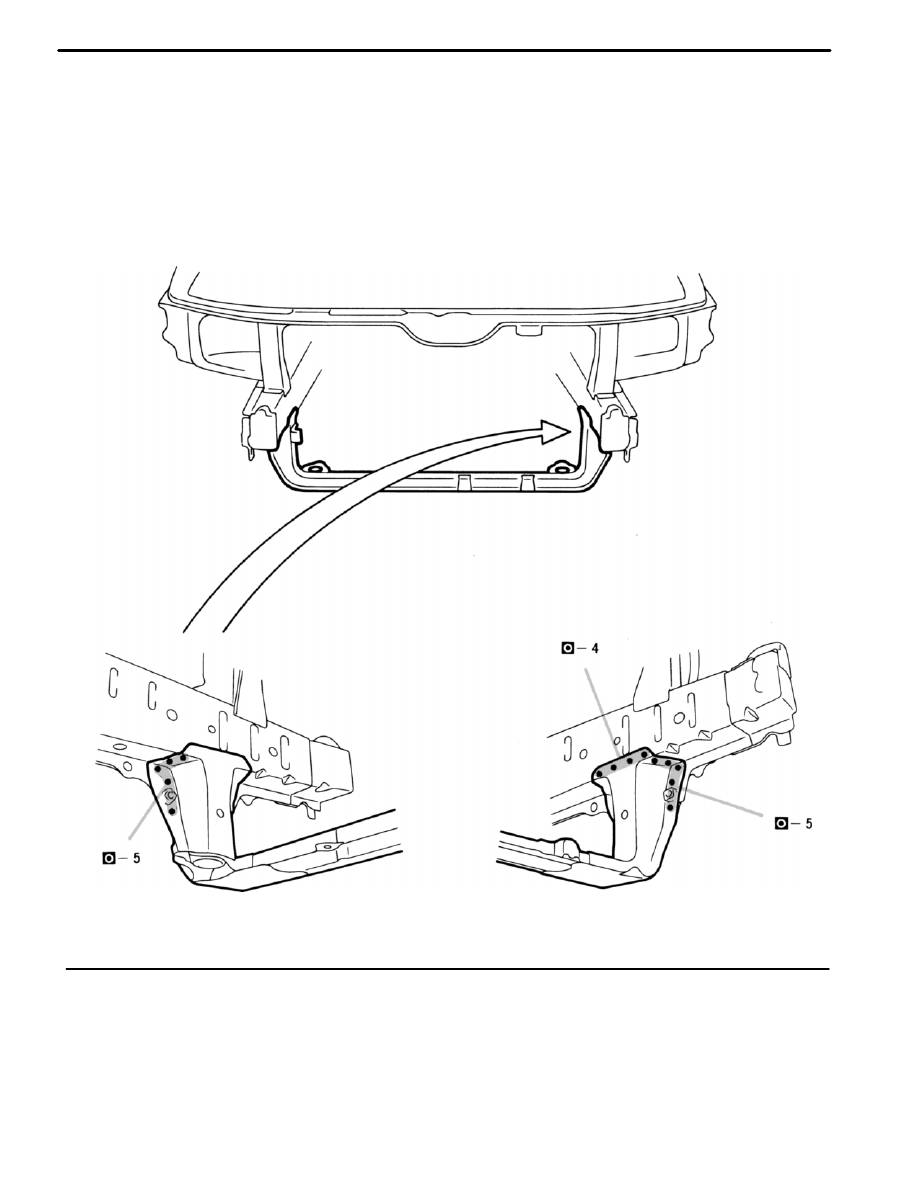

INSTALLATION

1.

Temporarily install the new parts and measure
each part in accordance with the body dimen-
sion diagram.

BODY PANEL REPLACEMENT

RE-5

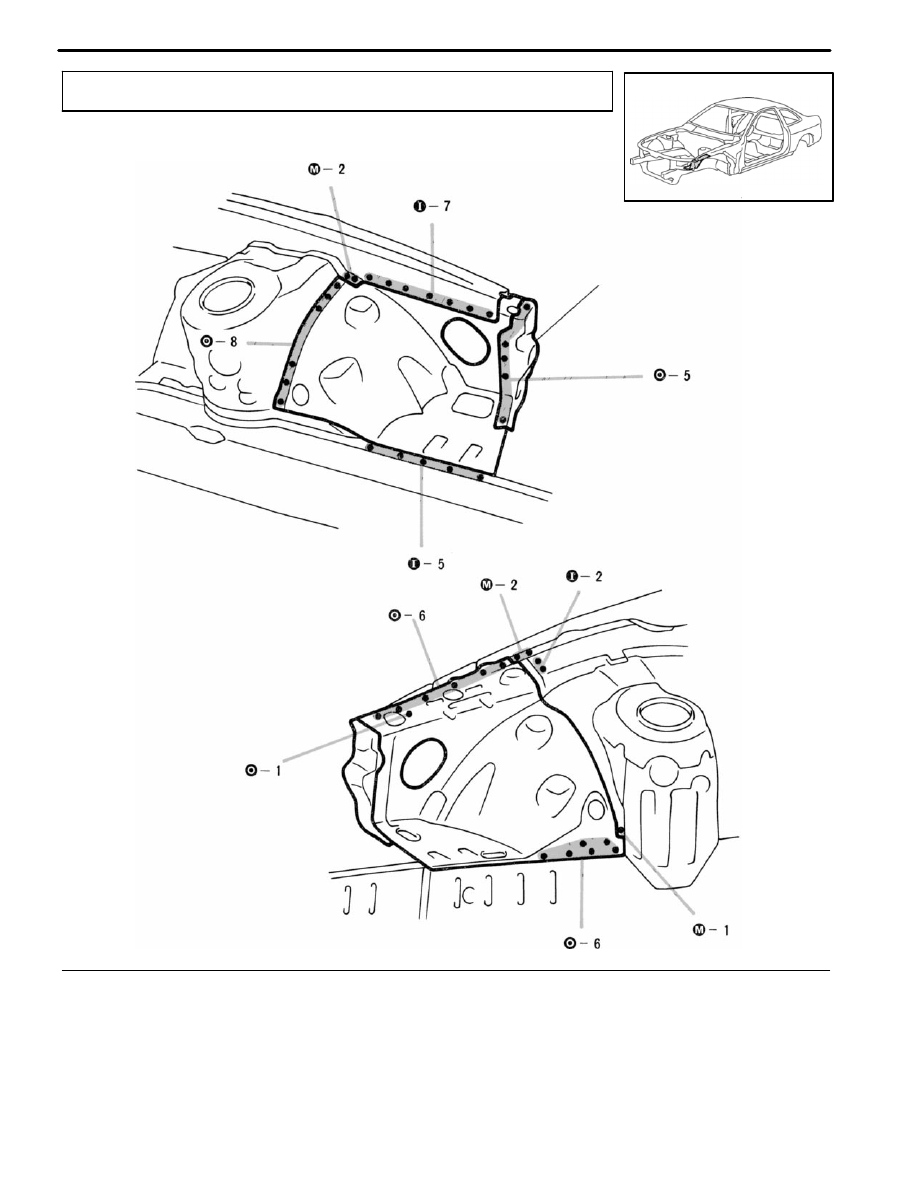

FRONT FENDER FRONT APRON (ASSY)

REMOVAL (With the radiator upper support removed.)

Apron Fender Side Extension

1.

Replace the apron fender side extension at the
same time.

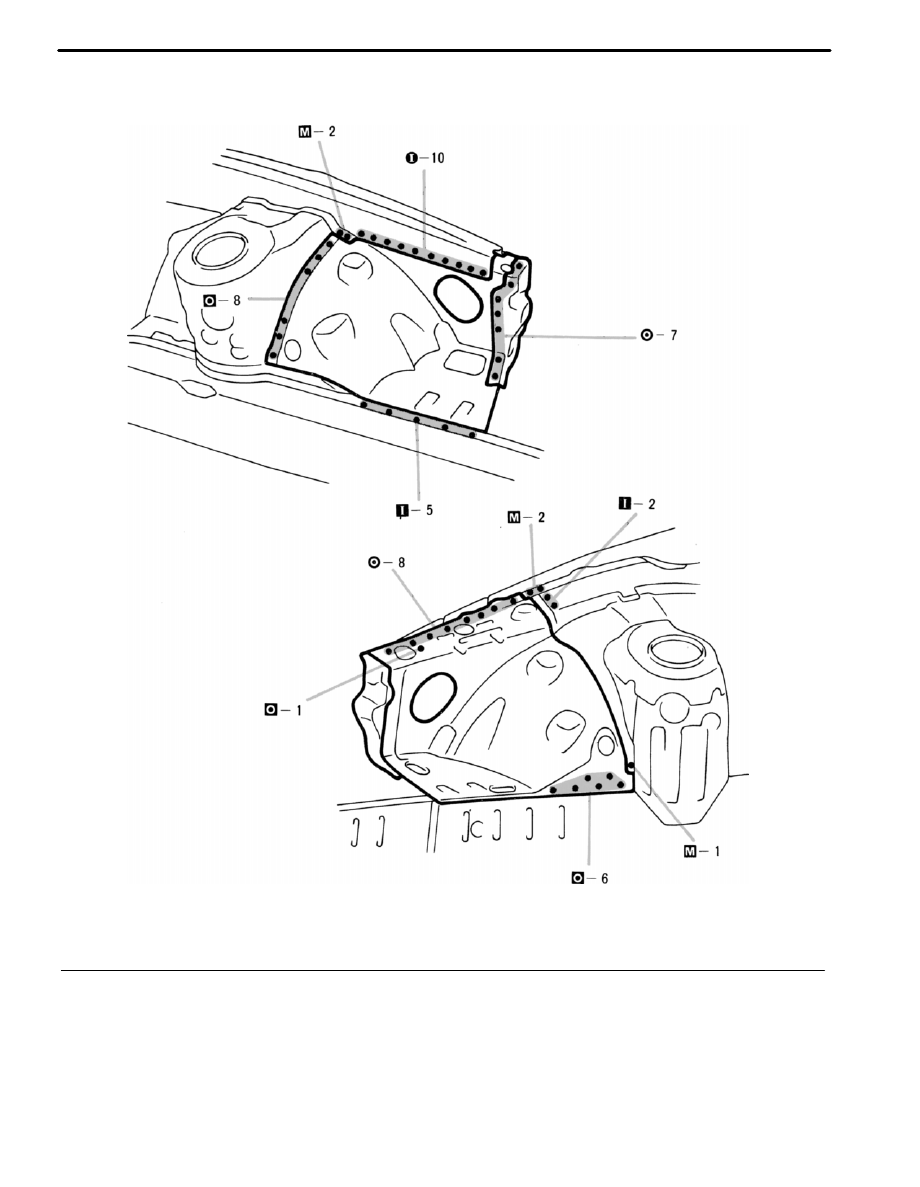

BODY PANEL REPLACEMENT

RE-6

INSTALLATION

1.

Temporarily install the new parts and measure
each part in accordance with the body dimen-
sion diagram.

BODY PANEL REPLACEMENT

RE-7
