Front Door Trim Upper Panel (ABS/PVC)

Battery Insulator (PE)

Roof Side Inner Garnish (ABS/PVC)

Front Pillar Garnish (ABS/PVC)

Speed Control Actuator Cover (PP)

Radiator Reserver Tank (PP)

Radiator Cover Plate (PP)

Cool Air Intake
Duct (PP)

Spare Wheel Cover (PP)

Washer Jar (PP)

Junction Block Cover (PP)

Front Fender Liner (PE)

Front Fender Splash Shield (PE)

Engine Under Cover (PE)

Engine Under Cover (PE)

Engine Under Cover (PP/PE)

HINT:

•

Resin material differs with model.

/  Made up of 2 or more kinds of materials.

PLASTIC BODY PARTS

PP-5

Steering Wheel Pad (PUR)

A/C and Blower Unit (PP)

Luggage Compartment Door
Striker Cover (PP)

Fuel Filler Opening
Lid (PBT)

Rear Combination
Light (PMMA/PC/PP)

Door Scuff Outside Plate (PP)

Door Scuff Inside Plate (PP)

Quarter Ventilation Duct (PP)

License Plate
Light (PC/PP)

Rear Under Side Cover (PUR)

Rear Bumper Cover (PUR)

HINT:

•

Resin material differs with model.

/  Made up of 2 or more kinds of materials.

PLASTIC BODY PARTS

PP-6

RADIATOR UPPER SUPPORT (ASSY)

REMOVAL

BODY PANEL REPLACEMENT

RE-2

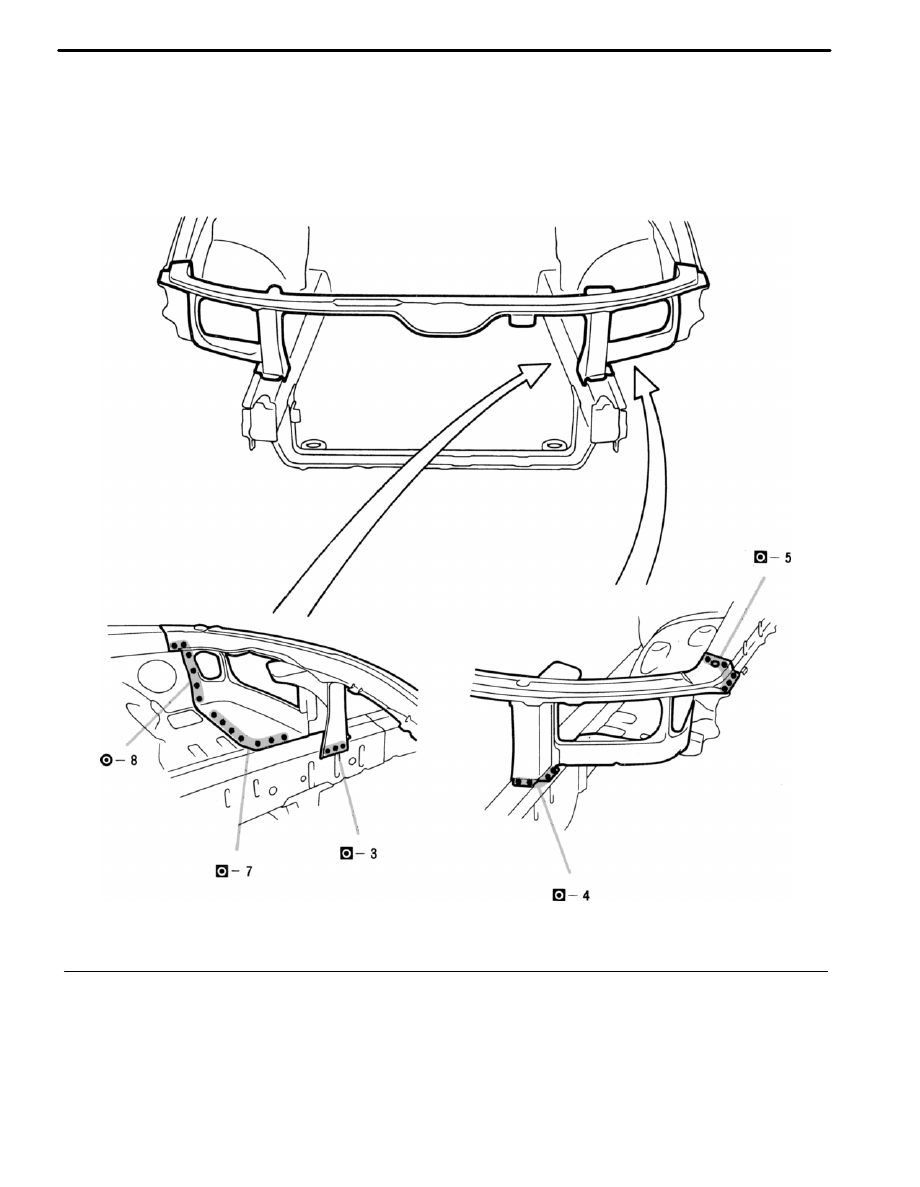

INSTALLATION

1.

Temporarily install the new parts and measure
each part in accordance with the body dimen-
sion diagram.

HINT: First install the hood lock support.

BODY PANEL REPLACEMENT

RE-3
