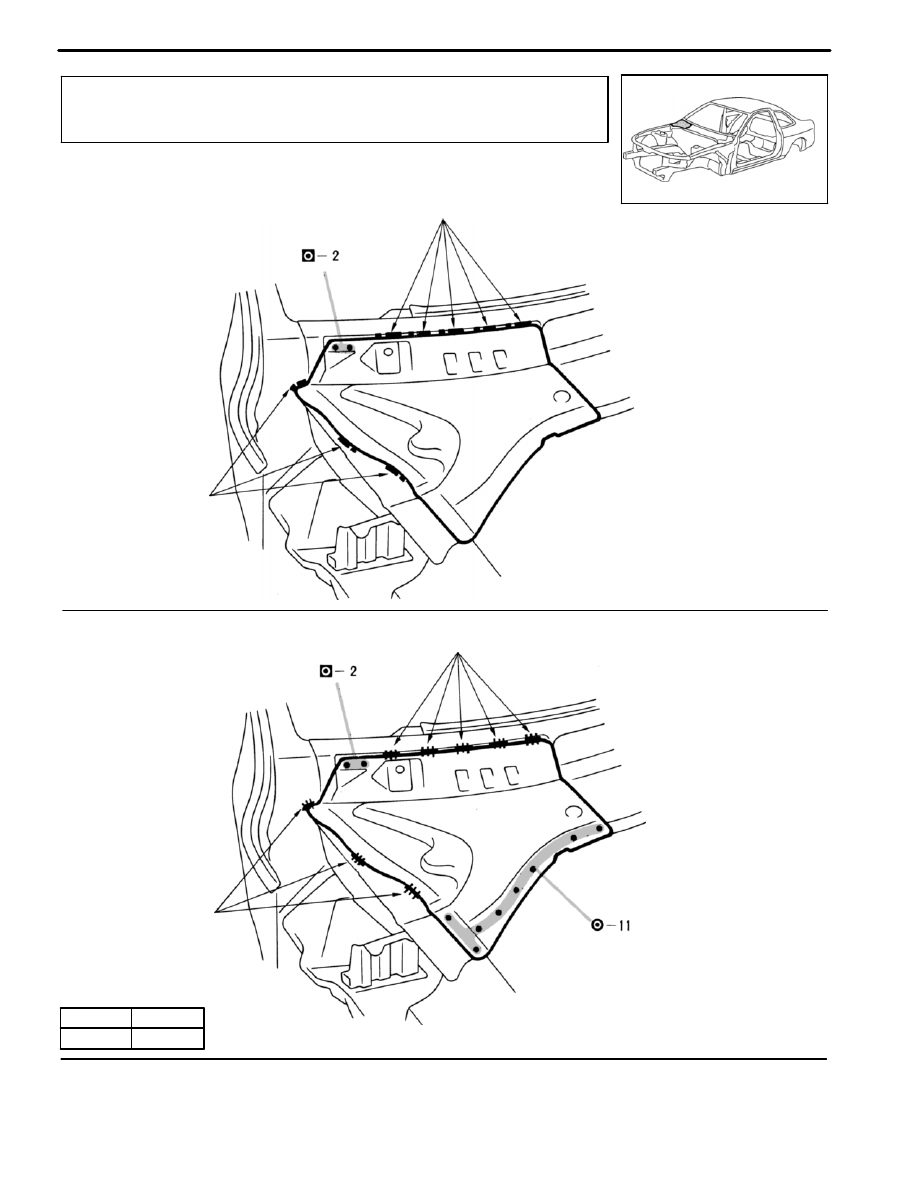

COWL SIDE OUTER PANEL UPPER (ASSY)

REMOVAL

Cut with disc
sander etc.

INSTALLATION

Tack Weld
(10 mm each)

1.

Temporarily install the new parts and mea-
sure each part in accordance with the body
dimension diagram.

BODY PANEL REPLACEMENT

RE-20

mm

in.

10

0.39

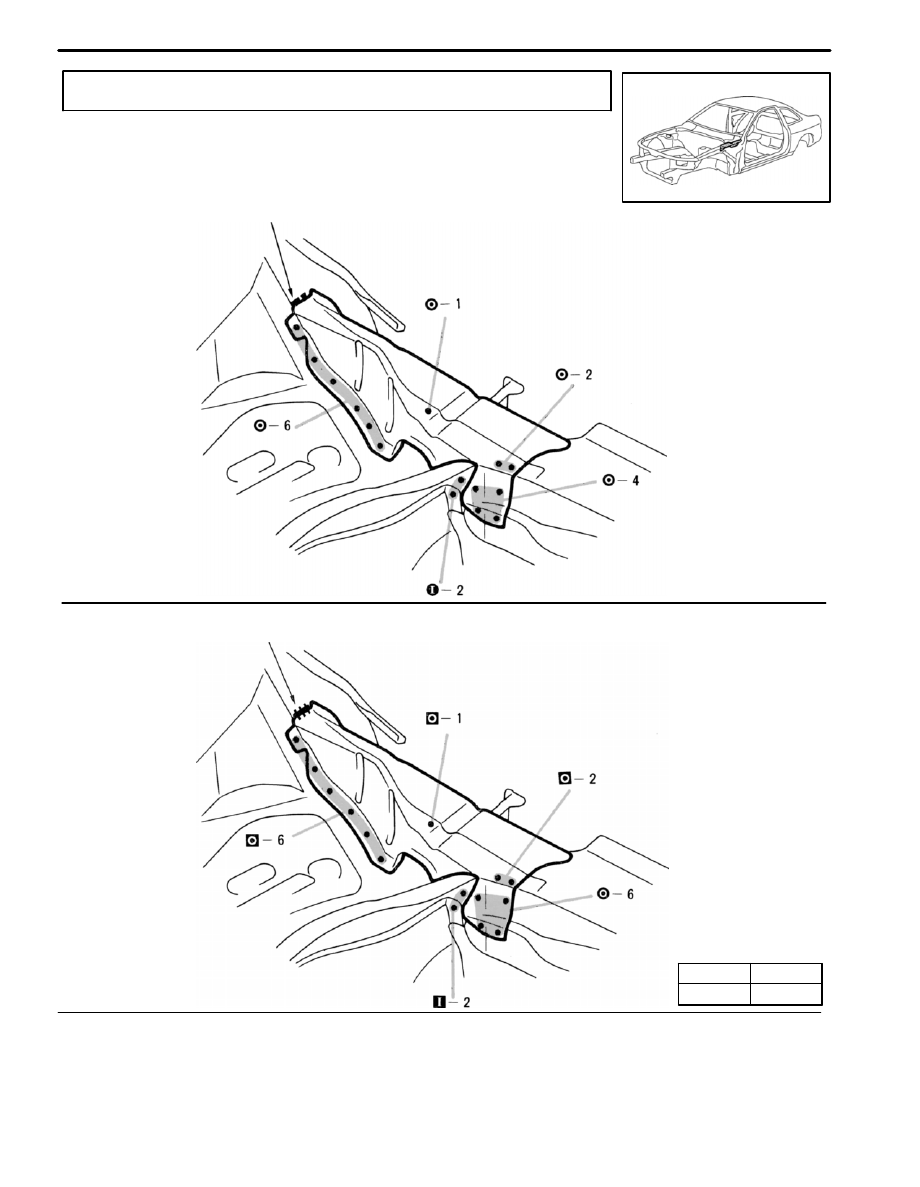

COWL TOP TO APRON BRACE (ASSY):
Right Side

REMOVAL (With the cowl side outer panel upper removed.)

Cut with disc
sander etc.

Cut with disc
Sander etc.

INSTALLATION

Tack Weld (10 mm each)

Tack Weld
(10 mm each)

BODY PANEL REPLACEMENT

RE-21

mm

in.

10

0.39

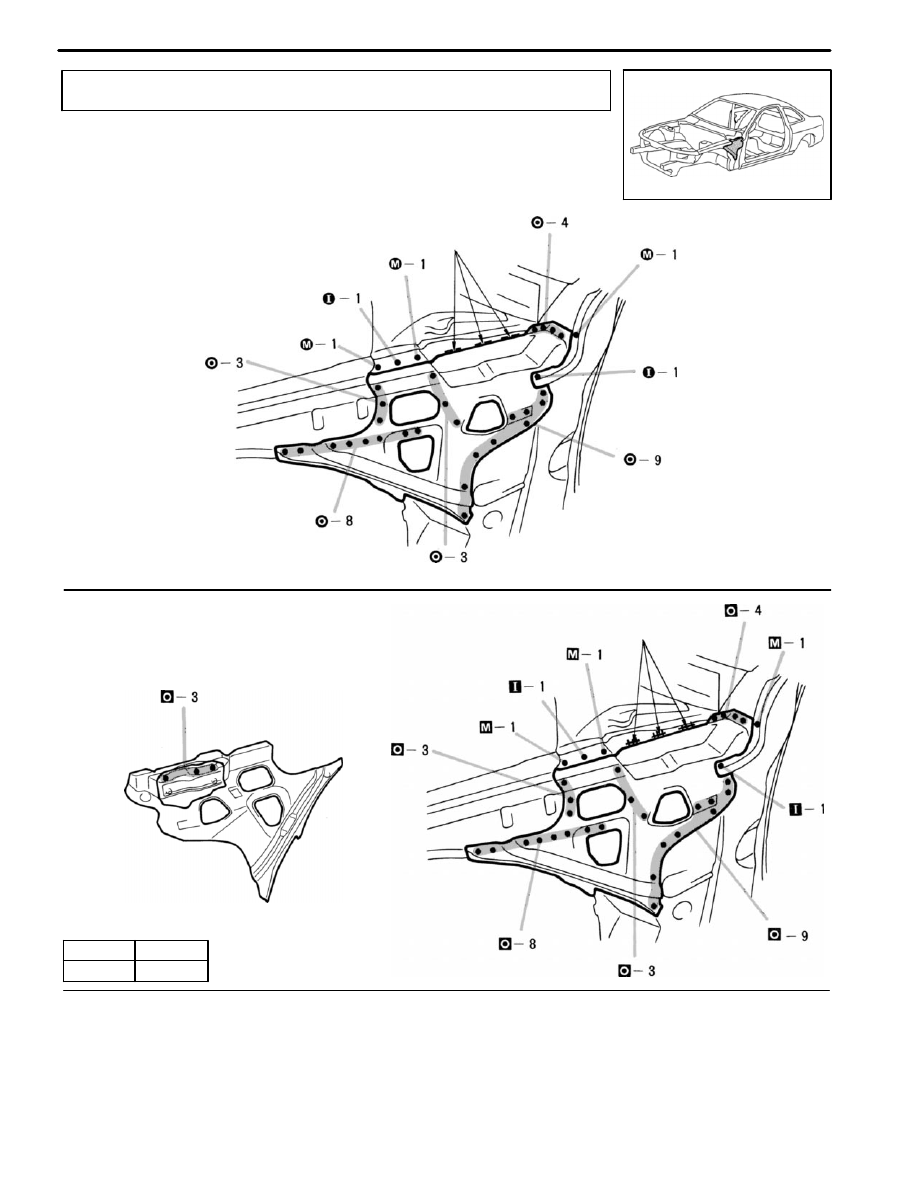

COWL TOP TO APRON BRACE (ASSY):
Left Side

REMOVAL (With the cowl side outer panel upper removed.)

Cut with disc sander etc.

Cut with disc sander etc.

INSTALLATION

Tack Weld (10 mm)

Tack Weld (10 mm each)

BODY PANEL REPLACEMENT

RE-22

mm

in.

10

0.39

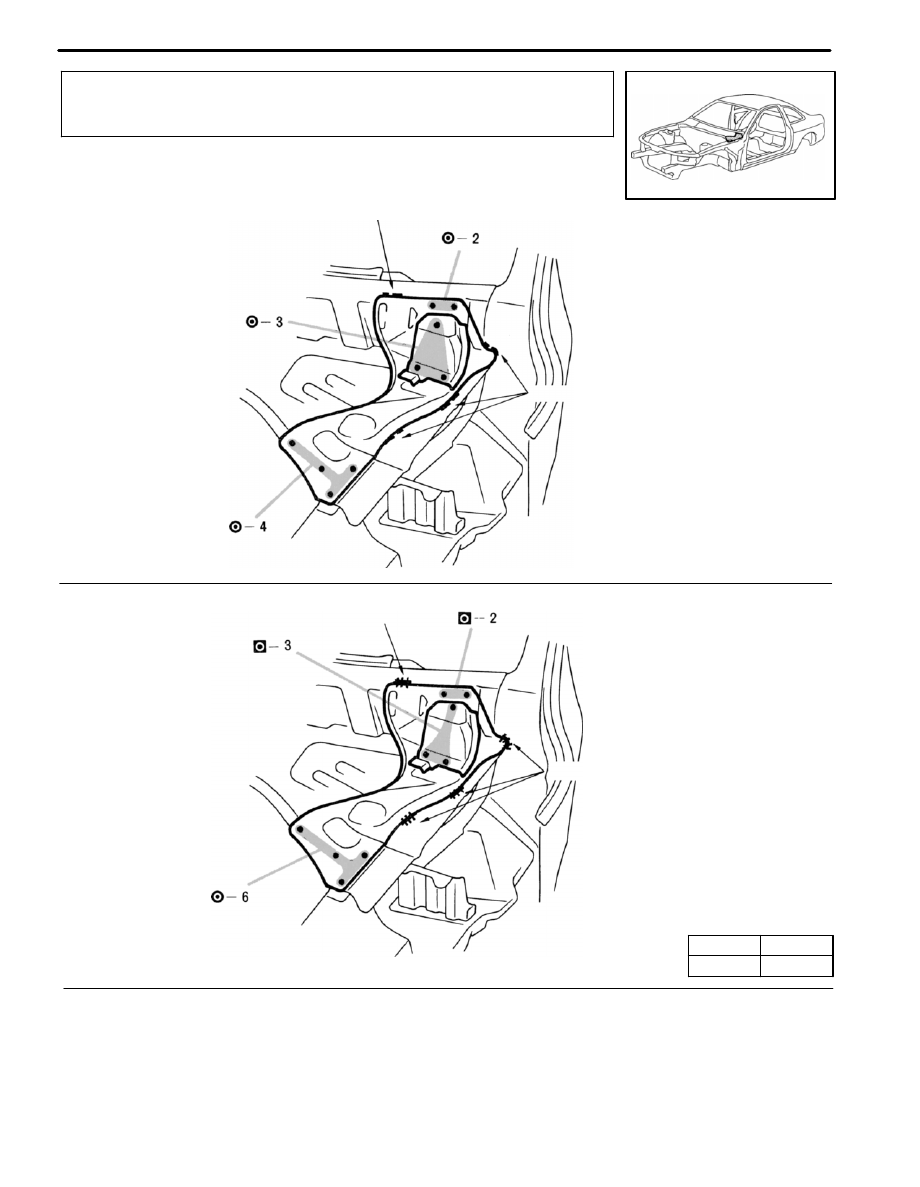

COWL TOP SIDE PANEL (ASSY)

REMOVAL (With the cowl top to apron brace removed.)

Cut with disc sander etc.

INSTALLATION

Tack Weld (10 mm)

BODY PANEL REPLACEMENT
