Lexus SC300 / Lexus SC400. Manual - part 116

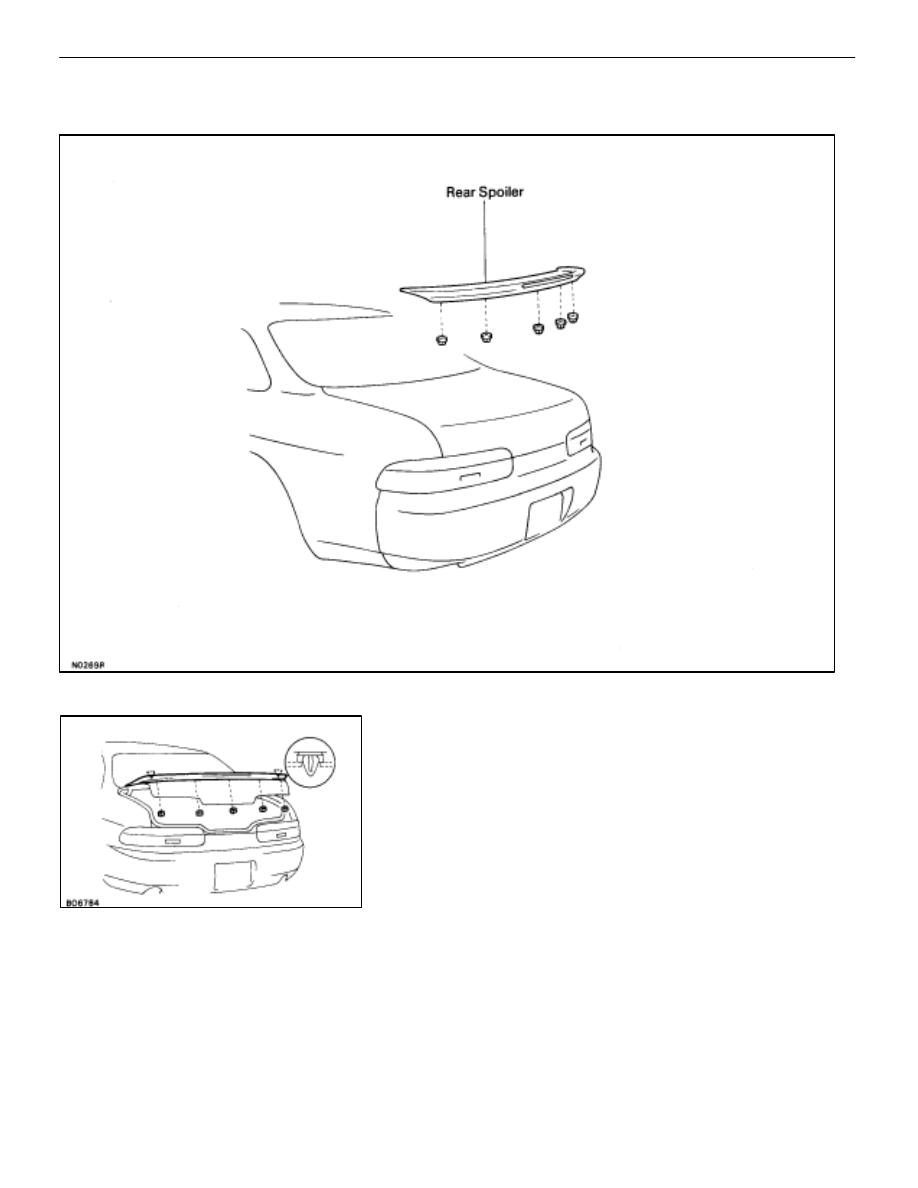

REAR SPOILER

COMPONENTS

REMOVAL AND INSTALLATION

1.

REMOVE DOOR TRIM

2.

REMOVE REAR SPOILER
Disconnect the connector, remove five nuts and the spoiler.

3.

INSTALL REAR SPOILER
Connect the connector, install five nuts and the spoiler.

4.

INSTALL DOOR TRIM

–

BODY

Spoiler

BO–105

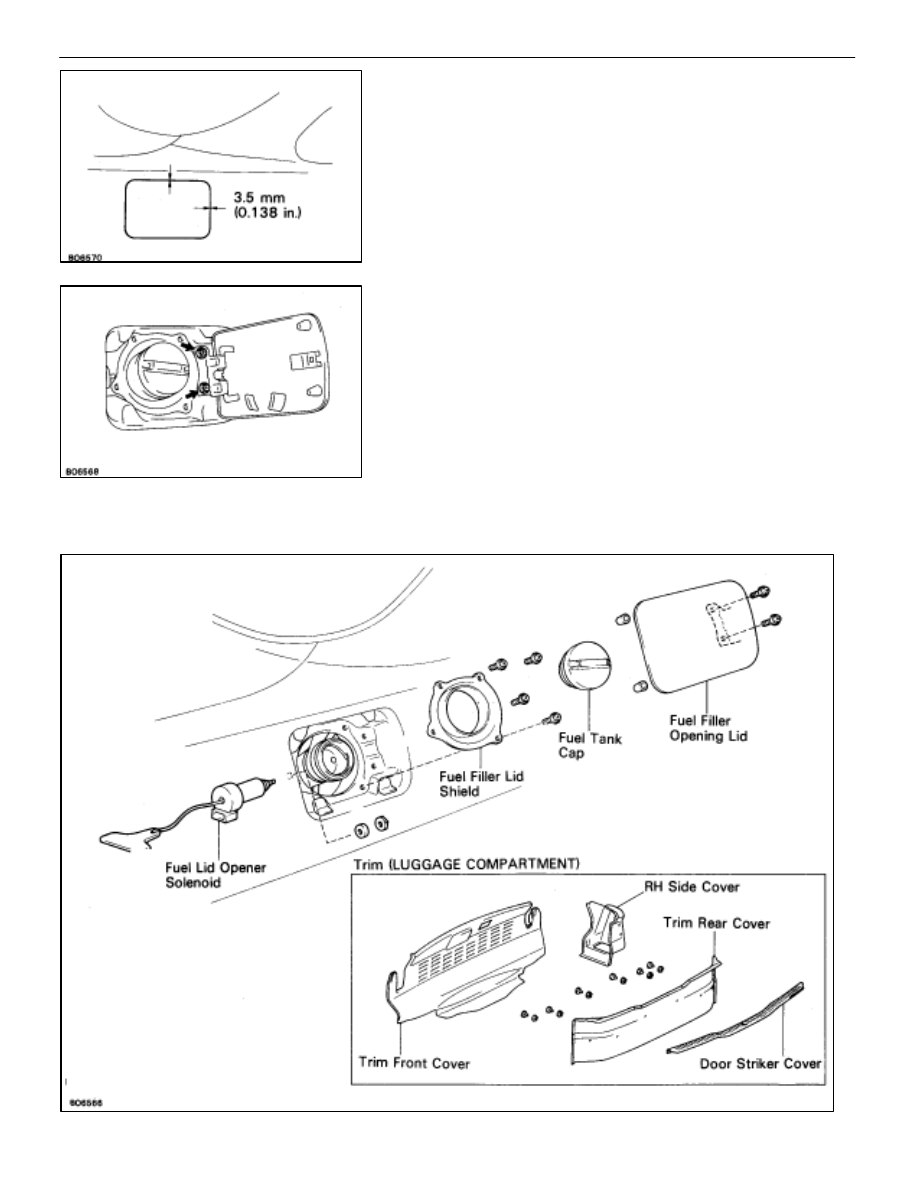

FUEL LID
Fitting Adjustments

HINT:

Adjust the fuel lid according to the following meth-

od.

ADJUST FUEL FILLER OPENING LID

Loosen the two screws and adjust the lid as shown.

Fuel Lid

COMPONENTS

BO–106

–

BODY

Fuel Lid (Fitting Adjustments)

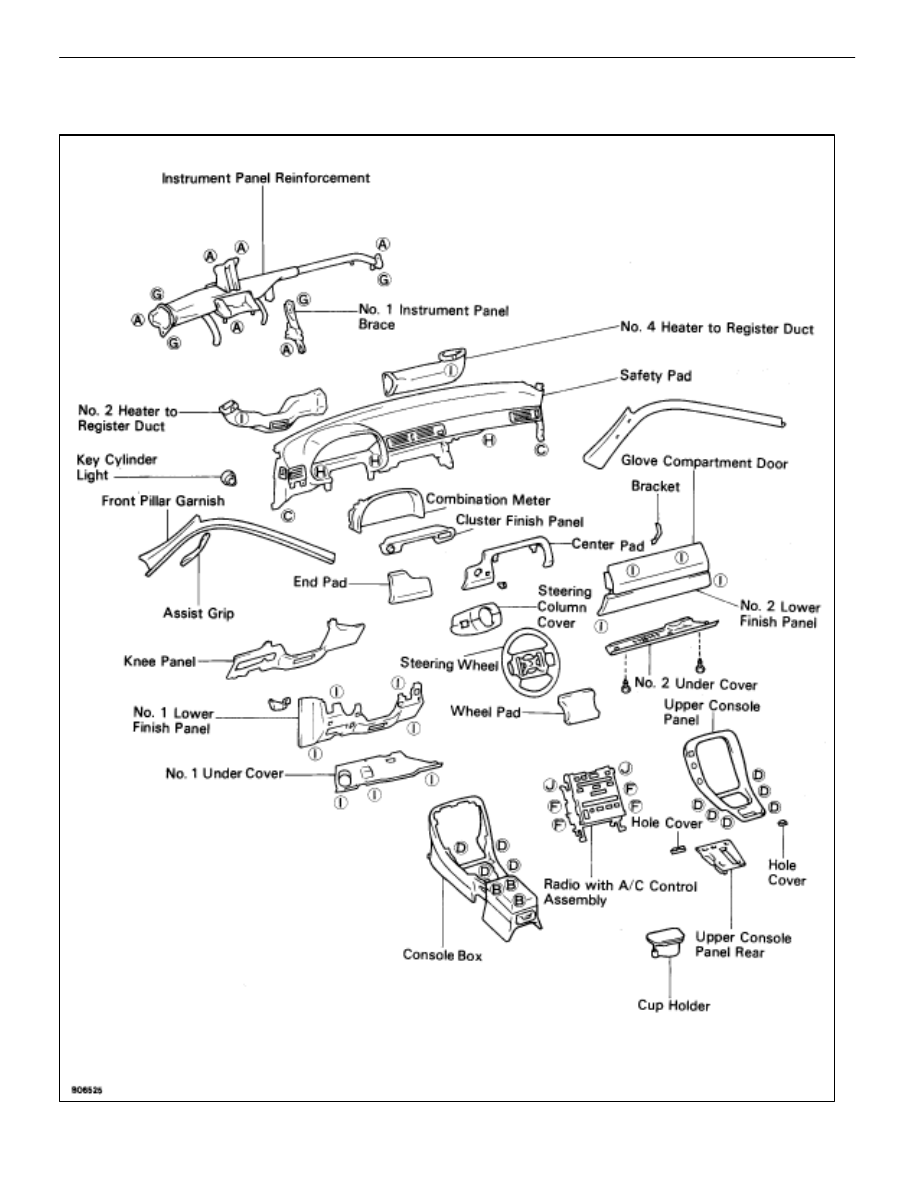

INSTRUMENT PANEL

COMPONENTS

BO–108

–

BODY

Instrument Panel

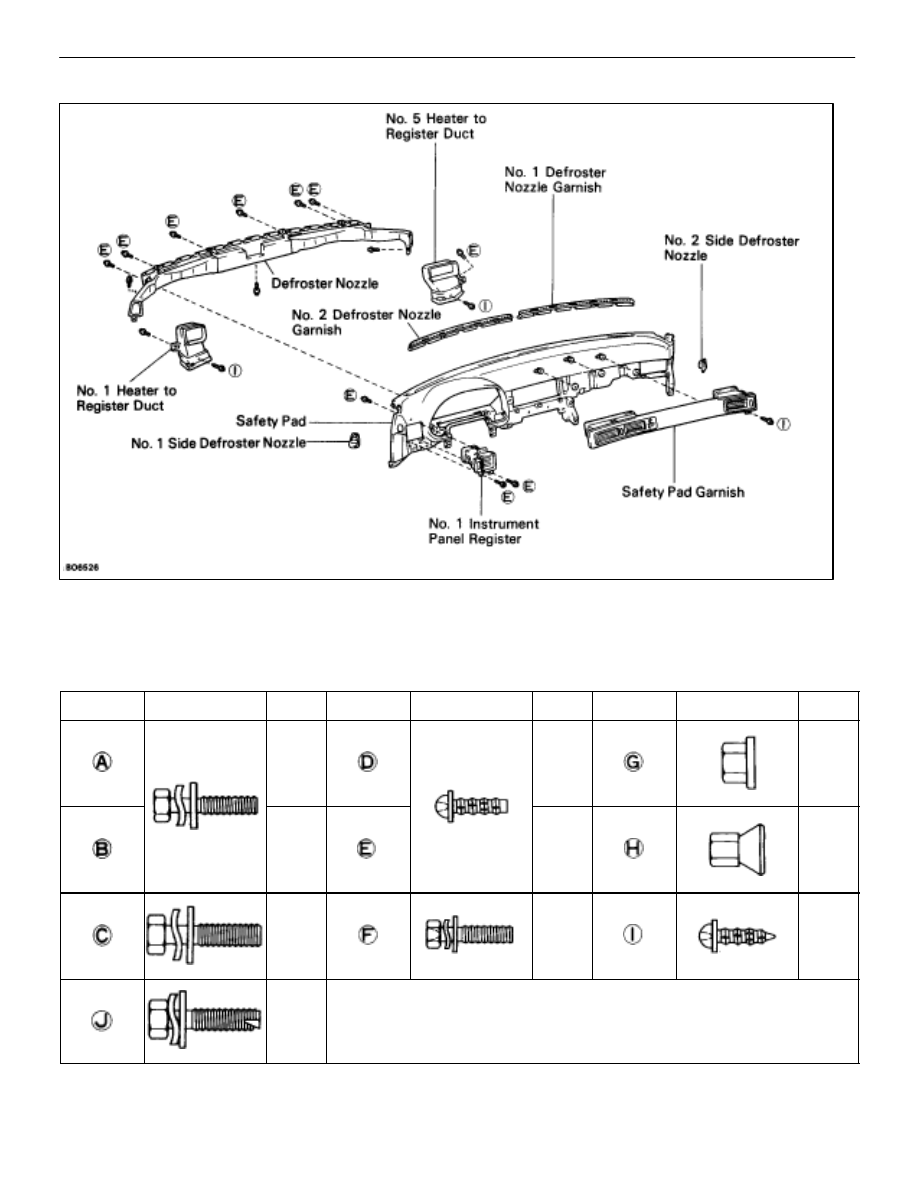

COMPONENTS (Cont’d)

HINT:

Screw sizes in the illustration on the previous page

are indicated using the code below for removal and installa-
tion of safety pad.

mm (in.)

Code

Shape

Size

Code

Shape

Size

Code

Shape

Size

∅

 = 8

(0.32)
L = 20
(0.79)

∅

 = 5

(0.20)
L = 18
(0.71)

∅

 = 8

(0.32)

∅

 = 6

(0.24)
L = 16
(0.63)

∅

 = 5

(0.20)
L = 14
(0.55)

∅

 = 6

(0.24)

∅

 = 6

(0.24)
L = 20
(0.79)

∅

 = 5

(0.20)
L = 18
(0.71)

∅

 = 5

(0.20)
L = 16
(0.63)

∅

 = 6

(0.24)
L = 25
(0.98)

BO6527

–

BODY

Instrument Panel

BO–109
