Rear Seat Belt

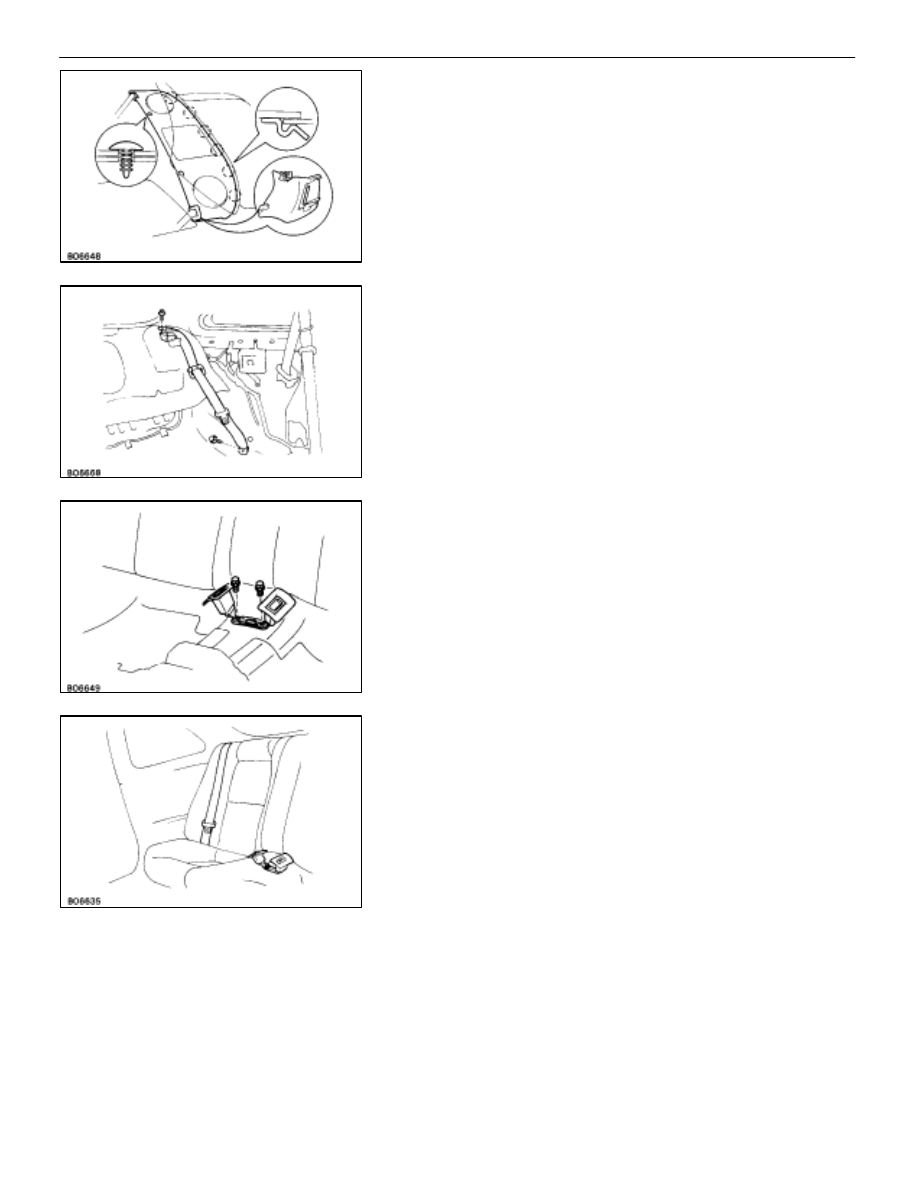

REMOVAL OF REAR SEAT BELT

(See page

BO–70

)

1.

REMOVE REAR SEAT BACK AND CUSHION

2. REMOVE

PACKAGE

TRAY

TRIM

(a)  Using a clip remover, remove two clips.
(b)  Pull the belt guide forward to remove it.
(c)  Pull the trim forward to remove it.

3.

REMOVE REAR SEAT OUTER BELT
(a)  Remove the outer belt floor anchor bolt.
(b)  Remove the bolt and the retractor.

4.

REMOVE REAR SEAT INNER BELT

INSTALLATION OF REAR SEAT BELT

(See page

BO–70

)

1.

INSTALL REAR SEAT INNER BELT

Torque:

43 N

⋅

m (440 kgf

⋅

cm, 32 ft

⋅

lbf)

2.

INSTALL REAR SEAT OUTER BELT

Torque:

Retractor bolt

43 N

⋅

m (440 kgf

⋅

cm, 32 ft

⋅

lbf)

Anchor bolt

43 N

⋅

m (440 kgf

⋅

cm, 32 ft

⋅

lbf)

3. INSTALL

PACKAGE

TRAY

TRIM

4.

INSTALL REAR SEAT BACK AND CUSHION
(See step 1 to 2 on page

BO–67

)

HINT:

After installation, check that the seat belts are posi-

tioned as shown.

INSPECTION OF REAR SEAT BELT

Emergency Locking Retractor (ELR)

1.

RUNNING TEST (IN SAFE AREA)
(See step 1 on page

BO–72

)

2.

STATIC TEST
(See step 2 on page

BO–72

)

–

BODY

Seat Belt (Rear Seat Belt)

BO–73

LUGGAGE COMPARTMENT

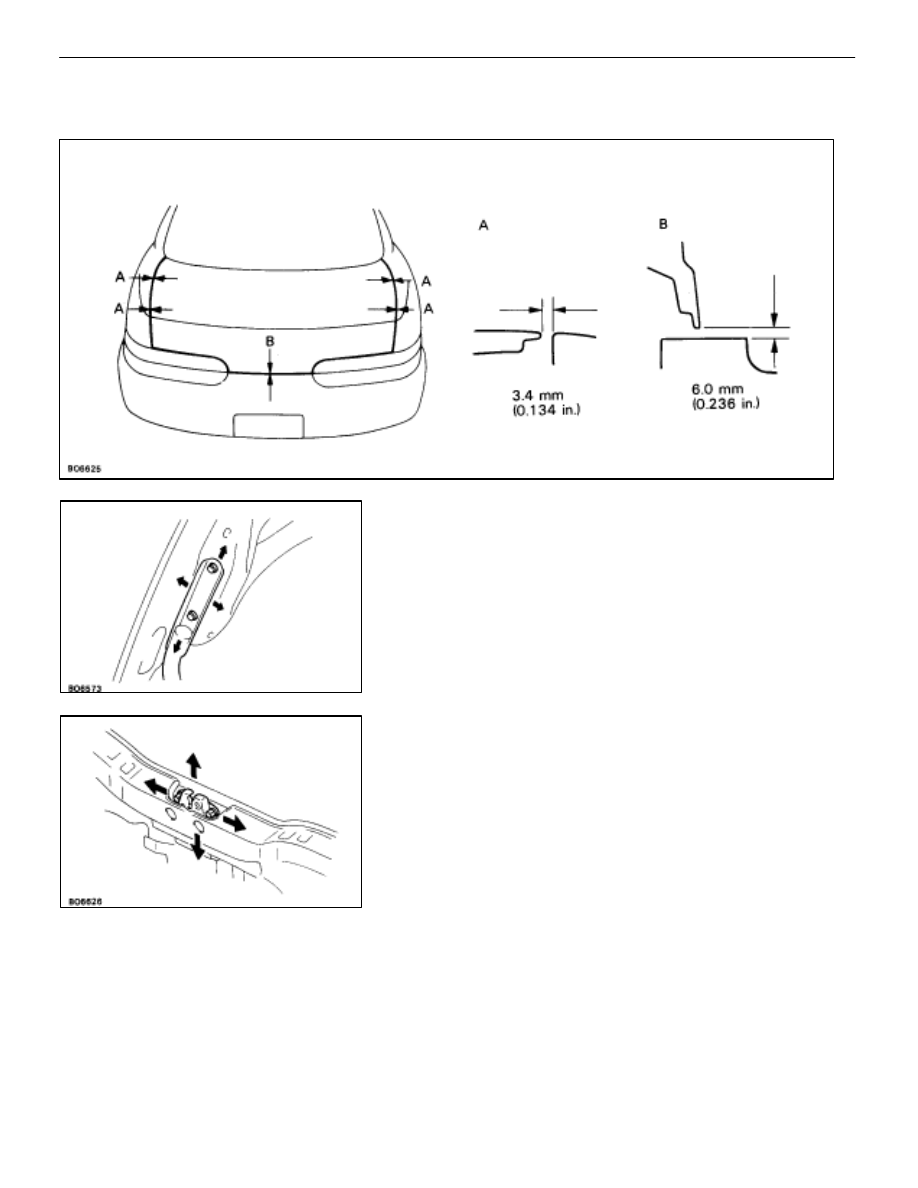

Fitting Adjustments

HINT:

Adjust the door panel according to the following

method.

1.

ADJUST LUGGAGE COMPARTMENT
(a)  For forward/rearward and vertical direction adjustments

loosen the bolts.

(b)  For left and right adjustment of front end of the door,

increase or decrease the number of washers between
the hinge and the door.

2.

ADJUST LOCK STRIKER
(a)  Remove the trim rear cover.
(b)  Using a hammer and brass bar, tap the door lock to

adjust it.

BO–74

–

BODY

Luggage Compartment (Fitting Adjustments)

Luggage Compartment Door

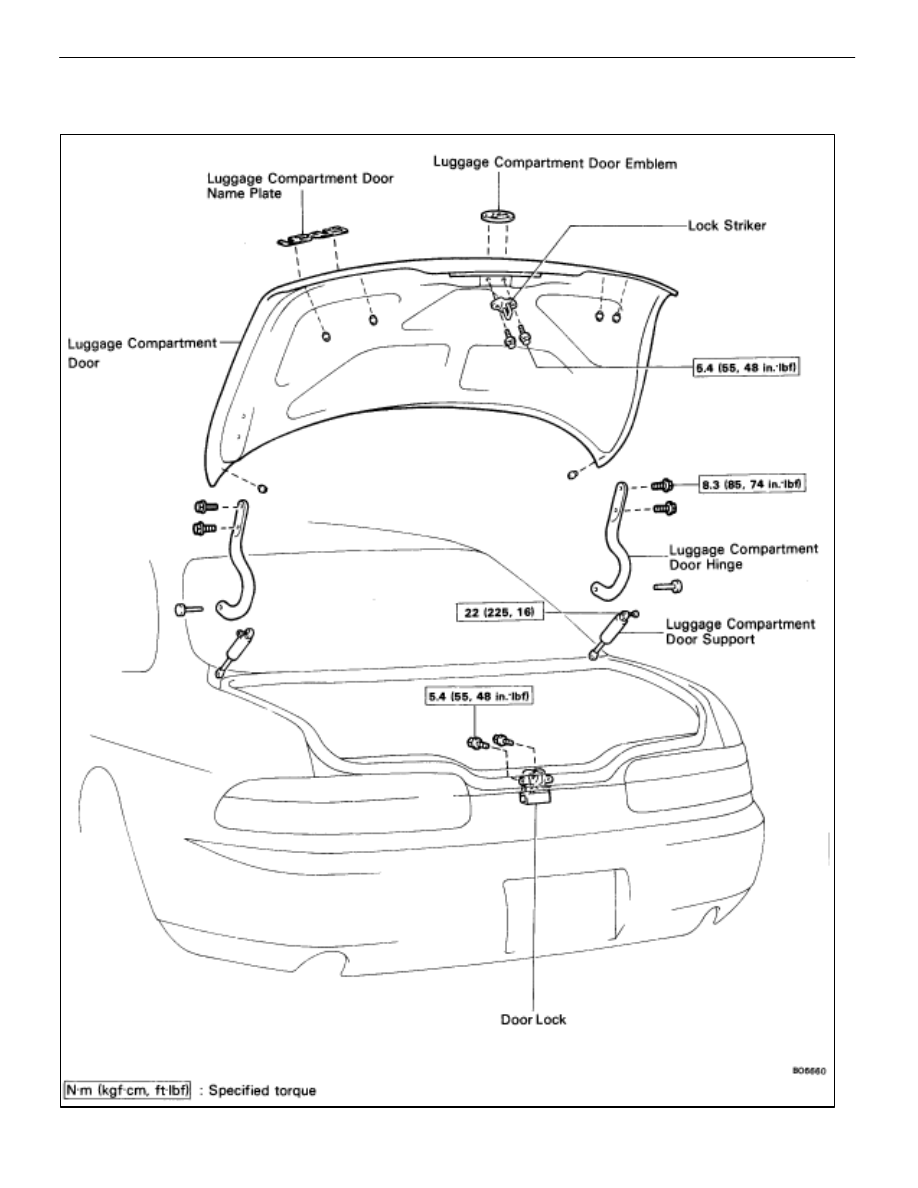

COMPONENTS

–

BODY

Luggage Compartment (Luggage Compartment Door)

BO–75

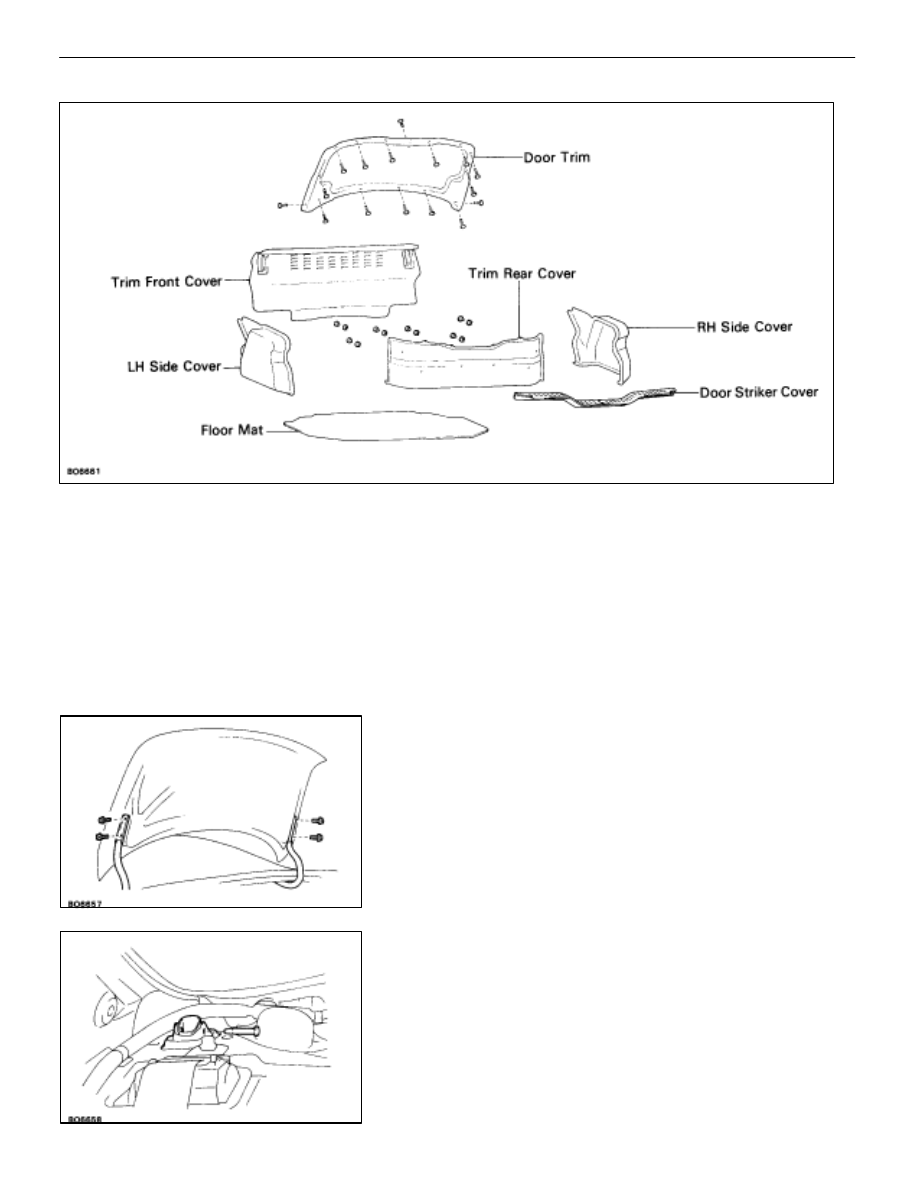

COMPONENTS (Cont’d)

REMOVAL OF LUGGAGE
COMPARTMENT DOOR

1.

REMOVE FOLLOWING PARTS:
(See steps 1 to 7 on pages

BO–78

 to 79)

(a) Floor

mat

(b)  Door striker cover
(c)  Trim rear cover
(d)  RH and LH side covers
(e)  Trim front cover
(f) Door

trim

2.

REMOVE LUGGAGE COMPARTMENT DOOR
Remove four bolts and the door.

REPLACEMENT OF LUGGAGE
COMPARTMENT DOOR HINGE

(See page

BO–76

)

1.

REMOVE FOLLOWING PARTS:
(a)  Rear seat cushion and back (See steps 1 to 2 on page

BO–66

)

(b)  Roof side inner garnish (See step 8 on page

BO–124

)

(c)  Package tray trim (See step 9 on page

BO–124

)

2.

REMOVE LUGGAGE COMPARTMENT DOOR HINGE
(a)  Remove the hinge pin.

BO–76

–

BODY

Luggage Compartment (Luggage Compartment Door)
