Lexus SC300 / Lexus SC400. Manual - part 106

ASSEMBLY OF FRONT SEAT

(See page

BO–63

)

ASSEMBLE FRONT SEAT PARTS BY FOLLOWING DIS-
ASSEMBLY SEQUENCE IN REVERSE

HINT:

•

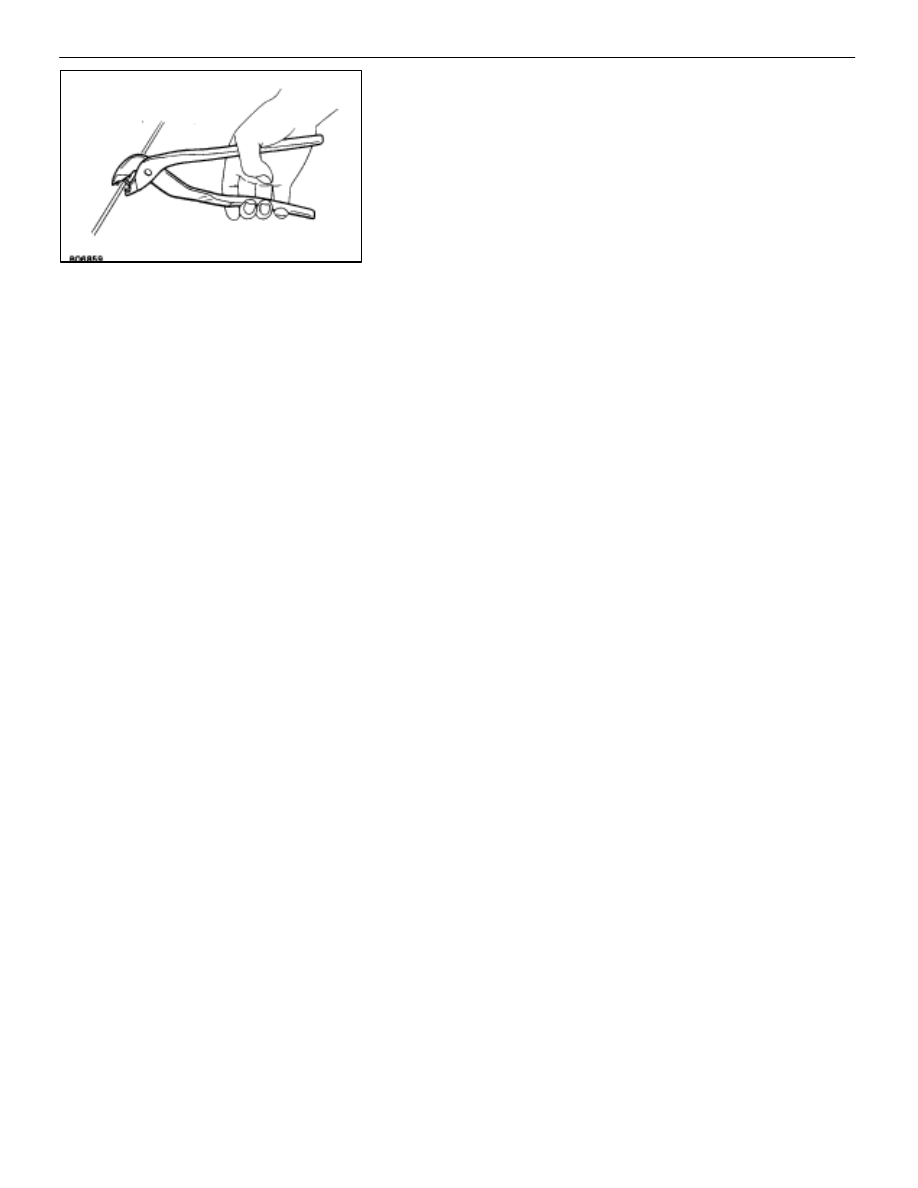

Using hog ring pliers, install the new hog ring.

•

Before installing the reclining adjuster, align the
matchmarks.

•

If creases occur in the front seat, stretch out the
creases by heating them with a dryer, etc.

If the creases still cannot be removed, spray them lightly
with a vaporizer before applying the hair dry again.

–

BODY

Seat (Front Seat)

BO–65

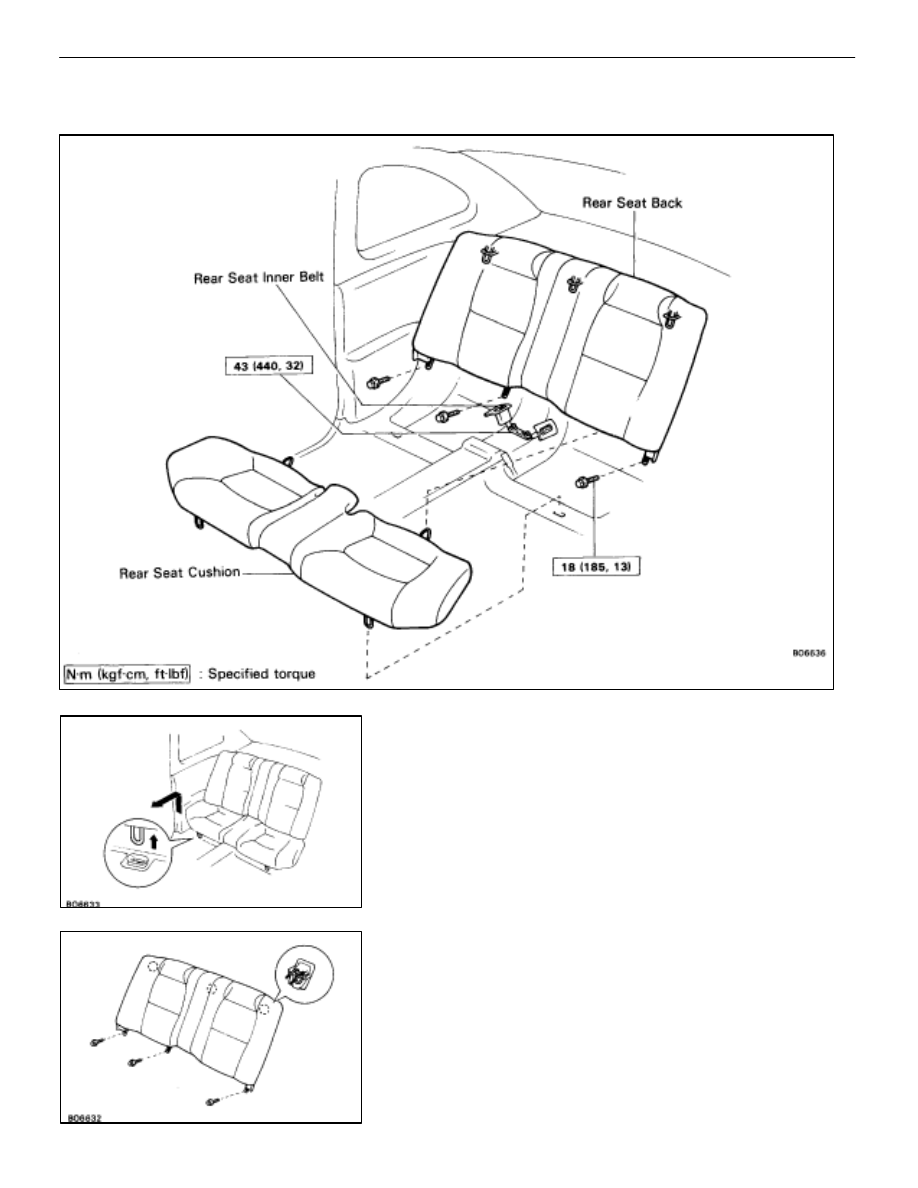

Rear Seat

REMOVAL OF REAR SEAT

1.

REMOVE REAR SEAT CUSHION
Pull up the seat cushion to remove it.

2.

REMOVE REAR SEAT BACK
(a)  Remove three bolts.
(b)  Pull up the seat back to remove it.

BO–66

–

BODY

Seat (Rear Seat)

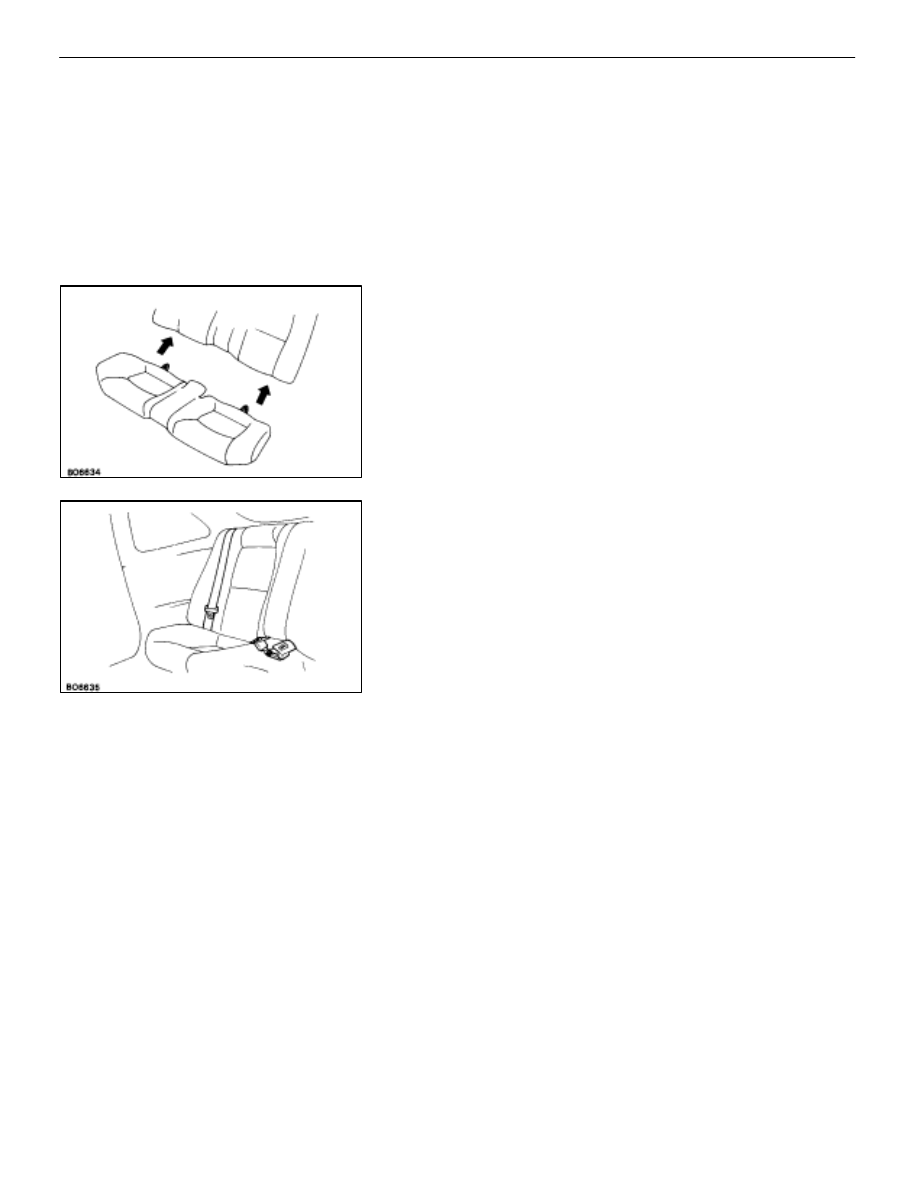

INSTALLATION OF REAR SEAT

(See page

BO–66

)

1.

INSTALL REAR SEAT BACK
Push down the rear seat back and install three bolts.

Torque:

18 N

⋅

m (185 kgf

⋅

cm, 13 ft

⋅

lbf)

2.

INSTALL REAR SEAT CUSHION
(a)  Insert the seat cushion wire to seat back.

HINT:

Before installation, confirm that the rear seat belts

are positioned shown.
(b)  Push down the cushion to install the hook to the body

panel.

HINT:

Confirm that the seat is installed firmly.

–

BODY

Seat (Rear Seat)

BO–67

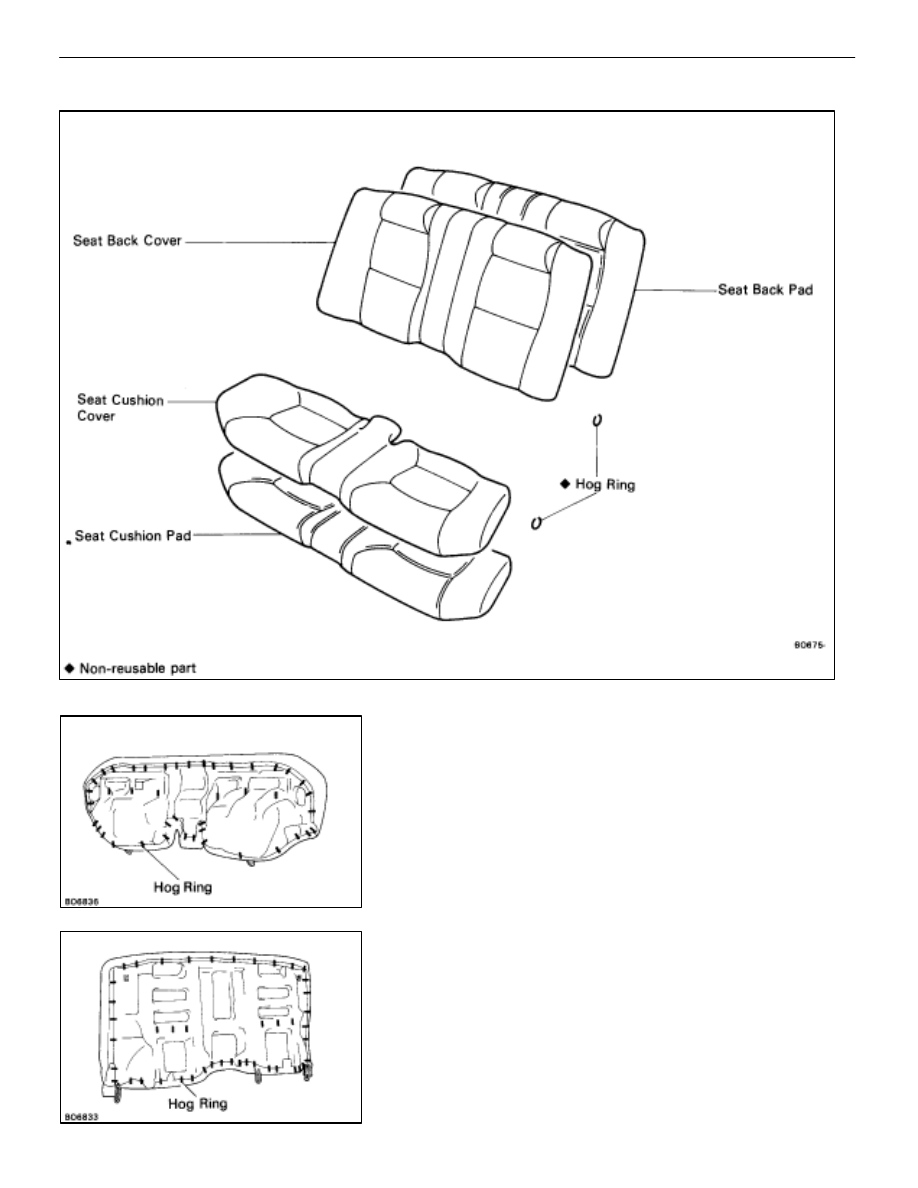

DISASSEMBLY OF REAR SEAT

1.

REMOVE SEAT CUSHION COVER
Remove hog rings and the cover.

2.

REMOVE SEAT BACK COVER
Remove hog rings and the cover.

BO–68

–

BODY

Seat (Rear Seat)
