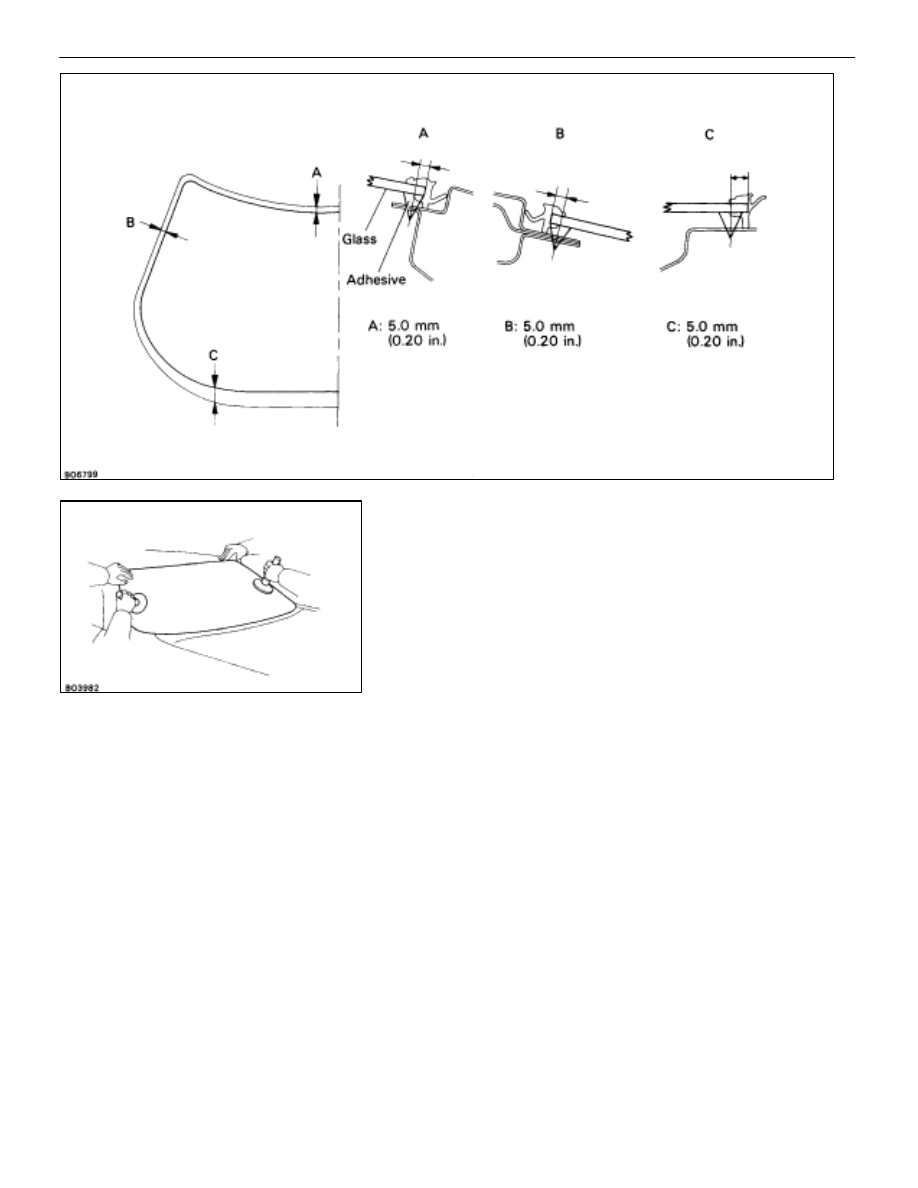

10. INSTALL GLASS

(a)  Position the glass so that the reference marks are lined

up, and press in gently along the rim.

(b)  Use a spatula to remove any excess protruding

adhesive.

(c)  Fasten glass securely until the adhesive sets for about

24 hours.

11.  INSPECT FOR LEAKS AND REPAIR

(a)  Perform a leak test after the hardening time has

elapsed.

(b)  Seal any leak with auto glass sealer.

Part No. 08833–00030 or equivalent

12.  INSTALL FOLLOWING PARTS:

(a)  Back window lower moulding
(b)  Luggage compartment door
(c)  Package tray trim
(d)  Roof side inner garnish
(e)  Rear seat back and cushion

–

BODY

Back Window Glass

BO–57

SEAT
Front Seat

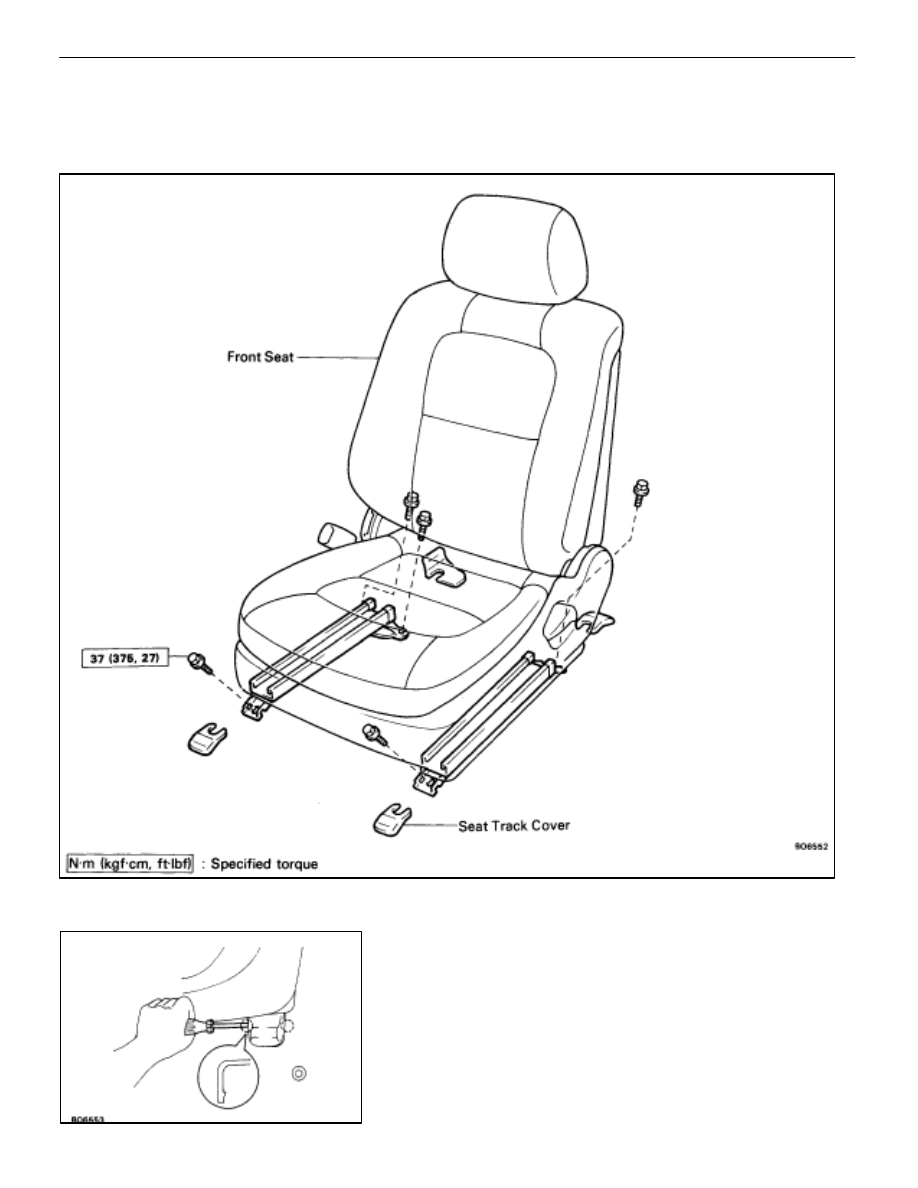

REMOVAL OF FRONT SEAT

1. REMOVE

HEADREST

While

pushing the lock button, pull up the headrest to remove

it.

2.

REMOVE SEAT TRACK COVERS
Using a screwdriver, pry out three covers.
HINT:

Tape the screwdriver tip before use.

3.

REMOVE SEAT TRACK COVER (Rear inner side)
(a)  Lift up the rear part of the cover.
(b)  Pull the cover straight back–wards.

BO–58

–

BODY

Seat (Front Seat)

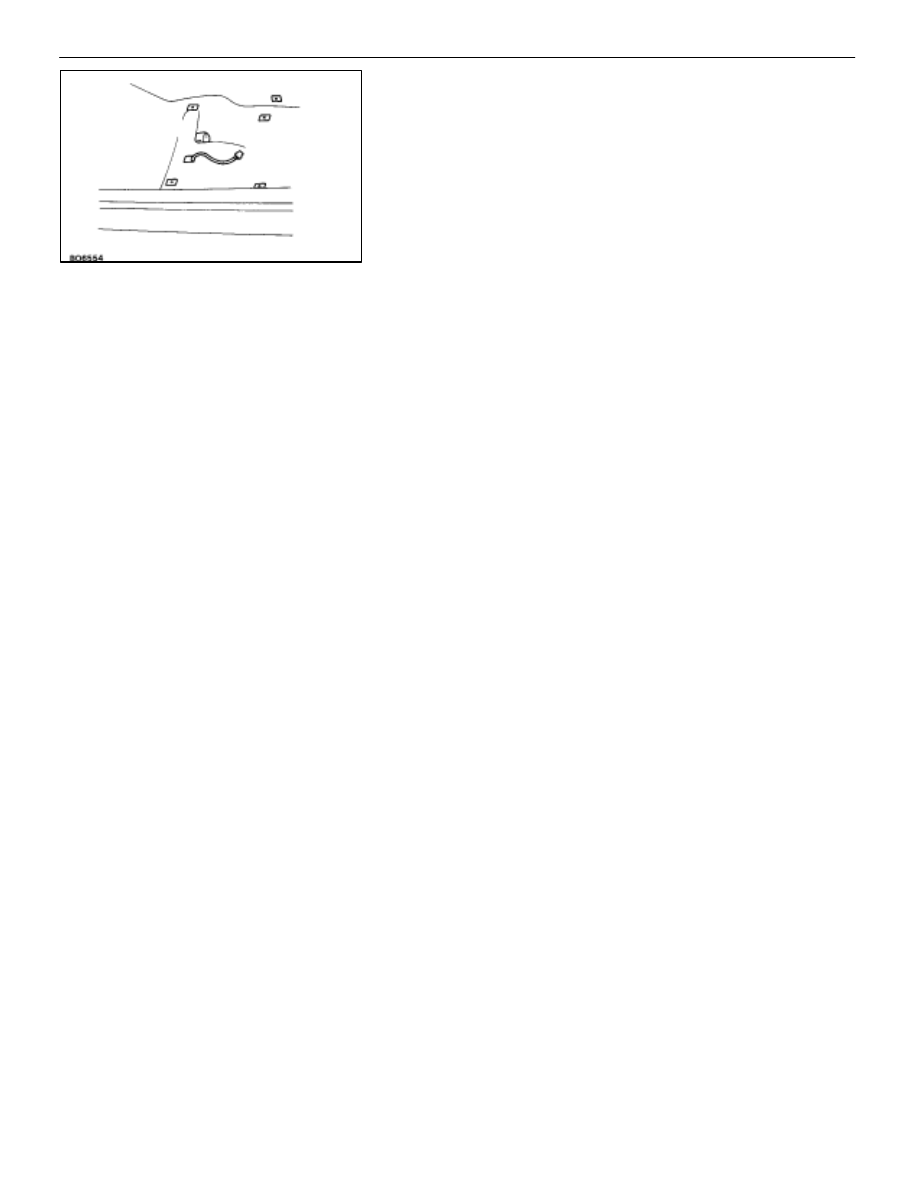

4.

REMOVE FRONT SEAT
(a)  Remove five bolts.
(b)  Disconnect the connector.

INSTALLATION OF FRONT SEAT

(See page

BO–58

)

1.

INSTALL HEADREST TO SEAT

2.

INSTALL FRONT SEAT
(a)  Connect the connector.
(b)  Install five bolts.

Torque:

37 N

⋅

m (375 kgf

⋅

cm, 27 ft

⋅

lbf)

3.

CHECK SEAT ADJUSTER PROPER OPERATION

4.

INSTALL SEAT TRACK COVERS

–

BODY

Seat (Front Seat)

BO–59

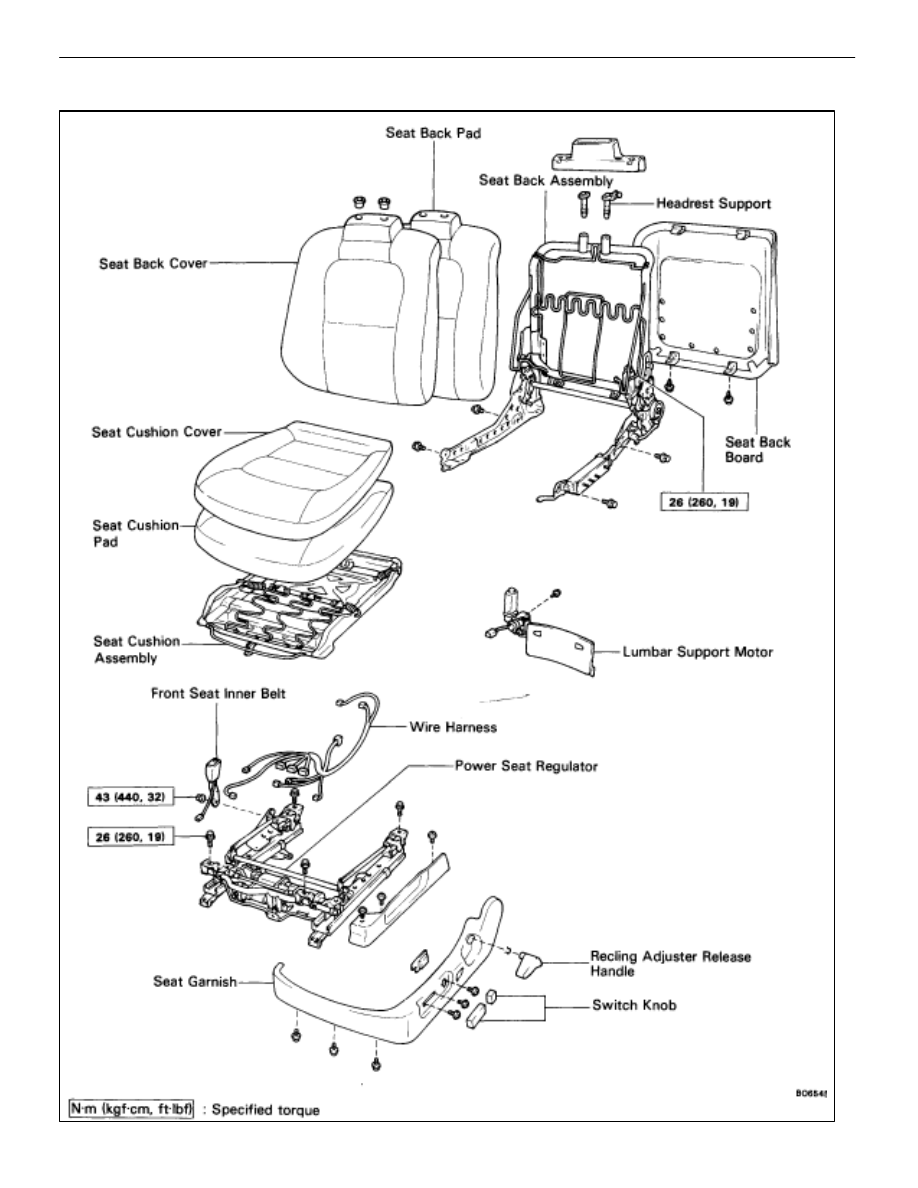

DISASSEMBLY OF FRONT SEAT

BO–60

–

BODY

Seat (Front Seat)
