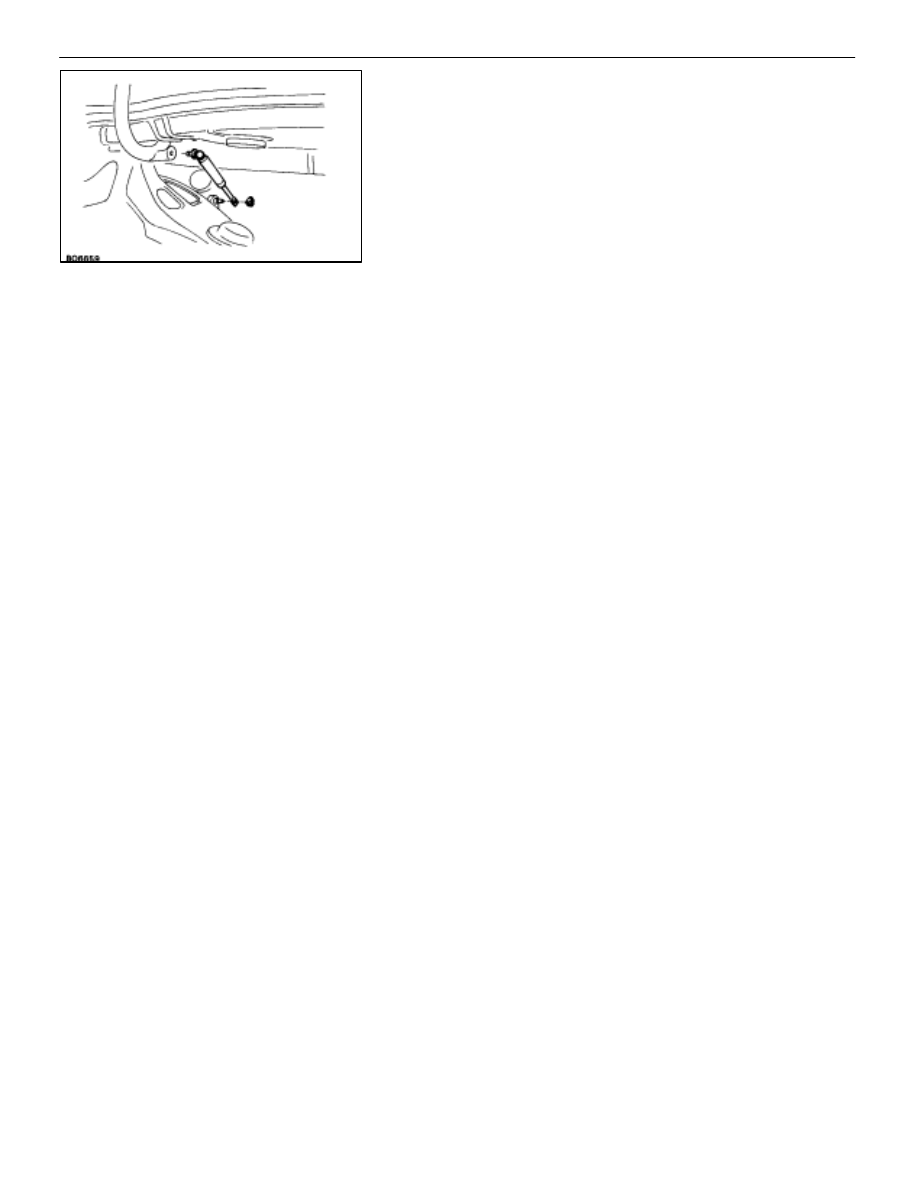

(b)  Remove the clip, loosen the bolt disconnect the door

support.

(c)  Remove the door support.

3.

IF NECESSARY, REPLACE DOOR SUPPORT
(See step 3 on page

BO–23

)

INSTALLATION OF LUGGAGE
COMPARTMENT DOOR

(See page

BO–76

)

INSTALL LUGGAGE COMPARTMENT DOOR PARTS BY FOL-
LOWING REMOVAL SEQUENCE IN REVERSE

DISASSEMBLY OF LUGGAGE
COMPARTMENT DOOR

(See page

BO–76

)

1.

REMOVE LOCK STRIKER
Remove two bolts and the striker.

2. REMOVE

CUSHION

3.

REMOVE NAME PLATE AND EMBLEM
(See page

BO–94

)

ASSEMBLY OF LUGGAGE
COMPARTMENT DOOR

(See page

BO–76

)

ASSEMBLE THE LUGGAGE COMPARTMENT DOOR PARTS
BY FOLLOWING DISASSEMBLY SEQUENCE IN REVERSE

–

BODY

Luggage Compartment (Luggage Compartment Door)

BO–77

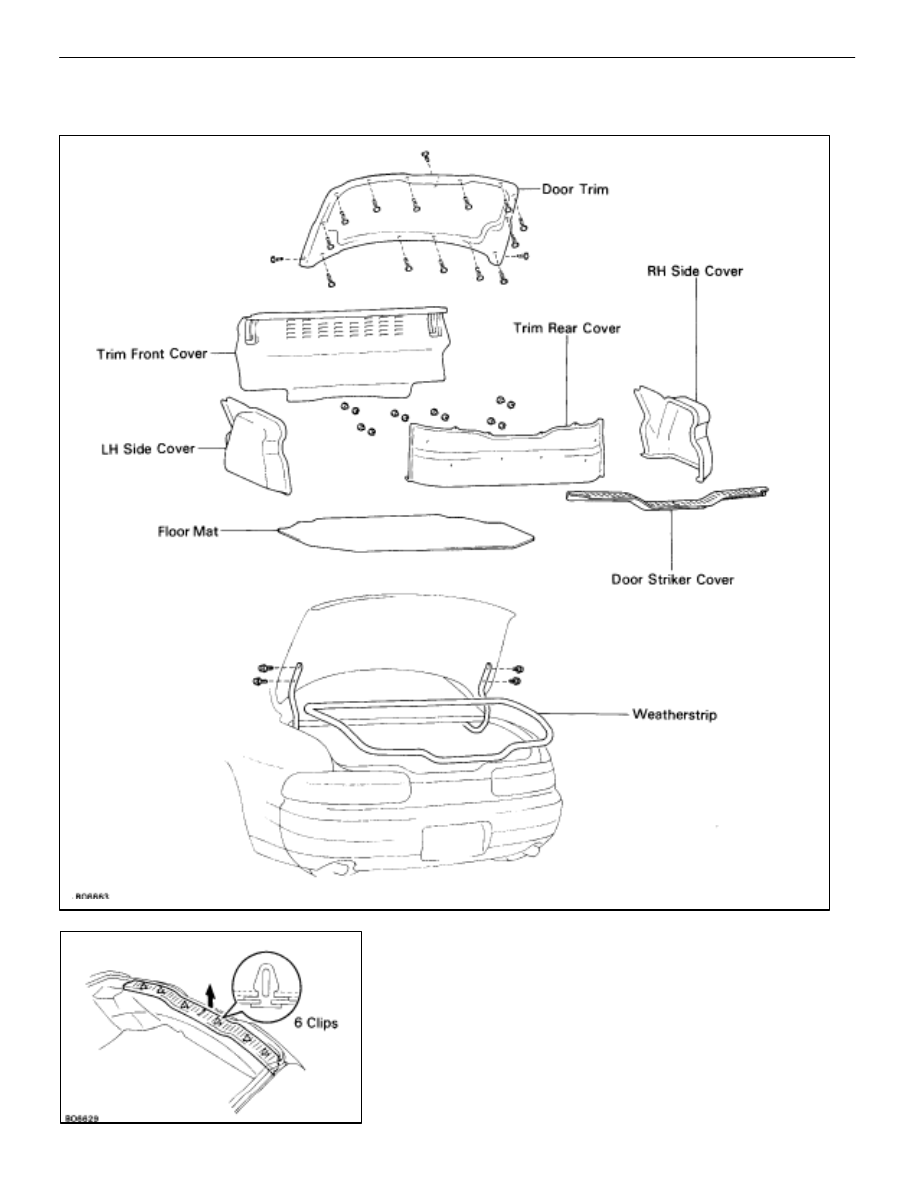

Trim and Weatherstrip

COMPONENTS

REMOVAL OF TRIM AND
WEATHERSTRIP

1.

REMOVE FLOOR MAT

2.

REMOVE DOOR STRIKER COVER
Pull up the cover and remove it.

BO–78

–

BODY

Luggage Compartment (Trim and Weatherstrip)

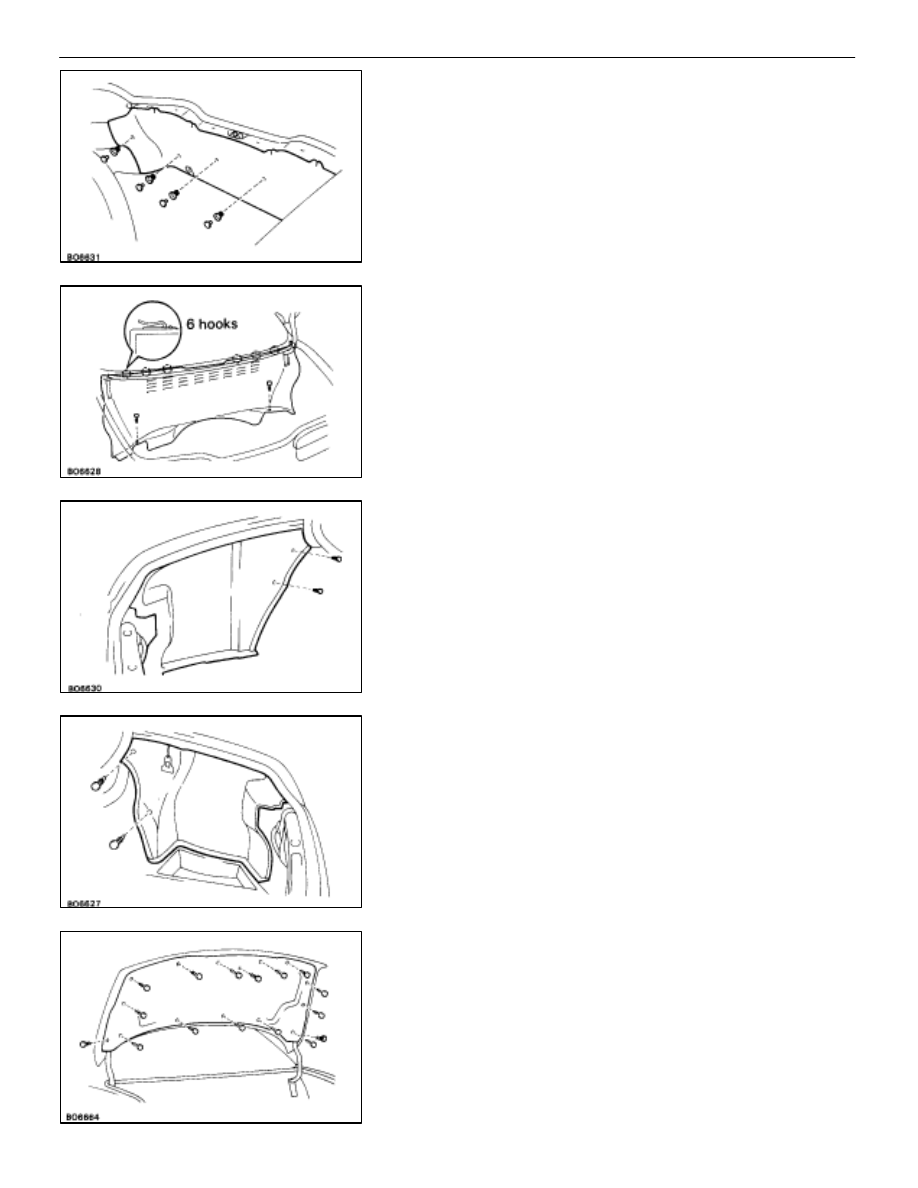

3.

REMOVE TRIM REAR COVER
(a)  Using a clip remover, remove six clips.
(b)  Pull up the cover to remove it.

4.

REMOVE TRIM FRONT COVER
Remove two screws and the cover.

5.

REMOVE LH SIDE COVER
Using a clip remover, remove two clips and the cover.

6.

REMOVE RH SIDE COVER
(a)  Push the plate through to the back of the cover.
(b)  Using a clip remover, remove two clips and the cover.

7.

REMOVE DOOR TRIM
(a)  Using a clip remover, remove sixteen clips.
(b)  Pull the trim to remove it.

–

BODY

Luggage Compartment (Trim and Weatherstrip)

BO–79

8.

REMOVE LUGGAGE COMPARTMENT DOOR
(See step 2 on page

BO–76

)

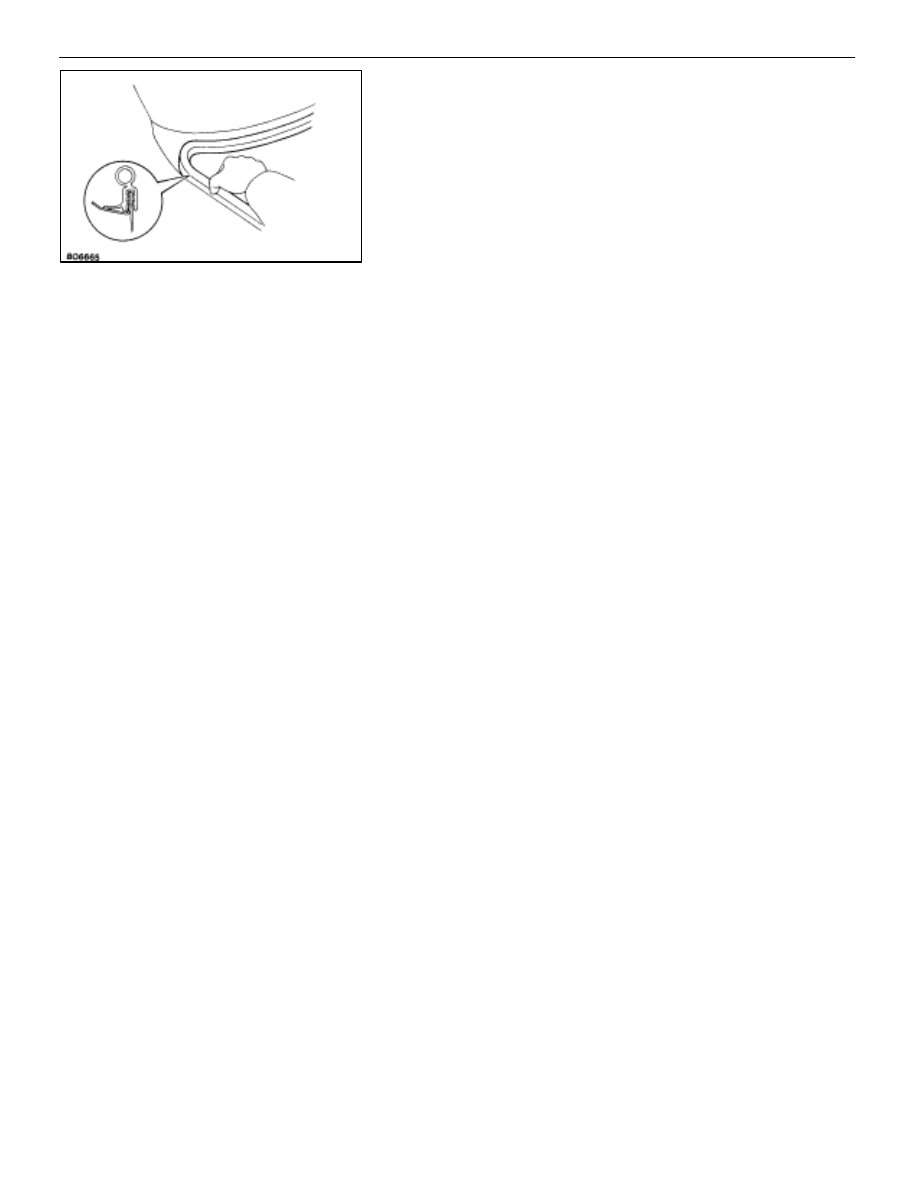

9. REMOVE

WEATHERSTRIP

Pull out the weatherstrip by hand and remove it.

INSTALLATION OF TRIM AND
WEATHERSTRIP

(See page

BO–78

)

INSTALL TRIM AND WEATHERSTRIP PARTS BY FOLLOWING
REMOVAL SEQUENCE IN REVERSE

BO–80

–

BODY

Luggage Compartment (Trim and Weatherstrip)
