PREPARATION
POWER STEERING
81
2002 LEXUS ES300 REPAIR MANUAL (RM911U)
(09951-07100)

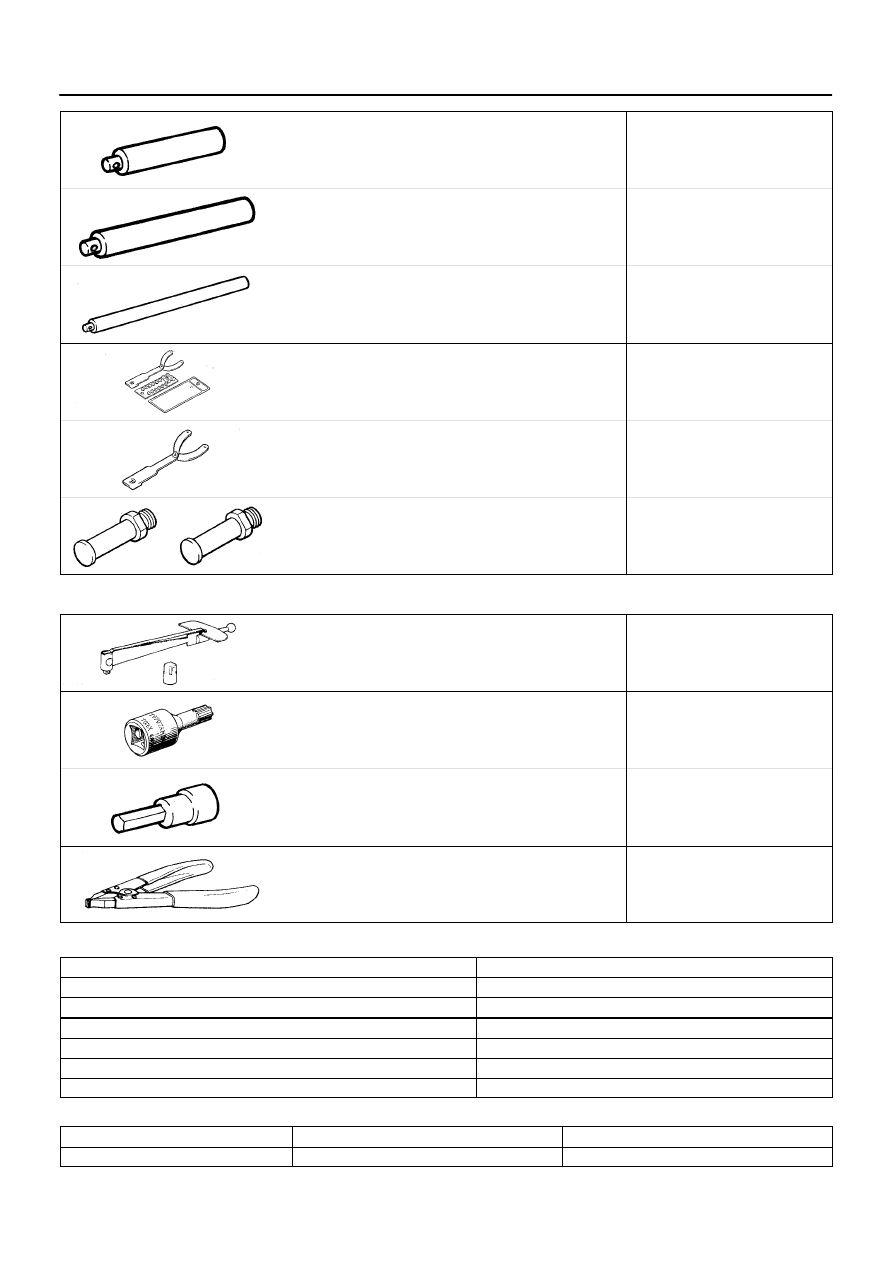

Handle 100
VANE PUMP ASSY
RACK & PINION POWER STEERING
GEAR ASSY
(09951-07150)
Handle 150
RACK & PINION POWER STEERING
GEAR ASSY
(09951-07360)
Handle 360
RACK & PINION POWER STEERING
GEAR ASSY
09960-10010
Variable Pin Wrench Set
VANE PUMP ASSY
(09962-01000)
Variable Pin Wrench Arm Assy
VANE PUMP ASSY
(09963-01000)
Pin 10
VANE PUMP ASSY
Recomended Tools
09025-00010
Torque Wrench (30 kgf-cm)
RACK & PINION POWER STEERING
GEAR ASSY
09042-00010
Torx Socket T30
RACK & PINION POWER STEERING
GEAR ASSY
(09043-20060)
Socket Hexagon Wrench 6
RACK & PINION POWER STEERING
GEAR ASSY
09905-00012
Snap Ring No.1 Expander
VANE PUMP ASSY
Equipment
Caliper gauge
Vane pump assy
Belt tension gauge
Vane pump assy
Vernier calipers
Vane pump assy
Dial indicator
Steering gear assy
Feeler gauge
Vane pump assy
Micrometer
Vane pump assy
Torque wrench
Lubricant
Item
Capacity
Classification
Power steering fluid (Total)
1.0 liters (1.1 US qts, 0.9 lmp.qts)
ATF DEXRON
®
II or III
