Lexus ES300 (2002 year). Manual - part 267

02-42

-

PREPARATION

HEATER & AIR CONDITIONER

85

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

Equipment

Voltmeter

Anmeter

Ohmmeter

Vinyl tape

Hexagon wrench 10 mm (0.39 in.)

Hexagon wrench 4 mm (0.16 in.)

Vise pliers

Gas leak detector

Belt tension gauge

Dial indicator

Torque wrench

Lubricant

Item

Capacity

Classification

Compressor oil

-

ND-OIL 8 or equivalent

020ZN-01

-

PREPARATION

SUPPLEMENTAL RESTRAINT SYSTEM

02-43

86

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

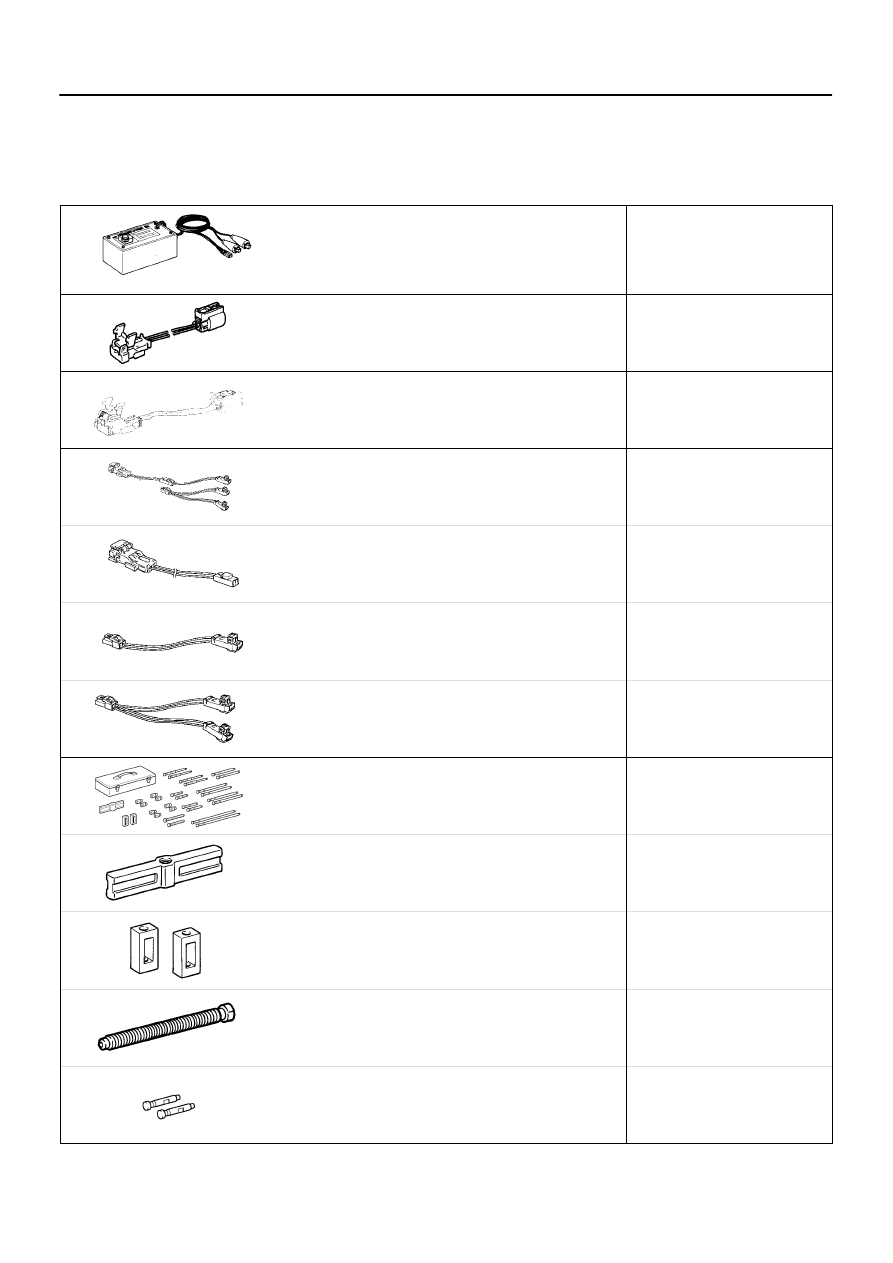

SUPPLEMENTAL RESTRAINT SYSTEM

PREPARATION

SST

09082-00700

SRS Airbag Deployment Tool

HORN BUTTON ASSY

INSTR PNL PASS L/DOOR AIR BAG

ASSY

CURTAIN SHIELD AIR BAG ASSY LH

FRONT SEAT AIRBAG ASSY RH

09082-00750

Airbag Deployment Wire

Sub-harness No.3

FRONT SEAT AIRBAG ASSY RH

09082-00780

Airbag Deployment Wire

Sub-harness No.6

HORN BUTTON ASSY

09082-00801

Airbag Deployment Wire

Sub-Harness No. 8

HORN BUTTON ASSY

INSTR PNL PASS L/DOOR AIR BAG

ASSY

CURTAIN SHIELD AIR BAG ASSY LH

(09082-10801)

Wire A

HORN BUTTON ASSY

INSTR PNL PASS L/DOOR AIR BAG

ASSY

CURTAIN SHIELD AIR BAG ASSY LH

(09082-20801)

Wire B

CURTAIN SHIELD AIR BAG ASSY LH

(09082-30801)

Wire C

HORN BUTTON ASSY

INSTR PNL PASS L/DOOR AIR BAG

ASSY

09950-50013

Puller C Set

SPIRAL CABLE SUB-ASSY

INSTR PNL PASS L/DOOR AIR BAG

ASSY

(09951-05010)

Hanger 150

SPIRAL CABLE SUB-ASSY

INSTR PNL PASS L/DOOR AIR BAG

ASSY

(09952-05010)

Slide Arm

SPIRAL CABLE SUB-ASSY

INSTR PNL PASS L/DOOR AIR BAG

ASSY

(09953-05020)

Center Bolt 150

SPIRAL CABLE SUB-ASSY

INSTR PNL PASS L/DOOR AIR BAG

ASSY

(09954-05021)

Claw No.2

SPIRAL CABLE SUB-ASSY

INSTR PNL PASS L/DOOR AIR BAG

ASSY

02-44

-

PREPARATION

SUPPLEMENTAL RESTRAINT SYSTEM

87

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

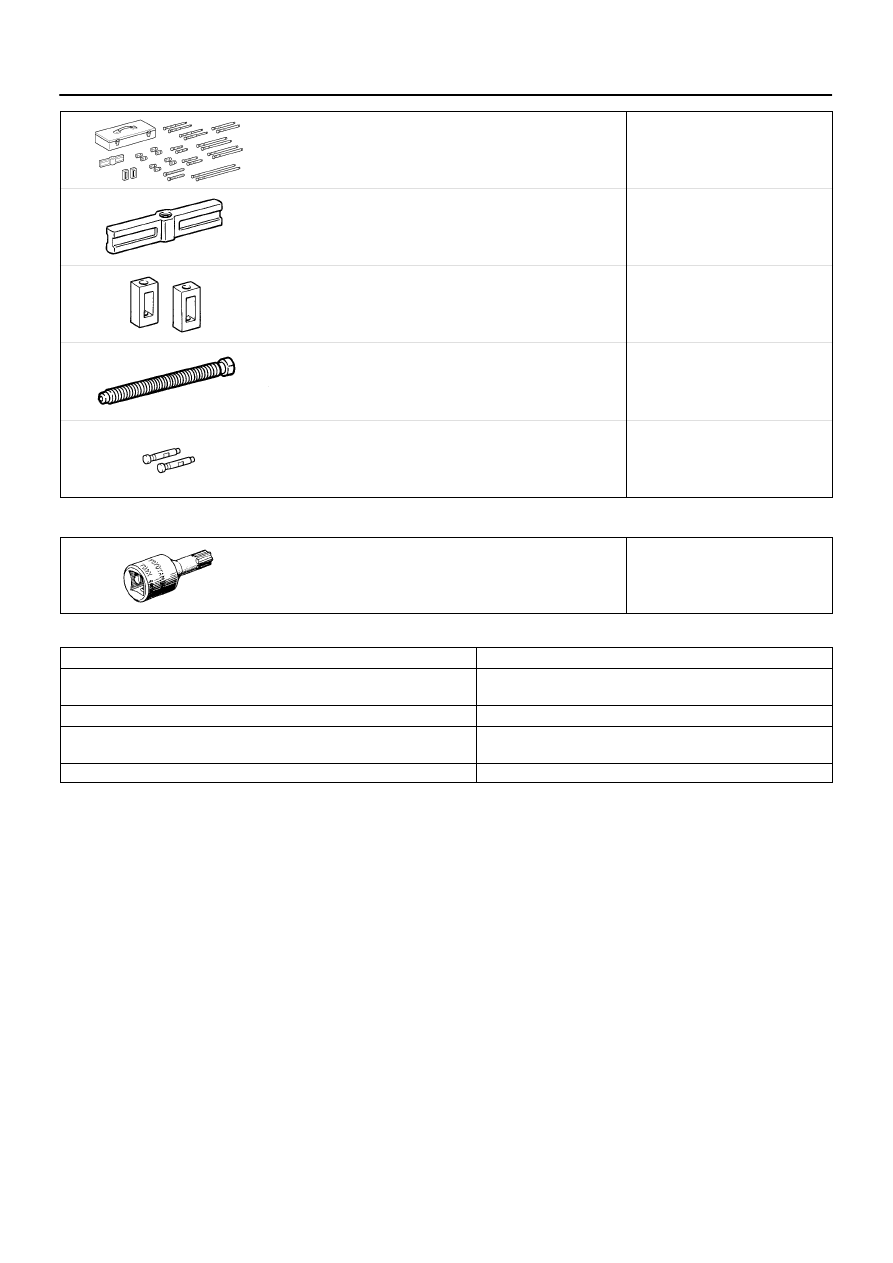

09950-50013

Puller C Set

SPIRAL CABLE SUB-ASSY

(09951-05010)

Hanger 150

SPIRAL CABLE SUB-ASSY

INSTR PNL PASS L/DOOR AIR BAG

ASSY

(09952-05010)

Slide Arm

SPIRAL CABLE SUB-ASSY

INSTR PNL PASS L/DOOR AIR BAG

ASSY

(09953-05020)

Center Bolt 150

SPIRAL CABLE SUB-ASSY

INSTR PNL PASS L/DOOR AIR BAG

ASSY

(09954-05021)

Claw No.2

SPIRAL CABLE SUB-ASSY

Recomended Tools

09042-00010

Torx Socket T30

HORN BUTTON ASSY

SPIRAL CABLE SUB-ASSY

INSTR PNL PASS L/DOOR AIR BAG

ASSY

Equipment

Torque wrench

Bolt     Length: 35.0 mm (1.387 in.)     Pitch: 1.0 mm (0.039 in.)
Diam.: 6.0 mm (0.236 in.)

Airbag disposal

Tire      Width: 185 mm (7.28 in.)     Inner diam.: 360 mm (14.17 in.)

Airbag disposal

Tire with disc wheel     Width: 185 mm (7.28 in.)
Inner diam.: 360 mm (14.17 in.)

Airbag disposal

Vinyl bag

Airbag disposal

020YL-01

-

PREPARATION

SEAT BELT

02-45

88

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

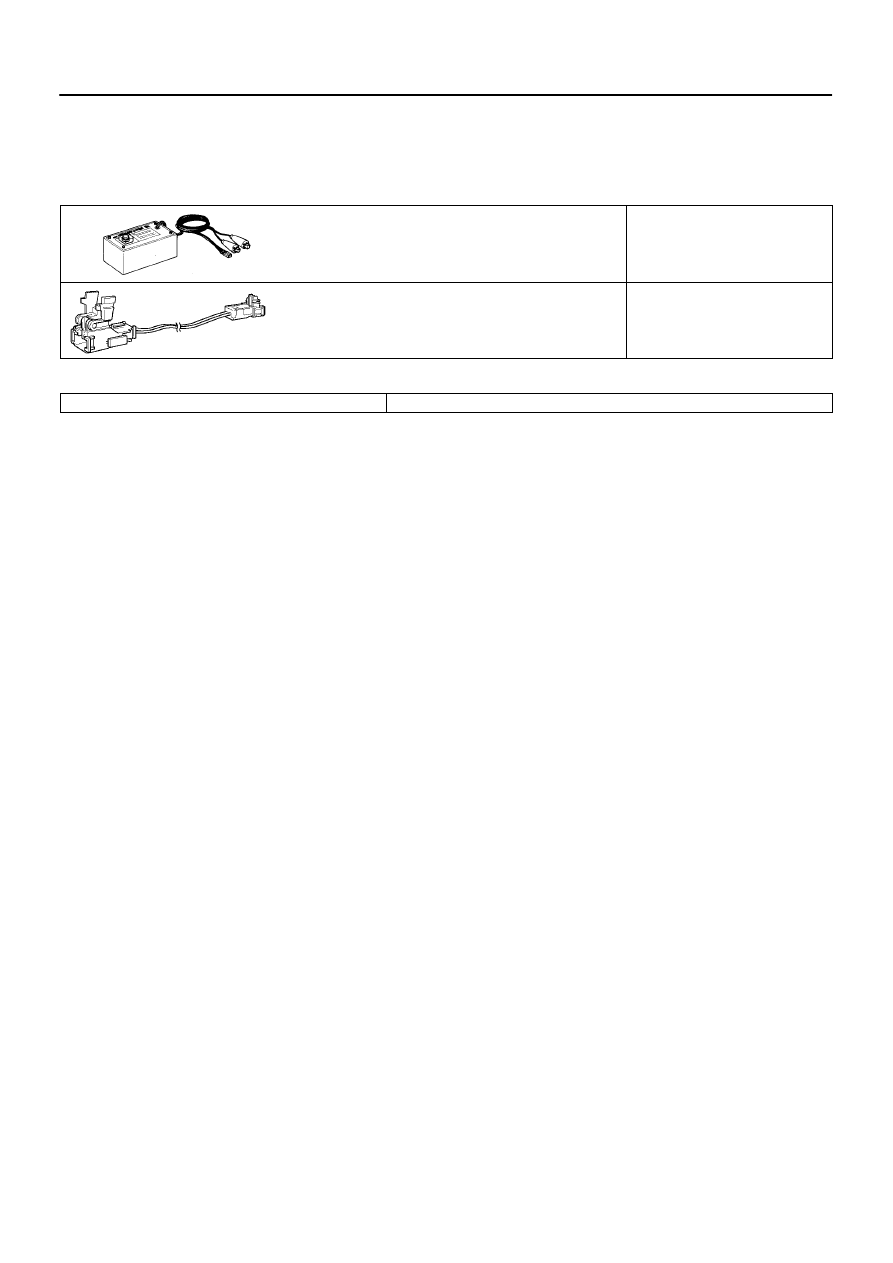

SEAT BELT

PREPARATION

SST

09082-00700

SRS Airbag Deployment Tool

FRONT SEAT BELT

09082-00770

Airbag Deployment Wire

Sub-harness No.5

FRONT SEAT BELT

Equipment

Torque wrench
