2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

PARKING BRAKE

PREPARATION

Recomended Tools

09070-20010

Moulding Remover

PARKING BRAKE CONTROL PEDAL

ASSY

PARKING BRAKE CABLE ASSY NO.1

Equipment

Brake drum gauge

Torque wrench

020YT-01

-

PREPARATION

PARKING BRAKE

02-31

74

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

PARKING BRAKE

PREPARATION

Recomended Tools

09070-20010

Moulding Remover

PARKING BRAKE CONTROL PEDAL

ASSY

PARKING BRAKE CABLE ASSY NO.1

Equipment

Brake drum gauge

Torque wrench

020X4-01

02-32

-

PREPARATION

AUTOMATIC TRANSMISSION / TRANS

75

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

AUTOMATIC TRANSMISSION / TRANS

PREPARATION

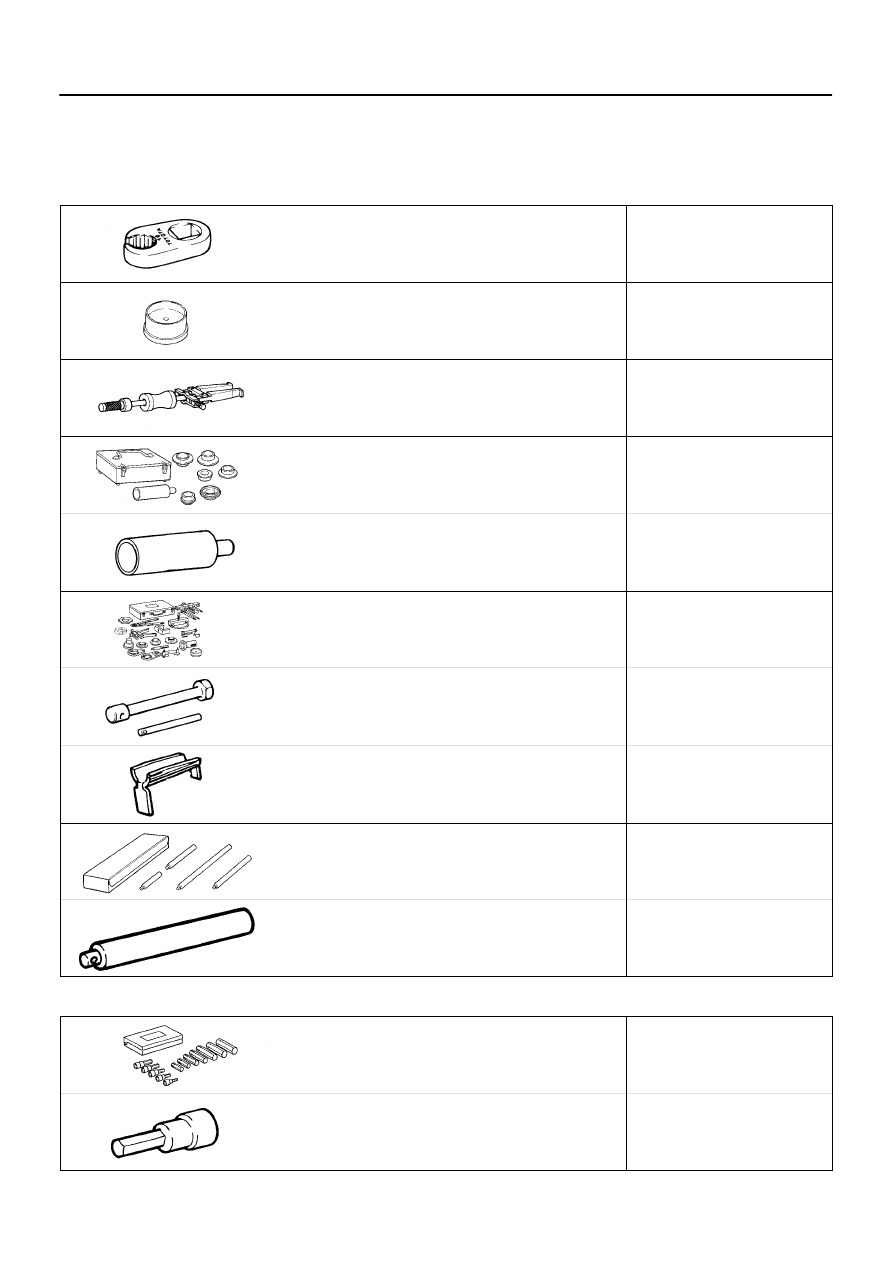

SST

09023-12700

Union Nut Wrench  17mm

AUTOMATIC TRANSAXLE ASSY

09223-15020

Oil Seal & Bearing Replacer

FRONT DIFFERENTIAL OIL SEAL

09308-00010

Oil Seal Puller

FRONT DIFFERENTIAL OIL SEAL

09316-6001 1

Transmission & Transfer Bearing

Replacer

FRONT DIFFERENTIAL OIL SEAL

(09316-0001 1)

Replacer Pipe

FRONT DIFFERENTIAL OIL SEAL

09350-32014

TOYOTA Automatic Transmission

Tool Set

TORQUE CONVERTER CLUTCH

AND DRIVE PLATE

AUTOMATIC TRANSAXLE ASSY

(09351-32010)

One-way Clutch Test Tool

TORQUE CONVERTER CLUTCH

AND DRIVE PLATE

AUTOMATIC TRANSAXLE ASSY

(09351-32020)

Stator Stopper

TORQUE CONVERTER CLUTCH

AND DRIVE PLATE

AUTOMATIC TRANSAXLE ASSY

09950-70010

Handle Set

FRONT DIFFERENTIAL OIL SEAL

(09951-07150)

Handle 150

FRONT DIFFERENTIAL OIL SEAL

Recomended Tools

09040-0001 1

Hexagon Wrench Set

TRANSMISSION WIRE

AUTOMATIC TRANSAXLE ASSY

(09043-20050)

Socket Hexagon Wrench 5

TRANSMISSION WIRE

AUTOMATIC TRANSAXLE ASSY

-

PREPARATION

AUTOMATIC TRANSMISSION / TRANS

02-33

76

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

Equipment

Straight edge

Torque converter

Vernier calipers

Torque converter

Dial indicator or dial indicator with magnetic base

Drive plate

Punch

Torque wrench

Lubricant

Item

Capacity

Classification

U150E:
Automatic transaxle fluid
  Dry fill
  Drain and refill

8.98 liters (9.5 US qts, 7.9 lmp.qts)

3.10 liters (3.3 US qts, 2.8 lmp.qts)

ATF Type  T-IV
