PREPARATION

DRIVE SHAFT / PROPELLER SHAFT

02-27

70

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

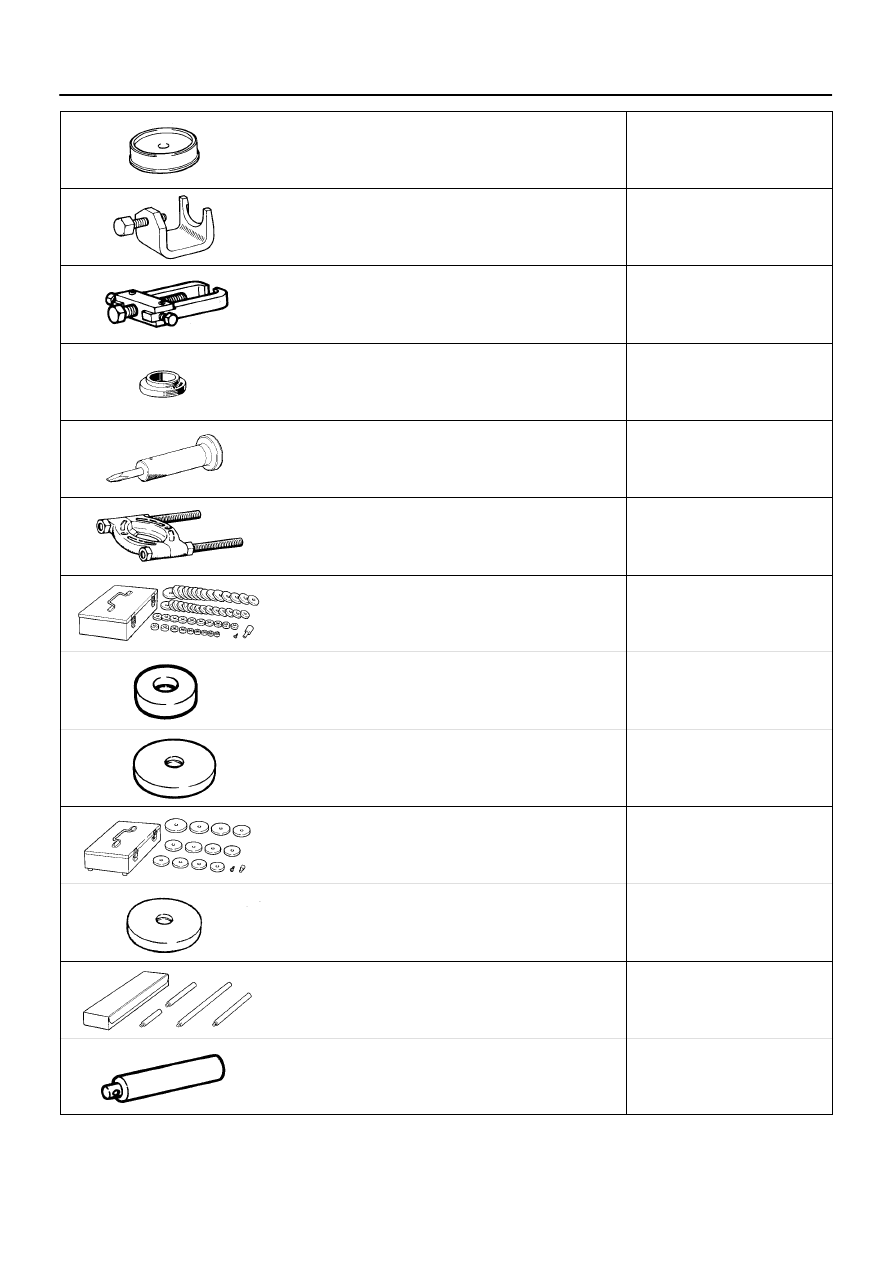

09608-32010

Steering Knuckle Oil Seal

Replacer

FRONT AXLE HUB SUB-ASSY LH

09628-1001 1

Ball Joint Puller

FRONT AXLE LH HUB BOLT

REAR AXLE LH HUB BOLT

09628-6201 1

Boll Joint Puller

FRONT AXLE HUB SUB-ASSY LH

FRONT DRIVE SHAFT

09726-40010

Lower Control Shaft Bearing

Replacer

FRONT DRIVE SHAFT

09930-00010

Drive Shaft Nut Chisel

FRONT AXLE HUB SUB-ASSY LH

FRONT DRIVE SHAFT

09950-00020

Bearing Remover

FRONT AXLE HUB SUB-ASSY LH

FRONT DRIVE SHAFT

09950-60010

Replacer Set

FRONT AXLE HUB SUB-ASSY LH

(09951-00410)

Replacer 41

FRONT AXLE HUB SUB-ASSY LH

(09951-00600)

Replacer 60

FRONT AXLE HUB SUB-ASSY LH

09950-60020

Replacer Set No.2

FRONT AXLE HUB SUB-ASSY LH

(09951-00790)

Replacer 79

FRONT AXLE HUB SUB-ASSY LH

09950-70010

Handle Set

FRONT AXLE HUB SUB-ASSY LH

(09951-07100)

Handle 100

FRONT AXLE HUB SUB-ASSY LH

02-28

-

PREPARATION

DRIVE SHAFT / PROPELLER SHAFT

71

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

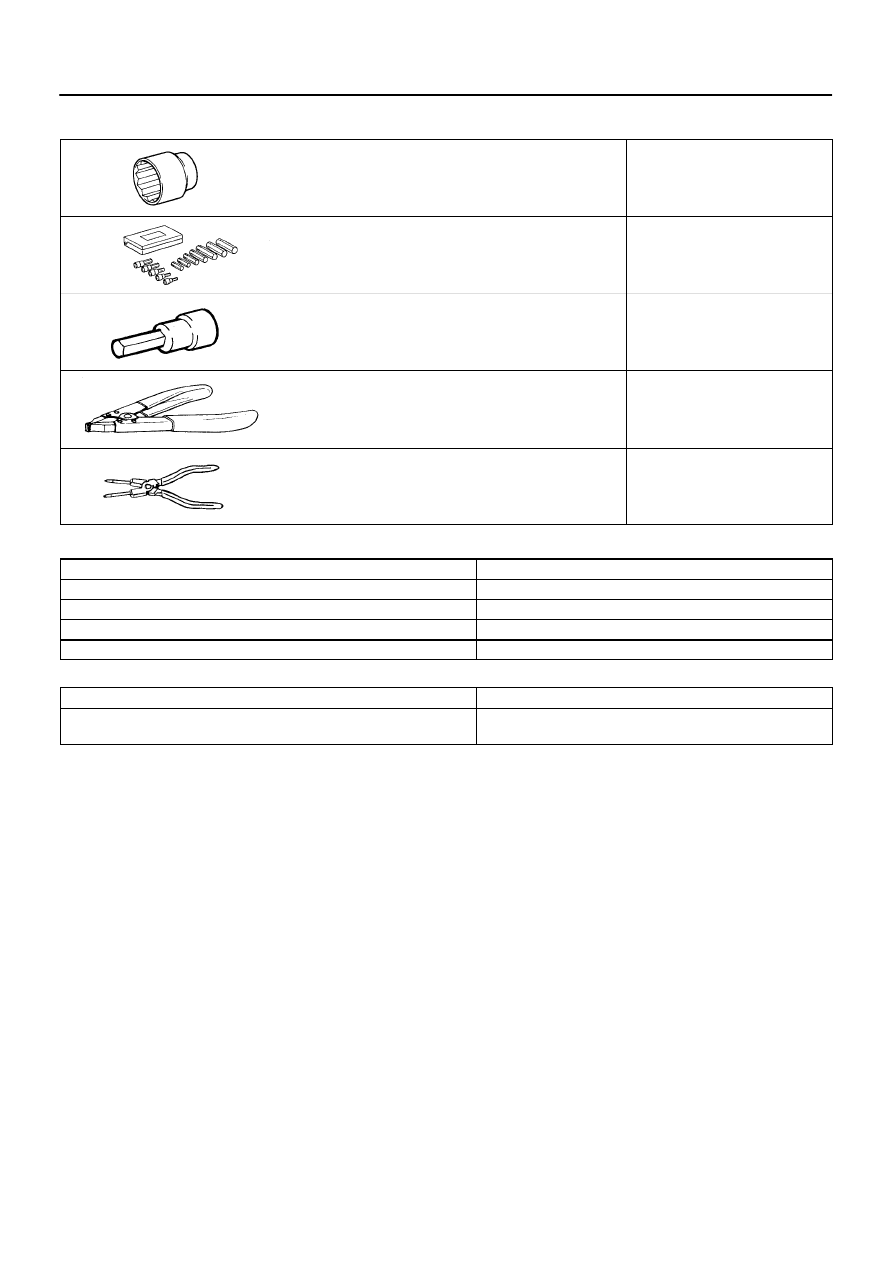

Recomended Tools

09011-12301

Socket Wrench 30 mm

FRONT AXLE HUB SUB-ASSY LH

FRONT DRIVE SHAFT

09040-0001 1

Hexagon Wrench Set

FRONT DRIVE SHAFT

(09043-20060)

Socket Hexagon Wrench 6

FRONT DRIVE SHAFT

09905-00012

Snap Ring No.1 Expander

FRONT DRIVE SHAFT

09905-00013

Snap Ring Pliers

FRONT AXLE HUB SUB-ASSY LH

Equipment

Torque wrench

Dial indicator with magnetic base

Alingment tester

Toe-in gauge

Angle gauge

Lubricant

Item

Capacity

Front drive shaft

Outboard joint grease

Inboard joint grease

205 - 215 g (7.2 - 7.6 oz.)
185 - 195 g (6.5 - 6.9 oz.)

020YF-01

-

PREPARATION

BRAKE

02-29

72

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

BRAKE

PREPARATION

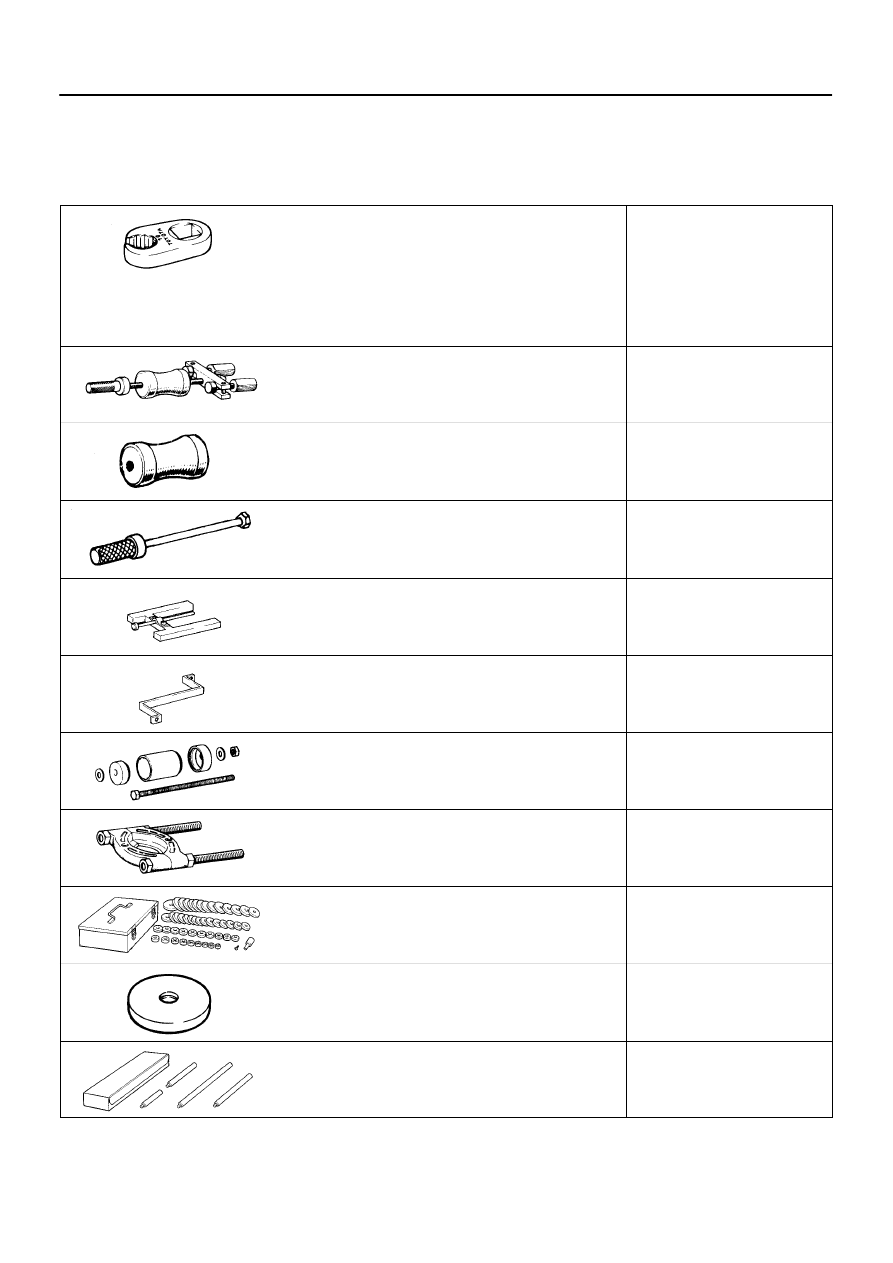

SST

09023-00100

Union Nut Wrench 10 mm

BRAKE FLUID

BRAKE BOOSTER ASSY

FRONT BRAKE

REAR BRAKE

ABS & TRACTION ACTUATOR ASSY

BRAKE MASTER CYLINDER

SUB-ASSY

BRAKE ACTUATOR ASSY

09520-00031

Rear Axle Shaft Puller

SKID CONTROL SENSOR

(09520-00040)

Shocker

SKID CONTROL SENSOR

09521-00020

Drive Shaft Boot Clamping Tool

SKID CONTROL SENSOR

09737-0001 1

Brake Booster Push Rod Gauge

BRAKE MASTER CYLINDER

SUB-ASSY

09737-00020

Brake Booster Push Rod Wrench

BRAKE MASTER CYLINDER

SUB-ASSY

09830-36010

Front Mounting Cushion Remover

& Replacer

SKID CONTROL SENSOR

09950-00020

Bearing Remover

SKID CONTROL SENSOR

09950-60010

Replacer Set

SKID CONTROL SENSOR

(09951-00650)

Replacer 65

SKID CONTROL SENSOR

09950-70010

Handle Set

SKID CONTROL SENSOR

02-30

-

PREPARATION

BRAKE

73

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

(09951-07100)

Handle 100

SKID CONTROL SENSOR

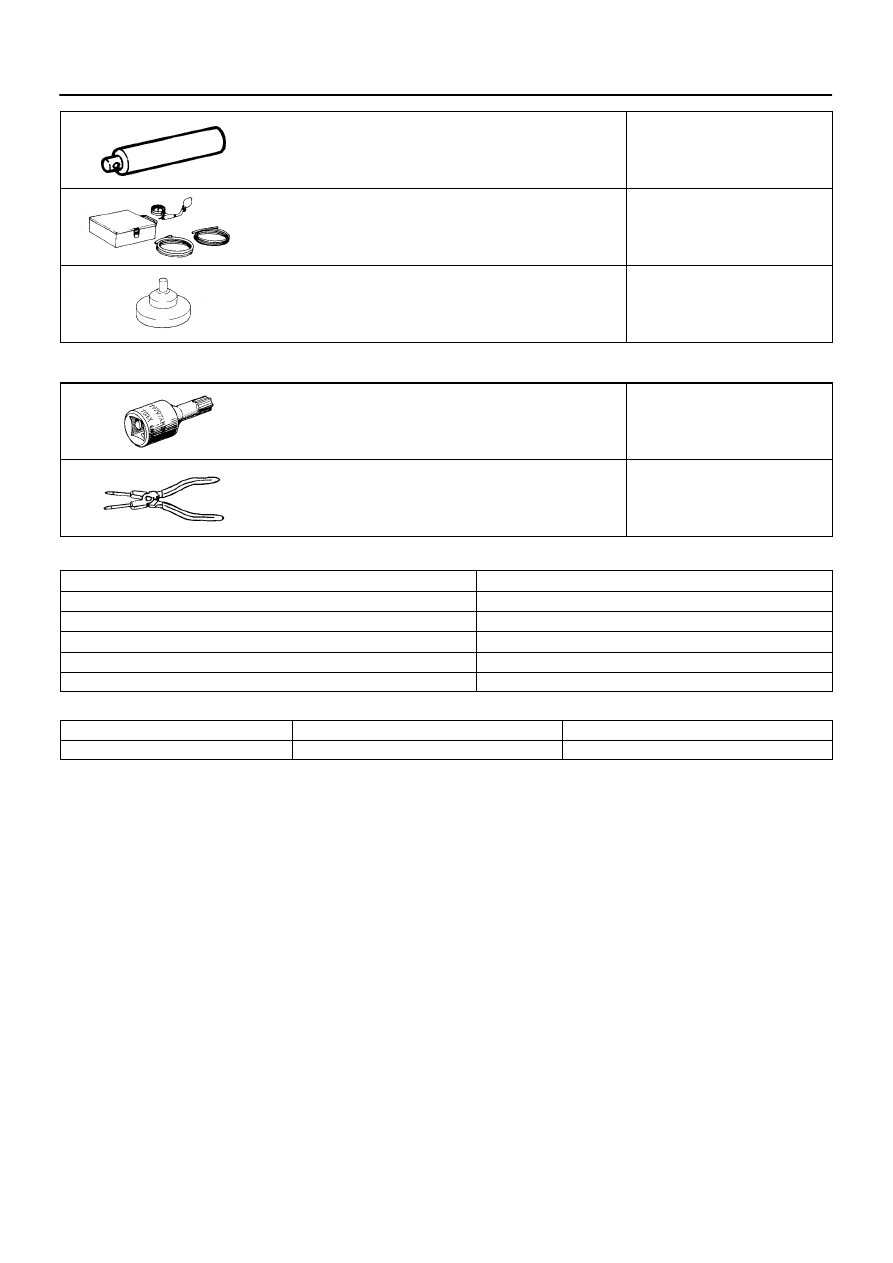

09992-00242

Turbocharger Pressure Gauge

BRAKE FLUID

ABS & TRACTION ACTUATOR ASSY

09992-00350

Brake Reservoir Pressure Adapter

BRAKE FLUID

ABS & TRACTION ACTUATOR ASSY

Recomended Tools

09042-00010

Torx Socket T30

STEERING SENSOR

09905-00013

Snap Ring Pliers

BRAKE MASTER CYLINDER

SUB-ASSY

Equipment

Vernier calipers

Dial indicator

Torque wrench

MIcrometer

Hexagon wrench (8 mm)

Ruler

Lubricant

Item

Capacity

Classification

Brake fluid

-

SAE J1703 or FMVSS No. 116 DOT3
