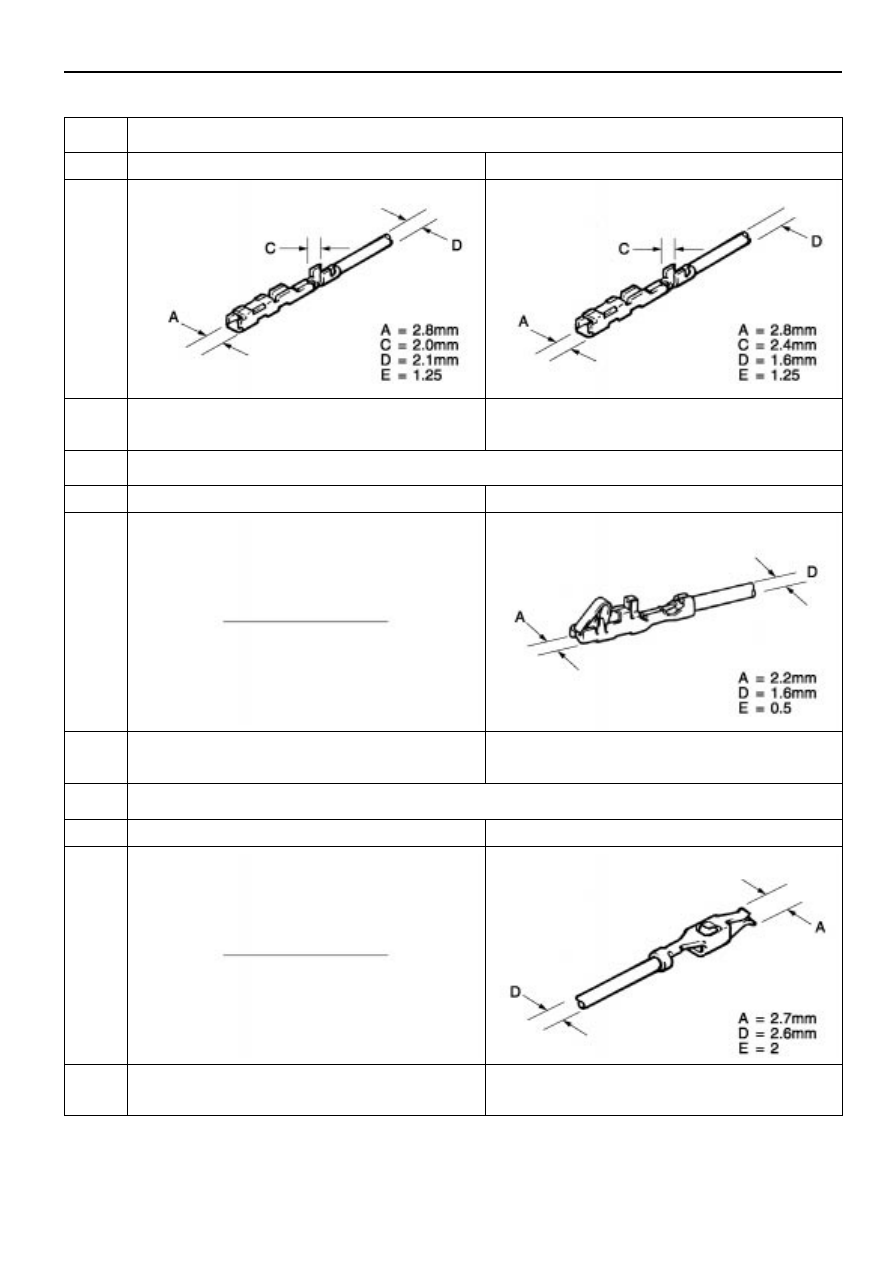

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–16

394

Wire Harness Repair Manual (RM1022E)

Repair Wire (Non–waterproof Type)

Type

PULSE LOCK

Female (Power)

Female (Signal)

P/N

82998–12200

82998–12210

Type

SFPC

Male

Female

Sleeve : Medium (Blue)

P/N

82998–24180

Type

SL

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–12130

F–17

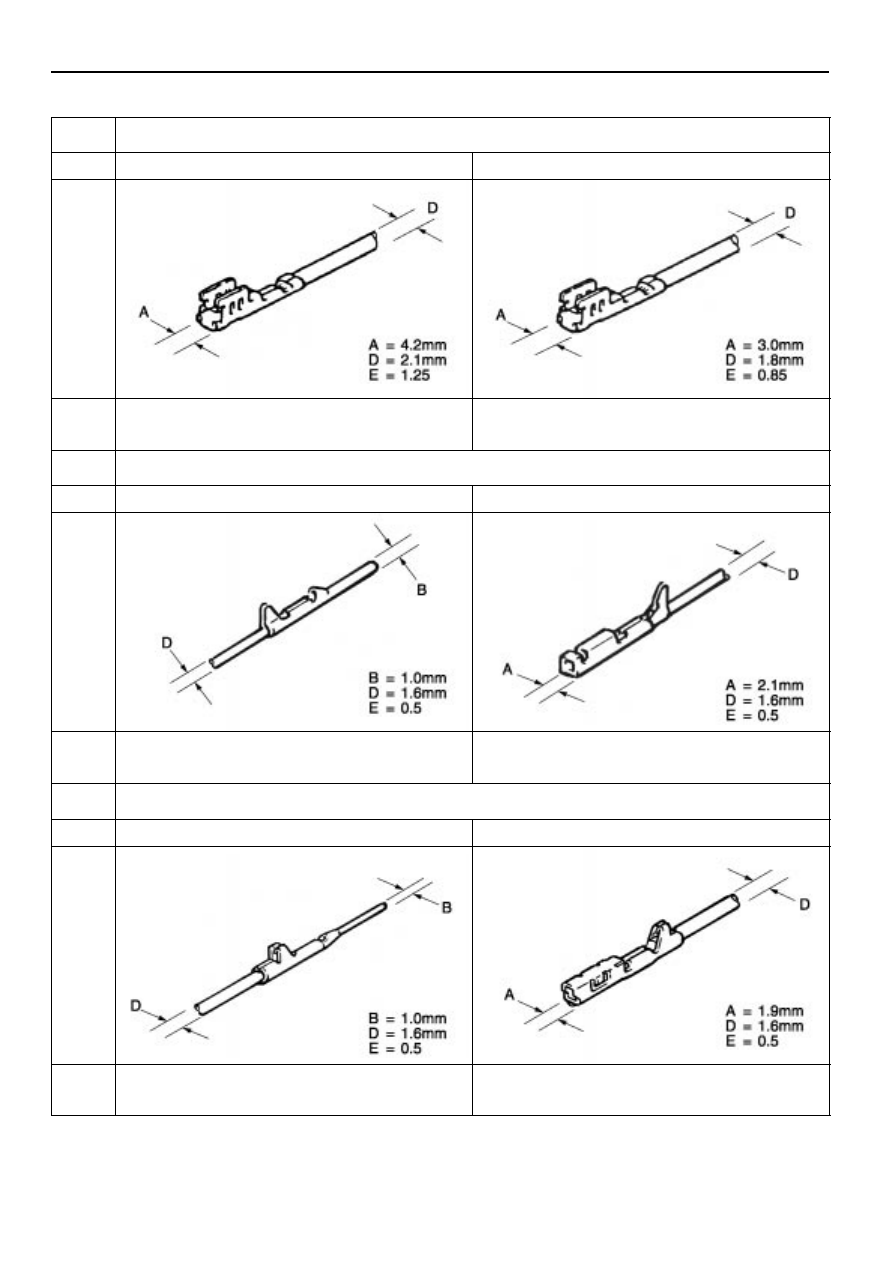

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual (RM1022E)

395

Repair Wire (Non–waterproof Type)

Type

SP

Female (Power)

Female (Signal)

Sleeve : Medium (Blue) or Large (Yellow)

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–12520

82998–12530

Type

TLC

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12220

82998–12230

Type

TNS

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12240

82998–12250

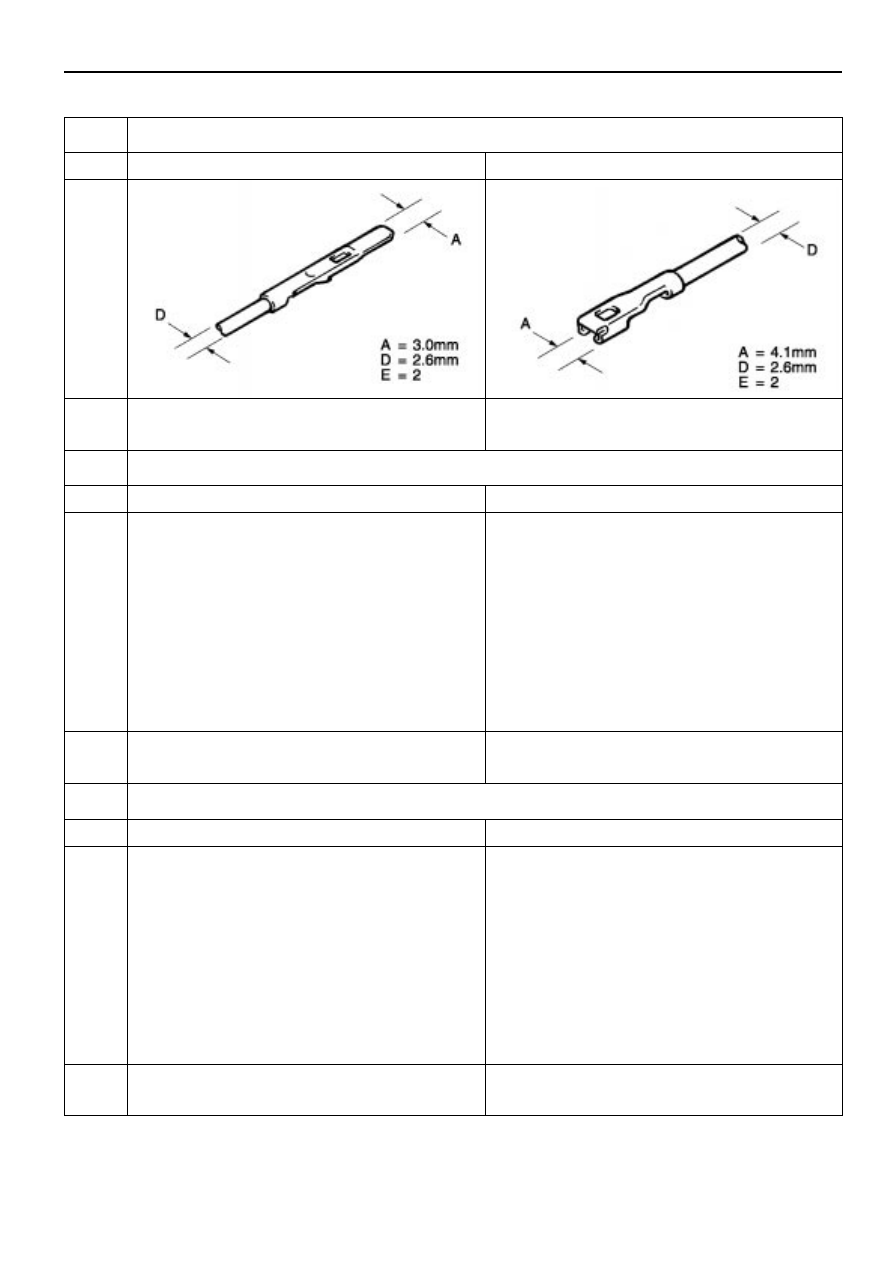

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–18

396

Wire Harness Repair Manual (RM1022E)

Repair Wire (Non–waterproof Type)

Type

TODC

Male

Female

Sleeve : Medium (Blue) or

Large (Yellow)

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–12080

82998–12090

APPENDIX–REPORTING OF WIRE HARNESS PROBLEM

G–2

398

Wire Harness Repair Manual (RM1022E)

REPORTING OF WIRE HARNESS PROBLEM

It is more difficult to understand the cause of wire harness problems and to make
production improvements, due to the number of wire harness routings and connectors and
their wide scope of use.
The position of the problem occurrence and the problem cause will be very clear if you
proceed with wire harness/connector repairs.
We request that when you perform repairs, you fill in the attached ”WIRE
HARNESS/CONNECTOR PROBLEM CHECK SHEET” and send it to your distributor.
Toyota Motor Corporation will be able to make production improvements more quickly and
surely based on the results of the above mentioned reports (Check Sheets).

G
