Lexus ES300 (2002 year). Manual - part 225

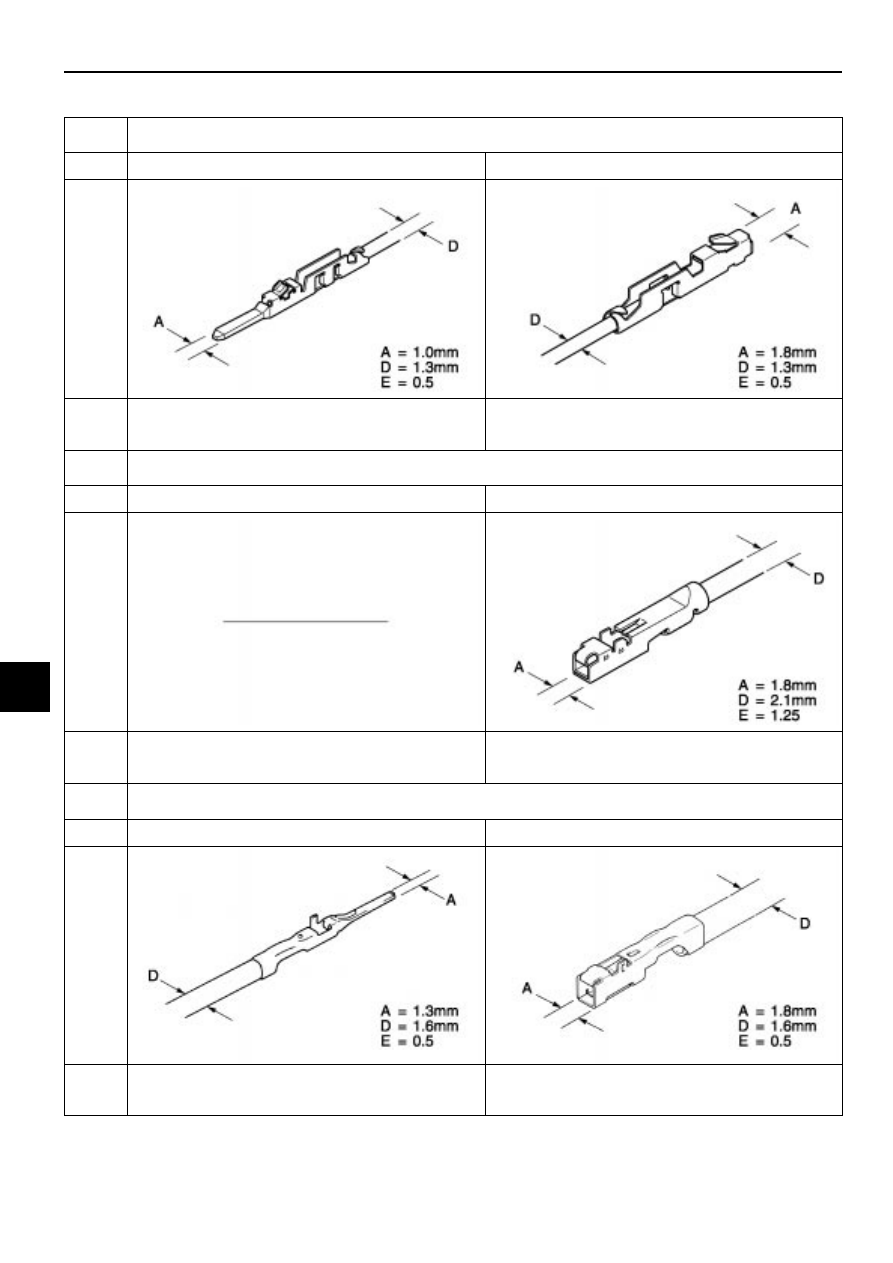

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–8

386

Wire Harness Repair Manual (RM1022E)

Repair Wire (Non–waterproof Type)

Type

1.0III IDC

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12660

82998–12640

Type

1.0IV

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12740

Type

1.3

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12410

82998–12420

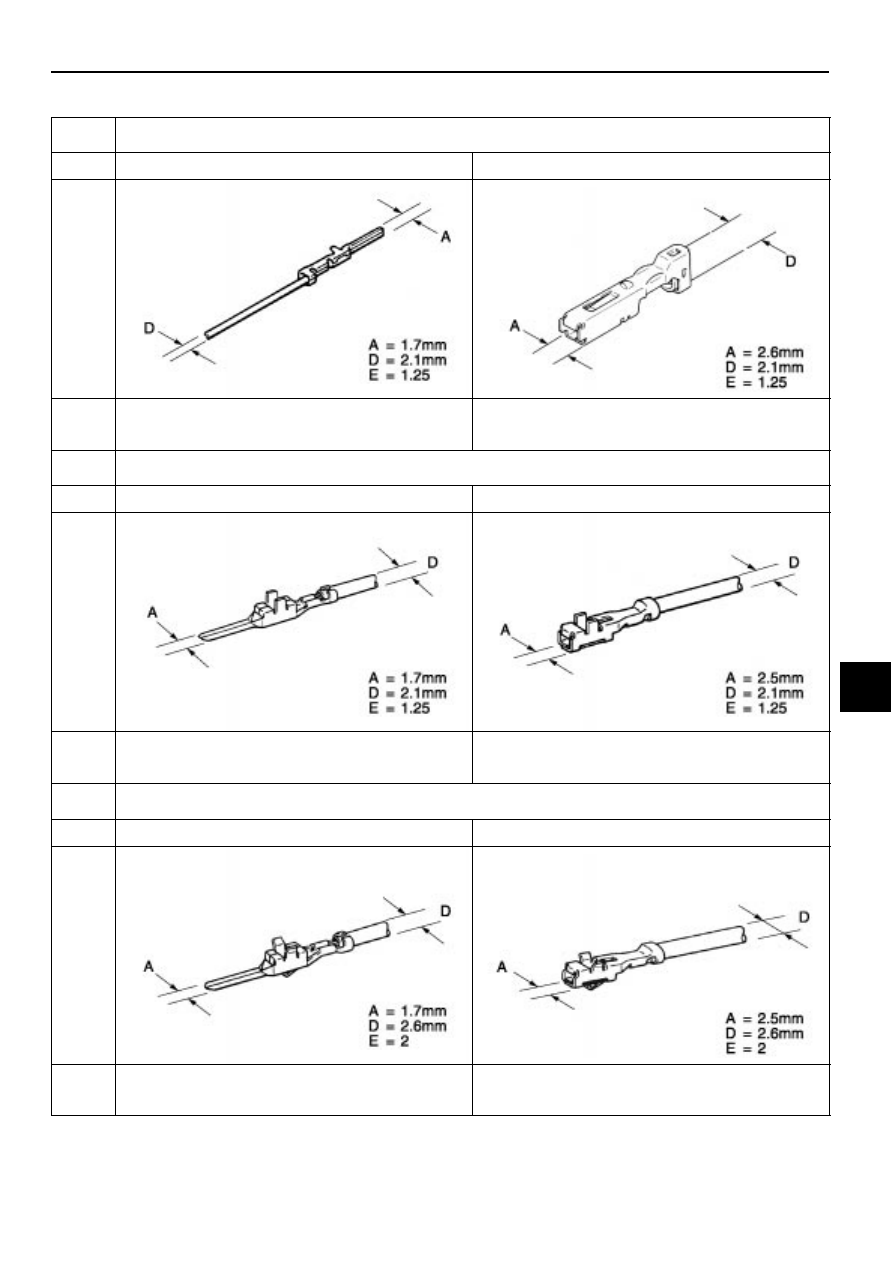

F–9

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual (RM1022E)

387

Repair Wire (Non–waterproof Type)

Type

1.8

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12180

82998–12190
82998–12300*

Type

1.8II

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)
Size : S, M

P/N

82998–24090
82998–24130*

82998–24100

Type

1.8II

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)
Size : L

P/N

82998–24030

82998–24040

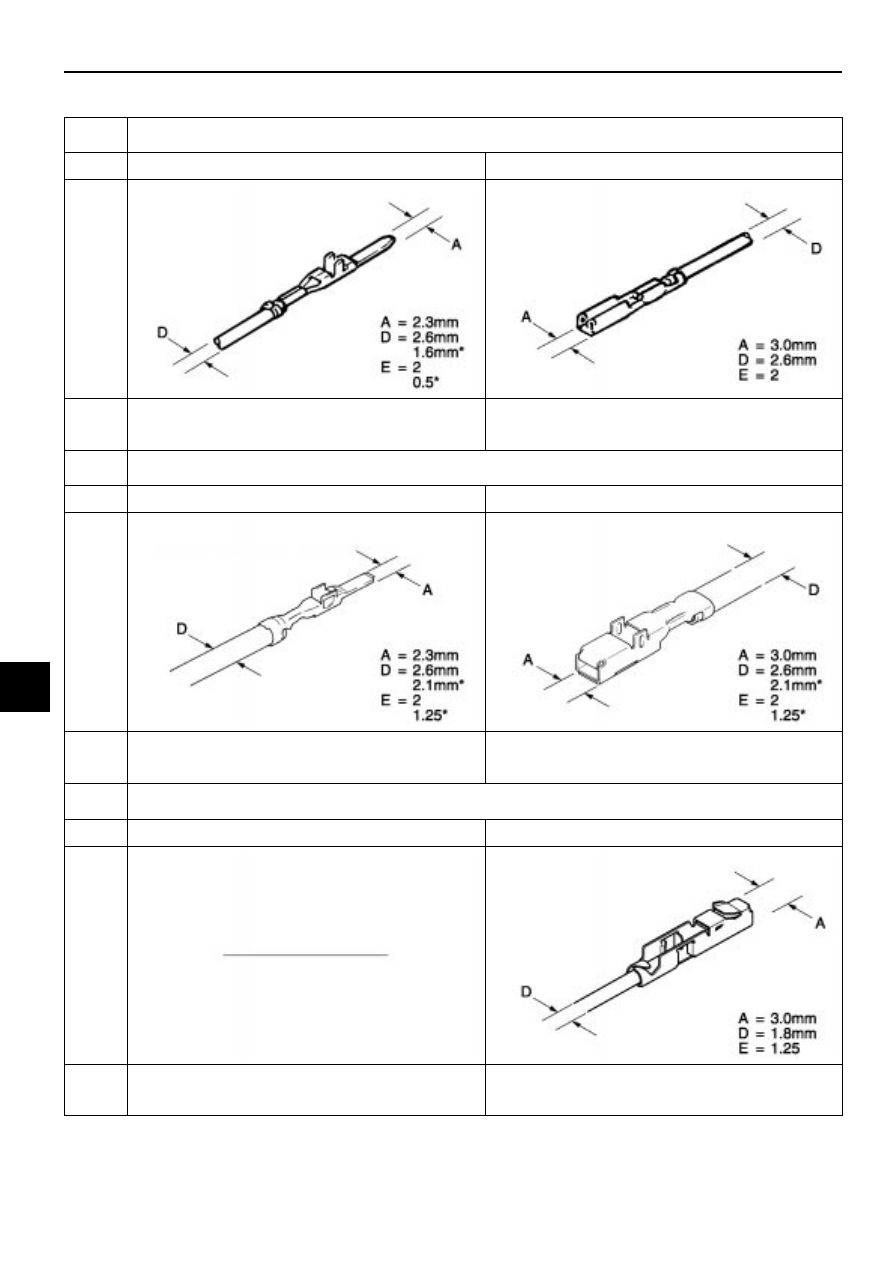

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–10

388

Wire Harness Repair Manual (RM1022E)

Repair Wire (Non–waterproof Type)

Type

2.3

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12160
82998–24050*

82998–12170

Type

2.3II

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–12330
82998–12350*

82998–12340
82998–12360*

Type

2.3II IDC

Male

Female

Sleeve : Medium (Blue)

P/N

82998–24220

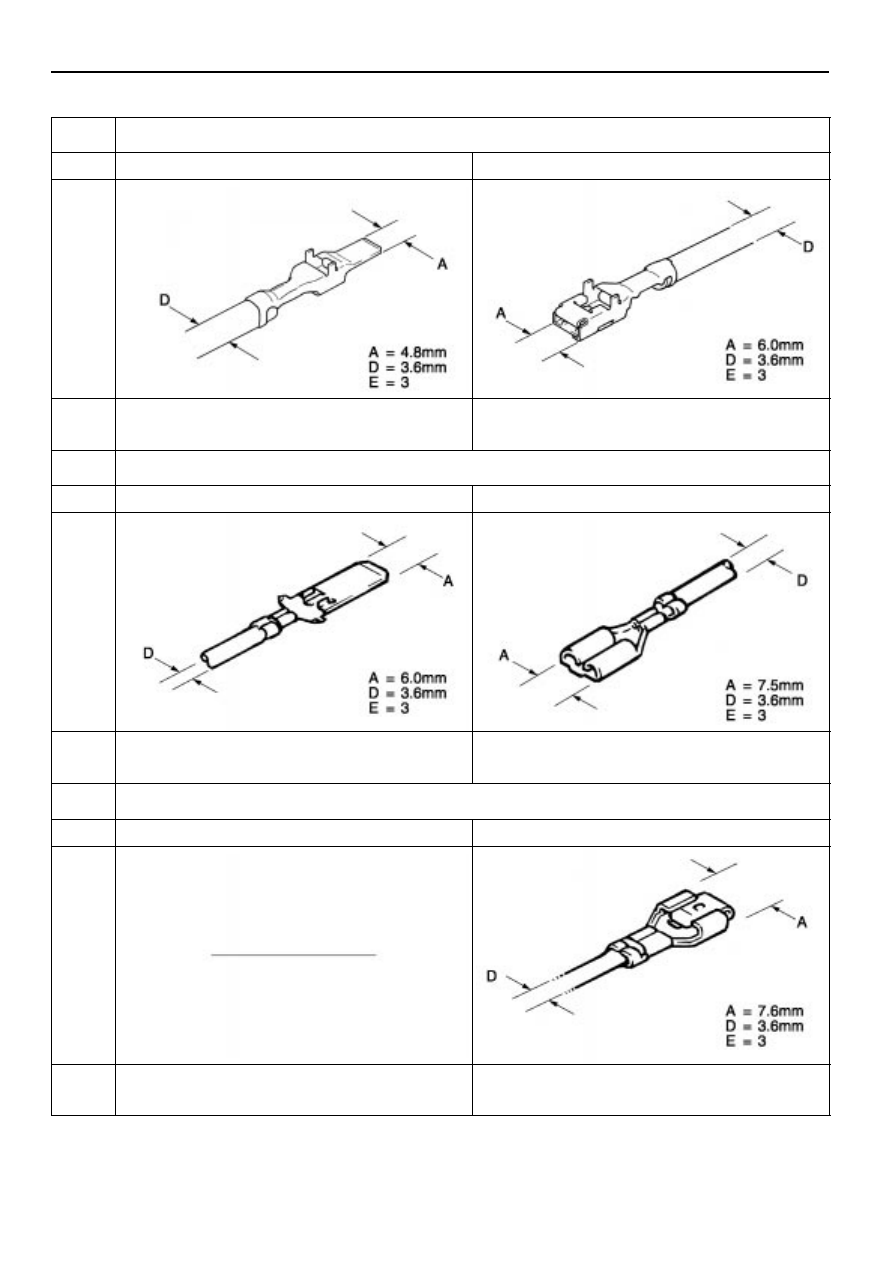

F–11

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual (RM1022E)

389

Repair Wire (Non–waterproof Type)

Type

4.8

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12370

82998–12380

Type

6.3

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12050

82998–12060

(160mm)

82998–12580

(500mm)

Type

6.3

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12070
