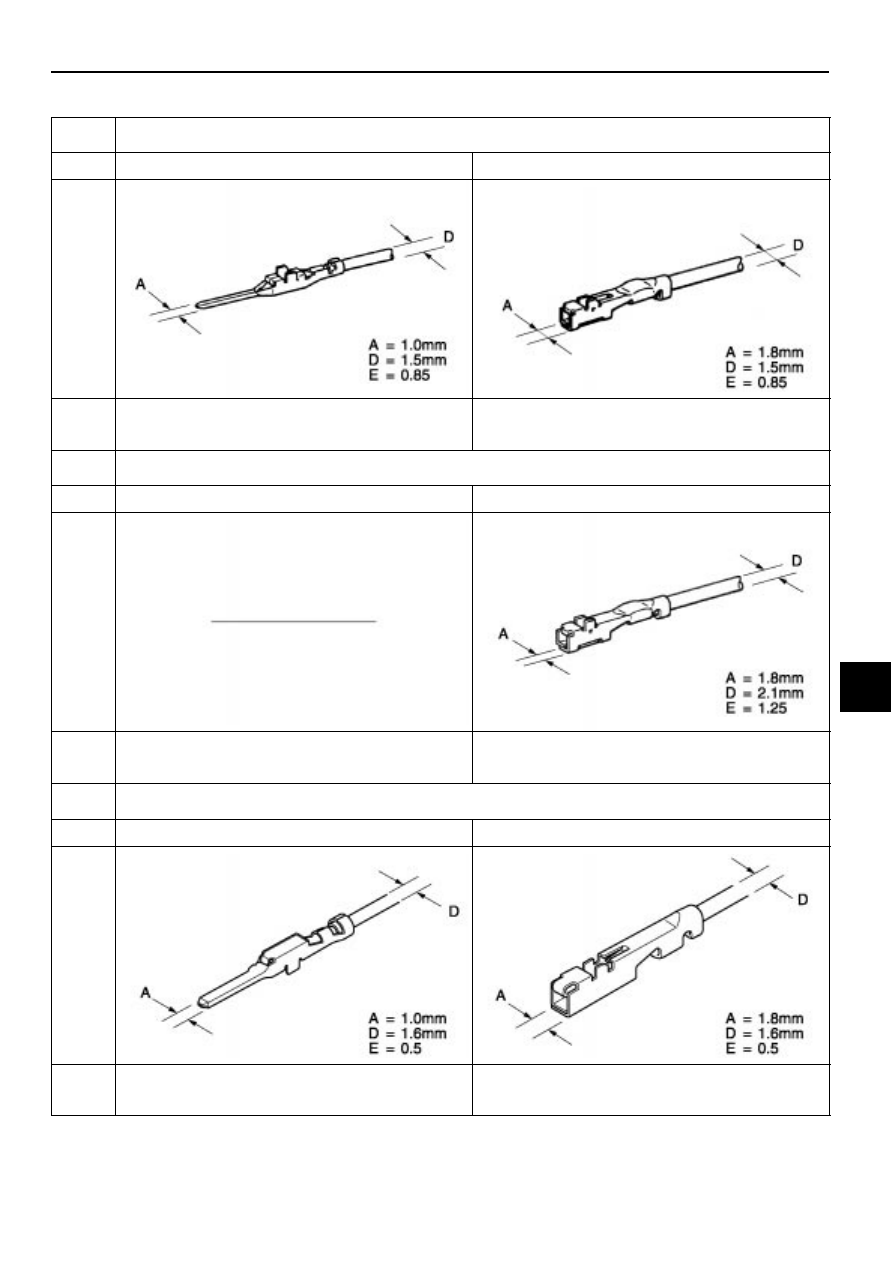

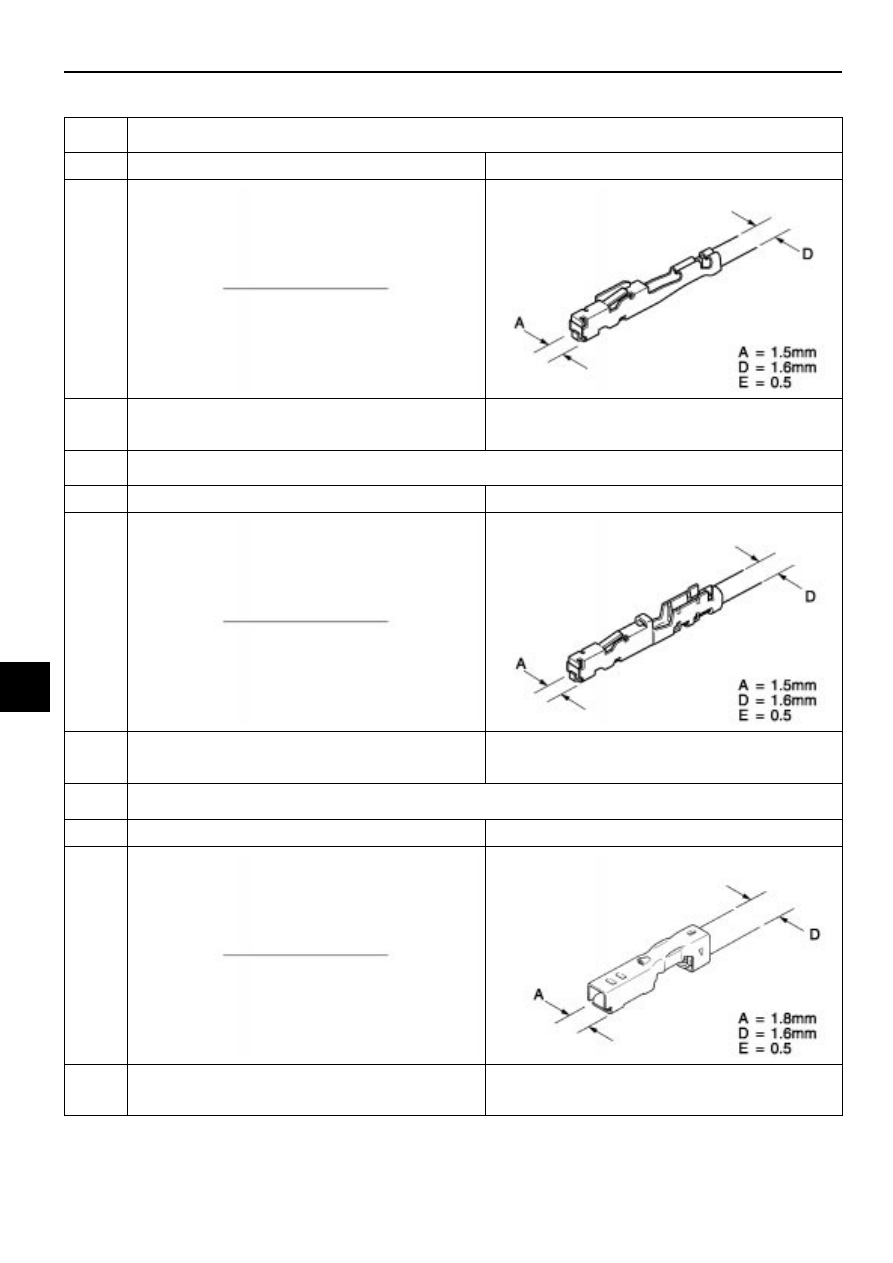

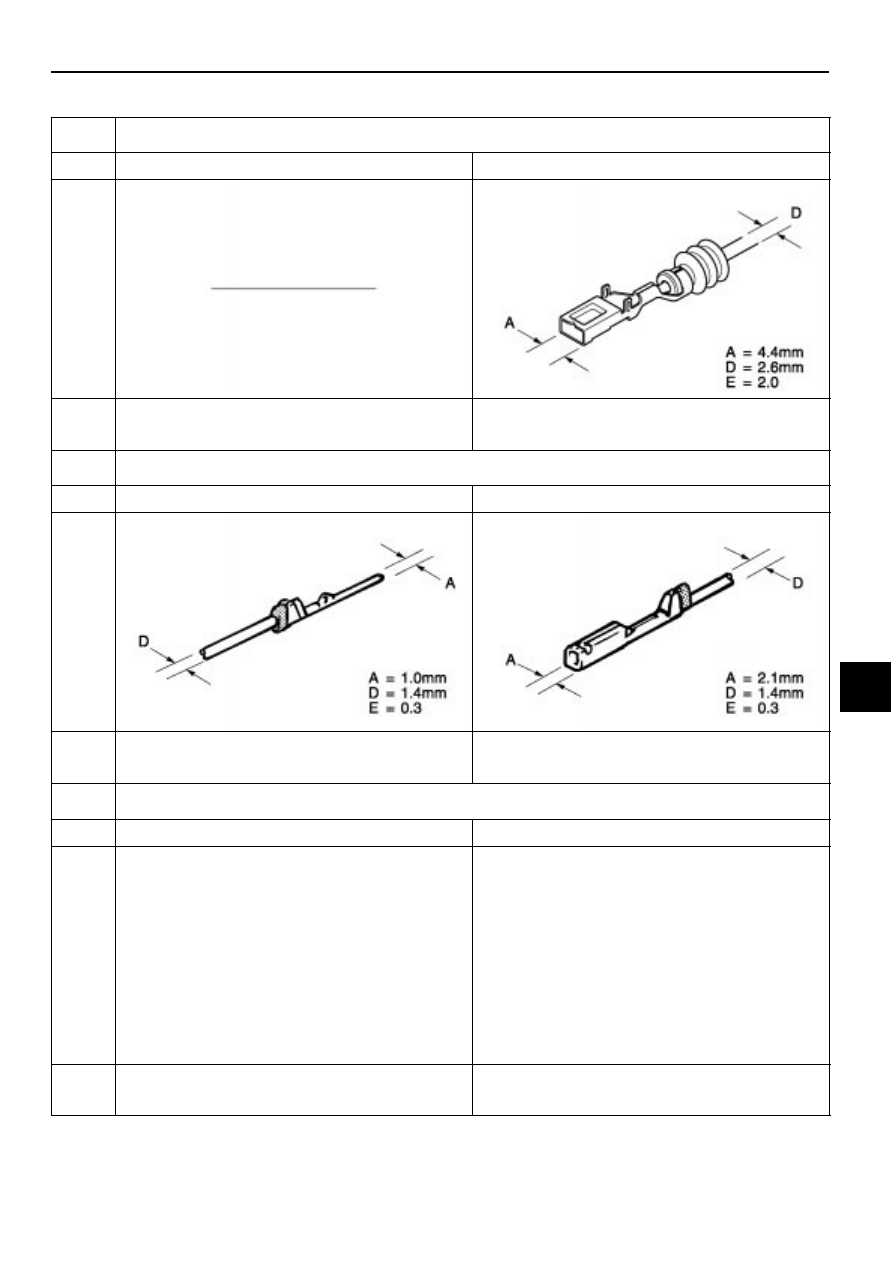

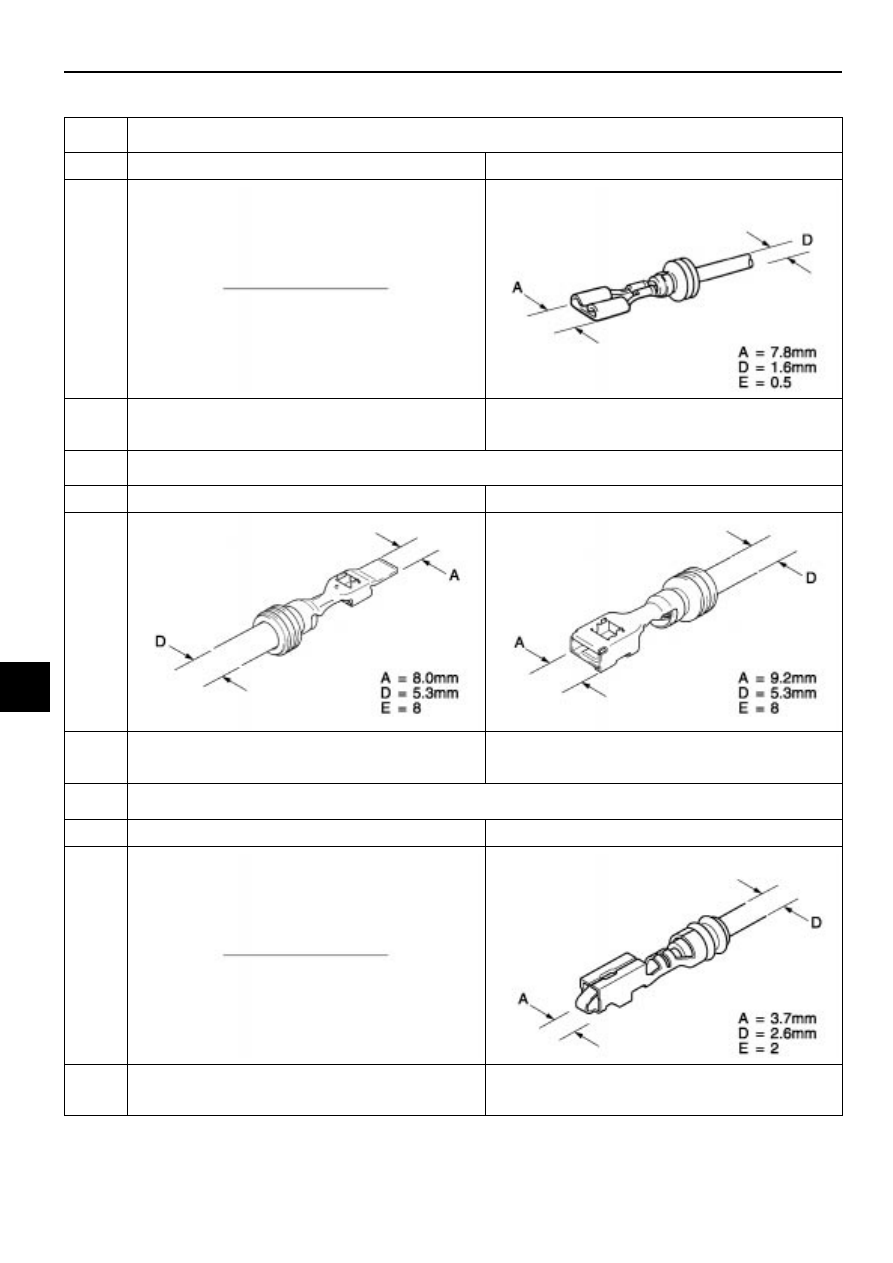

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–4

382

Wire Harness Repair Manual (RM1022E)

Repair Wire (Waterproof Type)

Type

6.3II

Male

Female

Sleeve : Medium (Blue)

P/N

82998–24160

Type

8.0

Male

Female

Sleeve : Large (Yellow)

Sleeve : Large (Yellow)

P/N

82998–12490

82998–12500

Type

HEAD LAMP

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–24150

(160mm)

   82998–24190

(500mm)

F

F–5

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual (RM1022E)

383

Repair Wire (Waterproof Type)

Type

HB3, HB4

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–12550

(160mm)

   82998–12610

(500mm)

Type

TLC

Male

Female

Sleeve : Small (Red)

Sleeve : Small (Red)

P/N

82998–12280

82998–12290

F

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–6

384

Wire Harness Repair Manual (RM1022E)

Repair Wire (Non–waterproof Type)

Type

0.64

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12750
82998–12760*

Type

0.64 IDC

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12770

Type

1.0

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12310
82998–12320*

F

F–7

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual (RM1022E)

385

Repair Wire (Non–waterproof Type)

Type

1.0II

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)
Size : S

P/N

82998–24010

82998–24020
82998–24110*

Type

1.0II

Male

Female

Sleeve : Medium (Blue)
Size : M

P/N

82998–24120*

Type

1.0III

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12670
82998–12680*

82998–12690
82998–12700*
