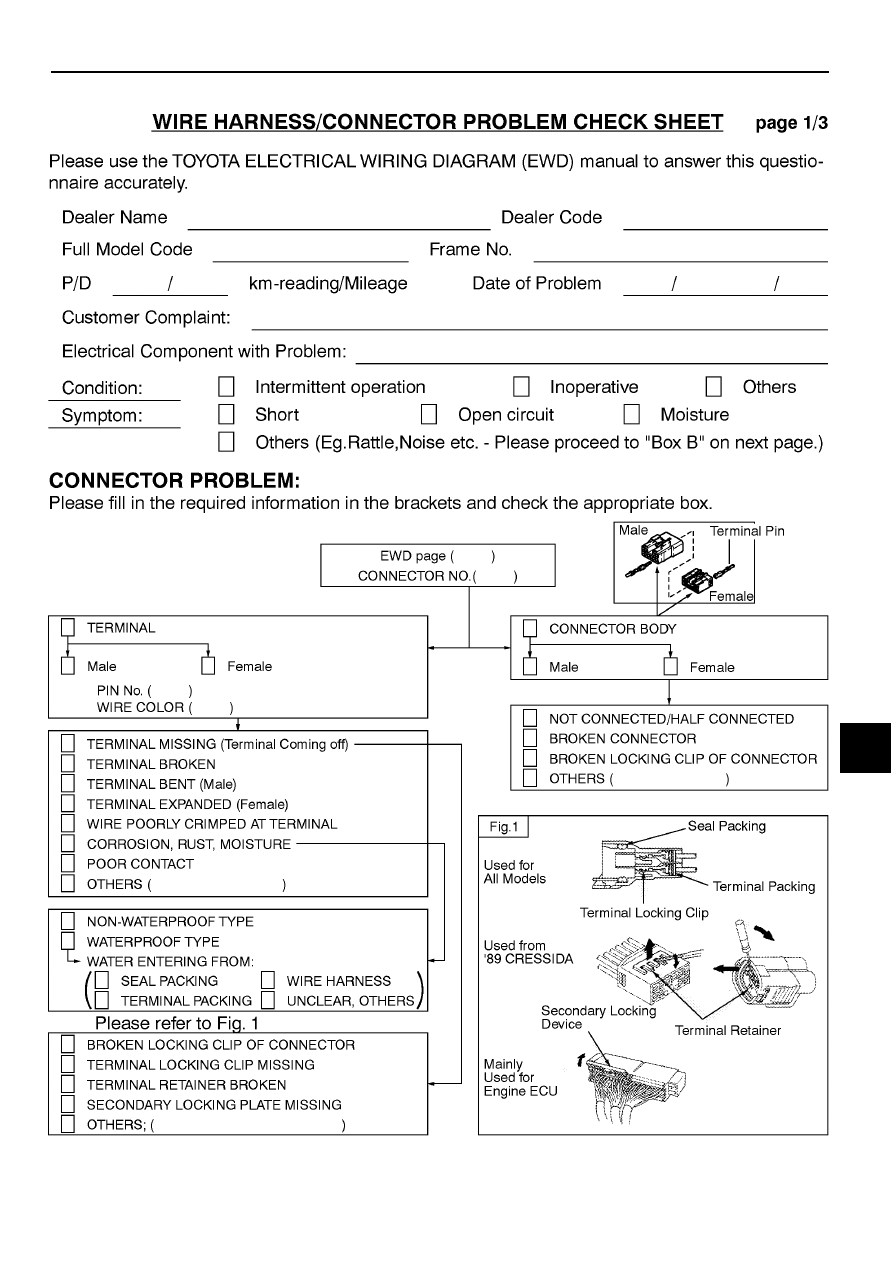

G–3

APPENDIX–REPORTING OF WIRE HARNESS PROBLEM

Wire Harness Repair Manual (RM1022E)

399

G

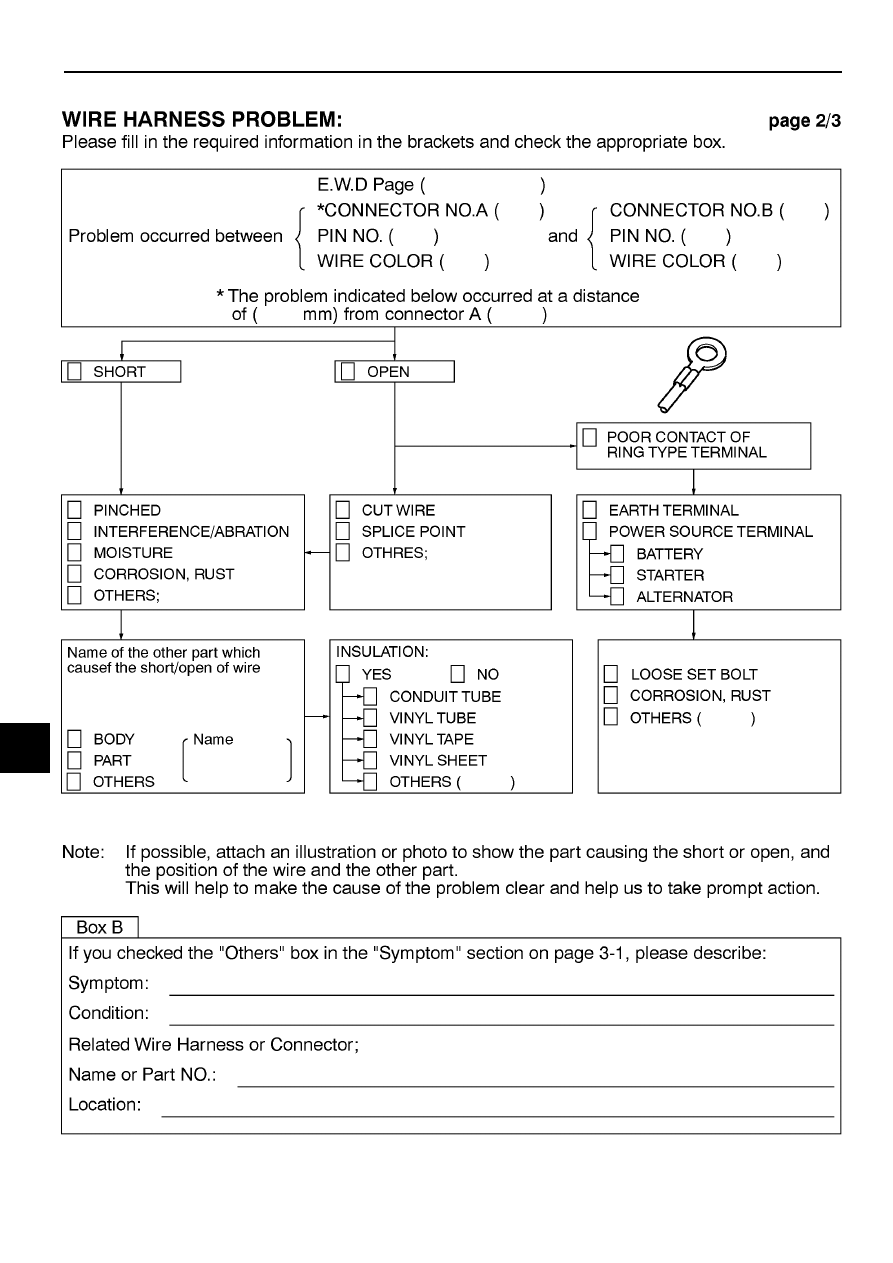

APPENDIX–REPORTING OF WIRE HARNESS PROBLEM

G–4

400

Wire Harness Repair Manual (RM1022E)

G

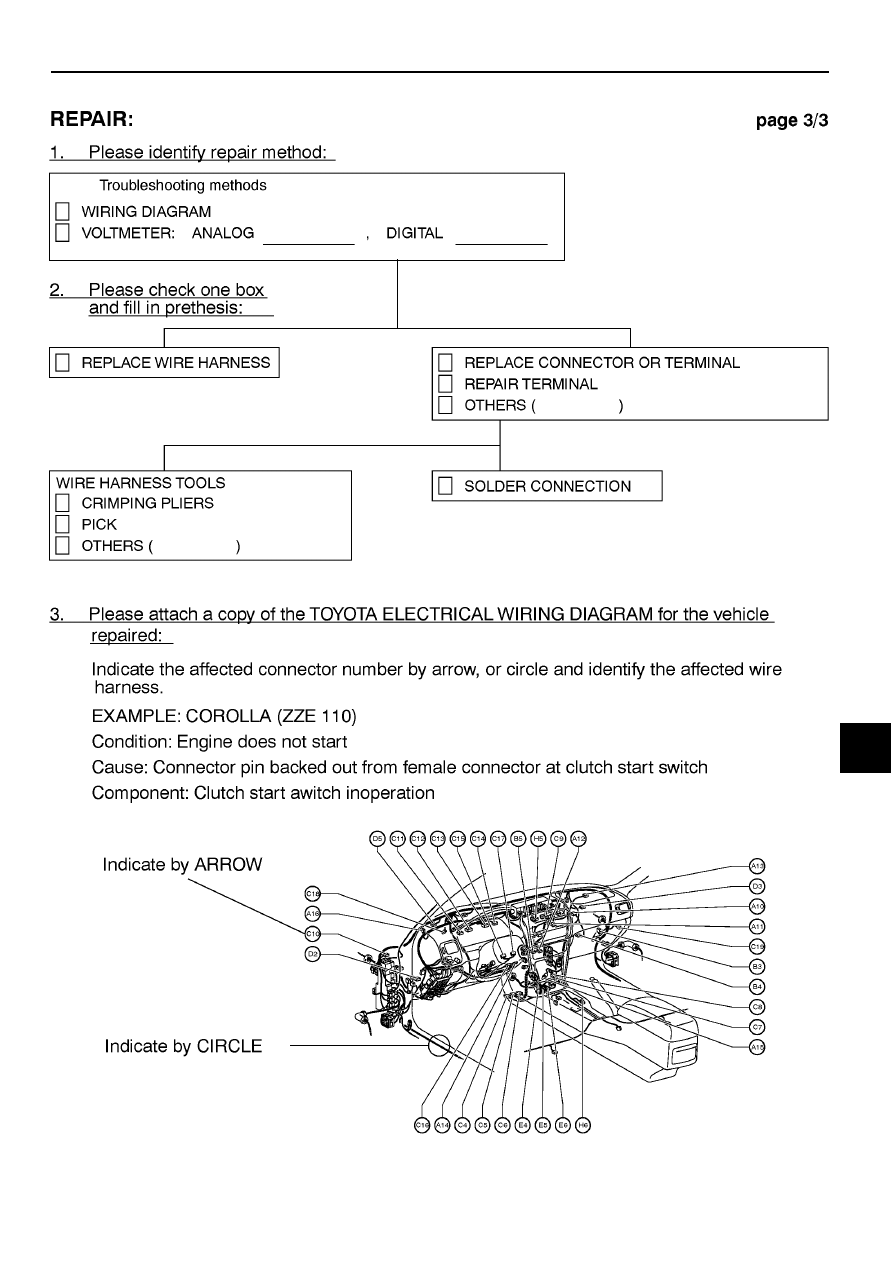

G–5

APPENDIX–REPORTING OF WIRE HARNESS PROBLEM

Wire Harness Repair Manual (RM1022E)

401

G

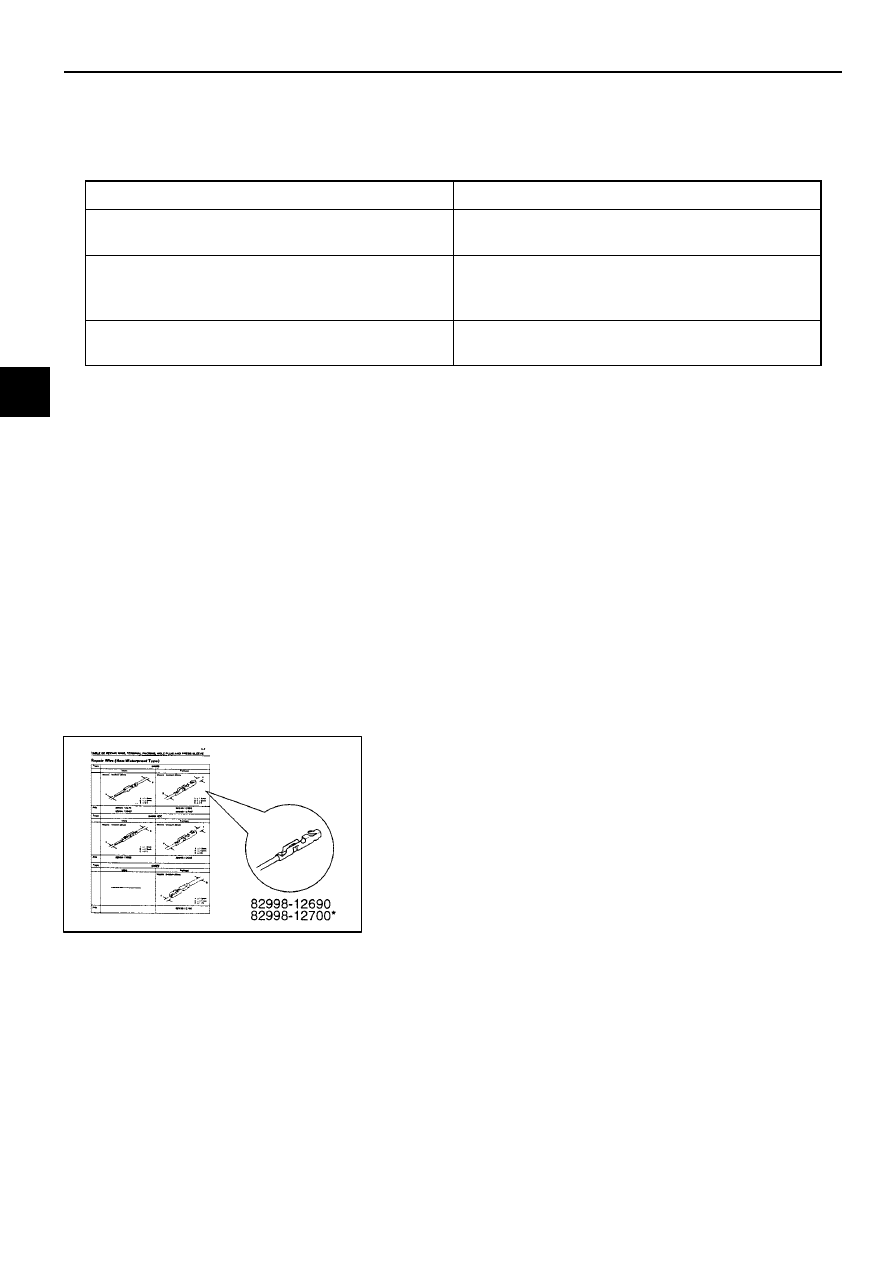

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT

B–4

14

Wire Harness Repair Manual (RM1022E)

Step 1.

Identify the connector and the terminal type.

Confirm whether the connector you require is the non–waterproof, waterproof or combined terminal type
connector from the pictures provided in the following charts.

Connector

Description

Non–Waterproof Type

Those connectors which are not of the
waterproof or combined terminal type.

Waterproof Type

Waterproof material (hole plug or terminal
packing) is provided on the terminal/connector
body.

Combined Terminal Type

Terminals of different shape/size are located in
one connector.

1.

Terminal with Wire

Identify the part number of the terminal with wire by picking
out the corresponding illustration from the pictures
provided on the following charts.

HINT:

In some of the illustrations, there are two part

numbers for the same illustration of terminal with wire,
because although the shapes  of the  terminals are
completely the same, there is a difference in with /without
gold–plating (gilded).

Remark:

The length of the wire connected to the

terminal is approximately 150 mm.

B
