NEW MODEL OUTLINE

EXTERIOR

From that captivates with dynamic flowing surfaces.

Front Design

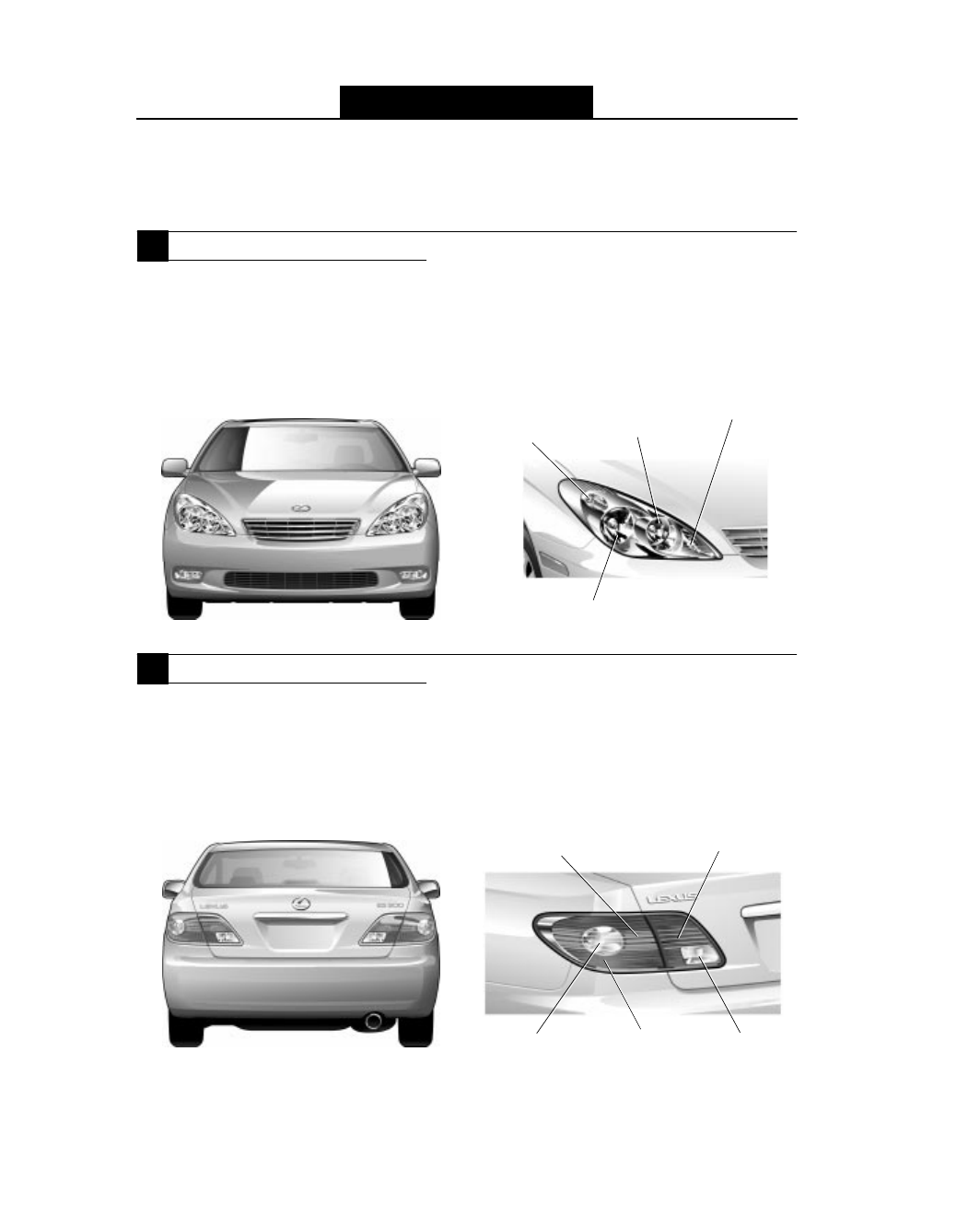

The front view brims with sophistication and originality.

The deeply carved molding of the line from the hood to the fender creates a sharp, firm
mask.

An imposingly-shaped light that follows the flow of the fender top has been adopted. Its
flowing, elongated image is appealing.

Within the simple molding, the elaborately decorated grille imparts a sense of refined sophis-
tication.

211MO01

211MO05

Low Beam Light [HID (High Intensity Discharge)]

Clearance Light

High Beam Light

Turn Signal Light

Rear Design

A powerful, sporty rear view.

The rear combination light has been brought around the side, to enhance the sense of
breadth.

Molding that smoothly connects the body with the luggage door communicates a sense
of integration as well as sophistication.

A sculpted surface construction expresses a sense of presence and the appearance of
stability.

211MO02

211MO04

Tail & Stop Light

Taillight

Turn Signal Light

Side Marker Light

Back Up Light

MO-7

211MO06

NEW MODEL OUTLINE

Side Design

A flowing, expressive side silhouette.

The best feature of the side view is intended to be the door side (front fender to rear
fender) surface structure which dynamically and emotionally in a way that has never been
seen before.

The roof line gently flows into the rear, contributing to a beautiful side view.

Sharp character lines create dynamic proportions, while at the same time fusing with the
rear quarter pillar to yield a lovely three-dimensional curved line.

To ensure quietness, a sash-type door has been adopted. A sense of sportiness is expressed
through a shape like that of a hard-top.

211MO03

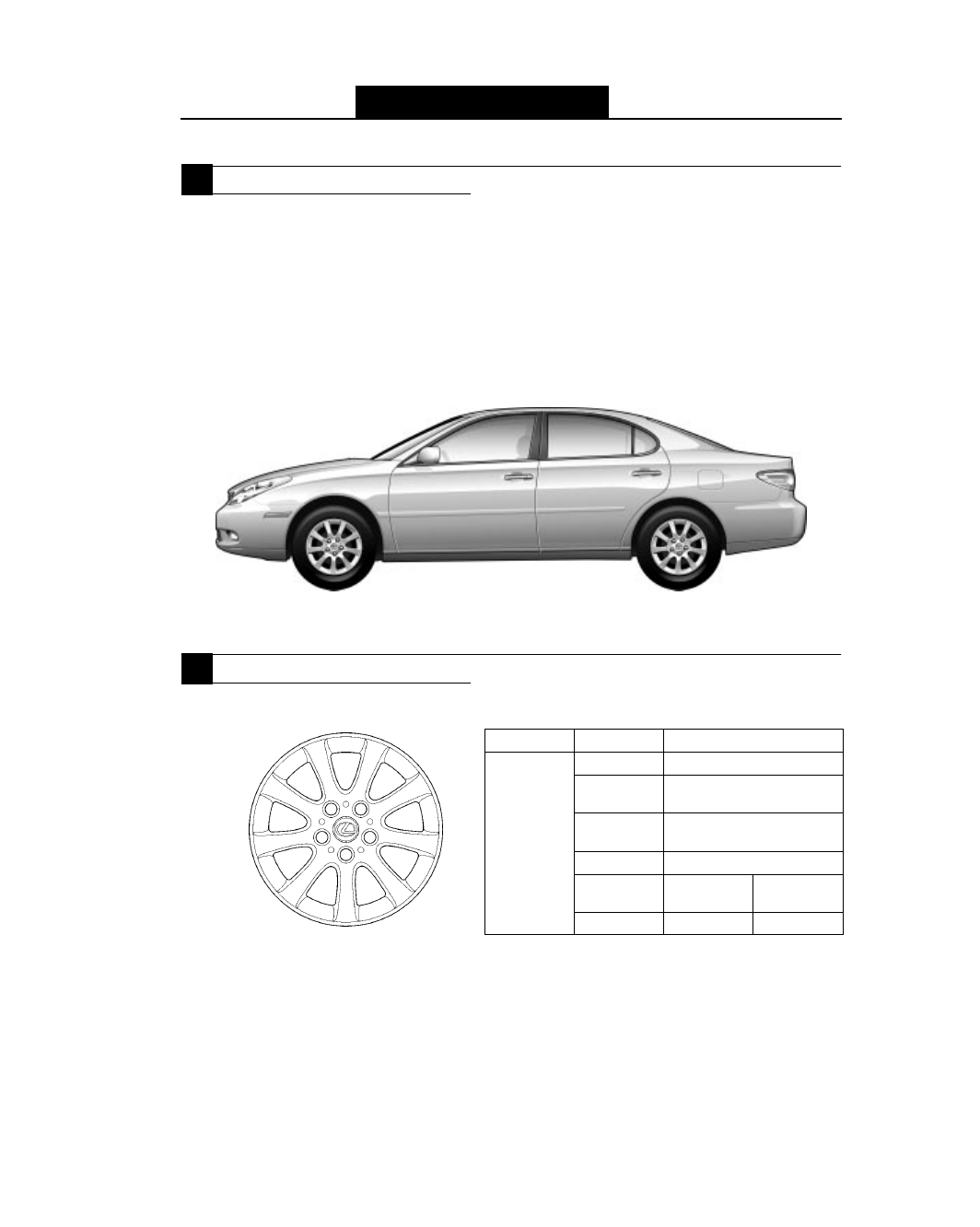

Tire & Disc Wheel

Simple yet powerful graphic 16-inch aluminum wheels.

Tire

Size

P 215 / 60 R 16

Size

16

×

 6 1/2 JJ

Off Set

[ mm (in.) ]

50 (1.97)

Disc Wheel

P.C.D.*

[ mm (in.) ]

114.3 (4.5)

Disc Wheel

Material

Aluminum

Surface

Finishing

Silver

painted

Chrome

plated

Specification

Standard

Option

P.C.D.* : Pitch Circle Diameter

MO-27

211MO15

Front Impact Energy

211MO16

Side Impact Energy

NEW MODEL OUTLINE

Passive Safety

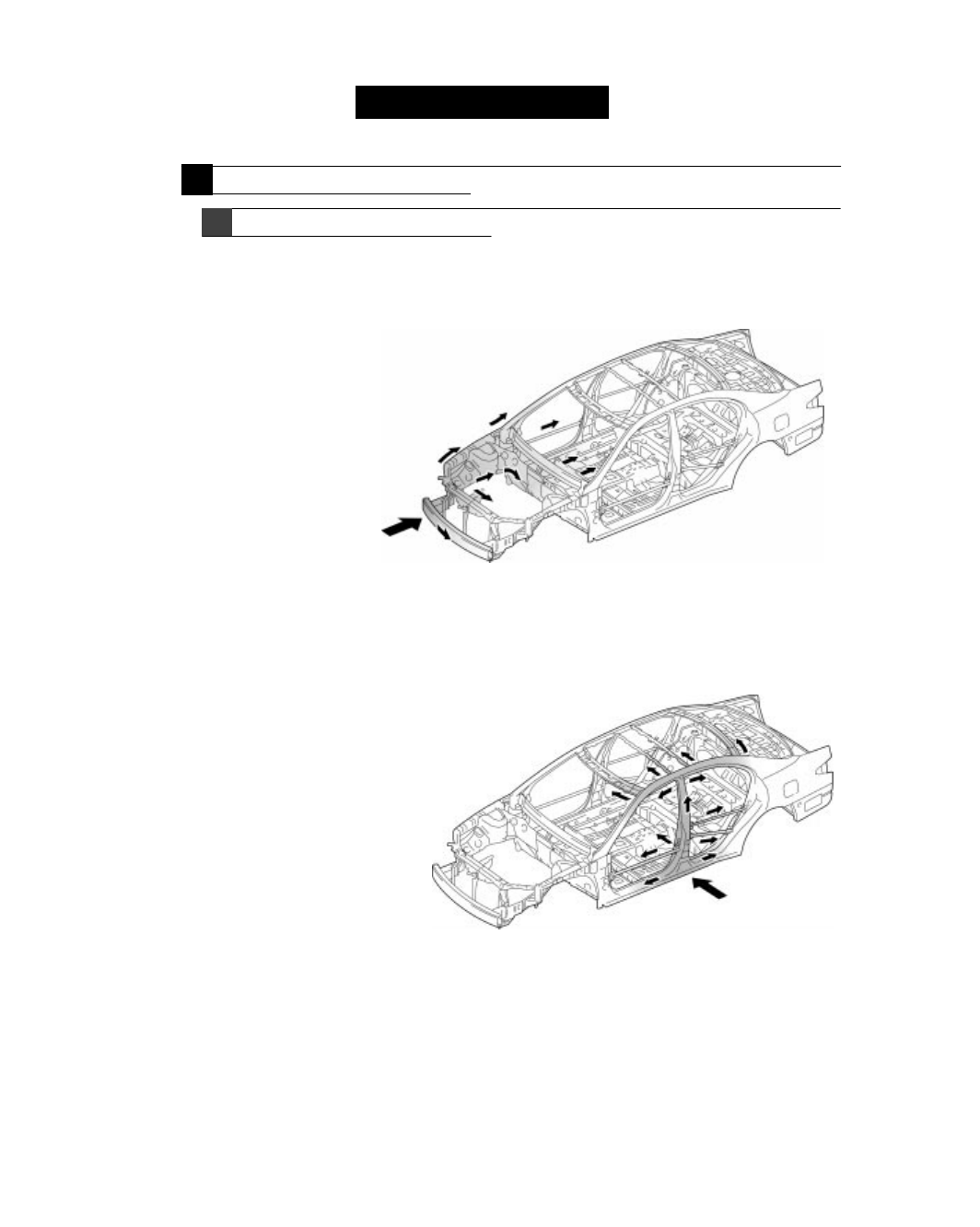

Impact-absorbing Body

Frontal Collision

By selecting a body structure which ef-
fectively crushes the engine compartment
to help absorb the impact from the front,
it is possible to help minimize body de-
formation of the cab area.

Side Collision

Impact from the side are effectively
transferred to the door impact protec-tion
b e a m s ,  r o c k e r  a n d  c r o s s  m e m b e r s
through optimal positioning of these
parts, thereby creating a body structure
that helps minimize body deformation
of the cab area.

MO-28

NEW MODEL OUTLINE

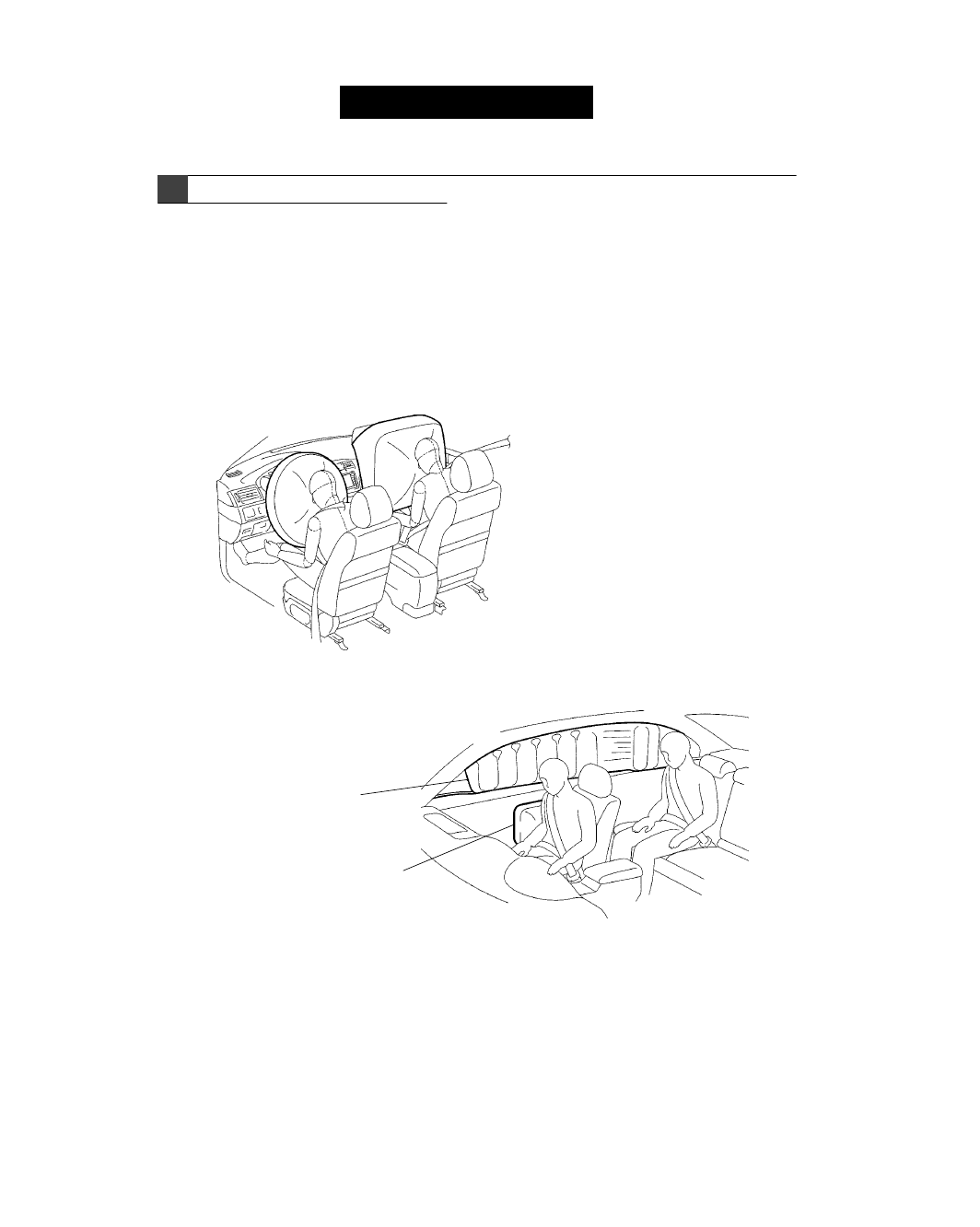

SRS Airbag System

SRS (Supplemental Restraint System) airbags, SRS side airbags and SRS curtain-shield
airbags have been installed to help provide supplemental restraint for the driver and passenger
in a severe collision. The SRS airbags, SRS side airbags and SRS curtain shield airbags
are activated in the event of a collision respectively to help ease the effects of the impact
to the head and chest area of both the driver and passenger who are wearing seat belts
properly.

Dual-stage SRS airbags system, that controls the airbag inflating output optimum by judging
the extent of impact, seat position and whether or not the seat belt is fasten, has been
adopted for the driver and front passenger airbags.

211MO61

211MO62

SRS Side & Curtain Shield Airbag

Driver & Front Passenger SRS Airbag

SRS Curtain Shield Airbag

SRS Side Airbag
