DIAGNOSTICS

ABS & TRACTION CONTROL SYSTEM

DI–321

473

1997 LEXUS ES300   (RM511U)

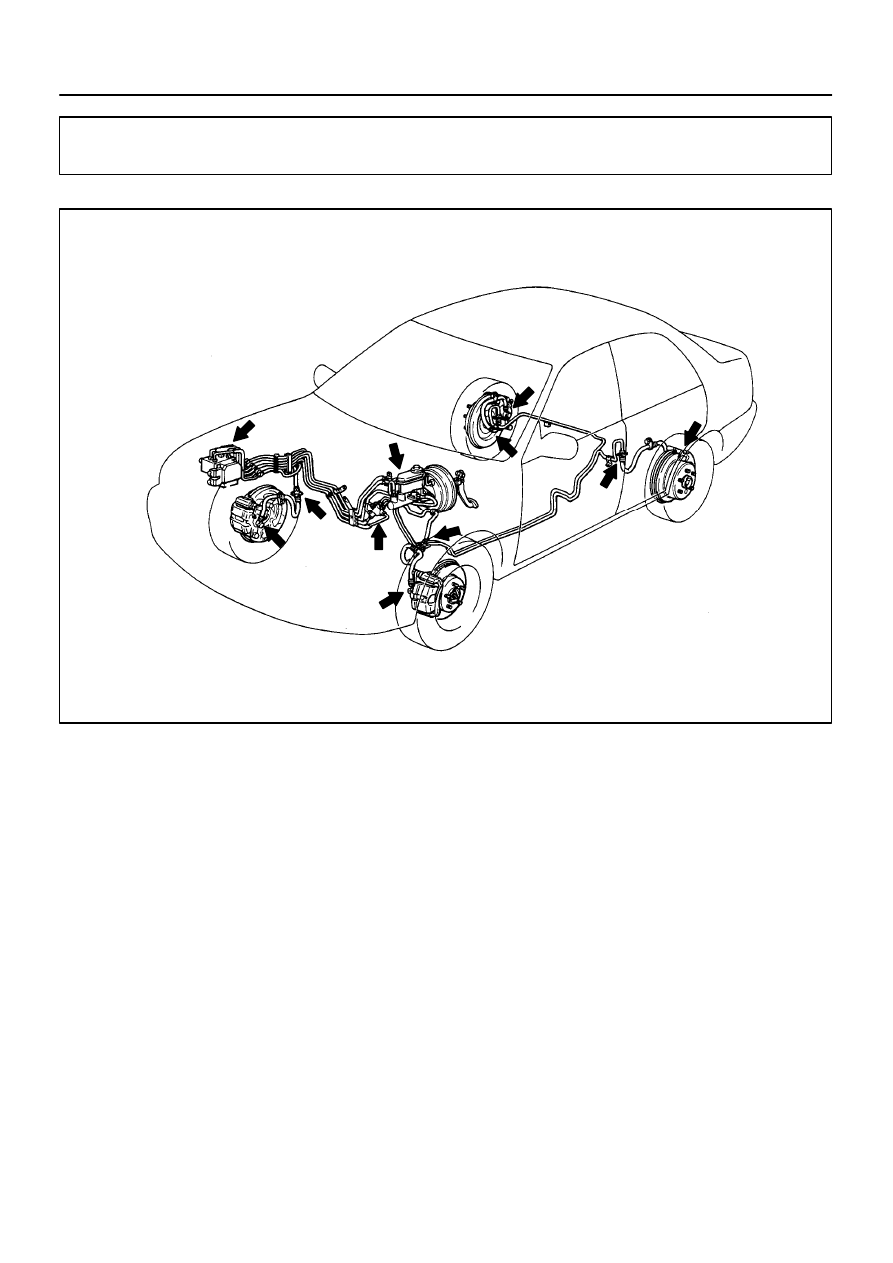

Check for Fluid Leakage

Check for fluid leakage from actuator or hydraulic lines.

DI0CR–01

DI0AT–01

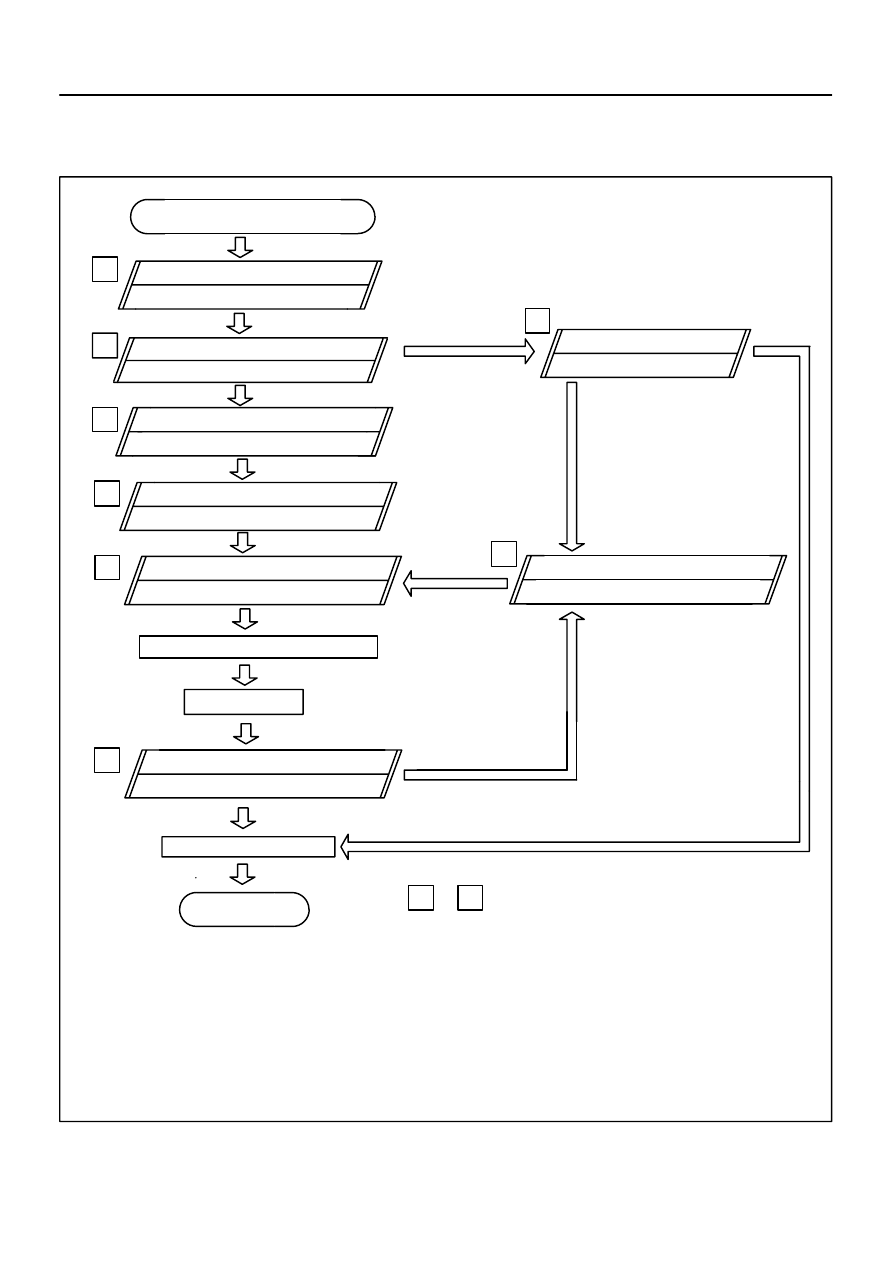

Vehicle Brought to Workshop

Customer Problem Analysis

Warning Light Check

DTC Check

DTC Chart

DI–324

DI–327

Circuit Inspection

Remains on

Normal and Malfunction Code

Symptom Simulation

DTC Check

DI–324

Identification of Problem

Warning Light Check

Confirmation Test

Warning Light ON

Warning Light Remains Off

END

Normal

Normal

1

2

3

4

7

Repair

8

5

6

Step

,

:

Diagnostic steps permitting the use
of the LEXUS  hand–held tester.

3

6

DI–323

DI–324

IN–17

DI–343

DI–324

DI–322

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

474

1997 LEXUS ES300   (RM511U)

SUPPLEMENTAL RESTRAINT SYSTEM

HOW TO PROCEED WITH TROUBLESHOOTING

DI0AU–01

Supplemental Restraint  System Check Sheet

Date Problem Dist Occurred

Customer’s Name

Registration No.

Registration



Year

Frame No.

Odometer Reading

Weather

Temperature

Vehicle Operation

Road Conditions

Details Of Problem

Vehicle Inspection, Repair Histo-
ry Prior to Occurrence of Mal-
function(Including Supplemental
Restraint System)

Diagnosis System Inspection

SRS Warning Light
Inspection

DTC Inspection

1st Time

2nd Time

1st Time

2nd Time

Inspector’s
Name

Fine

Cloudy

Rainy

Snowy

Other

Approx.

Starting

Idling

Driving

[

Constant speed

Acceleration

Deceleration

Other

]

Remains ON

Sometimes Light Up

Does Not Light Up

Remains ON

Sometimes Light Up

Does Not Light Up

Normal Code

Malfunction Code

Normal Code

Malfunction Code

[ Code.

]

[ Code.

]

km
Miles

/

/

/

/

/

/

Date Vehicle Brought In

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

DI–323

475

1997 LEXUS ES300   (RM511U)

CUSTOMER PROBLEM ANALYSIS CHECK

DI0AV–01

W04364

R13006

E1

Tc

DLC1

AT0716

Normal Code

ON

OFF

0.25

0.25

DI–324

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

476

1997 LEXUS ES300   (RM511U)

PRE–CHECK

1.

SRS WARNING LIGHT CHECK

(a)

Turn the ignition switch to ACC or ON and check that the
SRS warning light lights up.

(b)

Check that the SRS warning light goes out after approx.
6 seconds.

HINT:

When the ignition switch is at ACC or ON and the SRS
warning light remains on or flashes, the airbag sensor as-
sembly has detected a malfunction code.

If, after approx. 6 seconds have elapsed, the SRS warn-
ing light sometimes lights up or the SRS warning light
lights up even when the ignition switch is OFF, a short in
the SRS warning light circuit can be considered likely.
Proceed to ”SRS warning light circuit malfunction” on
page

DI–362

,

DI–364

.

2.

DTC CHECK (Using diagnosis check wire)

(a)

OUTPUT DTC
(1)

Turn the ignition switch to the ACC or ON position
and wait approx. 20 seconds.

(2)

Using SST, connect terminals Tc and E1 of the
DLC1.
SST 09843–18020

NOTICE:Never make a mistake with the terminal connect-
ing position as this will cause a malfunction.
HINT:DTC check and troubleshooting of each DTC can also be
done using DLC2.

(b)

READ DTC
Read the 2–digit DTC as indicated by the number of times
the SRS warning light blinks. As an example, the blinking
patterns, normal, 11 and 31 are as shown on the illustra-
tion.

Normal code indication
The light will blink 2 times per second.

Malfunction code indication
The first blinking output indicates the first digit of a 2–digit
