AB0056

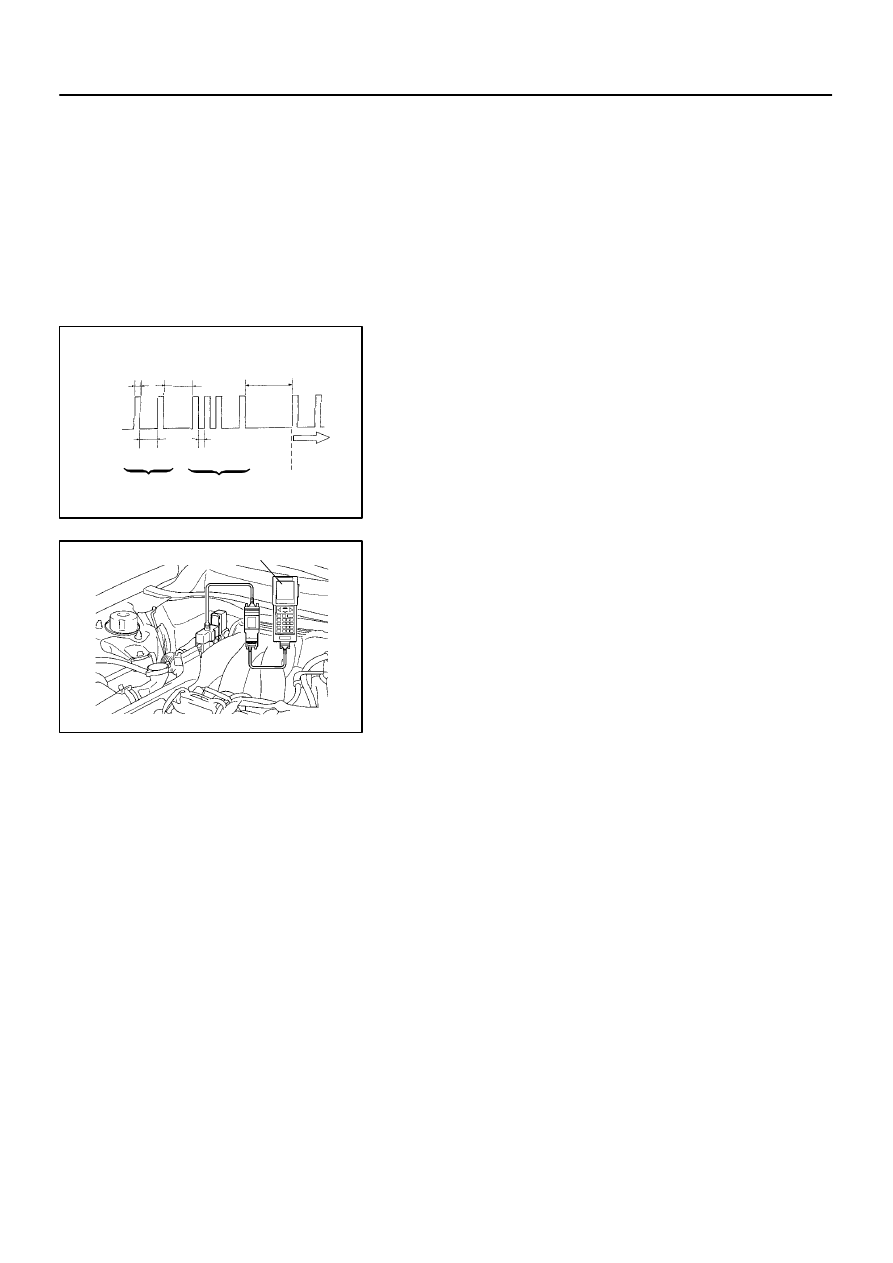

Code 11 and 31
ON
OFF
0.5
2.5
4.0
1.5
0.5
Code 11
Code 31
Repeat
W04000
LEXUS hand–held tester
–
DIAGNOSTICS
SUPPLEMENTAL RESTRAINT SYSTEM
DI–325
477
1997 LEXUS ES300 (RM511U)
DTC. After a 1.5 second pause, the second blinking out-
put will indicate the second digit.
If there are 2 or more codes, there will be a 2.5 second
pause between each code. After all the codes have been
output, there will be a 4.0 second pause and they will all
be repeated.
HINT:
In the event of a number of trouble codes, indication will
start from the smallest numbered code.
If it does not output a DTC or outputs a DTC without termi-
nal connection, proceed to the Tc terminal circuit inspec-
tion on page
3.
DTC CHECK (Using LEXUS hand–held tester)
(a)
Hook up the LEXUS hand–held tester to the DLC1 or
DLC2.
(b)
Read the DTCs by following the prompts on the tester
screen.
HINT:Please refer to the LEXUS hand–held tester operator’s
manual, for further details.
4.
DTC CLEARANCE
When the ignition switch is turned off, the diagnostic
trouble code is cleared.
5.

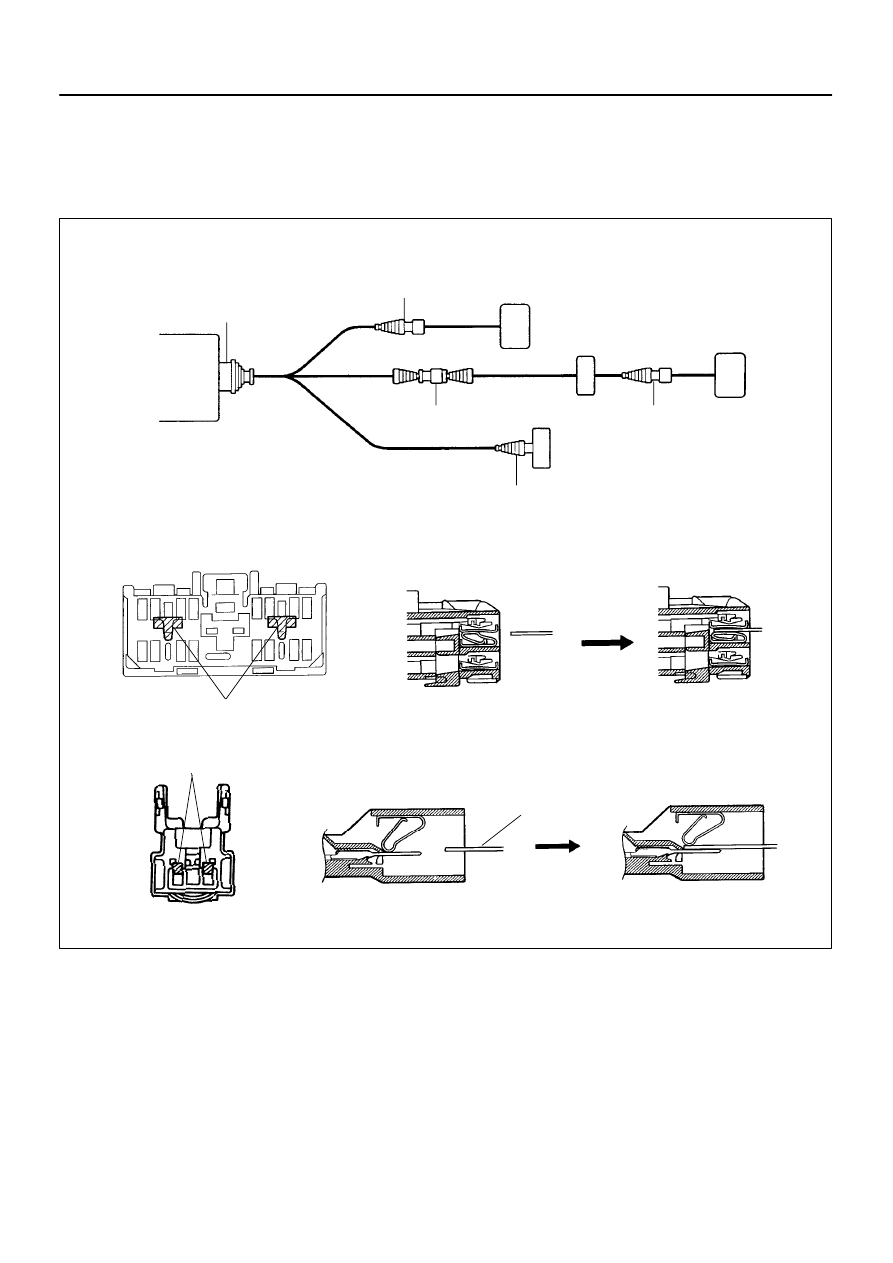

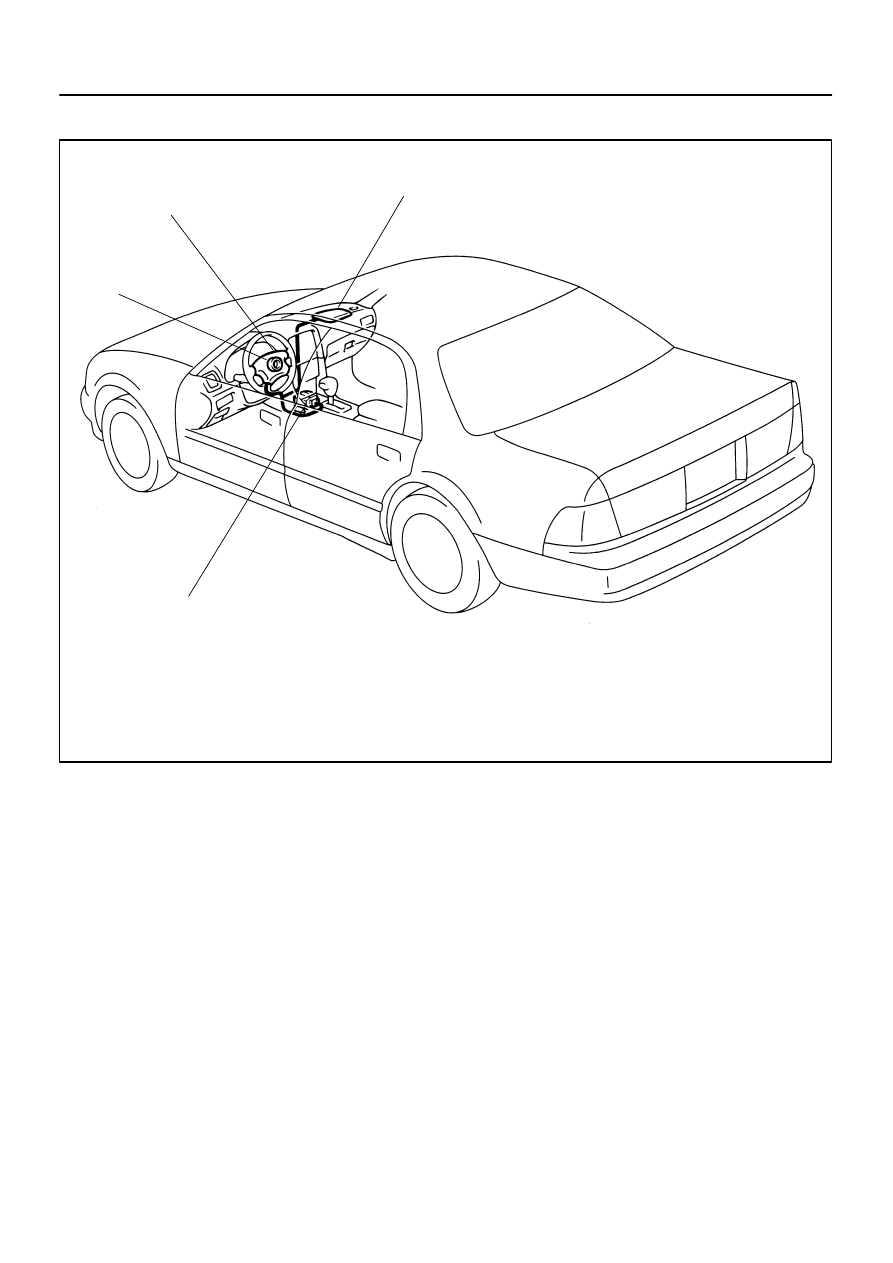

RELEASE METHOD OF AIRBAG ACTIVATION PRE-
VENTION MECHANISM
An airbag activation prevention mechanism is built into
the connector for the squib circuit of the SRS.
When release of the airbag activation prevention mecha-
nism is directed in the troubleshooting procedure, as
shown in the illustration of the connectors ”1” and ”3” be-
low, insert paper which is the same thickness as the male
terminal, between the terminal and the short spring.
CAUTION:NEVER RELEASE the airbag activation preven-
tion mechanism on the steering wheel pad connector.
NOTICE:
Do not release the airbag activation prevention mech-
anism unless specifically directed by the trouble-
shooting procedure.
If the paper inserted is too thick the terminal and short
spring may be damaged, so always use paper the
same thickness as the male terminal.
