Lexus GS300/400 (2000 year). Manual - part 16

AC0XB–01

I02405

–

AIR CONDITIONING

BLOWER MOTOR

AC–61

2746

BLOWER MOTOR

REMOVAL

1.

REMOVE No.2 UNDER COVER
(See page

BO–91

)

2.

REMOVE BLOWER MOTOR

(a)

Disconnect the connector.

(b)

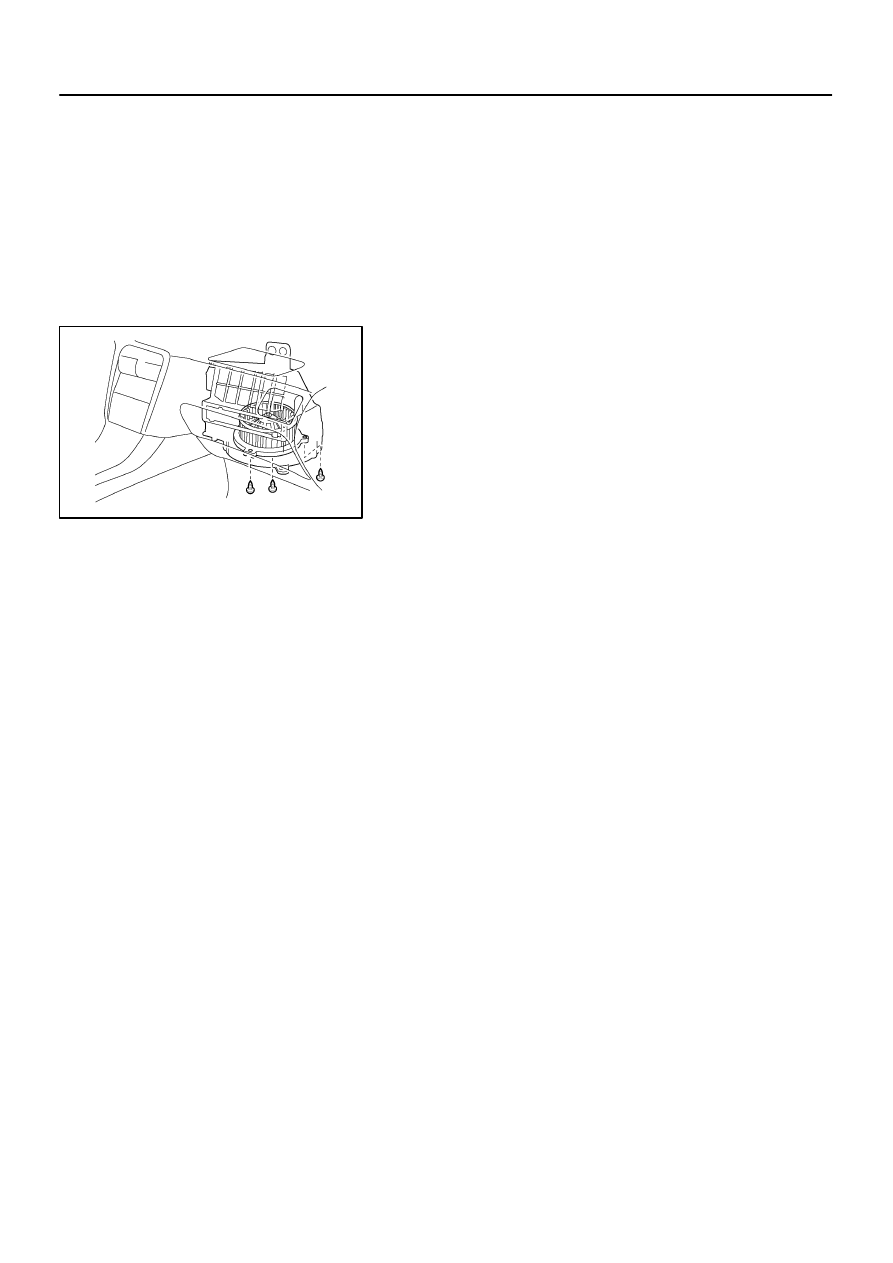

Remove the 3 screws and blower motor.

AC0XC–01

AC–62

–

AIR CONDITIONING

BLOWER MOTOR

2747

INSPECTION

INSPECT BLOWER MOTOR CIRCUIT
(See page

DI–1126

)

AC0XD–01

–

AIR CONDITIONING

BLOWER MOTOR

AC–63

2748

INSTALLATION

Installation is in the reverse order of removal (See page

AC–61

).

AC0XE–01

I02406

I02407

AC–64

–

AIR CONDITIONING

BLOWER MOTOR CONTROL RELAY

2749

BLOWER MOTOR CONTROL
RELAY

REMOVAL

1.

REMOVE THESE PARTS:

(a)

Front door scuff plate RH

(b)

Cowl side trim RH

(c)

No.2 under cover

(d)

Glove compartment door

(e)

Glove compartment panel
(See page

BO–91

)

2.

REMOVE AIR DUCT

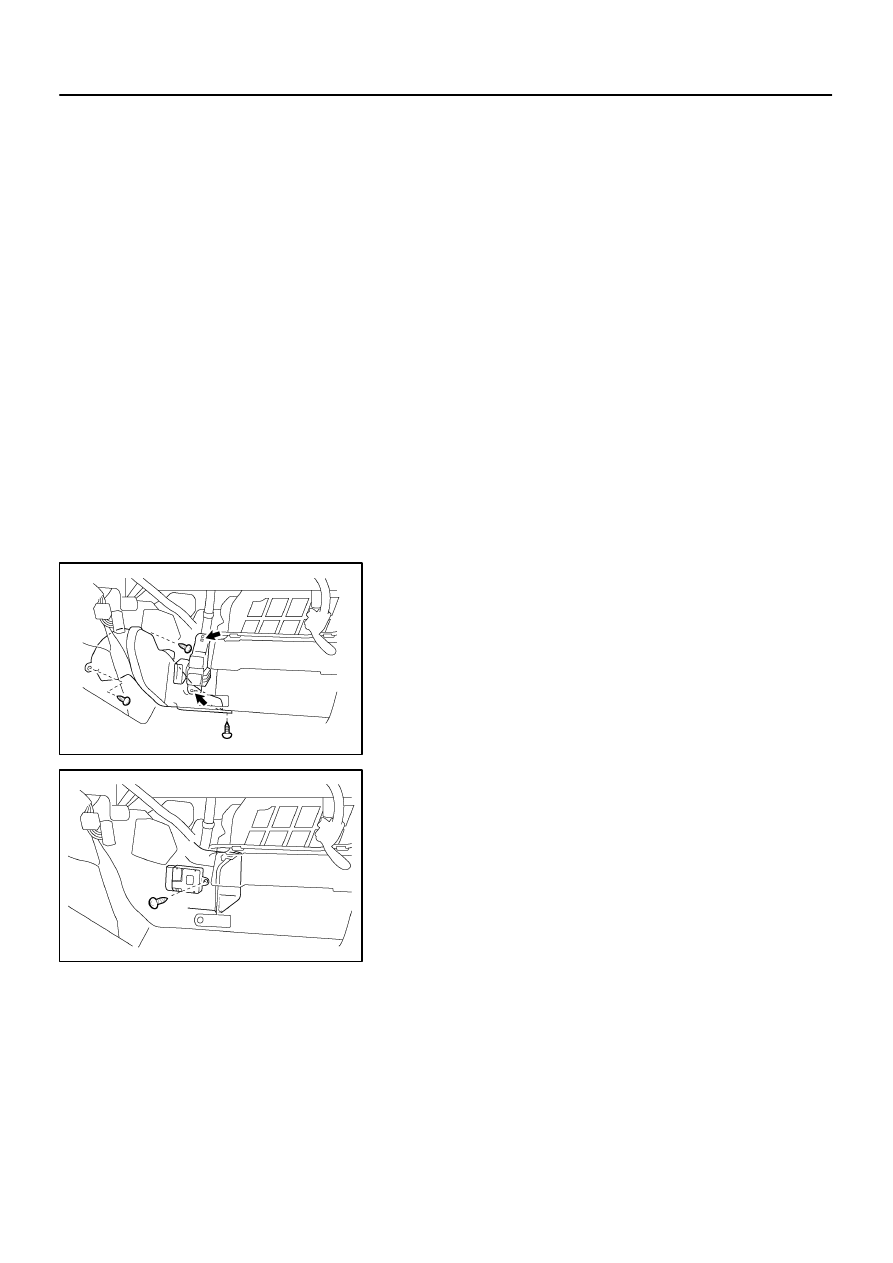

Remove the 3 screws and duct.
3.

DISCONNECT WIRE HARNESS

4.

REMOVE BLOWER MOTOR CONTROL RELAY

Remove the screw and blower motor control relay, then discon-
nect the connectors.
