Lexus GS300/400 (2000 year). Manual - part 17

AC0XF–01

–

AIR CONDITIONING

BLOWER MOTOR CONTROL RELAY

AC–65

2750

INSPECTION

INSPECT BLOWER MOTOR CONTROL RELAY CIRCUIT
(See page

DI–1126

)

AC0XG–01

AC–66

–

AIR CONDITIONING

BLOWER MOTOR CONTROL RELAY

2751

INSTALLATION

Installation is in the reverse order of removal (See page

AC–64

).

AC0XH–01

I03728

I03729

I03730

–

AIR CONDITIONING

SERVOMOTOR

AC–67

2752

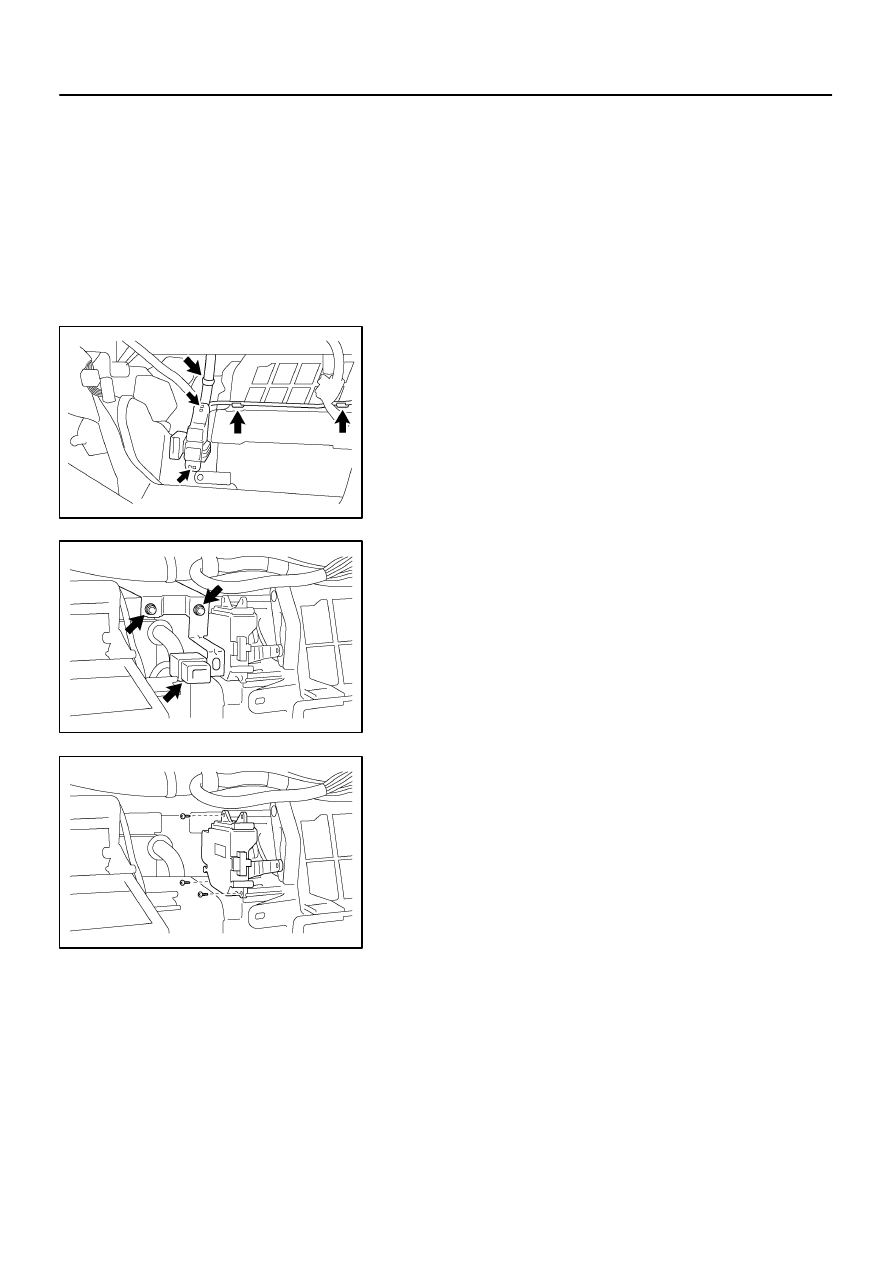

SERVOMOTOR

REMOVAL

1.

REMOVE AIR INLET SERVOMOTOR

(a)

Remove these parts:
(1)

Front door scuff plate RH

(2)

Cowl side trim RH

(3)

No.2 under cover

(4)

Glove compartment door

(5)

Glove compartment panel (See page

BO–91

)

(b)

Disconnect the wire harness.

(c)

Remove the bracket.
(1)

Disconnect wire harness clamp.

(2)

Remove the 2 bolts and bracket.

(d)

Remove the air inlet servomotor.
(1)

Disconnect the connector.

(2)

Remove the 3 screws and servomotor.

I03731

I02400

AC–68

–

AIR CONDITIONING

SERVOMOTOR

2753

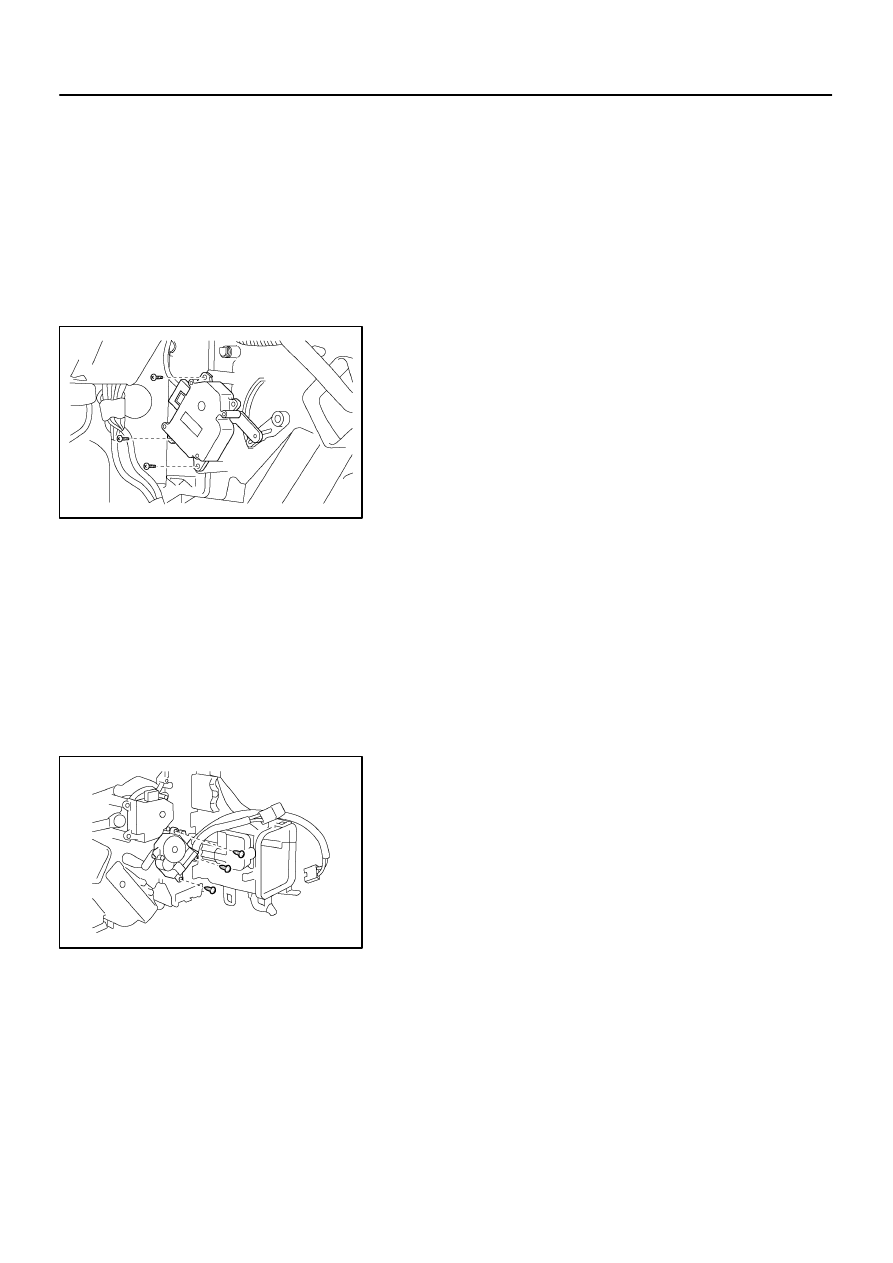

2.

REMOVE AIR MIX SERVOMOTOR (Driver Side)

(a)

Remove these parts:
(1)

No.1 under cover

(2)

No.1 safety pad (See page

BO–91

)

(b)

Remove the air mix servomotor.
(1)

Disconnect the connector.

(2)

Remove the 3 screws and servomotor.

3.

REMOVE AIR MIX SERVOMOTOR (Passenger Side)

(a)

Remove heater radiator (See page

AC–55

).

(b)

Remove the air mix servomotor.
(1)

Disconnect the connector.

(2)

Remove the 3 screws and servomotor.
