LT230Q TRANSFER BOX. Manual - part 4





TRANSFER BOX

12

DESCRIPTION AND OPERATION

Intermediate gears

The intermediate gear cluster is supported by taper
roller bearings located at each end of the cluster and
running on the intermediate shaft which, in turn, is
supported at the front and rear by the main casing.

Intermediate gear bearing pre-load is achieved by
means of a collapsible spacer positioned between
the bearings, the amount of compression applied to
the spacer is by means of a nut on the end of the
intermediate shaft.

Differential assembly

The differential assembly is supported at the front
and rear by taper roller bearings, the bearing outer
tracks being located in the front and rear output
housings. Bearing pre-load is achieved by means of
a selective shim located in the front output housing.

The differential rear shaft carries the low range gear,
high/low selector sleeve and hub, high range gear
and bush and the differential rear bearing; these
components being secured to the shaft by a special
nut.

The differential assembly comprises front and rear
half carriers with integral shafts and sun and planet
gears mounted on cross shafts within the half
carriers. Dished, non-selective thrust washers
control the engagement of the planet gears with the
sun gears whilst selective thrust washers are used
to control the engagement of the sun gears and load
to turn of the differential. The differential carrier
halves are bolted together, a retaining ring providing
positive location of the cross shafts.

The high/low selector shaft and fork are located at
the side of the differential, movement of the shaft,
fork and selector sleeve being controlled by the
high/low selector finger. A spring loaded detent ball
fitted in the main casing locates in grooves in the
shaft.

For certain markets, a neutral warning lamp switch
operated by the high/low selector shaft and an
interlock solenoid are fitted in the main casing.

Front output housing assembly

The front output shaft is supported in the front output
housing by a single bearing and is splined into the
differential front shaft.

The high/low cross shaft is located in a housing
bolted to the top of the output housing and is
connected to the high/low selector finger which
locates in a slot in the selector shaft.

The differential lock selector housing is also bolted
to the top of the output housing, the selector finger
passes through the housing, locating in a slot in the
differential lock selector shaft. The differential lock
selector shaft passes through the selector fork which
is located beneath a plate bolted to the side of the
output housing. A spring loaded detent ball fitted in
the output housing locates in grooves in the shaft.

A differential lock warning lamp switch operated by
movement of the selector fork and shaft is screwed
into the top of the output housing.

Rear output housing assembly

The rear output shaft is supported in the rear output
housing by a single bearing and is splined into the
differential rear shaft. The output shaft also carries
the speedometer drive gear which meshes with the
driven gear located in the rear output housing.

Lubrication

Lubrication is by splash, oil filler/level and drain
plugs being located in the main casing. An oil
temperature switch is fitted for certain applications.

TRANSFER BOX

DESCRIPTION AND OPERATION

13

OPERATION

The gearbox output shaft transmits power to the
mainshaft input gear which is in constant mesh with
one of the intermediate gears. The intermediate
gears are in constant mesh with the high and low
range output gears running on the differential rear
shaft.

Power is transmitted to the output shafts by locking
either the high or low range gears to the differential
rear shaft. This is achieved by means of the high/low
selector fork, sleeve and splined hub.

The differential lock, when applied, prevents all
available power being transmitted to the road wheels
offering least resistance and is especially useful for
’off-road’ conditions. When selected, the selector
fork engages the dog clutch on the differential shaft
with a gear on the front output shaft; this locks the
differential and provides fixed drive thereby
transmitting equal power to both output shafts.

TRANSFER BOX

OVERHAUL

1

TRANSFER BOX DISMANTLING

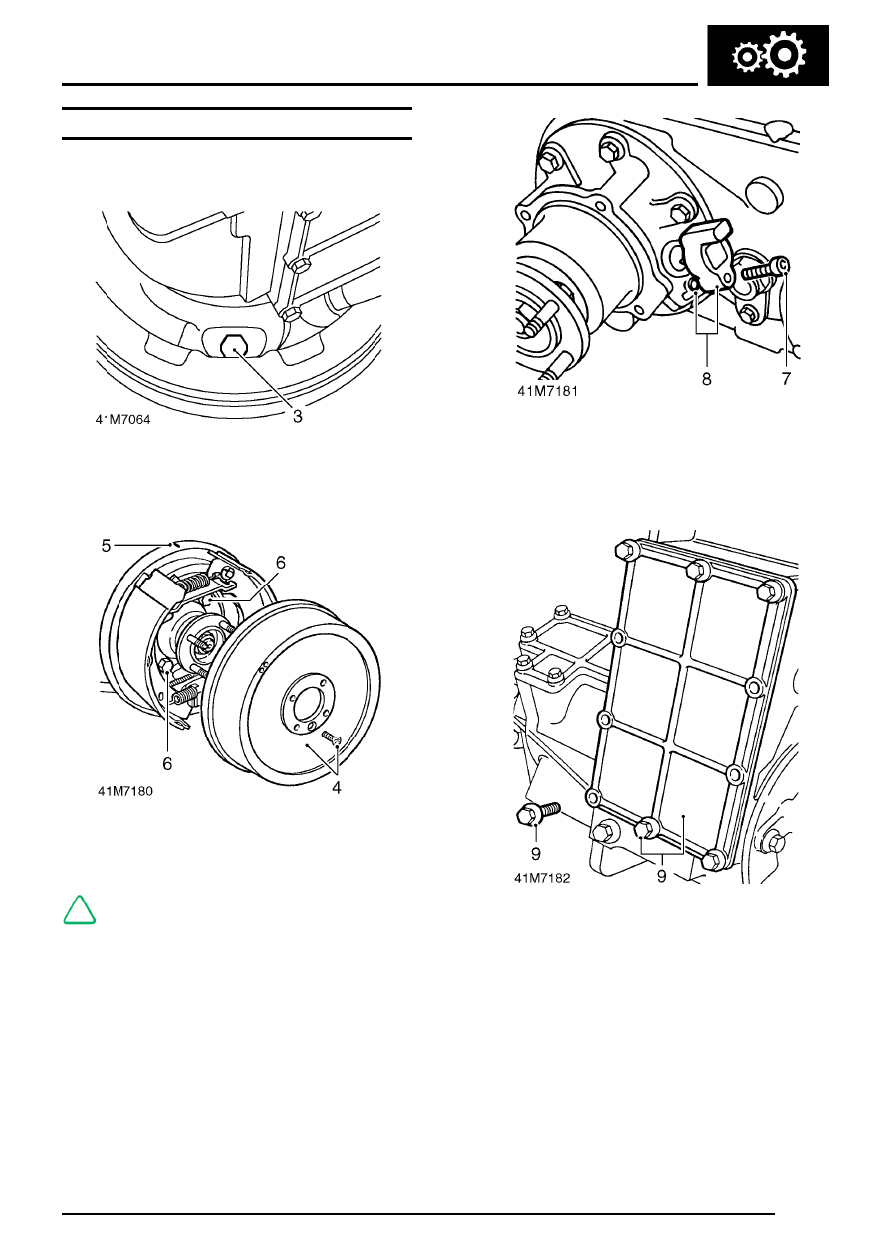

1. Clean exterior of transfer box.
2. Drain and discard the oil, refit drain plug.

3. Slacken bolt to release transmission brake

adjustment.

4. Remove countersunk screw securing

transmission brake drum, remove drum.

NOTE: 2 screws may be fitted.

5. Make suitable alignment marks between

transmission brake backplate and rear output
housing.

6. Remove 4 bolts securing transmission brake

backplate, remove backplate.

7. Remove Allen screw securing vehicle speed

sensor - if fitted.

8. Remove vehicle speed sensor, remove and

discard ’O’ ring - if fitted.

9. Remove 6 bolts securing bottom cover, remove

cover.

TRANSFER BOX

2

OVERHAUL

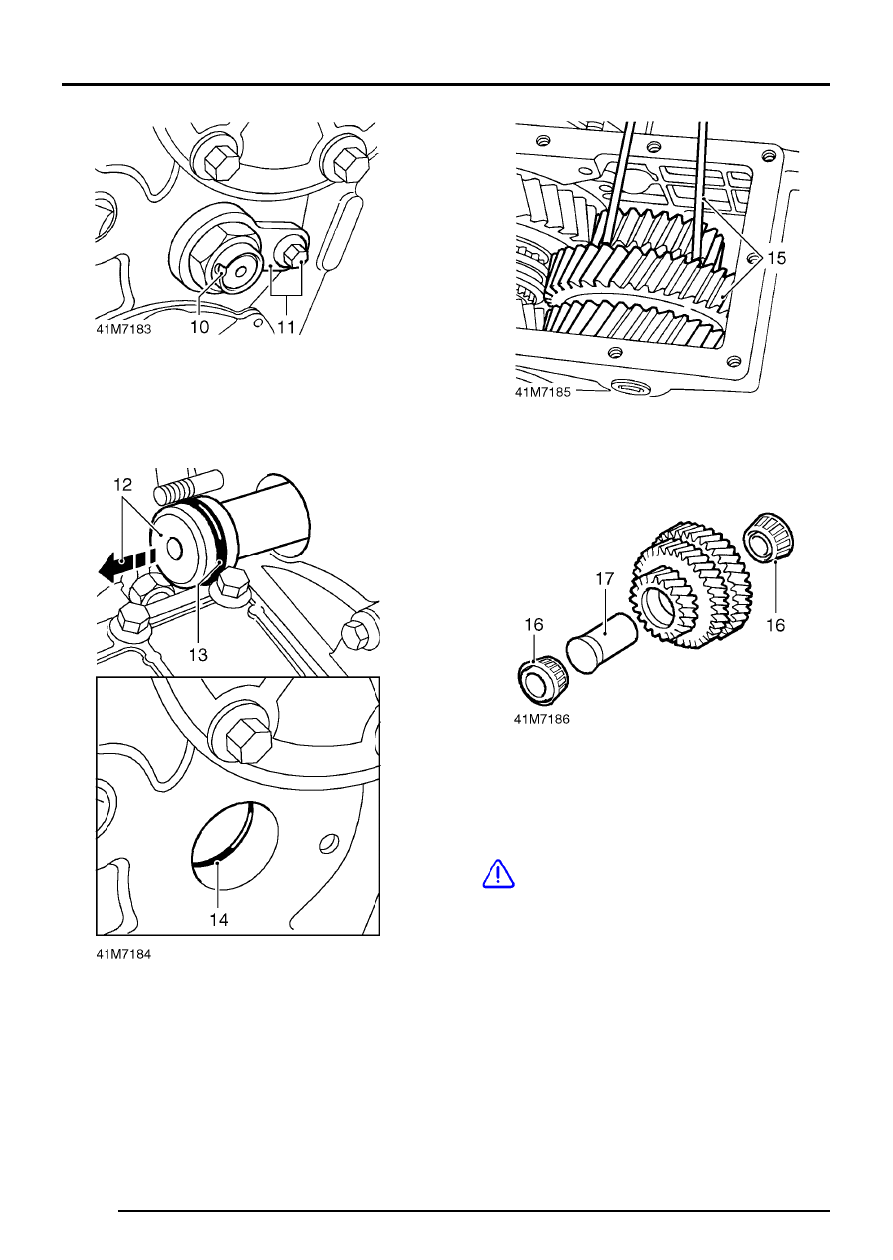

10. Release staking from intermediate shaft nut,

remove and discard nut.

11. Remove bolt securing anti-rotation plate,

remove plate.

12. Using a soft metal drift on threaded end of

intermediate shaft, drive shaft out of main
casing.

13. Remove and discard ’O’ ring from intermediate

shaft.

14. Remove and discard ’O’ ring from main casing.

15. Wrap a suitable length of wire around

intermediate gears and using assistance, lift
gears out of main casing.

16. Remove and discard 2 taper roller bearings

from intermediate gears.

17. Remove and discard collapsible spacer from

intermediate gears.

CAUTION: Do not remove bearing tracks
at this stage.
