Range Rover Body Repair Manual - part 30





CHASSIS AND BODY

45

REPAIR

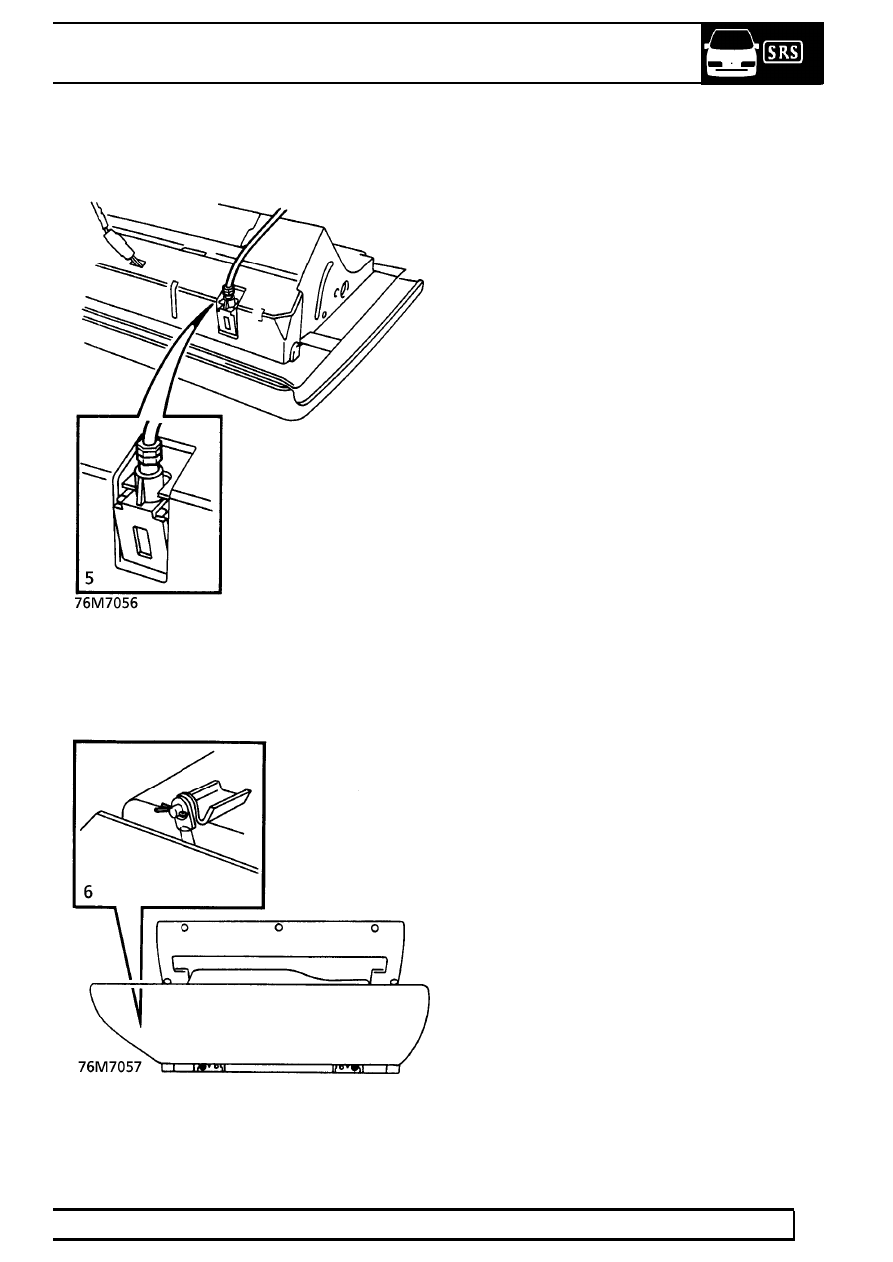

5. Disconnect cable latch, remove glove box

assembly.

Glove Box Lid

6. Remove split pin, disengage gas strut from lid.

7. Remove 2 bolts and square nuts, remove lid

from glove box.

Refit Glove Box Lid

8. Position lid to glove box and secure with bolts

and square nuts.

9. Engage gas strut, secure with split pin.

Refit Glove Box Assembly

10. Position glove box assembly, connect lamp

multiplug. Secure cable latch.

11. Open glove box lid, align assembly to fascia.

Secure with screws.

12. Fit bolts securing hinges to fascia frame, do no

tighten.

13. Check alignment and latching of glove box lid,

adjusting hinges as necessary using central
adjusting screws.

14. Tighten screws, hinges to fascia.
15. Close glove box lid.
16. Position closing panel. Secure with scrivet

fasteners.

76

CHASSIS AND BODY

NEW RANGE ROVER

46

REPAIR

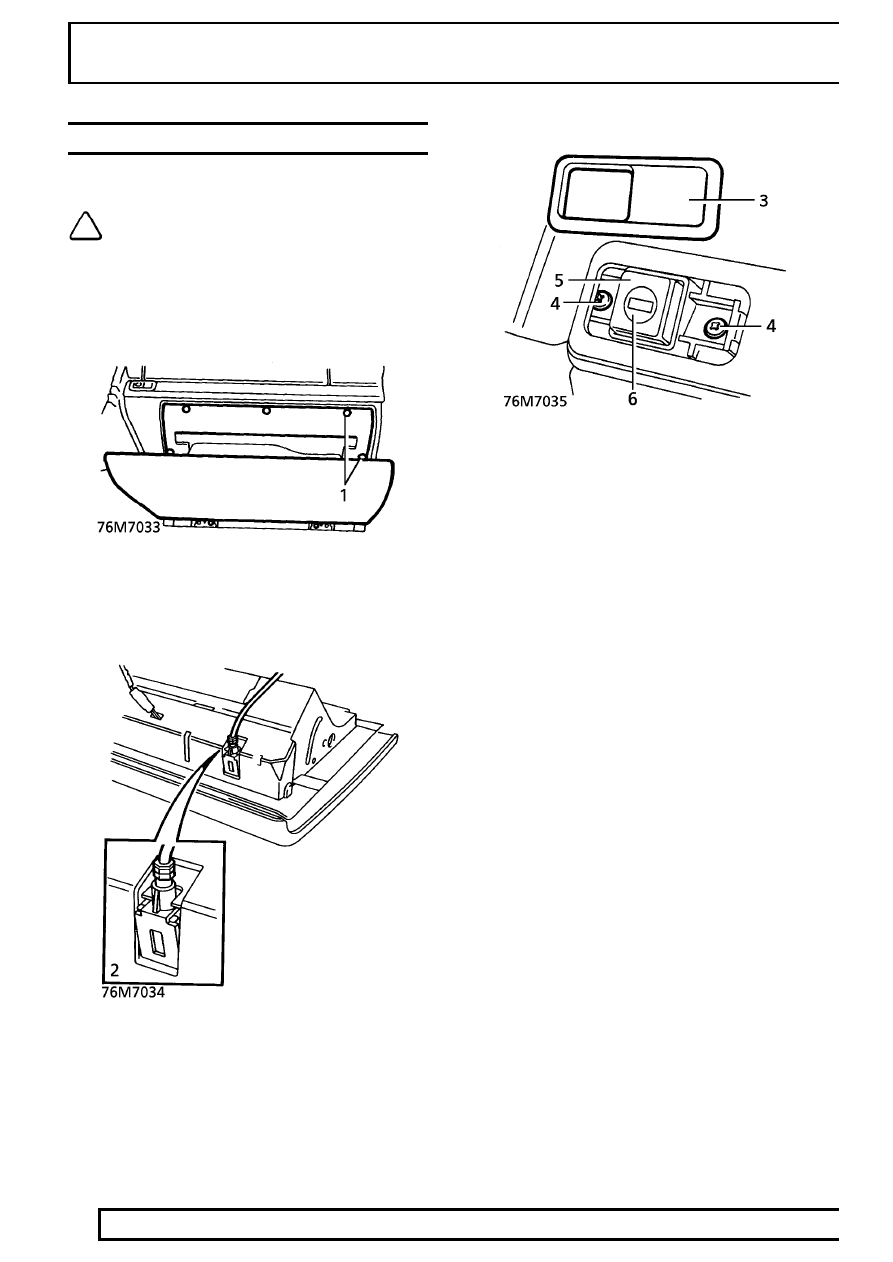

GLOVE BOX RELEASE CABLE

Service repair no - 76.52.14

NOTE: Release cables are supplied preset
and do not normally require adjustment.

Remove

1. Open glove box. Remove 5 screws securing

glove box liner to fascia.

2. Lower glove box liner. Release 2 clips to

disengage cable latch from location.

3. Remove finisher from lock.

4. Remove 2 screws securing lock and withdraw

cable assembly from fascia.

5. Pry cover from lock button.
6. Insert key into lock, turn key through 45 degrees,

remove barrel.

Refit

7. Insert barrel, turn to engage in button.
8. Remove key, fit cover to lock button.
9. Route release cable assembly into fascia.

Engage cable latch to glove box.

10. Align glove box liner to fascia, tighten screws.
11. Close glove box lid.
12. Position glove box lock to fascia, check

operation of latch.

13. If adjustment is necessary, release lock from

fascia, loosen cable lock nut, adjust outer cable
length. Tighten cable lock nut.

14. Reposition lock to fascia. Recheck operation of

latch before securing lock with screws.

15. Fit finisher to lock.

CHASSIS AND BODY

47

REPAIR

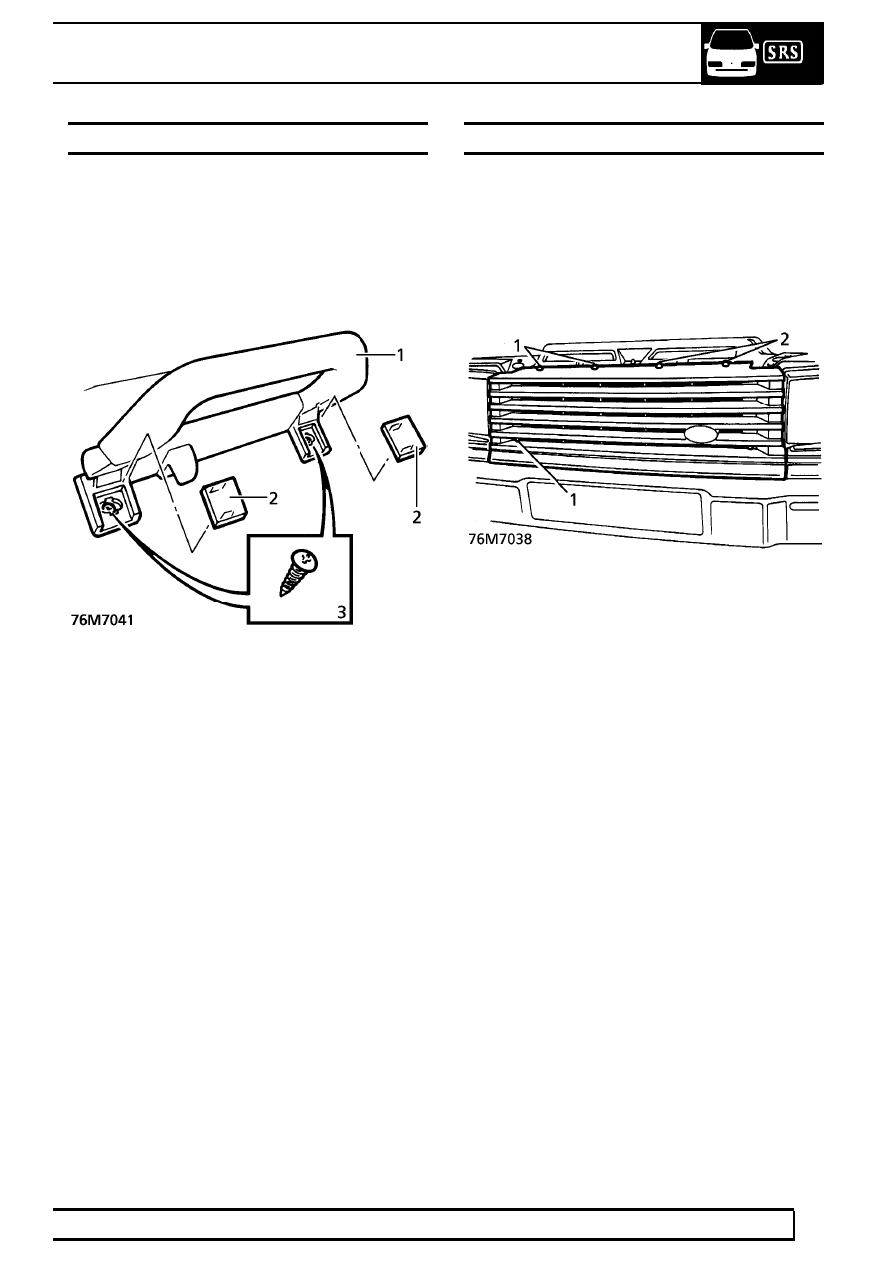

GRAB HANDLE

Service repair no - 76.58.30

Remove

1. Pull down grab handle.
2. Remove 2 grab handle retaining screw access

covers.

3. Remove 2 screws, remove grab handle.

Refit

4. Position grab handle, fit 2 retaining screws.
5. Fit 2 retaining screw access covers.
6. Release grab handle.

FRONT GRILLE

Service repair no - 76.55.03

Remove

1. Remove 6 screws securing grille.
2. Remove front grille.

Refit

3. Reverse removal procedure.

76

CHASSIS AND BODY

NEW RANGE ROVER

48

REPAIR

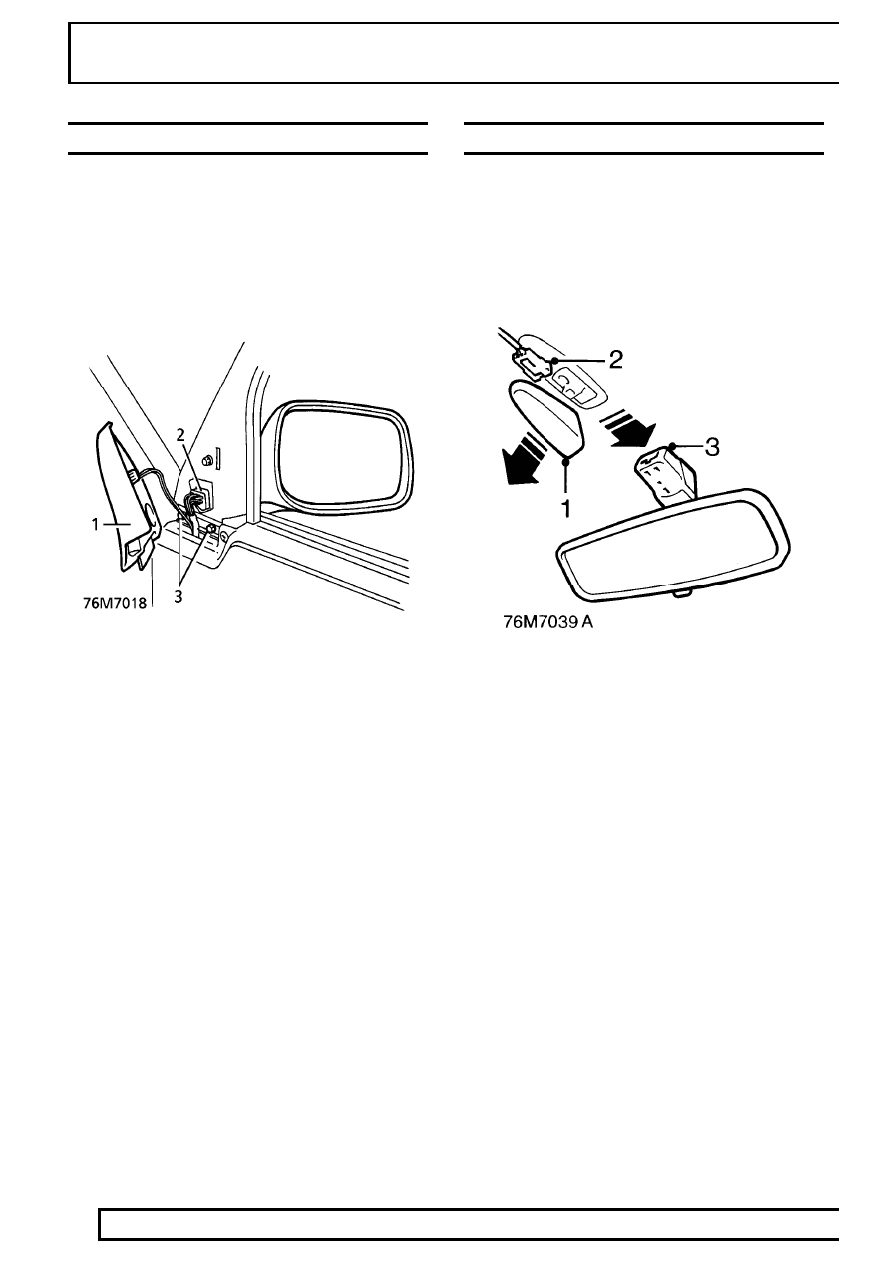

EXTERIOR MIRROR

Service repair no - 76.10.52

Remove

1. Release cheater panel, disconnect 2 tweeter

speaker connectors. Remove cheater panel.

2. Disconnect mirror multiplug.
3. Remove 3 screws, remove mirror.

Refit

4. Fit mirror, tighten 3 retaining screws.
5. Connect mirror multiplug.
6. Position cheater panel, connect 2 tweeter

speaker connectors, secure panel to door.

INTERIOR MIRROR

Service repair no - 76.10.51

Remove

1. Remove cover.
2. If fitted, diconnect multiplug.
3. Remove mirror from windscreen location by

pulling sharply downwards.

Refit

4. Reverse removal procedure.
