Range Rover Body Repair Manual - part 28





CHASSIS AND BODY

37

REPAIR

REAR DOOR ASSEMBLY

Service repair no - 76.28.02/99

Remove

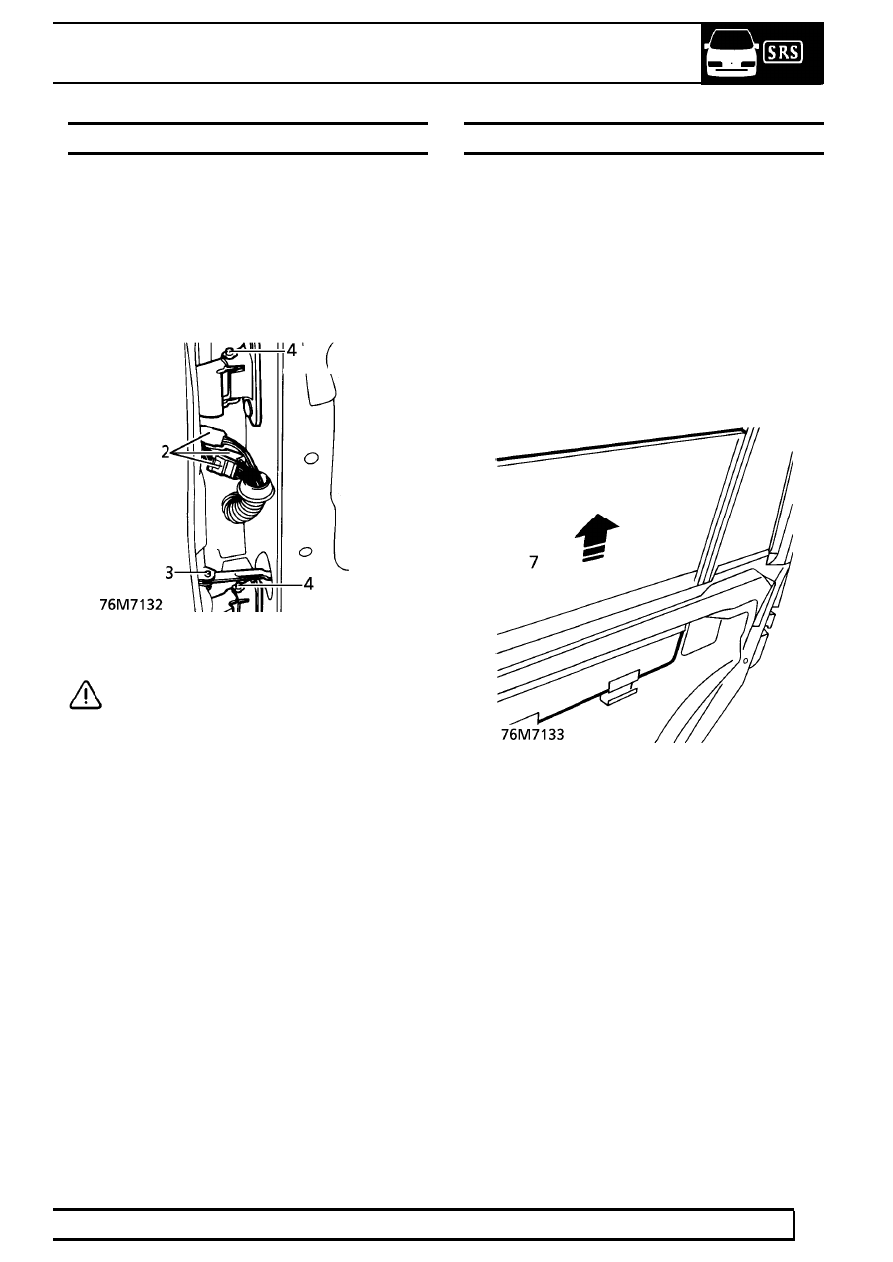

1. Release door harness protective sleeve from

’B/C’ post.

2. Disconnect door harness multiplugs.
3. Remove check strap retaining pin.

CAUTION: Apply protective tape to ’B/C’
post before drifting out pin.

4. Remove hinge pin retaining clips.
5. With assistance, remove door assembly.

Refit

6. With assistance fit door to hinges.
7. Fit hinge retaining clips.
8. Align check strap and fit retaining pin.
9. Remove protective tape.

10. Connect harness multiplugs, secure protective

sleeve to ’B/C’ post.

11. If necessary adjust door.

See Adjustment.

GLASS - REAR DOOR

Service repair no - 76.31.02

Remove

1. Remove outer waist seal.

See this section.

2. Remove door trim casing.

See this section.

3. Remove speaker and plastic sheet.

See this

section.

4. Remove window motor and control panel

assembly.

See ELECTRICAL, Repair.

5. Remove glass rear channel.

See this section.

6. Remove wedges or tape from glass.
7. Release glass from channel. Raise to remove

glass from door.

Refit

8. Fit glass to door and align to frame.
9. Wedge or use tape to hold glass in door.

10. Fit glass rear channel.

See this section.

11. Fit window motor and control panel.

See

ELECTRICAL, Repair.

12. Fit speaker and plastic sheet.

See this section.

13. Fit trim casing.

See this section.

14. Fit outer waist seal.

See this section.

76

CHASSIS AND BODY

NEW RANGE ROVER

38

REPAIR

PLASTIC SHEET - REAR DOOR

Service repair no - 76.34.28

Remove

1. Remove rear door trim casing.

See this

section.

2. Remove speaker.

See ELECTRICAL, Repair.

3. Remove 2 screws securing amplifier to door.
4. Remove plastic sheet.

Refit

5. Reverse removal procedure.

OUTSIDE HANDLE - REAR DOOR

Service repair no - 76.58.02

Remove

1. Remove rear door trim casing.

See this

section.

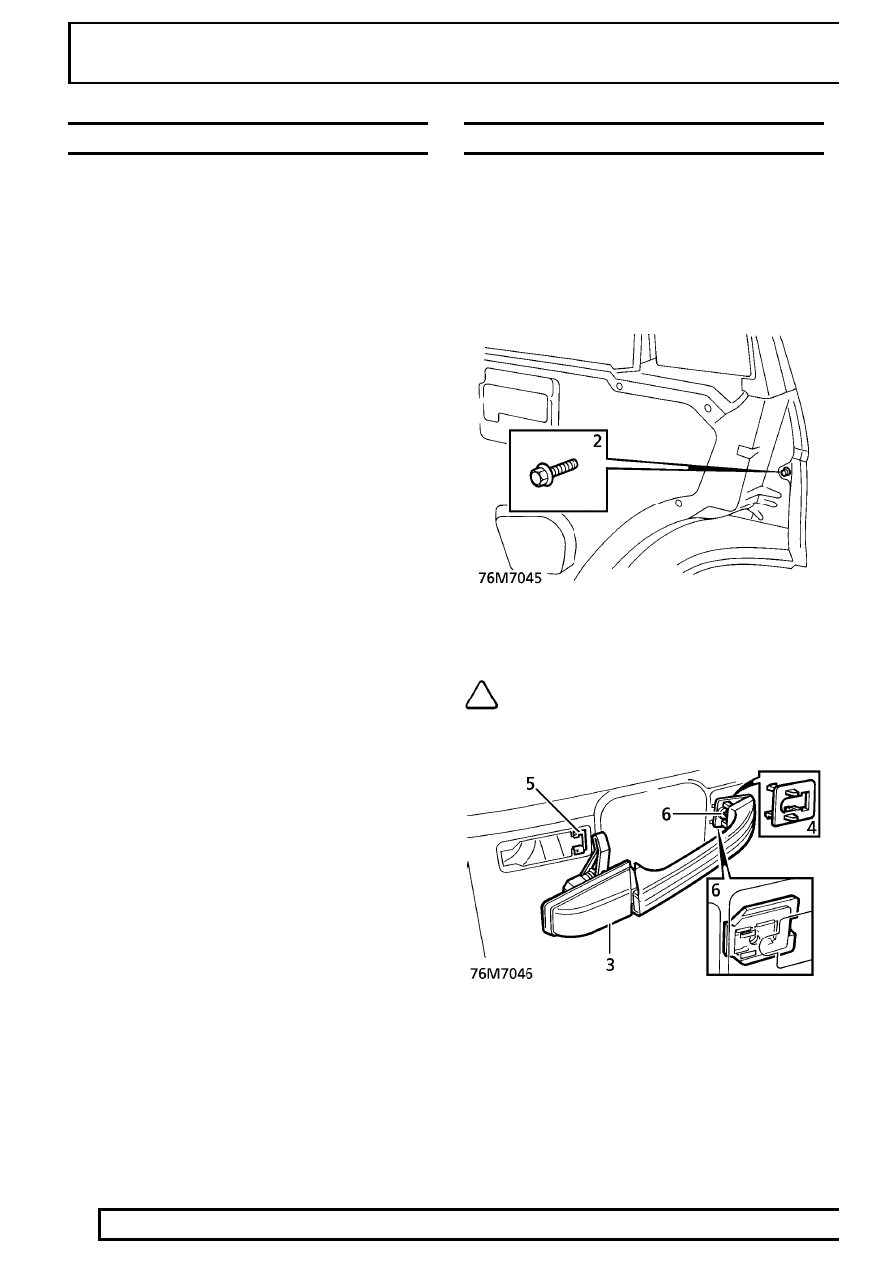

2. Remove bolt securing handle.

3. Remove outside handle.

NOTE: Operate and pull handle outward,
pivotting at forward mounting point.

4. Remove gasket.
5. Remove locking plates.
6. Remove screw securing mounting plate, remove

plate.

CHASSIS AND BODY

39

REPAIR

Refit

7. Clean handle face on door.
8. Fit handle mounting plate, tighten screw.
9. Fit locking plates.

10. Fit gasket to handle, position handle, secure with

screw.

11. Refit door trim casing.

See this section.

LATCH - REAR DOOR

Service repair no - 76.37.13/70

Remove

1. Remove window lift motor/control unit assembly.

See ELECTRICAL, Repair.

2. Release door lock remote control cable from clip

on window lift panel.

3. Remove 2 studs securing latch to window lift

panel.

4. Disconnect outer cable from abutment bracket.
5. Release remote cable from latch.
6. Release sill button link rod from latch. Remove

latch.

Refit

7. Lubricate new latch.
8. Fit latch to sill button link rod.
9. Fit remote control cable to latch.

10. Fit latch to window lift panel, secure with 2

retaining studs.

11. Refit window lift motor/control unit assembly.

See ELECTRICAL, Repair.

76

CHASSIS AND BODY

NEW RANGE ROVER

40

REPAIR

FIXED QUARTER LIGHT - REAR DOOR

Service repair no - 76.31.31

Remove

1. Remove outer waist seal.

See this section.

2. Remove door trim casing.

See this section.

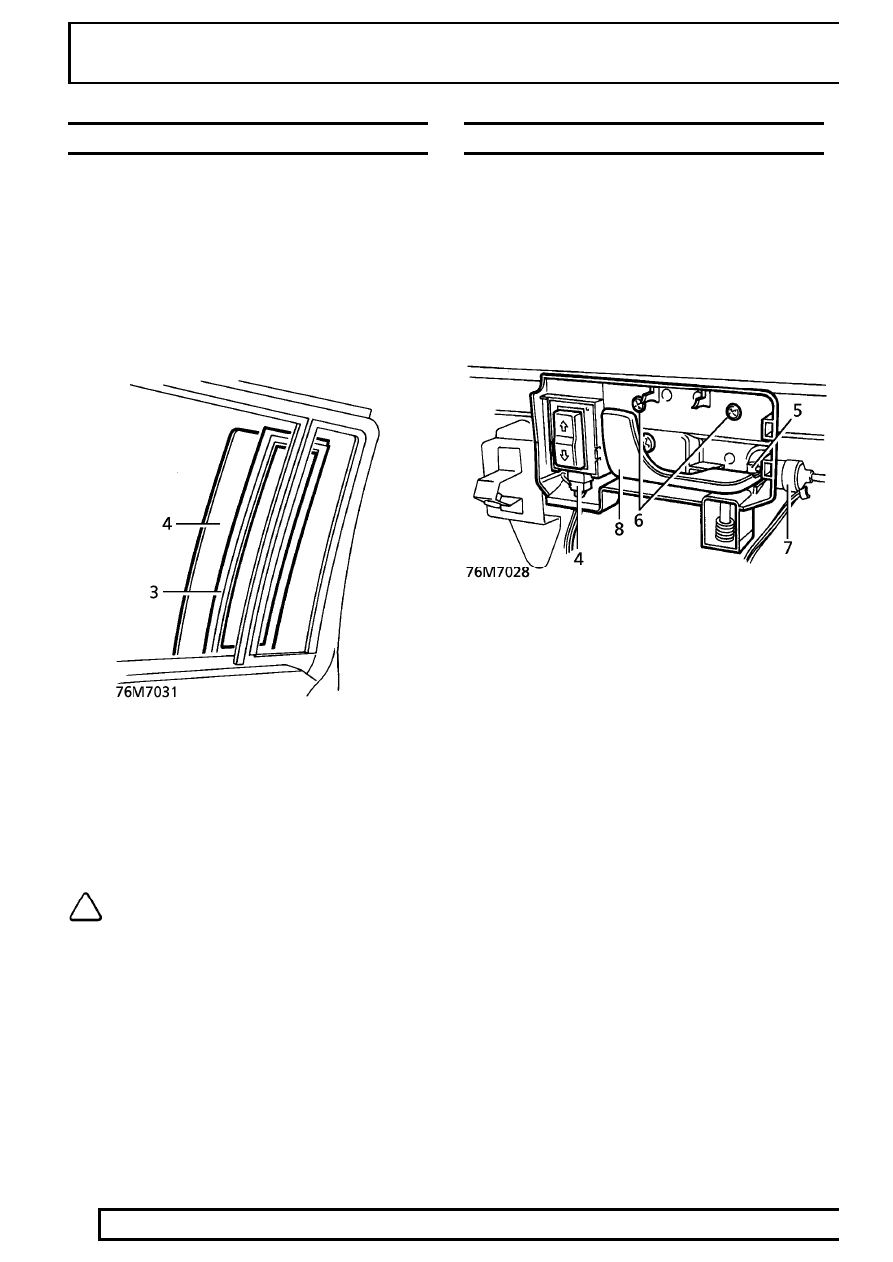

3. From inside release seal from frame. Remove

seal and glass assembly outwards.

4. Remove seal from glass.

Refit

5. Clean glass, seal and frame.
6. Fit seal to glass. Fit assembly to door frame. If

necessary use a draw string to locate rubber.

NOTE: The opening light seal fits over the
fixed glass seal.

7. Fit door trim casing.

See this section.

8. Fit outer waist seal.

See this section.

REMOTE CONTROL - REAR DOOR

Service repair no - 76.37.32

Remove

1. Remove rear door trim casing.

See this

section.

2. Release plastic sheet to clear remote.
3. Remove foam pad from under window lift switch

multiplug.

4. Disconnect switch multiplug.

5. Release inner cable from remote lever.
6. Remove 2 screws securing remote to window lift

control panel.

7. Release remote outer cable from remote

housing.

8. Remove remote control.

Refit

9. Reverse removal procedure.
