Range Rover Body Repair Manual - part 29





CHASSIS AND BODY

41

REPAIR

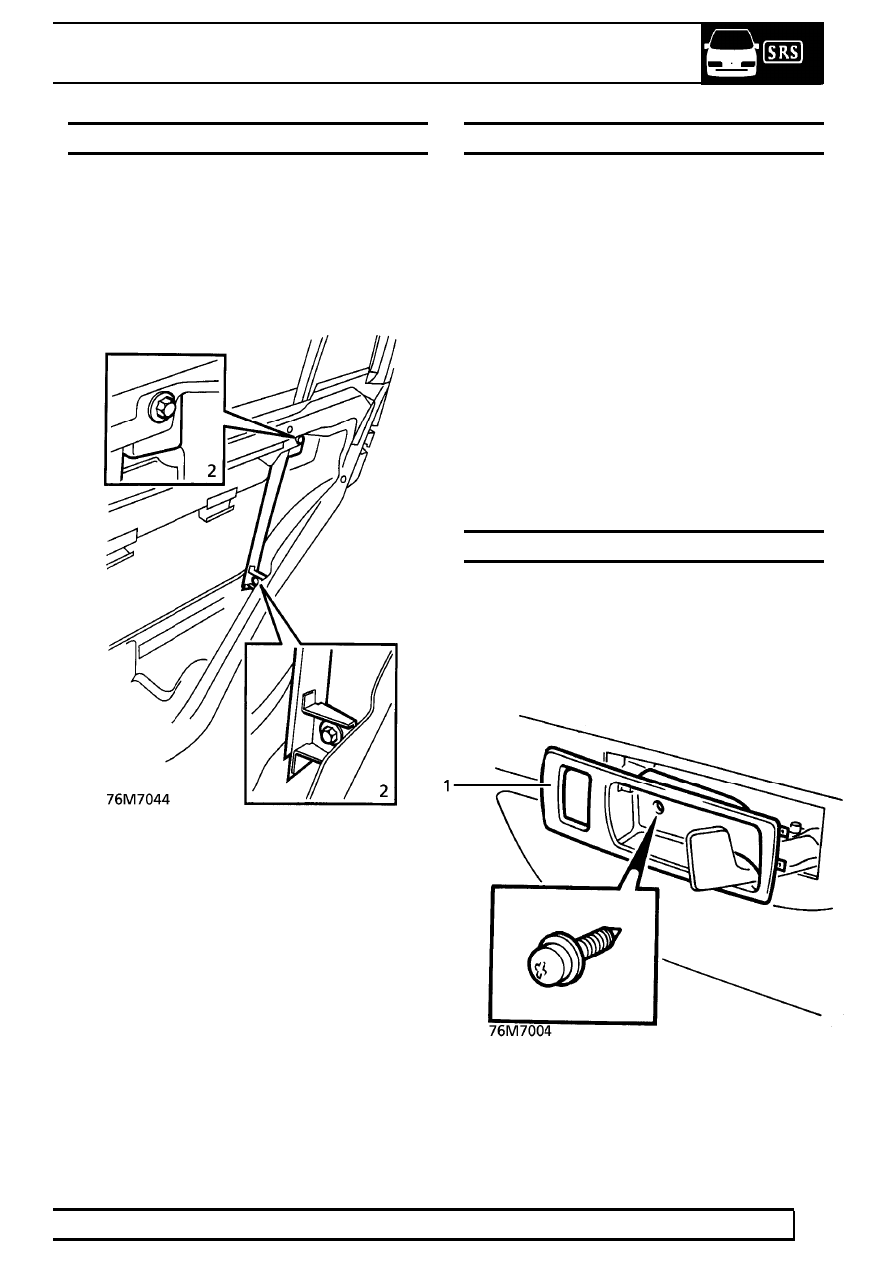

GLASS CHANNEL - REAR DOOR

Service repair no - 76.31.17

Remove

1. Remove window lift motor/control panel

assembly.

See ELECTRICAL, Repair.

2. Remove 2 bolts securing channel to door and

remove channel.

Refit

3. Fit channel to door, secure with 2 bolts.
4. Refit window lift motor/control panel assembly.

See ELECTRICAL, Repair.

SEAL - REAR DOOR

Service repair no - 76.40.02

Remove

1. Open rear door.
2. Remove rear door carpet retainer.
3. Remove rear door aperture seal.

Refit

4. Fit rear door aperture seal.
5. Refit rear door carpet retainer.
6. Close rear door.

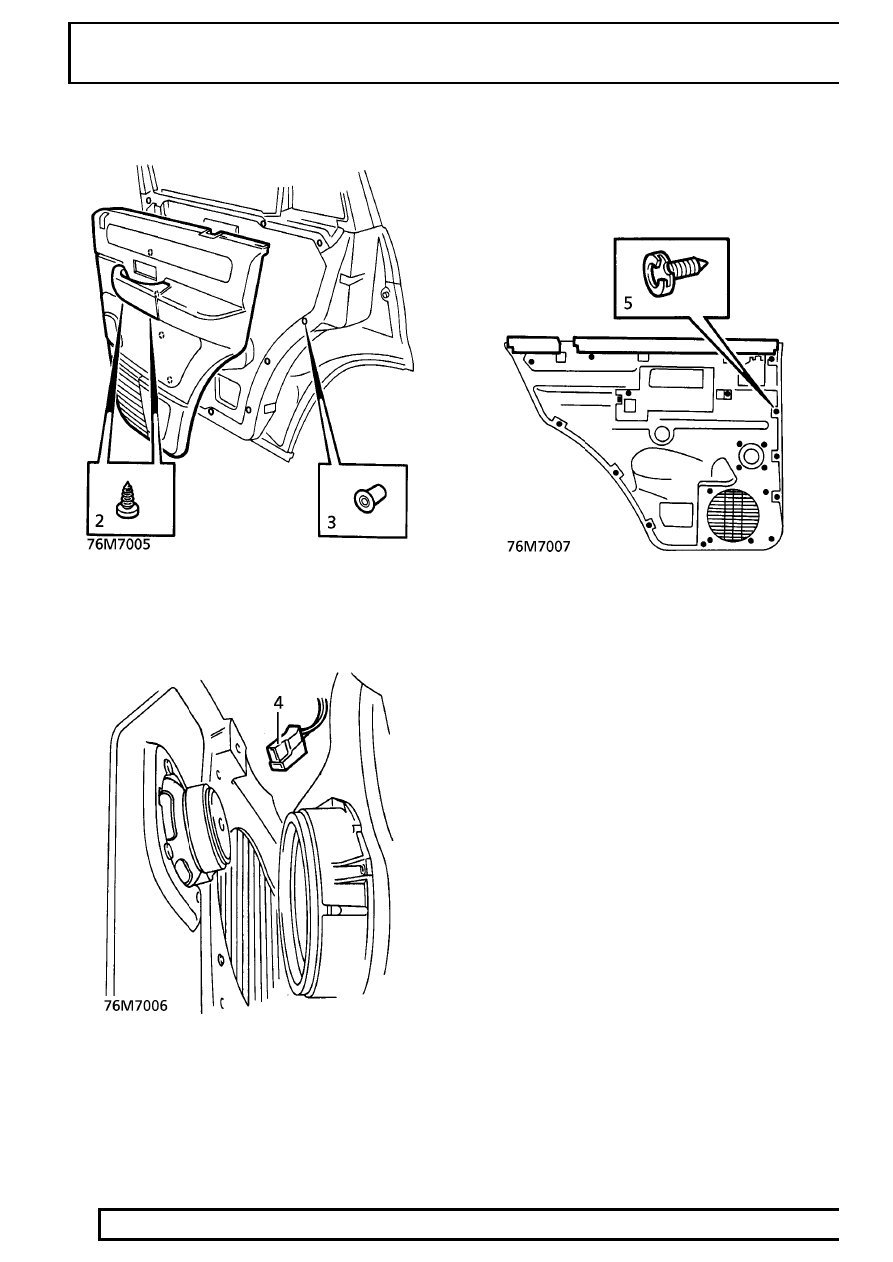

TRIM CASING - REAR DOOR

Service repair no - 76.34.04

Remove

1. Remove remote handle escutcheon.

76

CHASSIS AND BODY

NEW RANGE ROVER

42

REPAIR

2. Remove 2 screws securing trim casing.

3. Release 11 door trim casing retaining studs.
4. Disconnect rear door speaker connector.

Remove door trim casing.

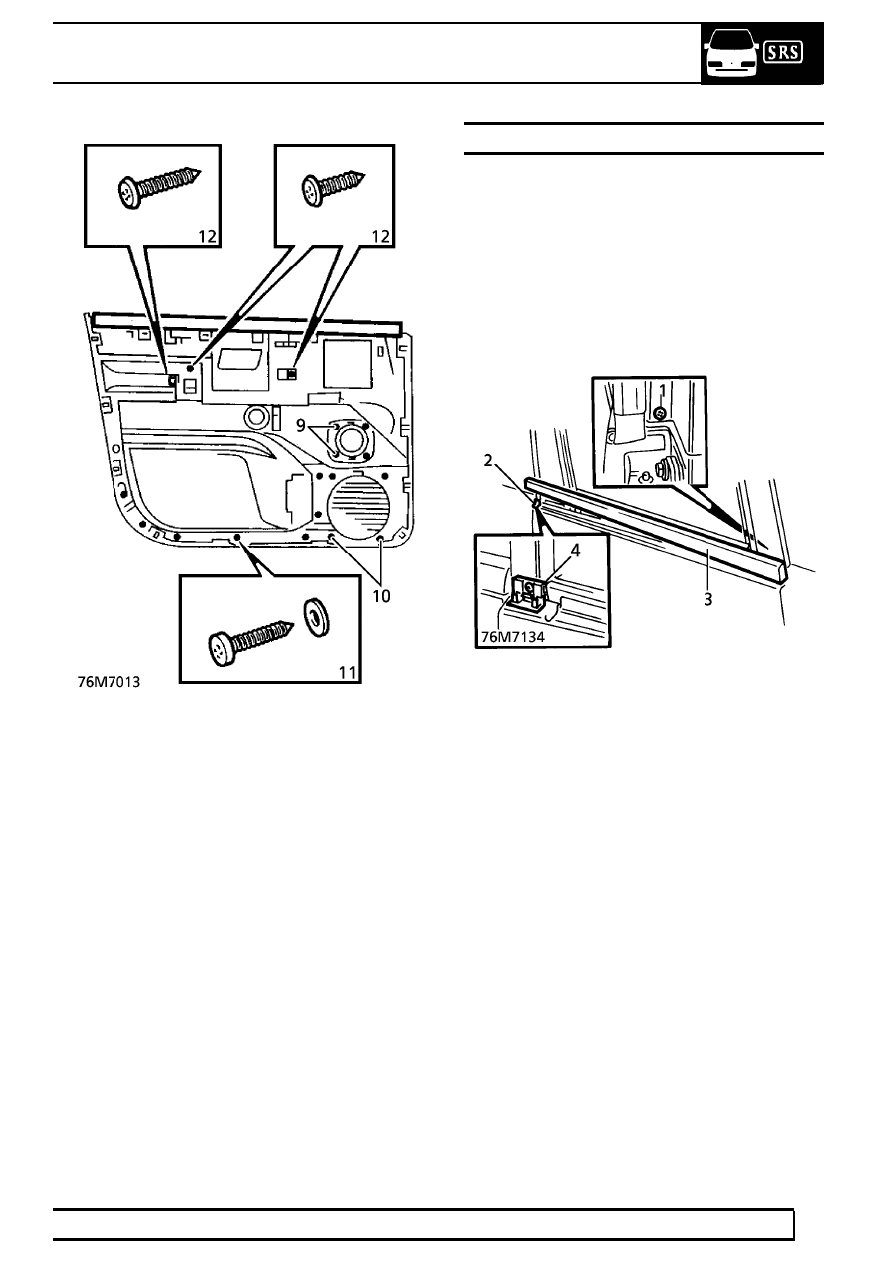

Disassemble

5. Remove 11 trim casing retaining studs.

6. Remove 4 screws, remove upper speaker grille.
7. Remove 4 screws, remove lower speaker grille.
8. Remove 3 screws, remove arm rest.
9. Remove screw, remove retaining clamp and sill

button escutcheon.

CHASSIS AND BODY

43

REPAIR

10. Remove trim from door casing.

Assemble

11. Fit trim to door casing.
12. Fit sill button escutcheon and position retaining

clamp.

13. Tighten screw securing retaining clamp.
14. Fit arm rest to trim casing, secure with 3 screws.
15. Fit upper speaker grille to trim casing, secure

with 4 screws.

16. Fit lower speaker grille to trim casing, secure

with 4 screws.

17. Fit 11 trim casing retaining studs.

Refit

18. Fit and align door trim casing.
19. Secure 11 trim casing retaining studs.
20. Tighten 2 screws securing trim casing.
21. Fit remote handle escutcheon, tighten securing

screw.

OUTER WAIST SEAL - REAR DOOR

Service repair no - 76.31.54

Remove

1. Remove screw securing seal finisher to forward

edge of door.

2. Release seal finisher from clip at rear edge of

door.

3. Remove seal and finisher assembly.
4. Remove screw and securing clip.

Refit

5. Fit clip to door, secure with screw.
6. Fit seal and finisher assembly to door. Align at

forward edge, secure with screw.

76

CHASSIS AND BODY

NEW RANGE ROVER

44

REPAIR

RUBBING STRIPS & DOOR FINISHERS

Remove

CAUTION: When removing exterior trim,
NEVER lever directly against body panels.
Use an approved trim fork. Protect body

panel with suitable material, such as fabric
covered hardboard.

Rubbing Strip - Front Fender

1. Remove relevant wheel arch liner.

See this

section.

2. Remove nut securing forward edge of rubbing

strip.

3. Remove rubbing strip from single clip.

Rubbing Strip - Rear Quarter Panel

4. Release 5 clips securing rubbing strip. Remove

strip.

NOTE: Rearmost clip is unique.

Rubbing Strips - Front & Rear Doors

5. Remove nut securing rear of rubbing strip.
6. Front Door Rubbing Strip: Release 5 clips

securing rubbing strip.

7. Rear Door Rubbing Strip: Release 3 clips

securing rubbing strip.

8. Remove rubbing strips.

Lower Door Finishers

9. Remove screw securing rear of fininsher.

10. Front Door Finisher: Release 5 clips securing

rubbing strip.

11. Rear Door Finisher: Release 3 clips securing

rubbing strip.

12. Remove finishers.

Refit

13. Reverse removal procedure.

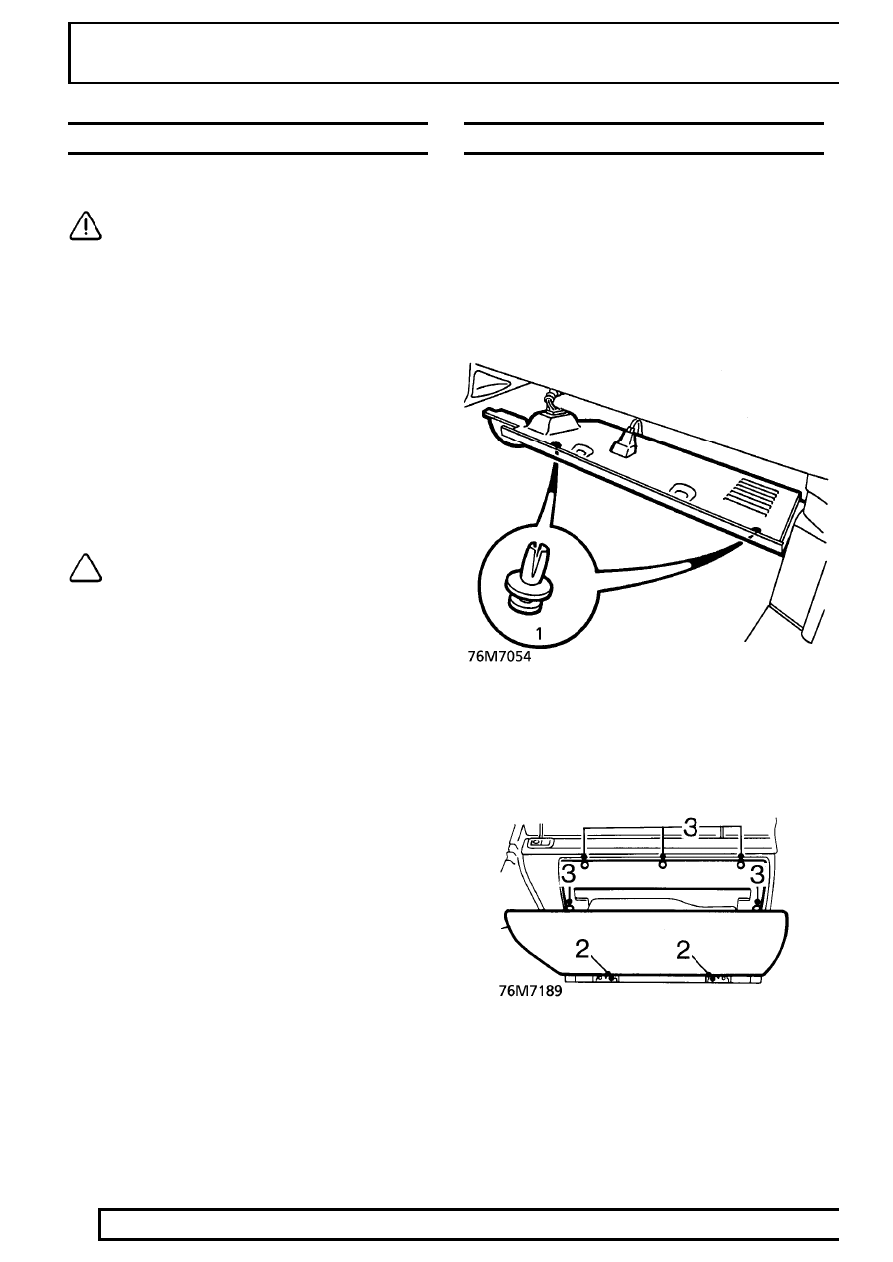

GLOVE BOX AND LID

Service repair no - 76.52.03 - Glove Box
Service repair no - 76.52.02 - Glove Box Lid
Service repair no - 76.52.13 - Glove Box Lid - Align

Remove

1. Remove centre screw from 2 scrivet fasteners.

Release closing panel for access to glove box
hinge fixings. Collect outer parts of fasteners
from closing panel.

2. Remove 2 bolts securing glove box hinges to

fascia frame.

3. Open glove box lid, remove 5 screws securing

glove box. Release glove box from fascia.

4. Disconnect glove box lamp multiplug.
