Range Rover. Manual - part 329





ELECTRICAL

57

REPAIR

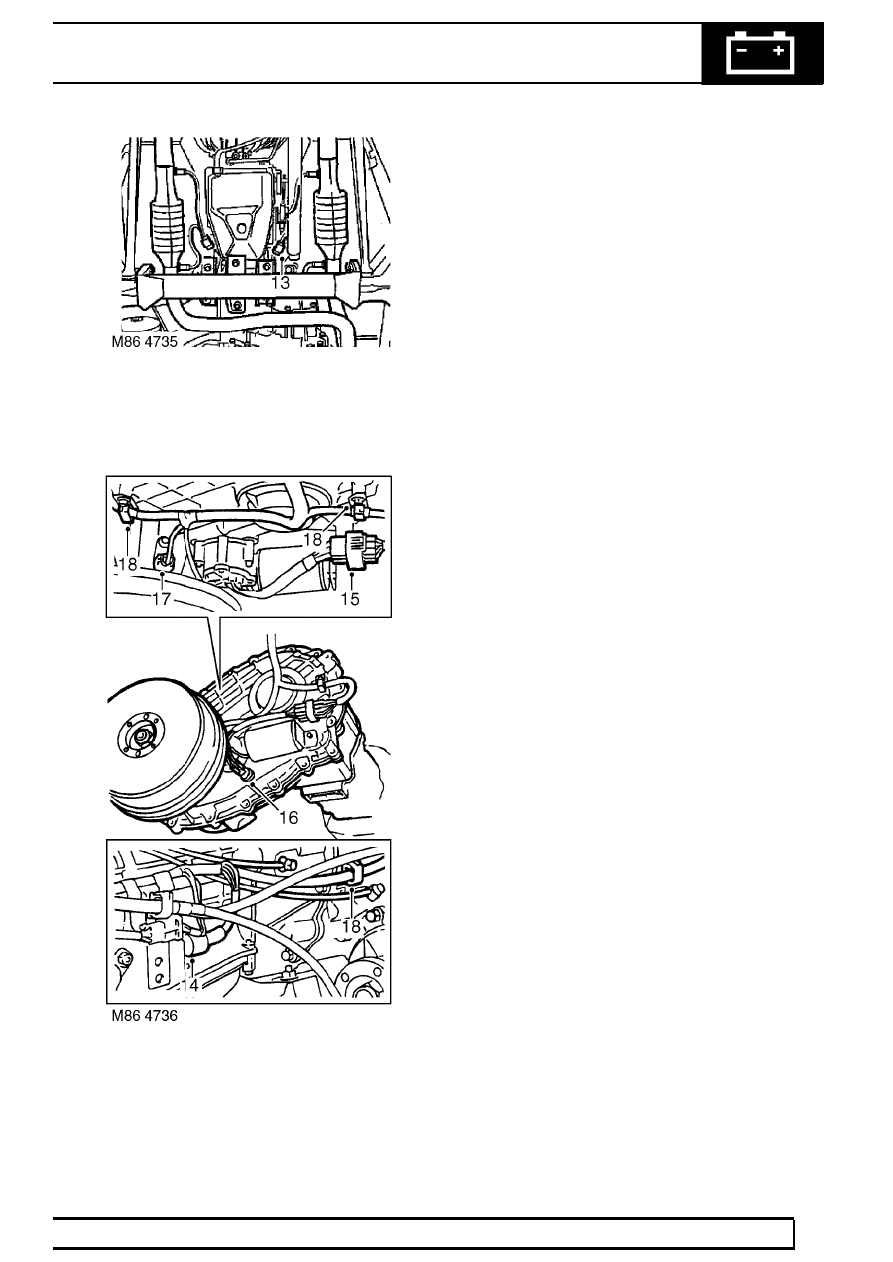

13. Release LH rear HO2S multiplug from support

bracket.

14. Disconnect gearbox speed sensor multiplug.
15. Disconnect multiplug from transfer box High/Low

motor.

16. Disconnect 2 Lucars from transfer box oil

temperature sensor.

17. Disconnect multiplug from output shaft speed

sensor.

18. Open 3 harness support clips.
19. Remove gearbox harness from vehicle.

Refit

20. Position harness on top of gearbox.
21. Connect multiplug to output shaft speed sensor.
22. Connect 2 Lucars to transfer box temperature

sensor.

23. Connect multiplug to transfer box High/ Low

motor.

24. Fit and secure harness to support clips.
25. Fit LH rear oxygen sensor multiplug to support

bracket.

26. Connect multiplug to gearbox speed sensor.
27. Models with automatic gearbox: Fit selector

position switch multiplug to support bracket and
connect gearbox harness to selector position
switch multiplug.

28. Align multiplug bracket and selector cable

abutment bracket to gear box and secure with
bolts.

29. Raise gearbox on jack.
30. Push to locate handbrake cable grommet in

transmission tunnel.

31. Models with automatic gearbox: Fit gear

selector cable to abutment bracket and secure
with ’C’ clip.

32. Models with automatic gearbox: Fit selector

cable trunnion to lever and secure with split pin.

33. Models with automatic gearbox: Adjust gear

selector cable.

See AUTOMATIC GEARBOX,

Adjustment.

34. Clean exhaust front and intermediate pipe

mating faces.

35. Align intermediate pipe to front pipe and tighten

clamp nuts to

25 Nm (18 lbf.ft).

36. Fit chassis crossmember.

See CHASSIS AND

BODY, Repair.

37. Feed harness multiplug through tunnel. and

connect multiplugs to main harness.

38. Fit harness multiplug to tunnel.
39. Connect handbrake cable to lever, fit clevis pin

and secure pin with clip.

40. Fit centre console.

See CHASSIS AND BODY,

Repair.

87 - NAVIGATION SYSTEM

CONTENTS

Page

DESCRIPTION AND OPERATION

NAVIGATION SYSTEM COMPONENT LAYOUT

1

................................................

NAVIGATION CONTROL DIAGRAM

2

...................................................................

NAVIGATION SYSTEM - DESCRIPTION

4

............................................................

NAVIGATION SYSTEM COMPONENTS

4

.............................................................

NAVIGATION SYSTEM - OPERATION

13

.............................................................

OFF ROAD NAVIGATION

19

..................................................................................

REPAIR

NAVIGATION COMPUTER

1

..................................................................................

GLOBAL POSITIONING SYSTEM (GPS) RECEIVER

2

........................................

AERIAL - GLOBAL POSITIONING SYSTEM (GPS)

3

............................................

DISPLAY UNIT - NAVIGATION SYSTEM

4

............................................................
