ELECTRICAL

9

REPAIR

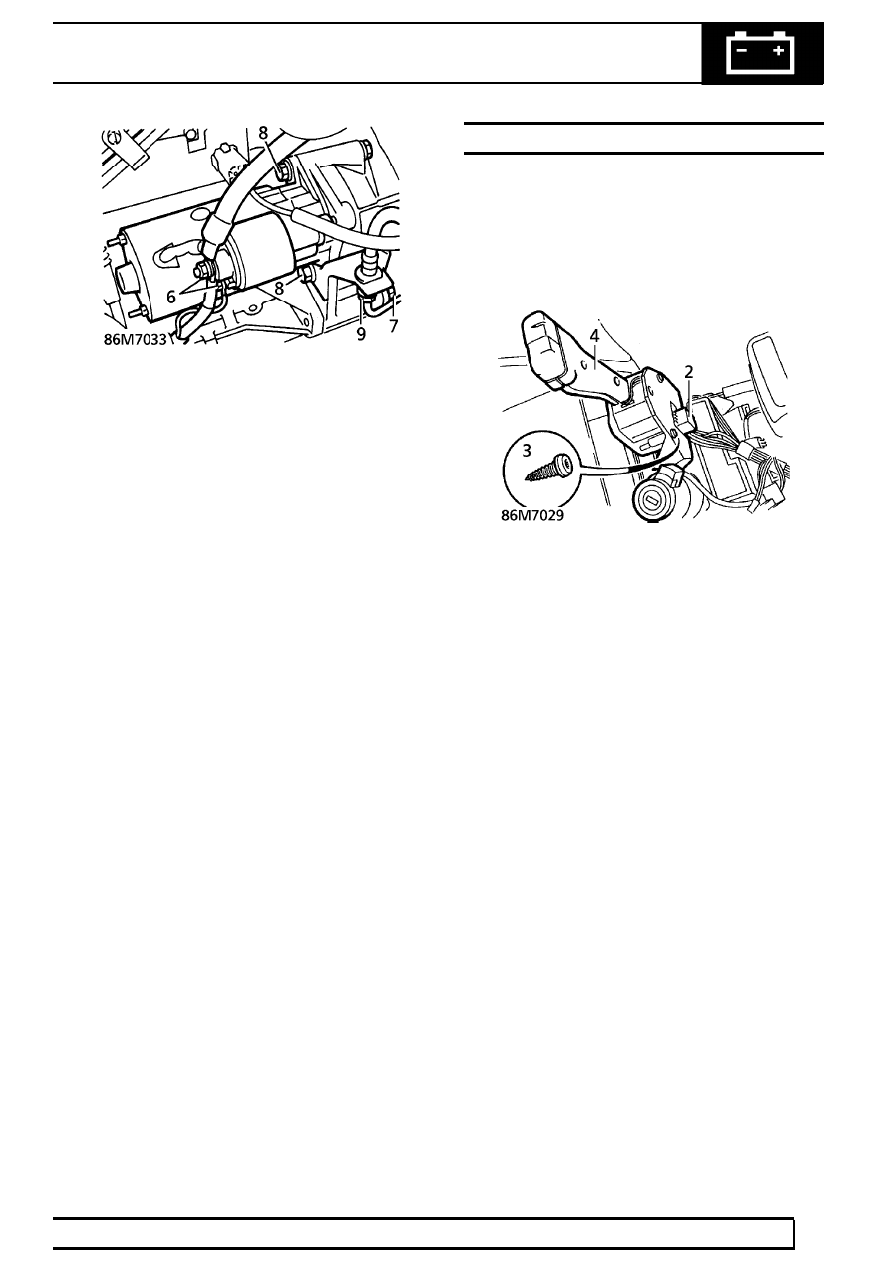

6. Remove 2 bolts securing starter motor to engine.

NOTE: Use two extensions as illustrated to
gain access to the top bolt.

7. Remove starter motor.

Refit

8. Ensure mating faces are clean.
9. Fit starter motor.

10. Fit bolts. Tighten to

45 Nm. (33 lbf.ft)

11. Fit Lucar to starter solenoid.
12. Connect feed wires to solenoid terminal. Secure

with nut.

13. Remove stands and lower vehicle.
14. Reconnect battery negative lead.

STARTER MOTOR - V8 - 97 MY ON

Service repair no - 86.60.01

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Remove gearbox RH acoustic cover.

See

CHASSIS AND BODY, Repair.

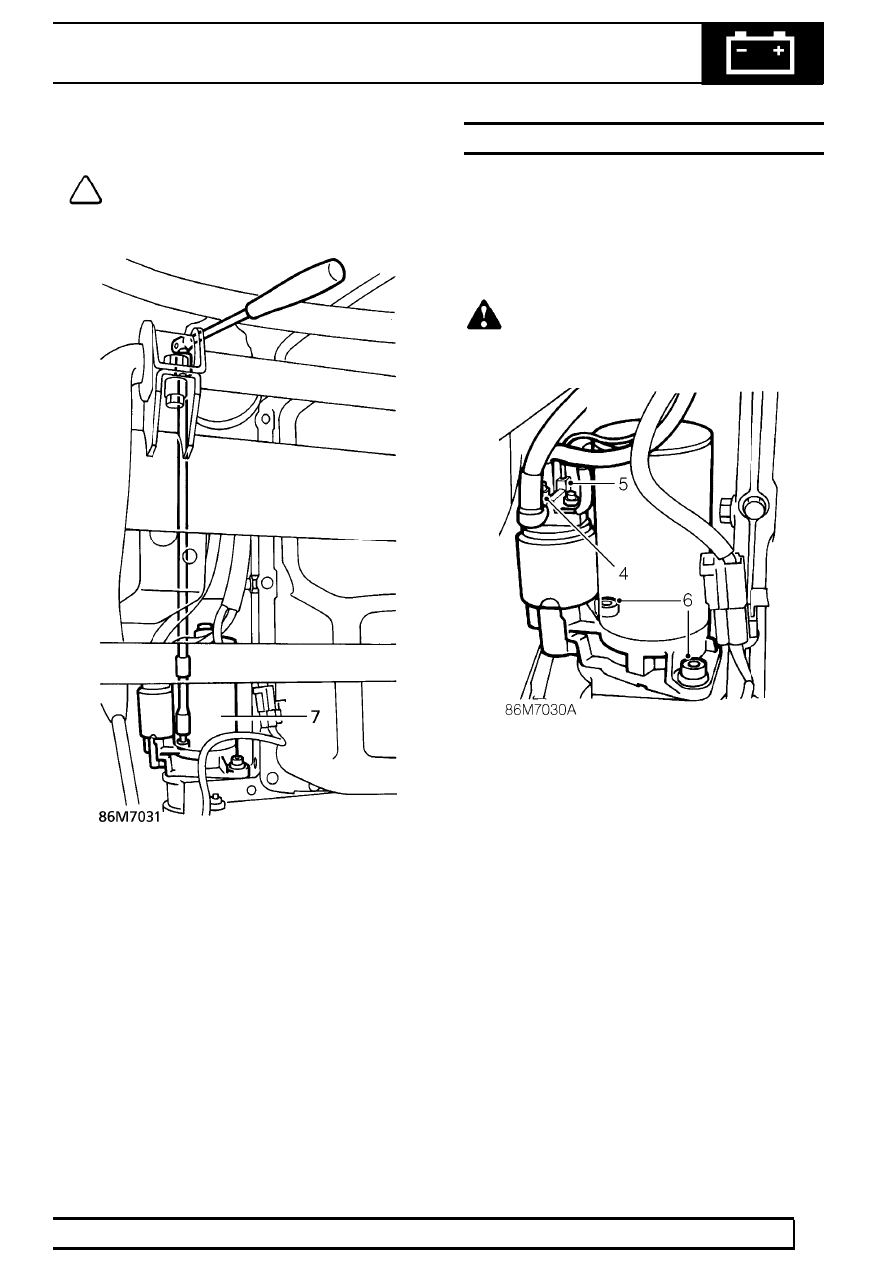

4. Remove nut securing 2 cables to starter solenoid

and position cables aside.

5. Disconnect lucar from starter solenoid.
6. Remove 2 bolts securing starter motor to engine.

86

ELECTRICAL

NEW RANGE ROVER

10

REPAIR

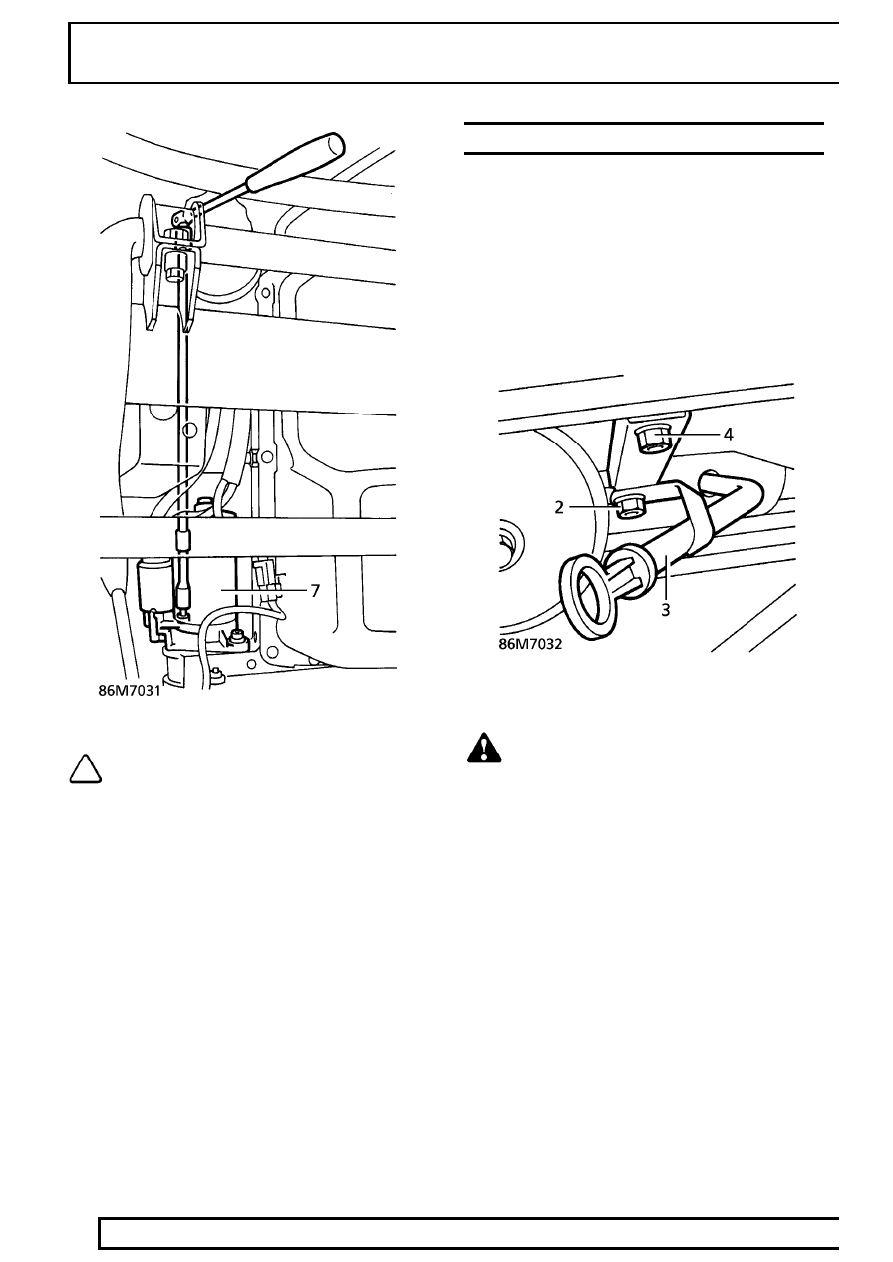

NOTE: Use extensions as illustrated to
gain access to top bolt.

7. Remove starter motor.

Refit

8. Clean mating faces of starter motor and engine.
9. Fit starter motor to engine.

10. Fit bolts securing starter motor to engine and

tighten to

45 Nm. (33 lbf.ft)

11. Connect Lucar to starter solenoid.
12. Connect cables to starter solenoid and secure

with nut.

13. Fit gearbox RH acoustic cover.

See CHASSIS

AND BODY, Repair.

14. Remove stand(s) and lower vehicle.

STARTER MOTOR - DIESEL

Service repair no - 86.60.01

Remove

1. Disconnect battery negative lead.
2. Remove nut and bolt securing dipstick tube.
3. Remove dipstick/tube assembly from sump.

Collect ’O’ ring and discard.

4. Remove nut and bolt securing rear support stay

to inlet manifold. Remove stay.

5. Raise the vehicle.

WARNING: Support on safety stands.

6. Remove nuts securing wires to starter solenoid

terminals. Disconnect wires.

7. Slacken lower bolt securing clutch fluid pipe

bracket to engine.

8. With assistance remove nuts and bolts securing

starter motor.

9. Move fluid pipe bracket clear, release starter

motor from dowel. Remove starter motor.

ELECTRICAL

11

REPAIR

Refit

10. Ensure mating faces are clean.
11. Position starter motor. Locate onto dowel.
12. Align fluid pipe bracket. Secure starter motor

with nuts and bolts. Tighten to

48 Nm.

(35 lbf.ft).

13. Tighten clutch fluid pipe bracket lower bolt to

86 Nm (63 lbf.ft).

INDICATOR STALK

Service repair no - 86.65.64

Remove

1. Remove steering column nacelle.

See

STEERING, Repair.

2. Disconnect multiplug from stalk.

3. Remove 2 screws securing stalk to steering

column.

4. Remove indicator stalk.

Refit

5. Reverse removal procedure.

86

ELECTRICAL

NEW RANGE ROVER

12

REPAIR

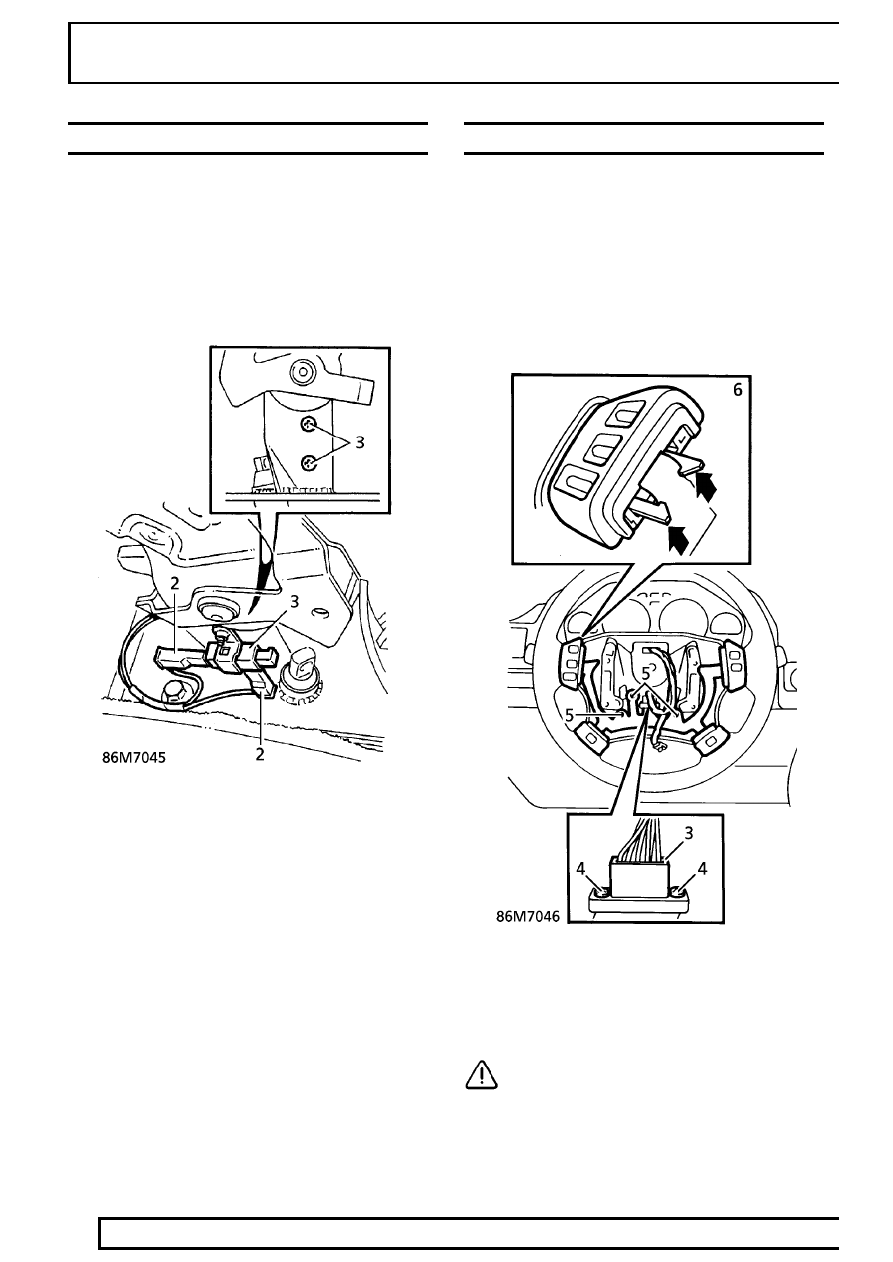

HANDBRAKE WARNING SWITCH

Service repair no - 86.65.45

Remove

1. Remove centre console.

See CHASSIS AND

BODY, Repair.

2. Disconnect 2 Lucars from warning switch.

3. Remove 2 screws securing switch. Remove

switch.

Refit

4. Reverse removal procedure.

STEERING WHEEL MOUNTED SWITCHES

Service repair no - 86.50.13 - Radio Controls

Remove

1. Remove steering wheel pad.

See STEERING,

Repair.

2. Vehicles with SRS: Remove drivers air bag

module.

See SUPPLEMENTARY RESTRAINT

SYSTEM, Repair.

3. Disconnect steering wheel switch multiplug.

4. Remove 2 screws securing multiplug to horn

unit.

5. Remove 3 screws securing printed circuit to horn

unit.

CAUTION: The 3 screws securing the
printed circuit to horn unit are not
replaceable, if damaged during removal a

new steering wheel must be fitted. Do not attempt
to use other fixings.
