WIPERS AND WASHERS
9
REPAIR

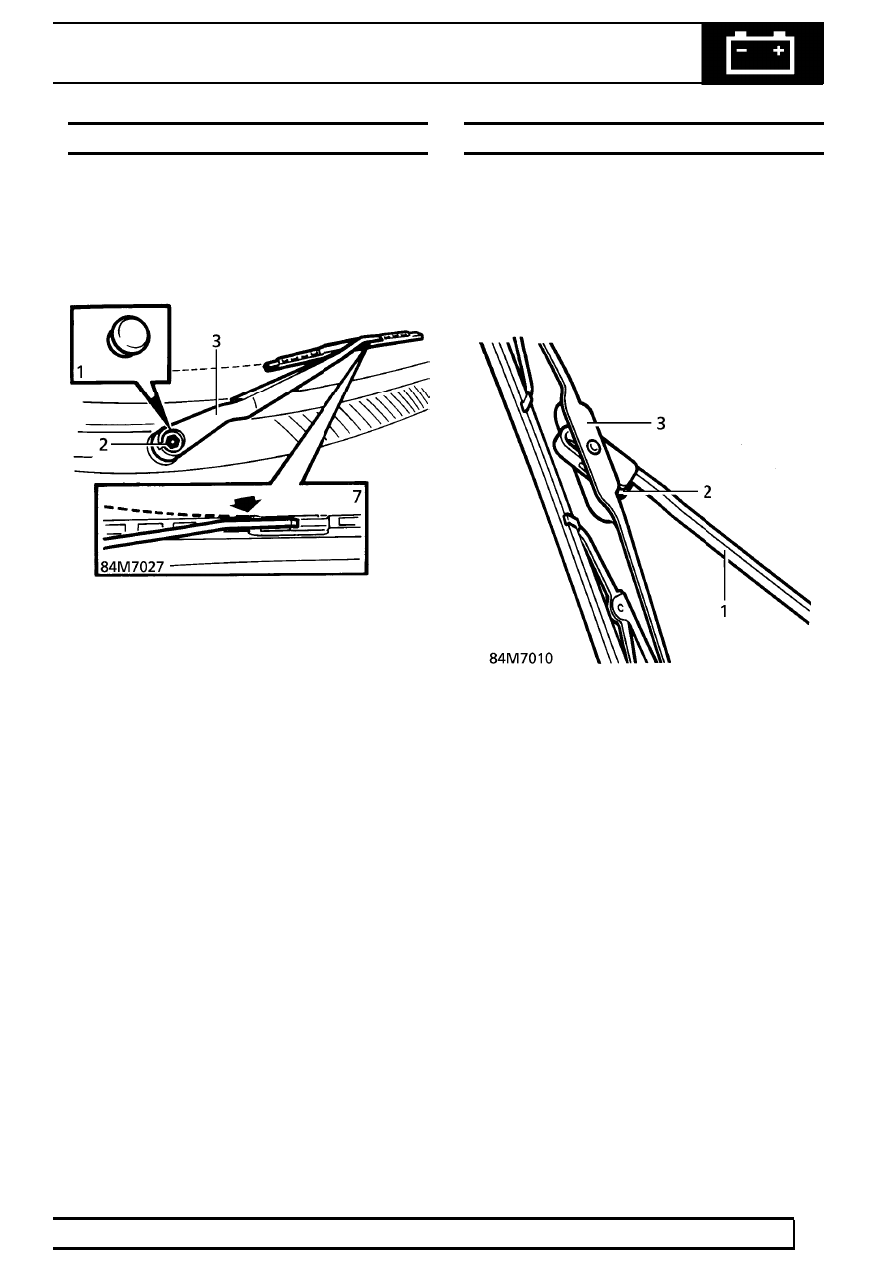

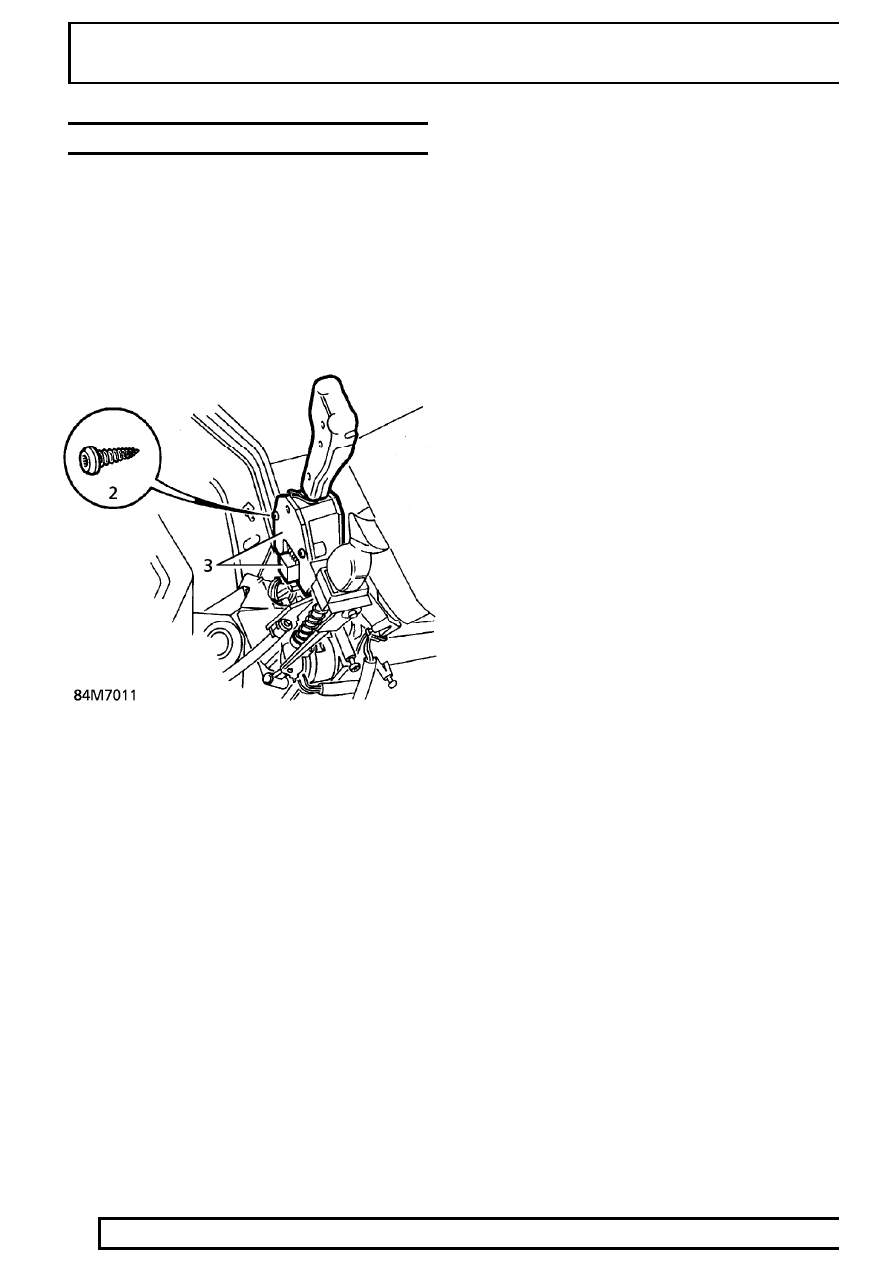

FRONT WIPER ARM
Service repair no - 84.15.01 - Pair
Service repair no - 84.15.02 - Each
Remove
1. Remove cover from wiper arm nut.
2. Remove nut securing wiper arm to spindle.
3. Remove wiper arm/blade assembly.
4. If necessary, release clip and remove blade from
wiper arm.
Refit
5. If necessary, fit blade to wiper arm.
6. Ensure motor is in "park" position.
7. Position wiper arm/blade assembly. Ensure tip of
wiper arm is level with top edge of screen
obscuration band.
8. Secure wiper arm with nut. Tighten to
19 Nm
(14 lbf.ft)
9. Lift wiper arm slightly. Remove pin.
10. Fit cover to wiper arm nut.
11. Operate wipers on wet screen to ensure correct
setting.
FRONT WIPER BLADE
Service repair no - 84.15.05 - Pair
Service repair no - 84.15.06 - Each
Remove
1. Raise wiper arm.
2. Release clip securing blade to wiper arm.
3. Remove wiper blade.
Refit
4. Position blade. Push into arm until clip engages
in slot.
5. Lower wiper arm.
