AIR CONDITIONING

13

REPAIR

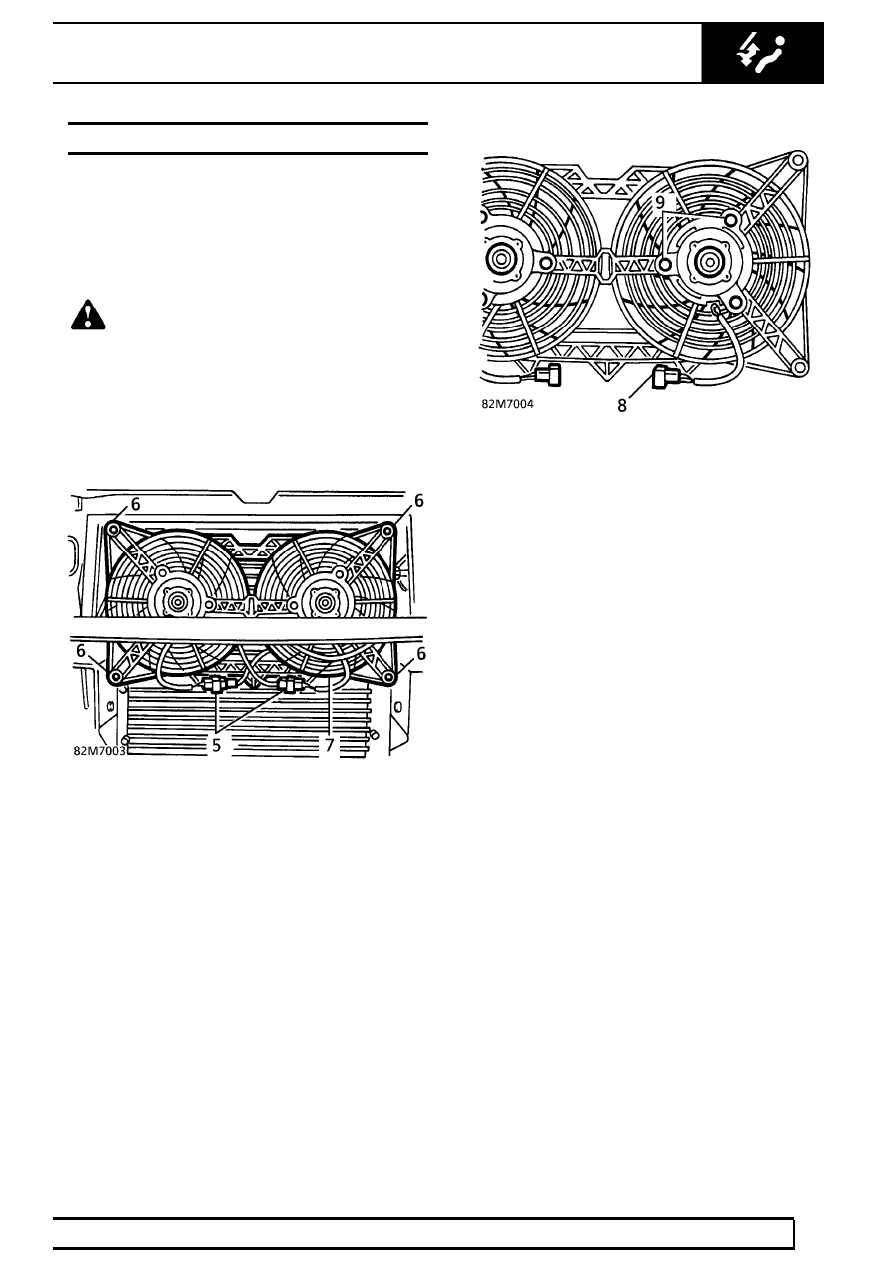

CONDENSER FAN

Service repair no - 82.15.01

Remove

1. Disconnect battery negative lead.
2. Raise the vehicle.

WARNING: Support on safety stands.

3. Remove front grille.

See CHASSIS AND BODY,

Repair.

4. Remove front bumper.

See CHASSIS AND

BODY, Repair.

5. Disconnect 2 multiplugs from condenser cooling

fans.

6. Remove 4 bolts securing condenser fan

assembly.

7. Remove fan and cowl assembly.
8. Release multiplug holder from fan cowl.

9. Remove 3 nuts securing motor to cowl. Remove

motor.

Refit

10. Reverse removal procedure.

82

AIR CONDITIONING

NEW RANGE ROVER

14

REPAIR

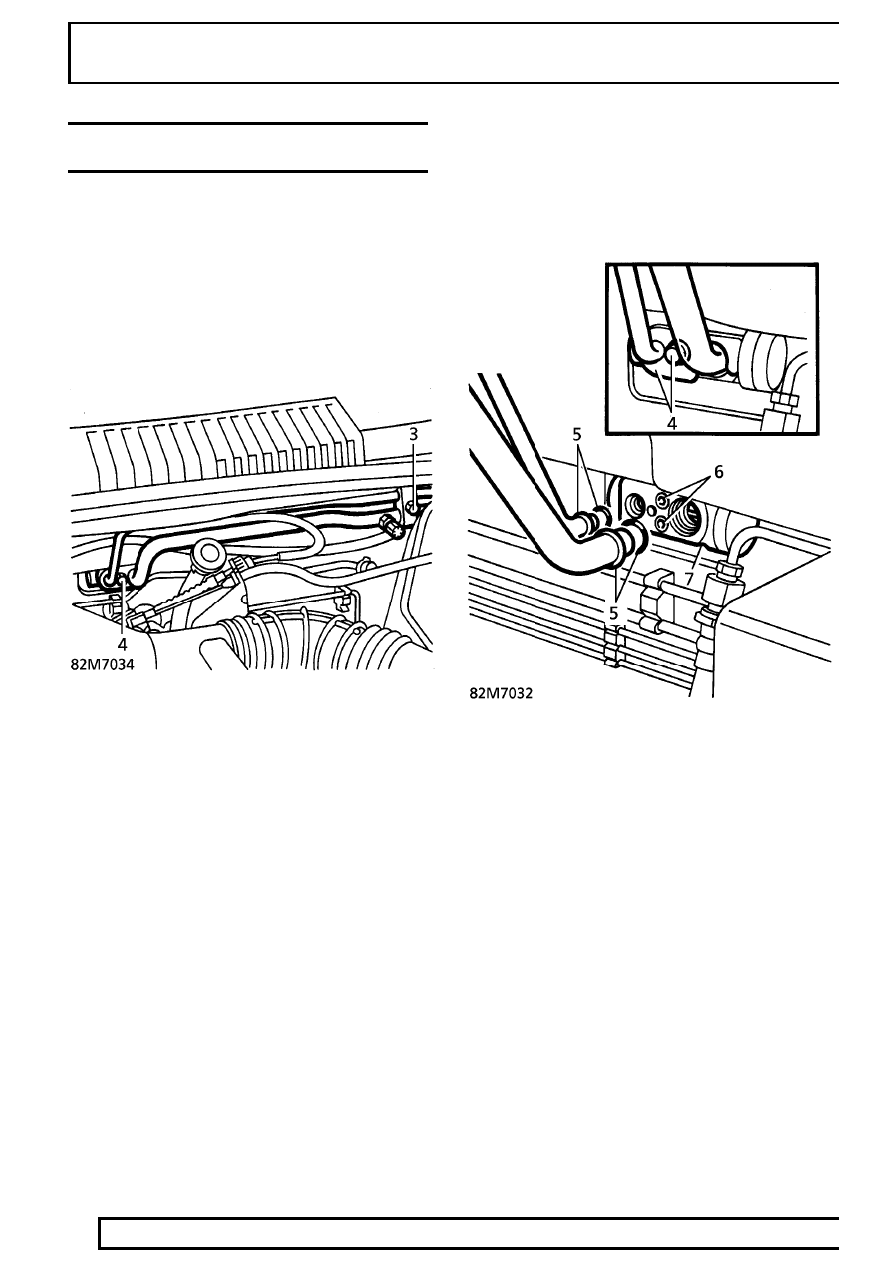

THERMOSTATIC EXPANSION VALVE (TXV) - V8
UP TO 99MY AND DIESEL FROM 95MY

Service repair no - 82.25.01

Remove

1. Disconnect battery negative lead.
2. Depressurise air conditioning system.

See

Adjustment.

3. Remove clamp securing air conditioning pipes to

bulkhead.

4. Remove bolt securing pipe clamp to TXV.

Position clamp aside.

5. Release pipes from TXV. Position aside. Discard

’O’ rings. Plug pipes and connections.

6. Remove 2 bolts securing TXV to evaporator.
7. Remove TXV.
8. Remove ’O’ rings and discard. Plug evaporator

and TXV ports.

Refit

9. Remove plugs.

10. Ensure all mating faces are clean.
11. Lubricate new ’O’ rings with compressor oil. Fit

to pipes.

12. Position TXV to evaporator pipes.
13. Ensure TXV is fully engaged to evaporator

pipes. Secure with bolts.

14. Engage pipes to TXV. Secure pipe clamp with

bolt.

15. Secure air conditioning pipes to bulkhead with

clamp.

16. Evacuate and recharge air conditioning system.

See this section.

17. Reconnect battery negative lead.

AIR CONDITIONING

15

REPAIR

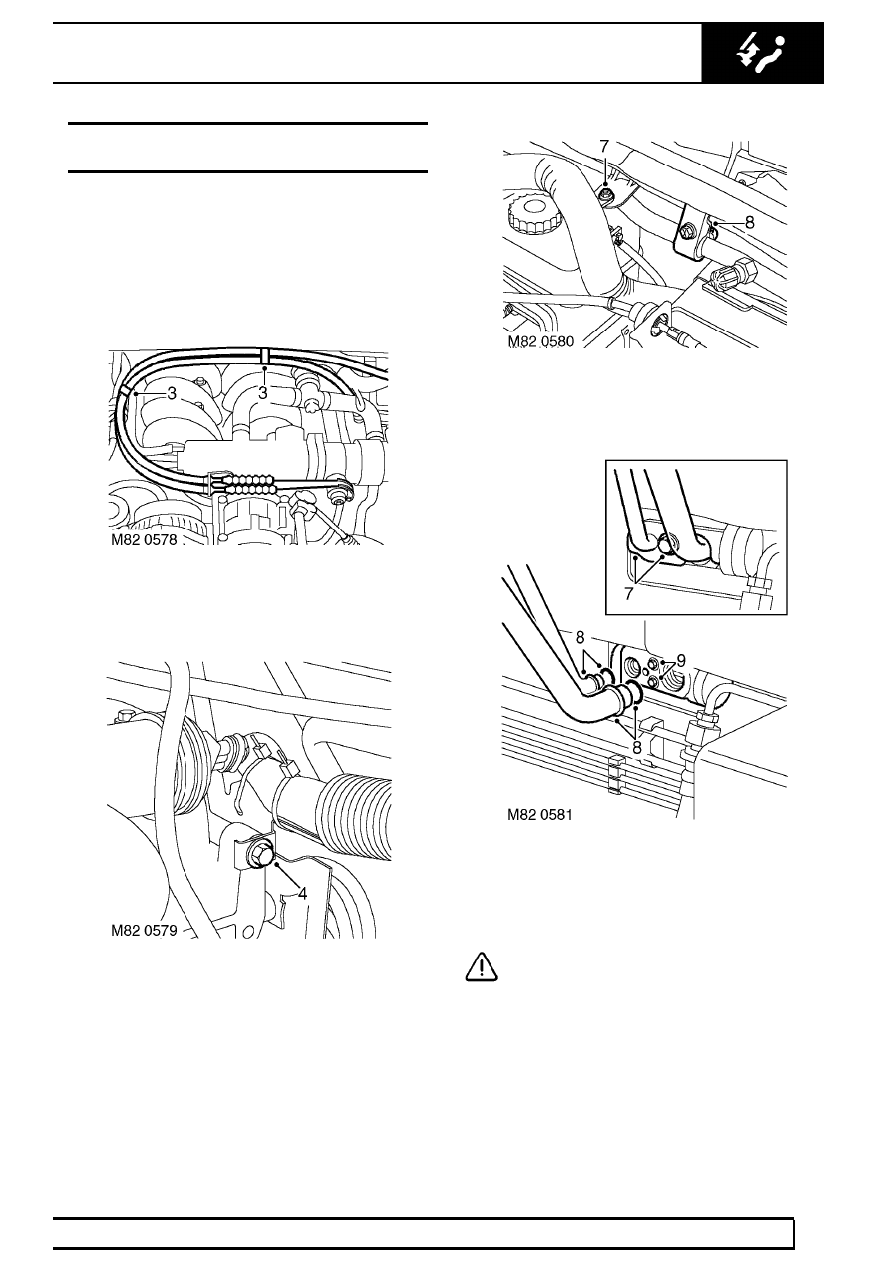

THERMOSTATIC EXPANSION VALVE (TXV) - V8
FROM 99MY

Service repair no - 82.25.01

Remove

1. Depressurise A/C system.

See Adjustment.

2. Remove IAC valve.

See FUEL SYSTEM,

Repair.

3. Release throttle and cruise control cables from

clips on manifold chamber and position cables
aside.

4. Remove bolt securing engine harness mounting

bracket to manifold chamber.

5. Remove nut securing engine harness to bracket

on bulkhead and release harness.

6. Remove clamp securing A/C pipes to bulkhead.

7. Remove bolt securing A/C pipe clamp to TXV

and position clamp aside.

8. Release A/C pipes from TXV, discard ’O’ rings

and position pipes aside.

CAUTION: Immediately cap all air
conditioning pipes to prevent ingress of
dirt and moisture into the system.

82

AIR CONDITIONING

NEW RANGE ROVER

16

REPAIR

9. Remove 2 bolts securing TXV to evaporator

pipes and remove TXV.

10. Remove and discard ’O’ rings from evaporator

pipes.

CAUTION: Immediately cap all air
conditioning pipes to prevent ingress of
dirt and moisture into the system.

Refit

11. Ensure mating faces of TXV and pipes are

clean.

12. Lubricate new ’O’ rings with compressor oil and

fit rings to pipes.

13. Fit TXV to evaporator pipes, ensuring that TXV

is fully engaged to pipes.

14. Fit and tighten bolts securing TXV to evaporator

pipes.

15. Fit A/C pipes to TXV, position pipe clamp and

secure with bolt.

16. Secure A/C pipes to bulkhead with clamp.
17. Fit engine harness to bracket on bulkhead and

secure with nut.

18. Align engine harness mounting bracket to

manifold chamber and secure with bolt.

19. Fit throttle and cruise control cables to clips.
20. Fit IAC valve.

See FUEL SYSTEM, Repair.

21. Recharge A/C system.

See Adjustment.

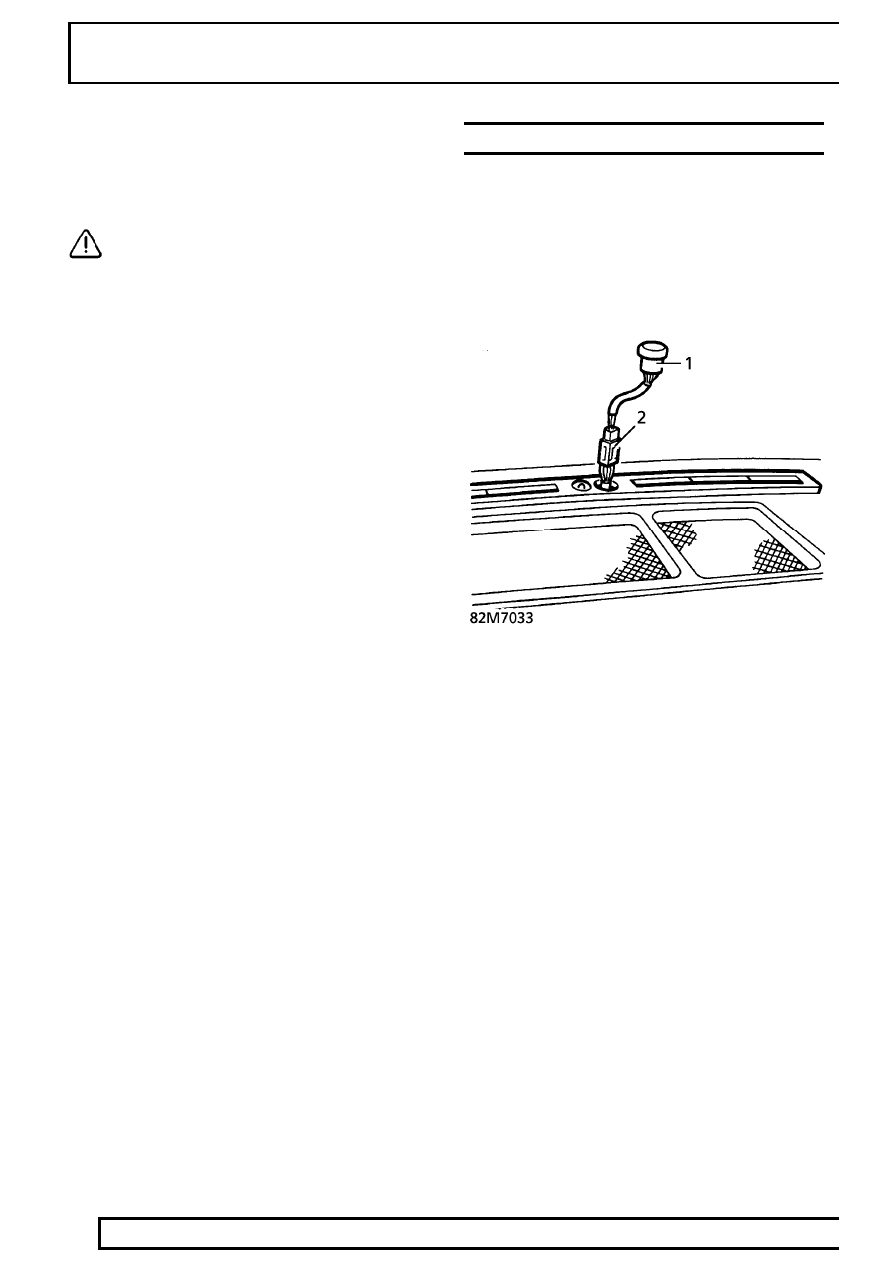

SOLAR SENSOR

Service repair no - 82.20.92

Remove

1. Prise solar sensor from central screen demist

vent.

2. Disconnect sensor from multiplug. Remove

sensor.

Refit

3. Reverse removal procedure.
