TRANSFER BOX

9

REPAIR

Refit

27. Manual Vehicles: Renew gearbox output shaft

seal.

See MANUAL GEARBOX, Repair.

28. Automatic Vehicles: Renew gearbox output

shaft seal.

See AUTOMATIC GEARBOX,

Repair.

29. Ensure mating faces are clean.
30. Lubricate input shaft with transmission fluid.
31. Raise transfer box on lift. Adjust tilt as necessary

to align shafts.

32. Engage shafts. Locate transfer box dowels to

gearbox.

33. Secure transfer box to gearbox with bolts.

Tighten to

45 Nm. (33 lbf.ft)

34. Remove transmission lift.
35. Connect multiplugs to High/Low motor and

output shaft speed sensor.

36. Connect Lucars to transfer box fluid temperature

sensor.

37. Secure harness in clips.
38. Raise gearbox on cross beam.
39. Automatic vehicles. Position selector cable

abutment bracket to gearbox. Secure with bolts.

40. Raise one wheel on each axle to allow rotation

of propeller shafts.

41. Position propeller shafts to transfer box flanges.

Align marks.

42. Secure shafts with nuts and bolts. Tighten to

48 Nm. (35 lbf.ft)

43. Fit propeller shaft guard. Tighten bolts.
44. Guide hand brake cable through grommet in

transmission tunnel.

45. Fit exhaust front pipe.

See MANIFOLD AND

EXHAUST SYSTEM, Repair.

46. Diesel Vehicles. Fit chassis cross member.

See CHASSIS AND BODY, Repair.

47. Automatic Vehicles: Adjust gear selector cable.

See AUTOMATIC GEARBOX, Adjustment.

48. Replenish gearbox and transfer box fluids.

See

LUBRICANTS, FLUIDS AND CAPACITIES,
Information.

49. Lower lift.
50. Connect handbrake cable to lever, secure with

clevis pin and clip.

Manual Vehicles:

51. Fit seal around gearbox remote housing to

transmission tunnel aperture.

52. Position gear lever. Secure with bolts. Tighten

to

25 Nm. (18 lbf.ft)

53. Fit gaiter and ring. Secure with nuts.
54. Fit centre console.

See CHASSIS AND BODY,

Repair.

55. Automatic Vehicles:Fit window switch pack.

See ELECTRICAL, Repair.

56. Reconnect battery negative lead.

41

TRANSFER BOX

NEW RANGE ROVER

10

REPAIR

TRANSFER BOX - FROM 99MY

Service repair no - 41.20.25.

Remove

1. Position vehicle on a four post lift.
2. Release fixings and remove battery cover.
3. Disconnect battery earth lead.

4. Release clips securing cooling fan cowl and

remove cowl.

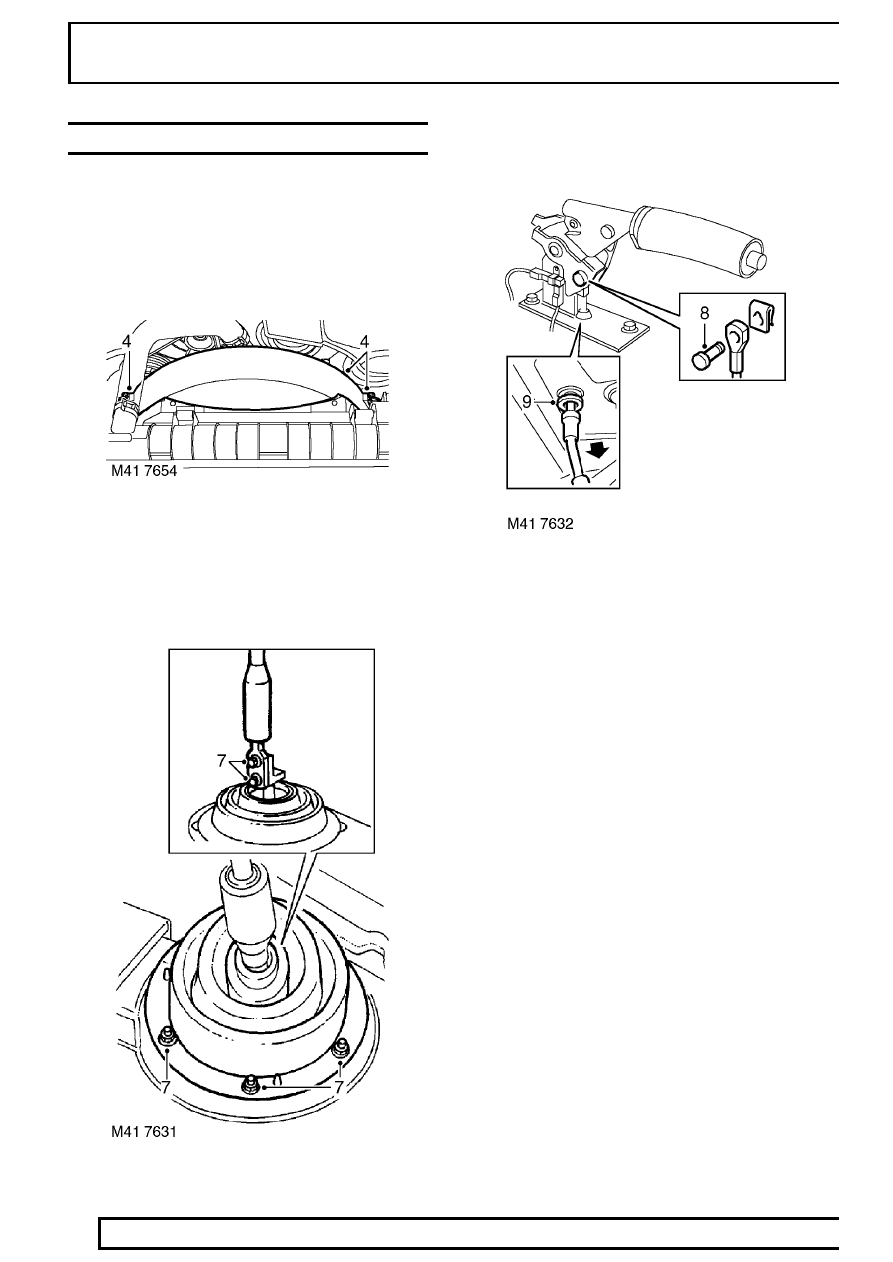

5. Automatic models: Remove window switch

pack.

See ELECTRICAL, Repair.

6. Manual models: Remove centre console.

See

CHASSIS AND BODY, Repair.

7. Manual models: Remove 6 nuts securing gaiter

ring and remove gaiter ring and gaiter. Remove
2 bolts securing gear lever and remove lever.

8. With the handbrake released, remove clip and

clevis pin securing handbrake cable to
handbrake.

9. Raise vehicle and release handbrake cable and

grommet from tunnel.

10. Drain gearbox fluid.

See AUTOMATIC

GEARBOX, Repair.

11. Drain transfer box oil.

See SECTION 10,

Maintenance. See LUBRICANTS, FLUIDS
AND CAPACITIES, Information.

12. Petrol models: Remove exhaust front pipe.

See

MANIFOLD AND EXHAUST SYSTEM, Repair.

13. Diesel models: Remove chassis crossmember.

See CHASSIS AND BODY, Repair.

TRANSFER BOX

11

REPAIR

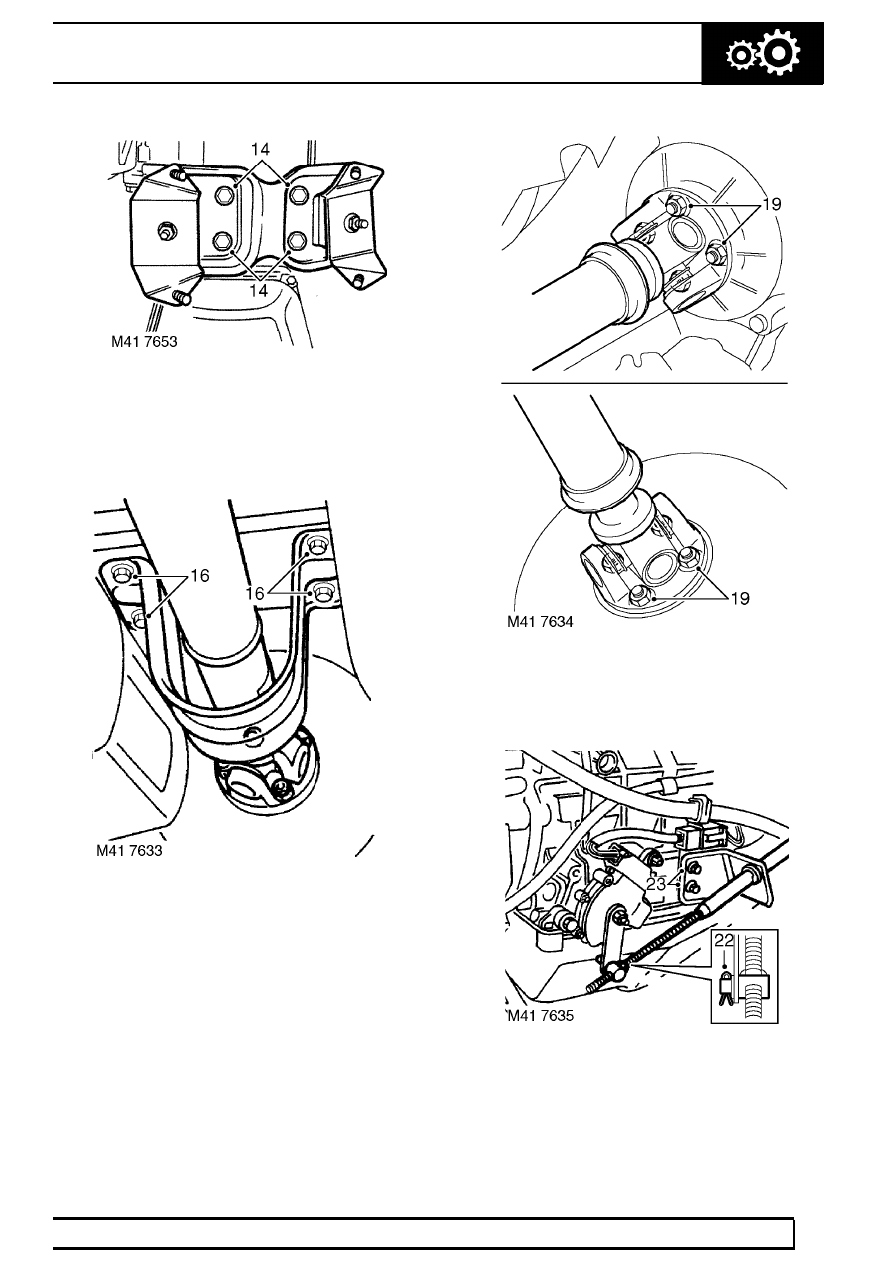

14. Remove 4 bolts securing transmission mounting

assembly and remove assembly.

15. Support engine and gearbox with transmission

jack.

16. Remove 4 bolts securing rear propeller shaft

guard and remove guard.

17. Mark transfer box and propeller shaft flanges to

aid re-assembly.

18. Raise one wheel on each axle to allow rotation

of propeller shafts.

19. Remove 4 nuts from each propeller shaft flange.
20. Release propeller shafts and tie aside.
21. Lower transmission for access.

22. Automatic models: Remove split pin securing

gear selector cable trunnion to gearbox lever
and release trunnion.

41

TRANSFER BOX

NEW RANGE ROVER

12

REPAIR

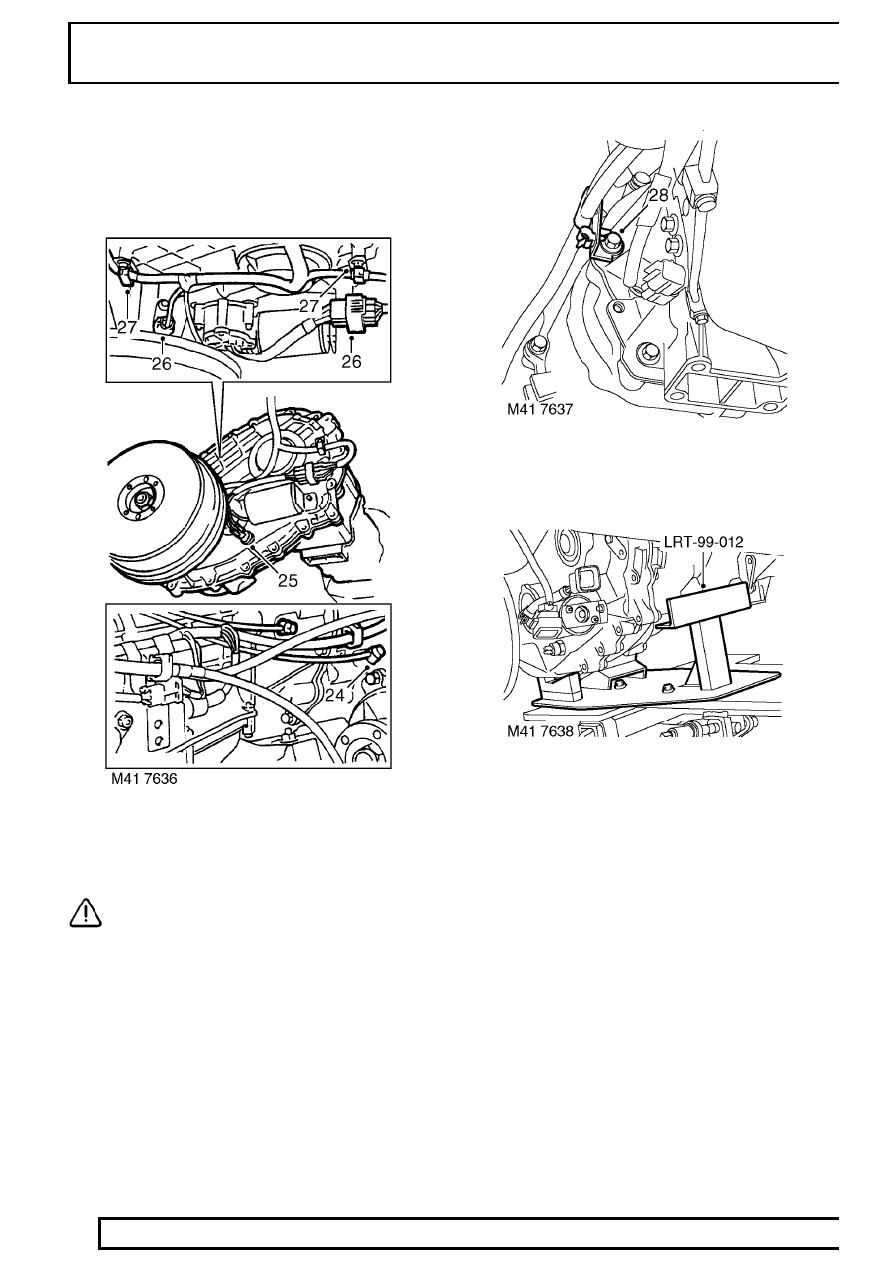

23. Remove 2 bolts securing gear selector cable

abutment bracket and harness support bracket
to gearbox, and position selector cable and
brackets aside.

24. Remove banjo bolt securing breather pipe to

transfer box, remove and discard sealing
washer.

CAUTION: Plug the connections.

25. Disconnect 2 Lucars from transfer box oil

temperature sensor.

26. Disconnect multiplugs from High/Low motor and

output shaft speed sensor.

27. Release harness from 2 clips.

28. Remove bolt securing fuel pipe and purge pipe

retaining bracket to transfer box and release
bracket.

29. Position adaptor plate LRT-99-012 to

transmission lift and secure with nuts and bolts.

30. Raise and adjust transmission lift so that

LRT-99-012 is correctly located to transfer box.
