TRANSFER BOX

1

REPAIR

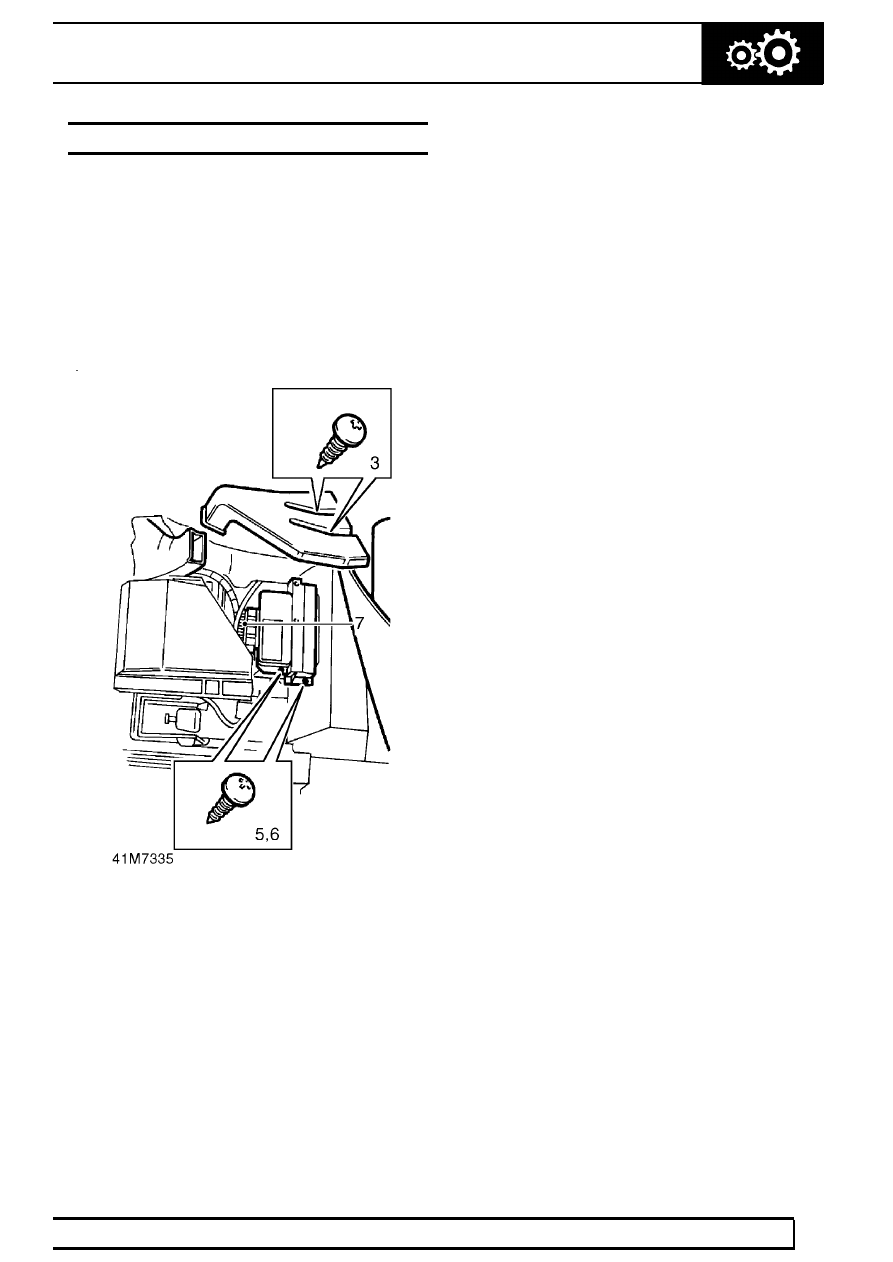

ELECTRONIC CONTROL UNIT

Service repair no - 41.30.01

Remove

1. Position left hand front seat fully up and forward.
2. Disconnect battery negative lead.
3. Remove 2 screws securing heater air duct.

Remove duct.

4. Raise carpet and underlay for access.
5. Remove 2 screws securing heater duct

mounting. Remove mounting.

6. Remove 2 screws securing ECU.
7. Disconnect multiplug. Remove ECU.

Refit

8. Position ECU. Connect multiplug. Secure with

screws.

9. Position heater duct mounting. Secure with

screws.

10. Position underlay and carpet.
11. Position heater air duct. Secure with screws.
12. Reposition front seat.
13. Reconnect battery negative lead.

41

TRANSFER BOX

NEW RANGE ROVER

2

REPAIR

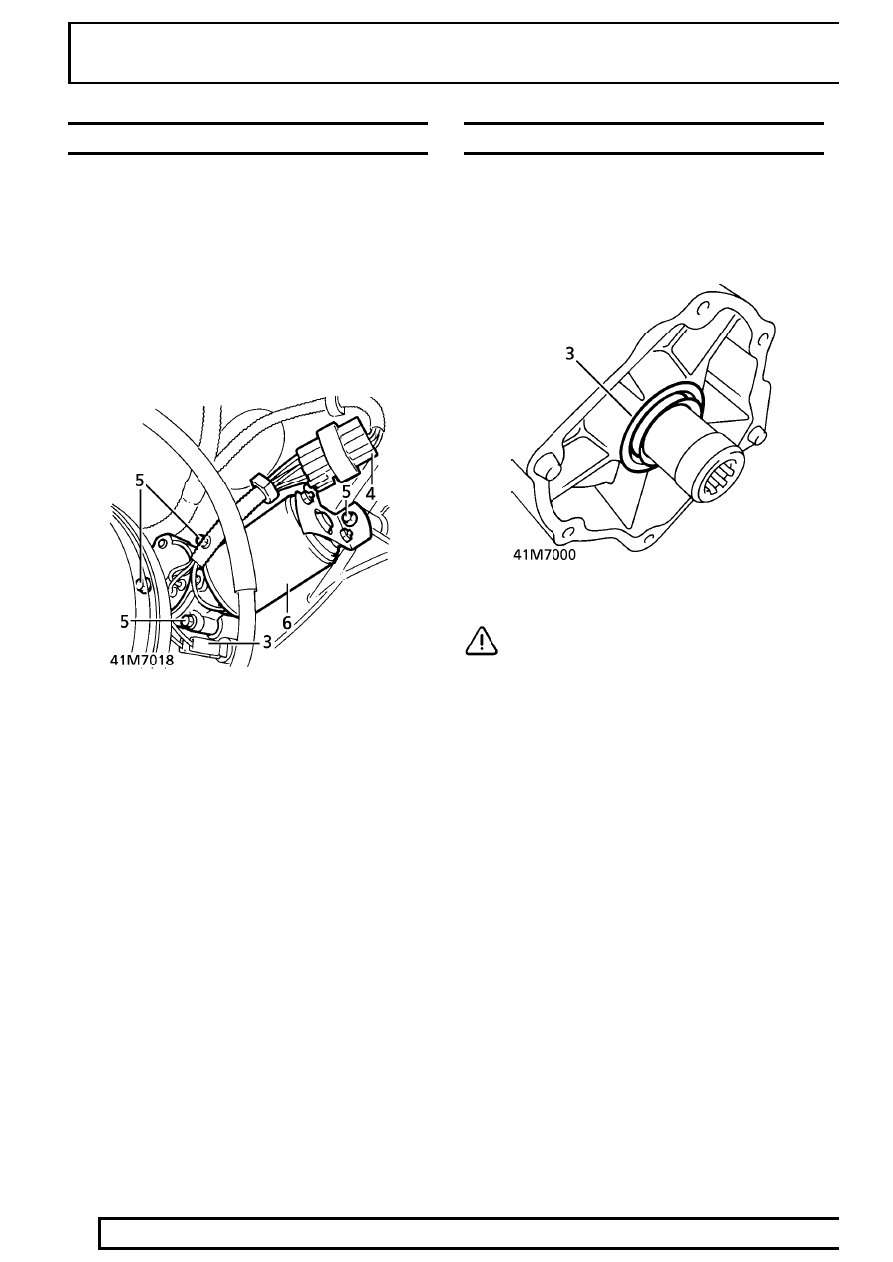

RATIO CONTROL MOTOR

Service repair no - 41.30.03

Remove

1. Raise vehicle on four post lift.
2. Disconnect battery negative lead.
3. Disconnect temperature sensor.
4. Disconnect motor multiplug.
5. Remove 4 bolts securing motor to transfer

gearbox.

6. Remove motor.

Refit

7. Fit motor and engage to drive spindle.
8. Tighten bolts to

10Nm (7 lbf.ft).

9. Connect motor and temperature sensor.

10. Reconnect battery negative lead.
11. Lower vehicle.

INPUT SHAFT OIL SEAL

Service repair no - 41.20.50

1. Disconnect battery negative lead.
2. Remove transfer box.

See this section.

3. Lever seal from location in transfer box.

CAUTION: Ensure seal location does not
become damaged.

Refit

4. Ensure mating faces are clean.
5. Lubricate seal lip with transmission fluid.
6. Using LRT-41-011, fit seal to transfer box.
7. Fit transfer box.

See this section.

8. Reconnect battery negative lead.

TRANSFER BOX

3

REPAIR

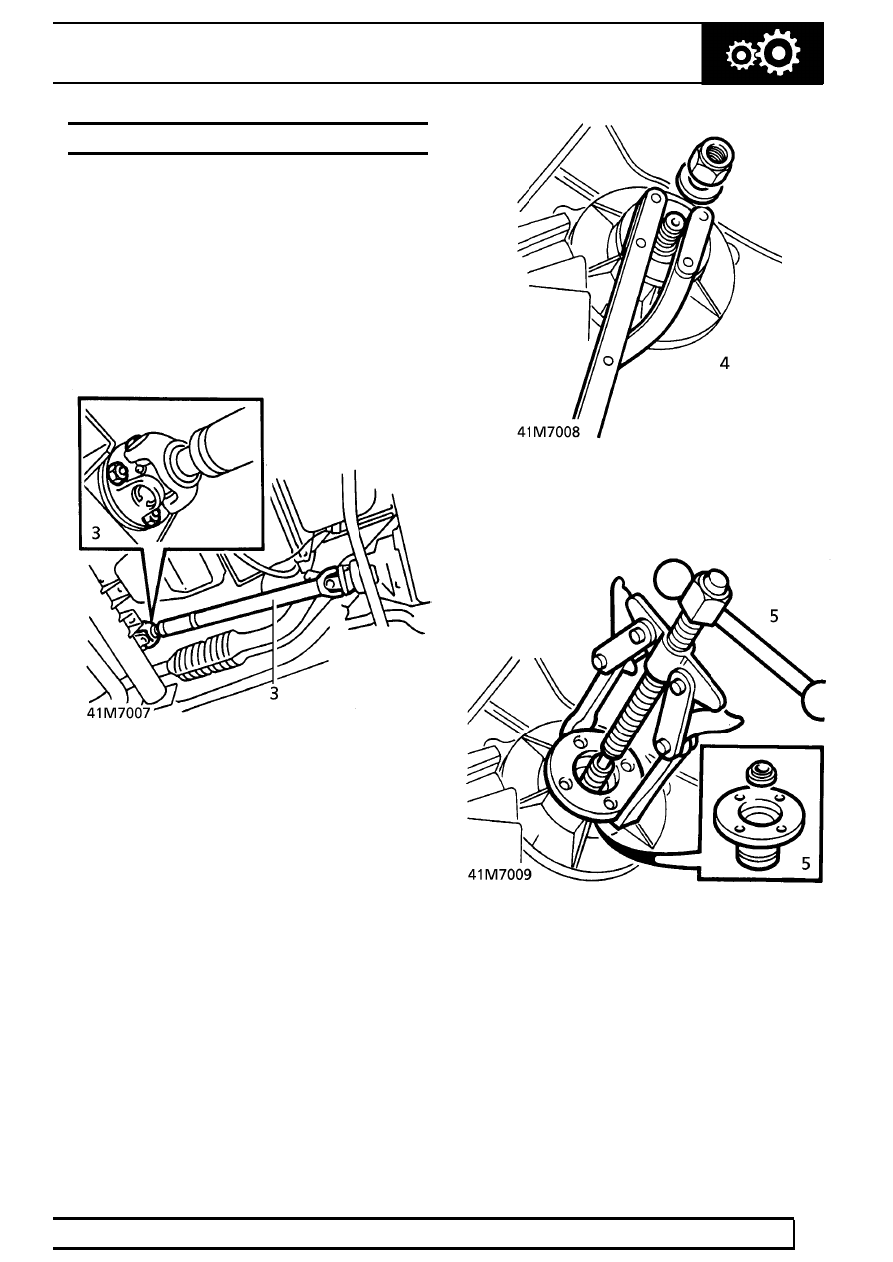

OUTPUT SHAFT OIL SEAL - FRONT

Service repair no - 41.20.51

Remove

1. Remove chassis cross member.

See CHASSIS

AND BODY, Repair.

2. Mark propeller shaft and transfer gearbox

flanges to aid assembly.

3. Remove 4 nuts and bolts securing propeller

shaft flange. Tie shaft aside.

4. Use LRT-51-003 to restrain transfer box drive

flange. Remove nut and discard. Collect washer.

5. Using LRT-99-500 if necessary, withdraw flange

from transfer box. Collect sealing washer.

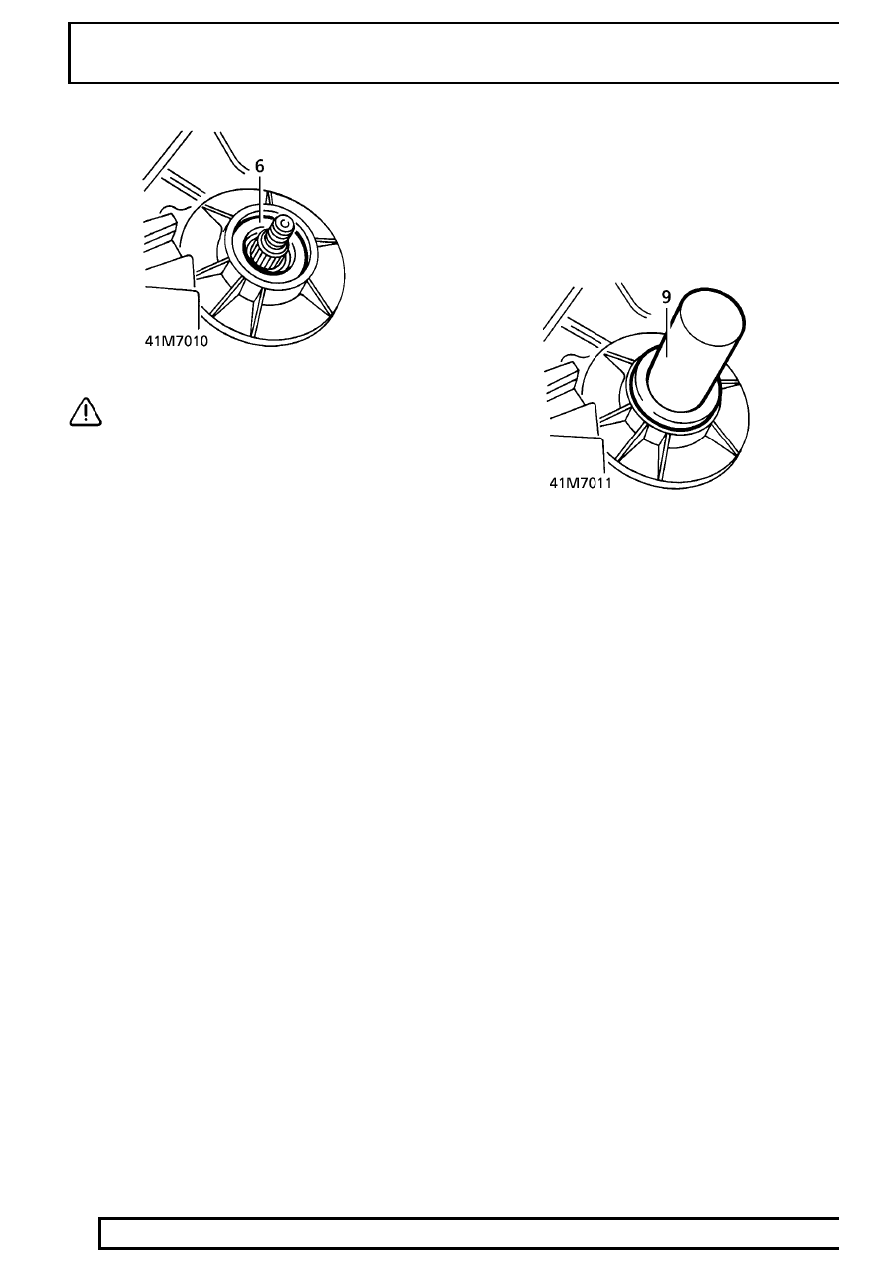

6. Lever seal from location in transfer box.

41

TRANSFER BOX

NEW RANGE ROVER

4

REPAIR

CAUTION: Ensure seal location does not
become damaged.

Refit

7. Ensure mating faces are clean.
8. Lubricate seal lip with transmission fluid.
9. Fit seal using LRT-41-011.

10. Position flange. Fit sealing washer.
11. Use LRT-51-003 to restrain flange.
12. Secure flange with washer and new Nyloc nut.

Tighten to

148 Nm. (109 lbf.ft)

13. Position propeller shaft to output flange. Align

marks.

14. Secure propeller shaft with nuts and bolts.

Tighten to

48 Nm. (35 lbf.ft)

15. Fit chassis cross member.

See CHASSIS AND

BODY, Repair.

16. Replenish transfer box oil.

See LUBRICANTS,

FLUIDS AND CAPACITIES, Information.
