Range Rover. Manual - part 110





LAND ROVER V8

41

REPAIR

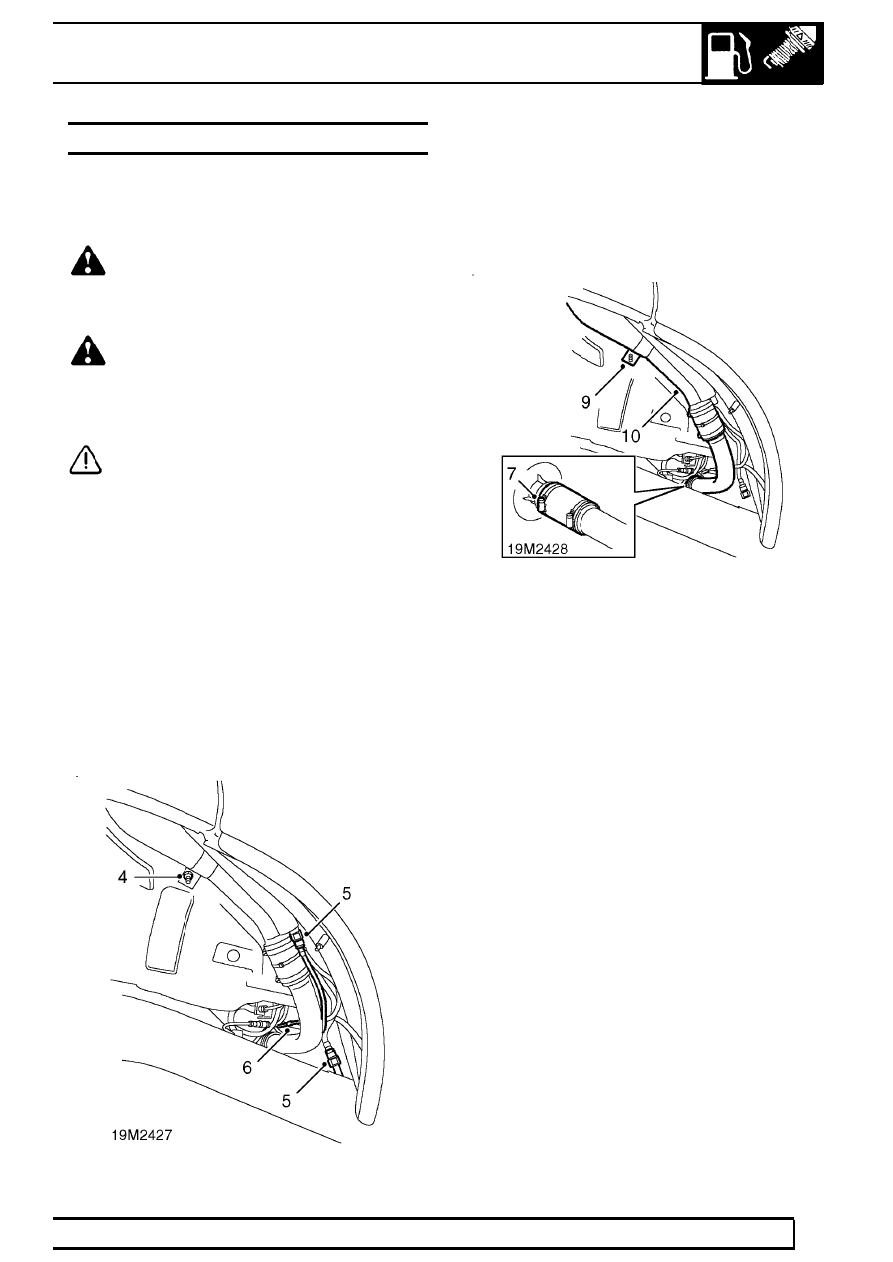

FUEL FILLER NECK - ADVANCED EVAPS

Service repair no - 19.55.07

Remove

WARNING: Ensure that fuel handling
precautions given in 01 - Introduction are
strictly adhered to when carrying out

following instructions.

WARNING: If the fuel tank is full, the fuel
level may be close to the filler neck
aperture. If gauge indicates over 75%,

drain a minimum of 10 litres (2.6 US Gallons) from
fuel tank.

See Adjustment.

CAUTION: before disconnecting any part
of the system, it is imperative that all dust,
dirt and debris is removed from around

components to prevent ingress of foreign matter
into fuel system.

Remove

1. Open fuel filler flap and remove filler cap.
2. Disconnect battery earth lead.
3. Remove RH rear wheel arch liner.

See

CHASSIS AND BODY, Repair.

4. Remove nut securing filler neck bracket to stud.
5. Disconnect vent line quickfit connectors at

fuel/vapour separator and under body
connection.

6. Disconnect pressure sensor breather pipe

connection.

7. Remove shear cap from clip securing neck

assembly to tank.

8. Slacken clip securing neck assembly to tank.
9. Release filler neck bracket from body stud. Push

filler neck down then forwards to release from
aperture grommet.

10. Remove filler neck assembly.

19

FUEL SYSTEM

NEW RANGE ROVER

42

REPAIR

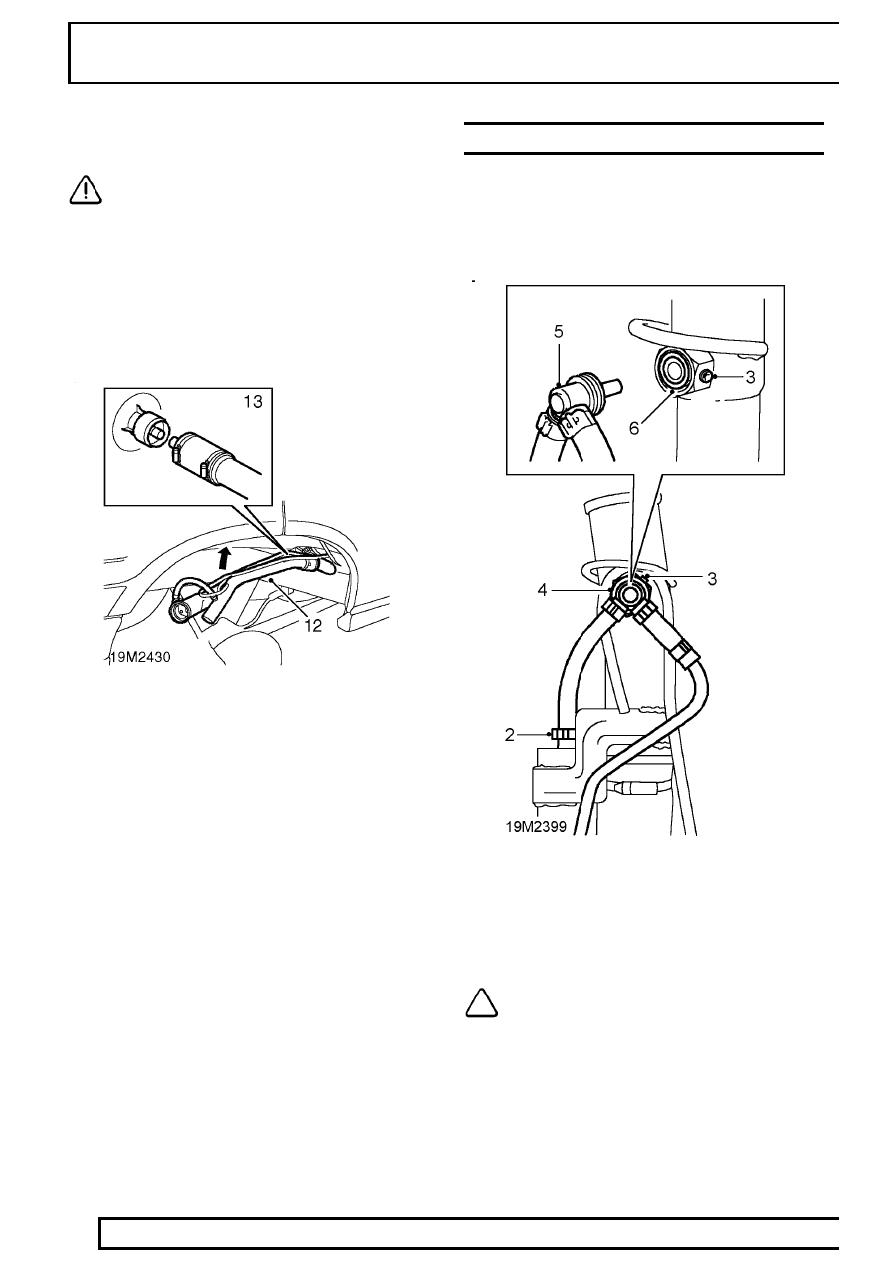

Refit

CAUTION: Hose clips used on the filler
neck of advanced EVAPS vehicles have a
special ’shear’ cap to ensure the correct

tightening torque is achieved. Always use NEW
clips of the correct type.

11. Loosely position new clip to filler neck hose.
12. Position filler neck assembly to fuel tank stub,

rotated anti-clockwise as shown.

13. Engage internal breather hose to fuel tank inner

stub.

14. Engage filler neck hose with fuel tank stub.
15. Manoeuvre filler neck into position and engage

with grommet.

16. Engage filler neck bracket with body stud and

secure with nut.

17. Tighten clip securing hose to fuel tank stub until

cap shears off.

18. Connect vent lines to fuel/vapour separator and

under floor connection, ensuring that quickfit
connections fully engage.

19. Connect pressure sensor breather line.
20. Replenish fuel if necessary.
21. Fit filler cap and tighten in accordance with

instructions.

22. Close filler flap.
23. Connect battery earth lead.

ANTI-TRICKLE FILL VALVE - ADVANCED EVAPS

Service repair no - 19.55.31

Remove

1. Remove the fuel filler neck.

See this section.

2. Release the cobra clip securing the hose to the

liquid/vapour separator and disconnect the hose.

3. Loosen the grub screw on the valve nut, two

complete turns.

4. Loosen the valve nut completely.

NOTE: The nut is held captive by the stub
pipe on the filler neck.

5. Carefully remove the valve and hose assembly

from the filler neck

LAND ROVER V8

43

REPAIR

Refit

6. Fit a new ’O’ ring to the recess in the stub pipe.
7. Fit the valve and hose assembly to the filler neck

stub pipe, ensuring that the ’O’ ring is fitted
around the body of the valve as it is pushed into
the filler neck stub pipe.

8. Hand tighten the nut, then tighten to

3 Nm

9. Tighten the grub screw to

2 Nm

10. Connect the hose to the liquid/vapour separator

and secure with the cobra clip.

11. Fit the fuel filler neck.

See this section.

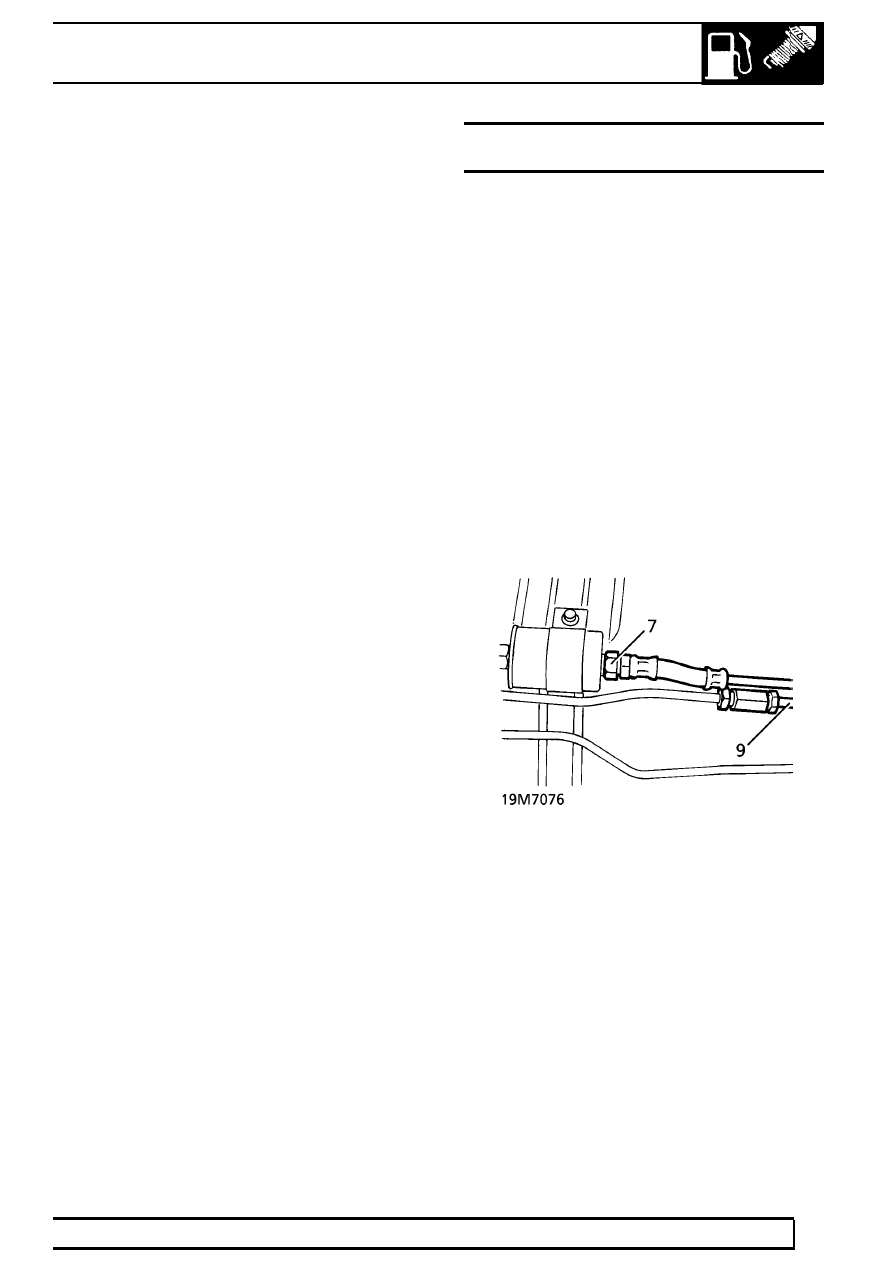

FUEL TANK, PUMP AND GAUGE SENDER UNIT -
PRE-ADVANCED EVAPS

Service repair no - 19.55.01 - Fuel Tank
Service repair no - 19.45.08 - Fuel Pump
Service repair no - 88.25.32 - Fuel gauge Tank Unit

Remove

1. Disconnect battery negative lead.
2. Petrol Models Only: Depressurise fuel system.

See this section.

3. Remove contents of fuel tank into an approved

closed container.

4. Remove fuel filler neck.

See this section.

5. Raise vehicle on four post lift.
6. Position container beneath fuel filter to catch

spillage.

7. Petrol Models Only: Disconnect feed pipe from

fuel filter.

8. Diesel Models Only: Disconnect feed pipe at

connection, forward of fuel tank.

9. Disconnect return pipe, forward of tank.

10. Plug pipes and connections.
11. Support tank with jack.
12. Remove 3 nuts and 2 bolts securing tank cradle

to floor pan.

19

FUEL SYSTEM

NEW RANGE ROVER

44

REPAIR

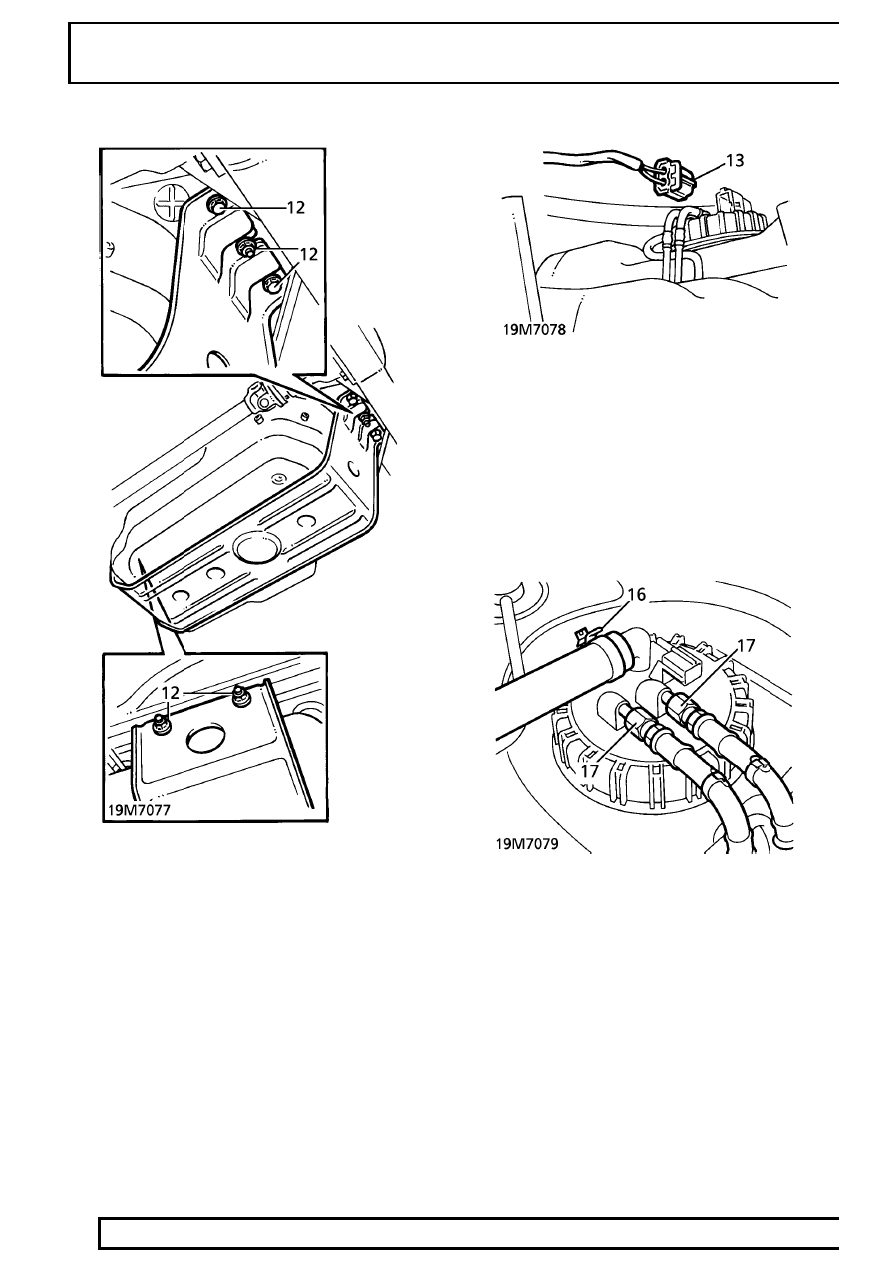

13. Lower tank by 150mm. Disconnect multiplug

from fuel tank unit.

14. Lower tank assembly. Remove from jack.

Do not carry out further dismantling if
component is removed for access only.

Disassemble

15. Remove tank from cradle.
16. Slacken clip. Remove fill breather pipe from tank

unit.

17. Disconnect feed and return pipes from tank unit.

Remove each pipe from 2 fuel tank clips.

18. Remove tank unit retaining ring using

LRT-19-001. Remove assembly from tank.
