LAND ROVER V8

37

REPAIR

THROTTLE CABLE - up to 99MY

Service repair no - 19.20.06

Remove

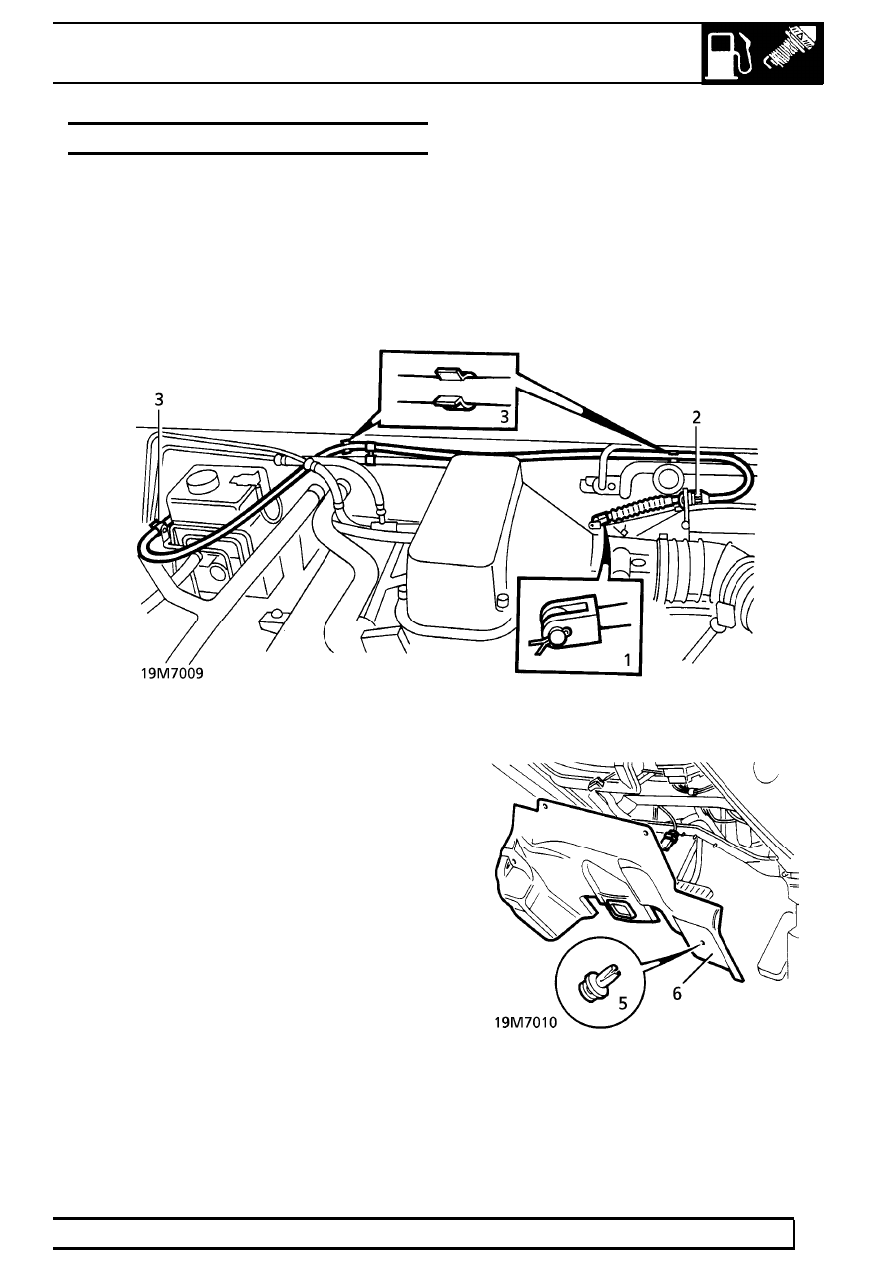

1. Remove split pin and clevis pin securing cable to

throttle linkage.

2. Release cable adjuster from abutment bracket.
3. Release cable from 3 clips along bulkhead and

single clip on brake booster bracket.

4. Remove driver’s side fascia closing panel.

See

CHASSIS AND BODY, Repair.

5. Remove 3 scrivet fasteners securing lower

closing panel.

6. Release panel for access to blower motor

ducting.

19

FUEL SYSTEM

NEW RANGE ROVER

38

REPAIR

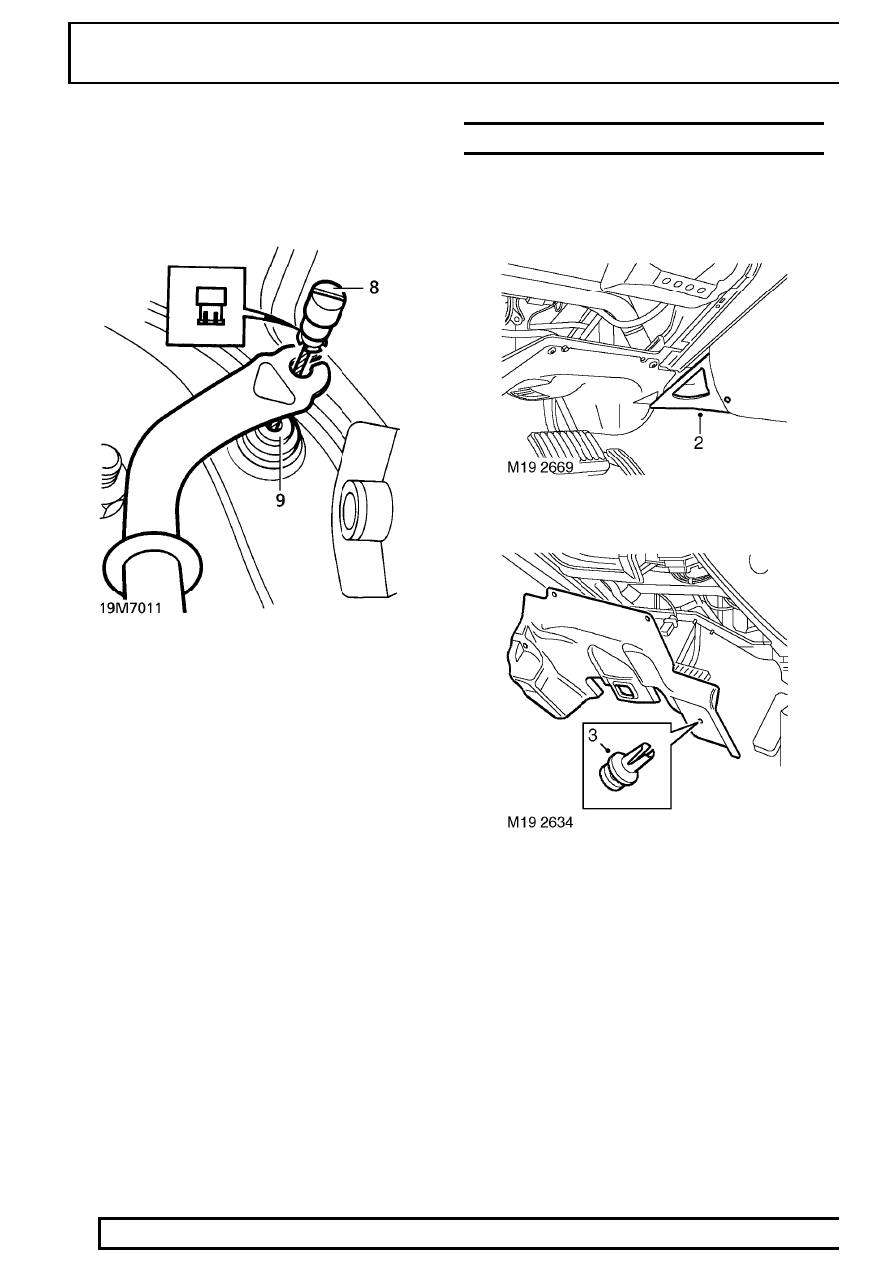

7. Release ducting from blower motor housing and

heater. Remove blower motor ducting.

8. Release cable from throttle pedal.
9. Release cable outer from bulkhead location.

Remove throttle cable assembly.

Refit

10. Lubricate bulkhead end of outer cable with liquid

soap to aid fitment.

11. Fully engage cable outer into bulkhead location.

Connect cable to throttle pedal.

12. Position blower ducting. Engage onto heater and

blower motor housing locations.

13. Position lower closing panel. Secure with scrivet

fasteners.

14. Fit driver’s side fascia closing panel.

See

CHASSIS AND BODY, Repair.

15. Route cable along bulkhead. Secure to clips
16. Engage cable adjuster to abutment bracket.
17. Align cable trunnion to throttle linkage. Secure

with clevis pin and split pin.

18. Check and adjust throttle cable free-play.

See

Adjustment.

THROTTLE CABLE - from 99MY

Service repair no - 19.20.06

1. Remove closing panel from fascia.

See

CHASSIS AND BODY, Repair.

2. Remove screw and remove heater outlet duct.

3. Remove 4 scrivets and remove access panel

from fascia.

4. Release and remove heater air duct for access

to throttle pedal lever.

LAND ROVER V8

39

REPAIR

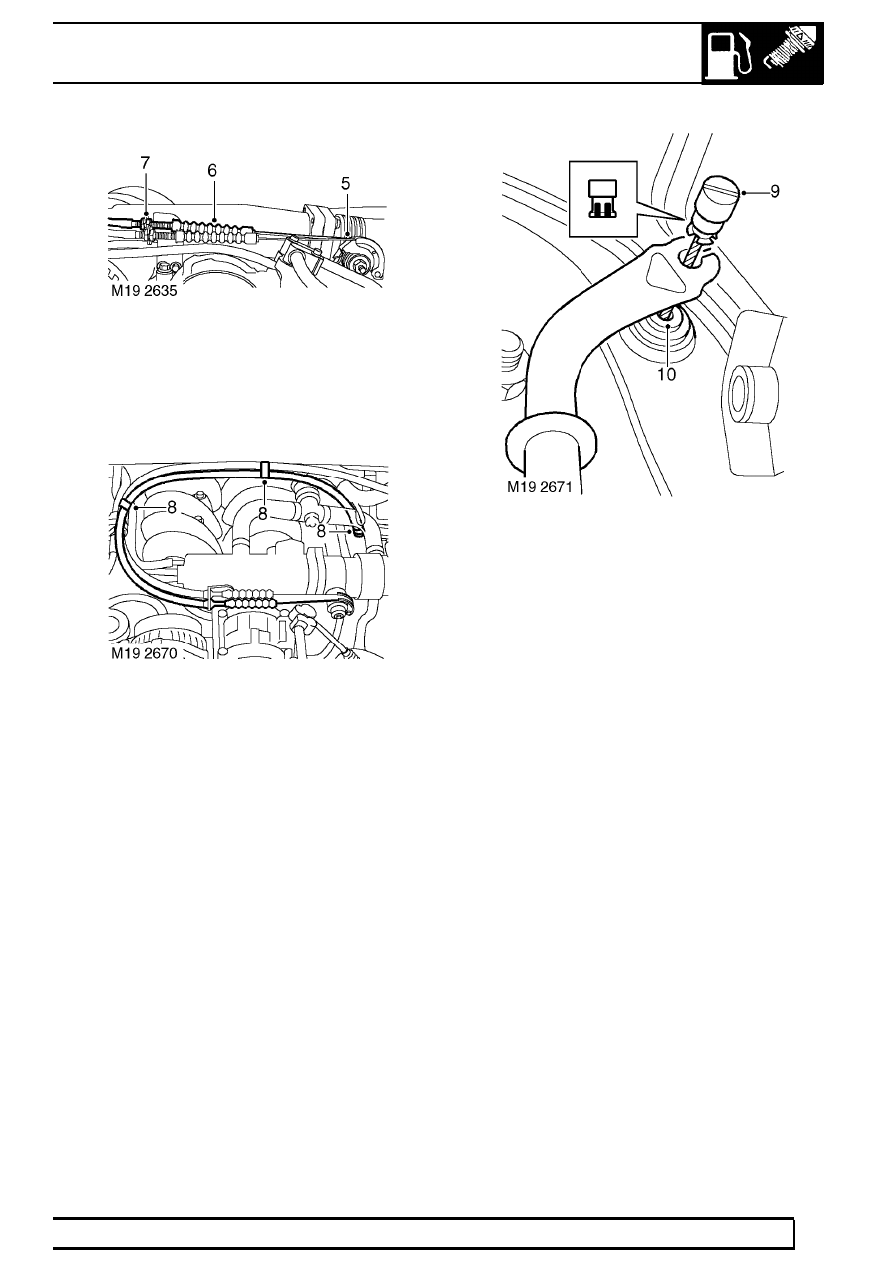

5. Disconnect inner cable from throttle cam.
6. Release cable gaiter.
7. Loosen locknuts and disconnect throttle cable

from abutment bracket.

8. Release throttle cable from 3 clips.

9. Release and disconnect inner cable from throttle

lever.

10. Release throttle cable from bulkhead and

remove from vehicle.

Refit

11. Apply liquid soap to bulkhead end of outer cable.
12. Fit throttle cable to bulkhead, connect and

secure inner cable to pedal lever.

13. Fit throttle cable to abutment bracket and

connect inner cable to throttle cam.

14. Fit throttle cable to clips.
15. Adjust throttle cable.

See Adjustment.

16. Secure gaiter to outer cable.
17. Refit heater air duct.
18. Fit closing panel and secure with scrivets.
19. Fit heater outlet duct and secure with screw.
20. Fit closing panel to fascia.

See CHASSIS AND

BODY, Repair.

19

FUEL SYSTEM

NEW RANGE ROVER

40

REPAIR

FILLER NECK ASSEMBLY - PRE-ADVANCED
EVAPS

Service repair no - 19.55.07

WARNING: If fuel tank is full, fuel level will
be above filler neck aperture in the tank. If
gauge indicates over 75%, drain a

minimum of 10 litres of fuel from tank.

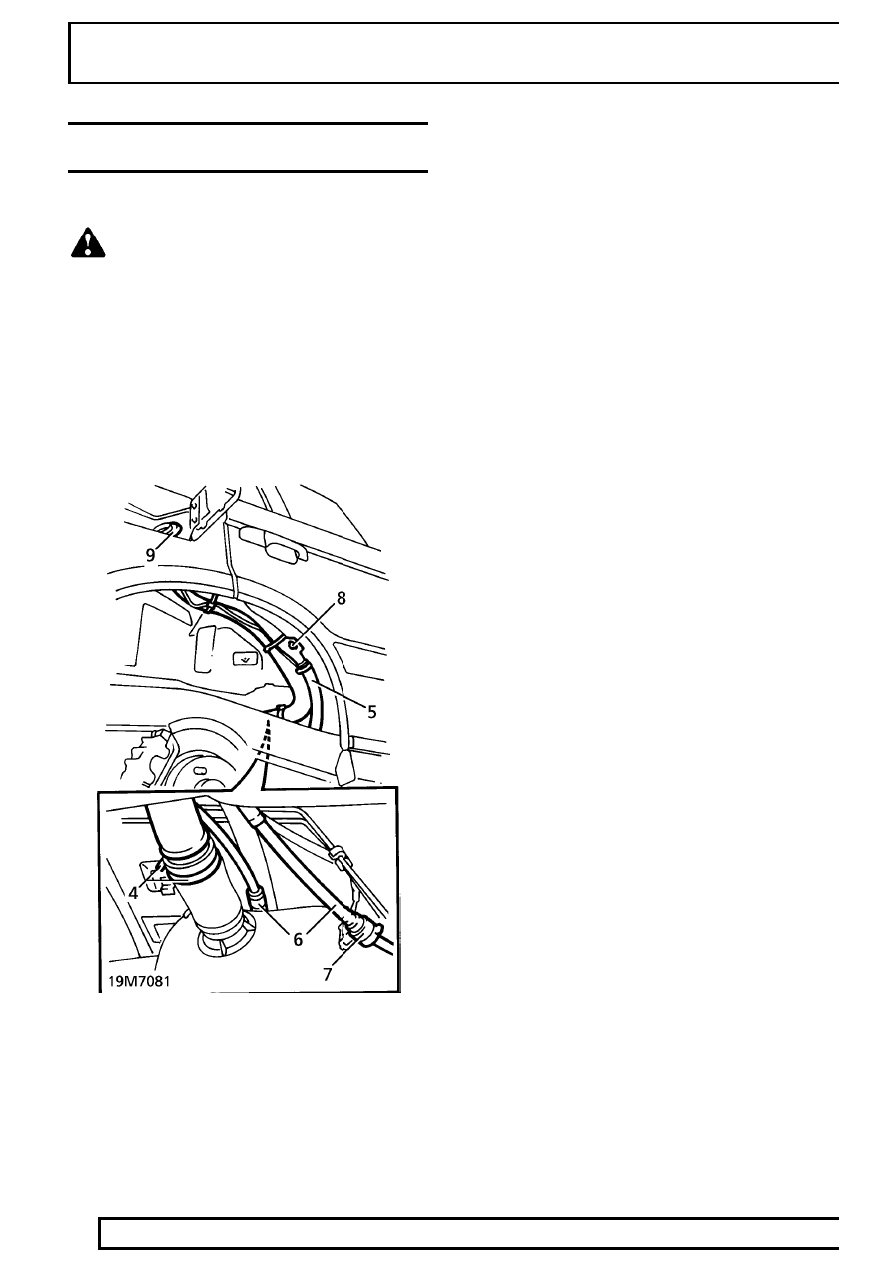

Remove

1. Disconnect battery negative lead.
2. Remove rear wheel arch liner.

See CHASSIS

AND BODY, Repair.

3. Remove fuel filler cap.
4. Slacken clips securing hoses to filler neck.

5. Release fill breather hose from filler neck.
6. Petrol Models Only: Disconnect fuel tank and

charcoal canister hoses from vapour separator.

7. Diesel Models Only: Release cap from quick

release connector. Disconnect breather hose.

8. Remove nut securing filler neck to wheel arch.
9. Release filler neck from fuel tank hose and

grommet in body aperture.

10. Remove filler neck assembly.

Refit

11. Apply liquid soap to grommet and mating surface

of filler neck.

12. Reverse removal procedure.
