Range Rover. Manual - part 48





LAND ROVER V8

11

REPAIR

62. Raise lift. Drain gearbox, transfer box and

engine fluids.

See SECTION 10, Maintenance.

63. Using a transmission jack, support transmission

under brake drum.

64. Remove exhaust front pipe.

See MANIFOLD

AND EXHAUST SYSTEM, Repair.

65. Release hand brake cable from grommet in

tunnel.

66. Remove 4 bolts securing rear propeller shaft

guard. Remove guard.

67. Mark transfer box and propeller shaft flanges to

aid reassembly.

68. Raise one wheel on each axle to allow rotation

of propeller shafts.

69. Remove 4 nuts and bolts from each flange.

Disconnect propeller shafts. Tie aside.

70. Automatic Vehicles: Disconnect gear selector

cable trunnion from gearbox lever. Remove 2
bolts securing selector cable abutment bracket
to gearbox. Place selector cable aside.

12

ENGINE

NEW RANGE ROVER

12

REPAIR

71. Lower gearbox for access.
72. Disconnect 2 Lucars from transfer box fluid

temperature sensor.

73. Disconnect multiplugs from High/Low motor and

output shaft speed sensor.

74. Automatic Vehicles: Disconnect multiplugs

from gear selection position switch and gearbox
speed sensor.

75. Manual Vehicles: Disconnect multiplugs from

reverse and neutral switches. Remove bolt
securing harness bracket to gearbox. Release
harness from clips on gearbox brackets.

76. Disconnect engine harness to gearbox harness

multiplug. Position harness aside.

77. Remove 4 nuts securing each engine mount to

chassis and engine brackets. Discard nuts.

LAND ROVER V8

13

REPAIR

78. Remove oil filler cap.
79. Place cloth over plenum chamber to protect from

damage during lifting.

80. Shorten front chain of lifting bracket to 2 links as

shown.

81. Fit lifting bracket to engine lifting eyes. Attach

suitable hoist.

82. Raise engine slightly. Ensure that lifting bracket

does not foul bulkhead. Remove both engine
mountings.

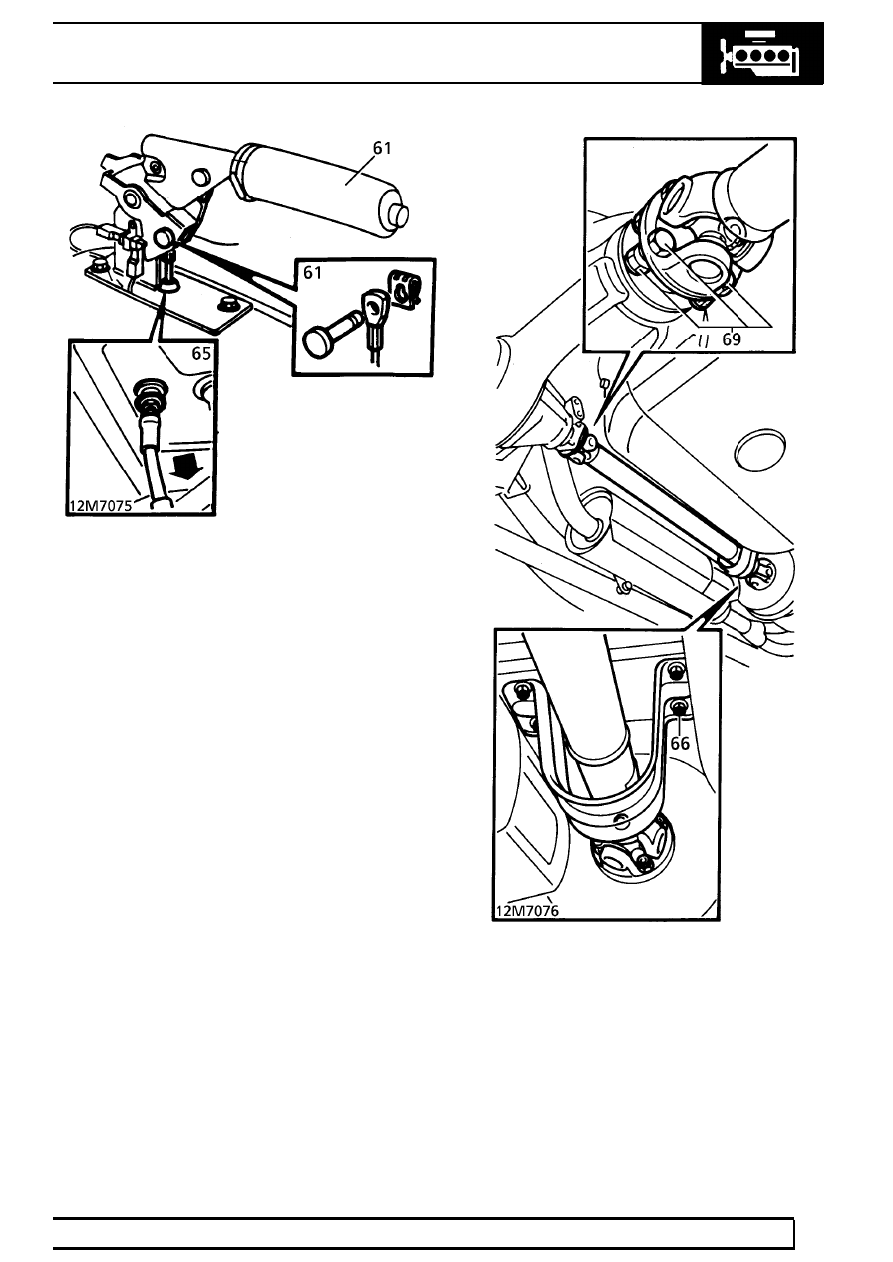

NOTE: It may be necessary to lower
gearbox support slightly during above
operation.

83. Raise power unit and draw forward. Lower

support from transmission.

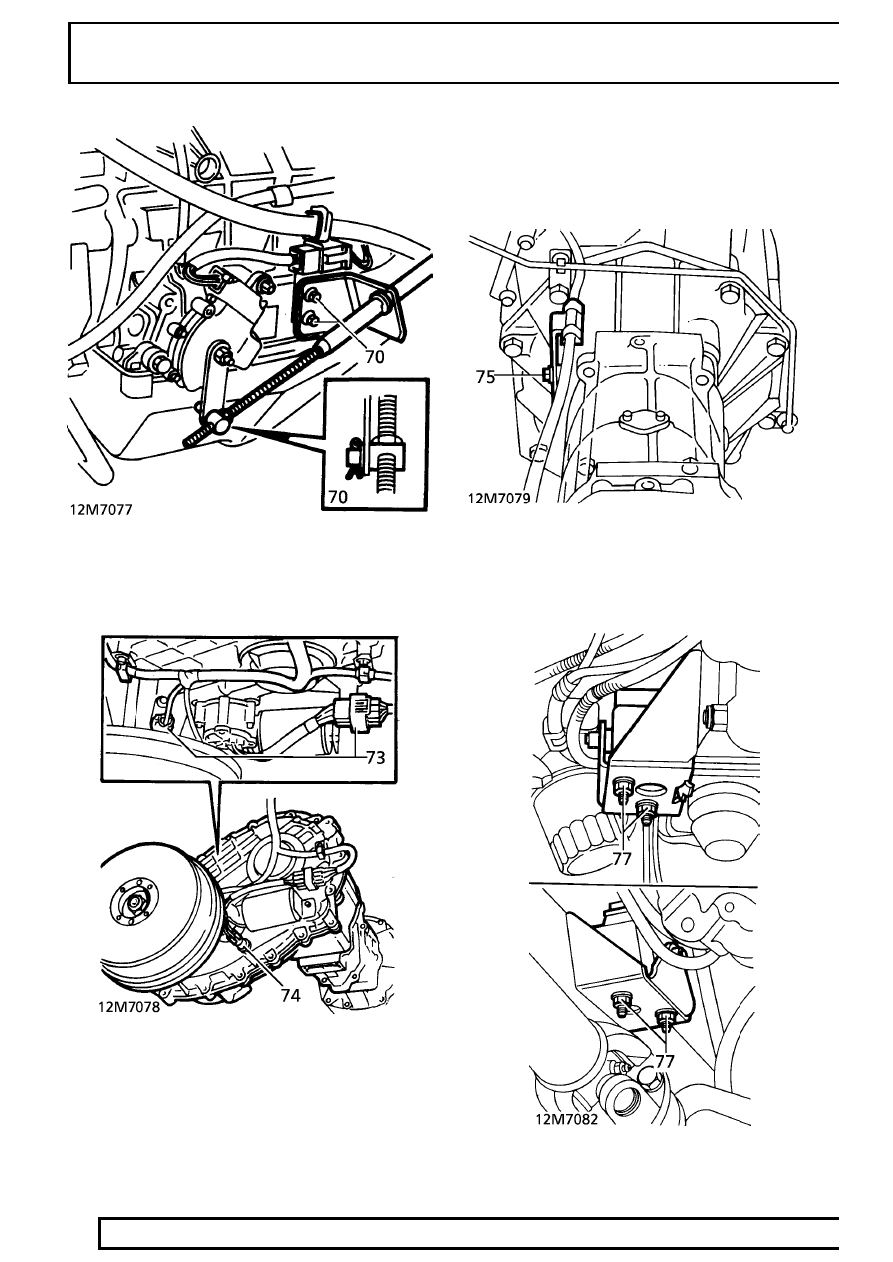

NOTE: Power unit must be tilted at an
angle of approximately 45 degrees before
it can be withdrawn from engine

compartment.

84. Remove engine/transmission assembly.

Refit

85. Raise power unit. Guide into engine bay.
86. Position transmission jack beneath transmission

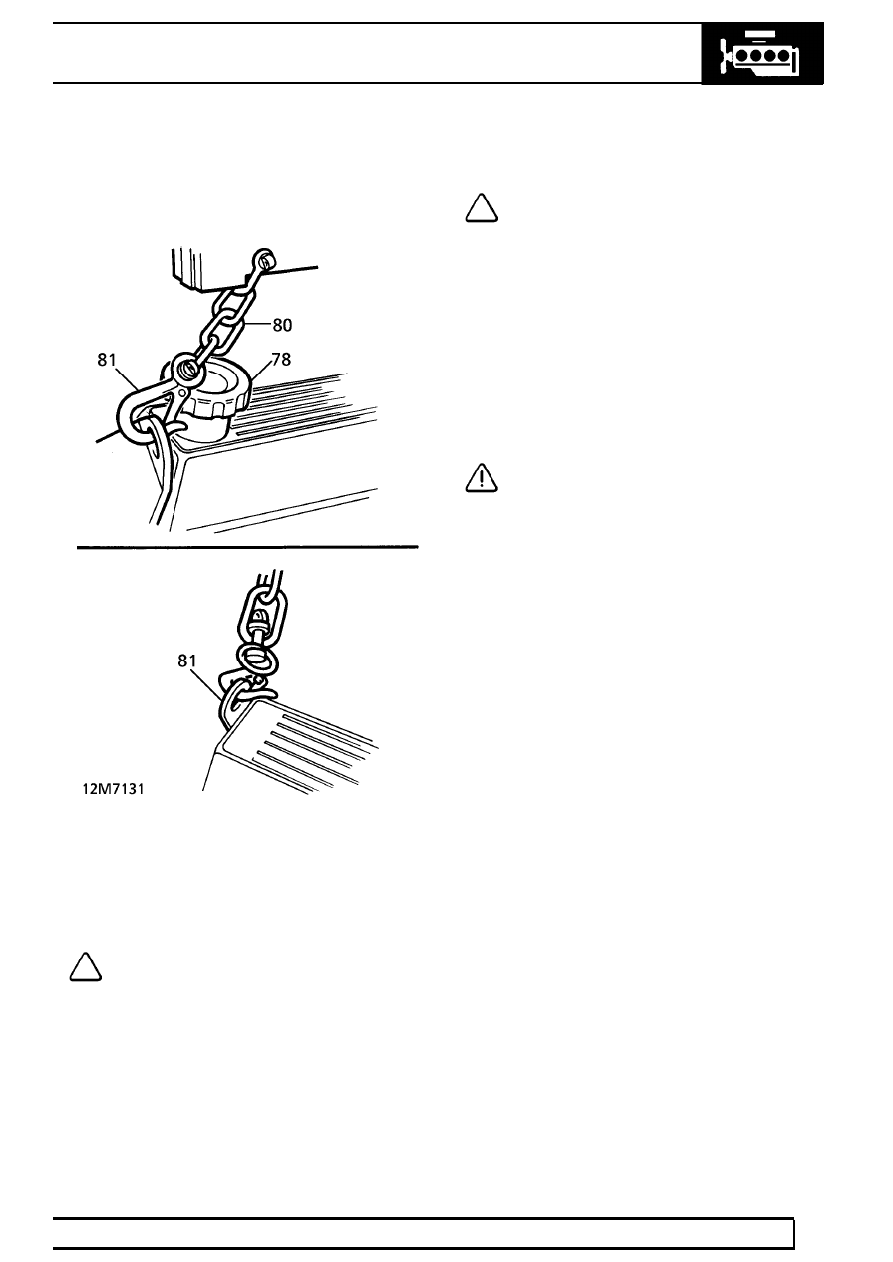

brake drum.

87. With assistance, raise transmission and lower

engine until engine mountings can be fitted.

CAUTION: Ensure all under body wax is
removed from mating surfaces of fixings
before fitting.

12

ENGINE

NEW RANGE ROVER

14

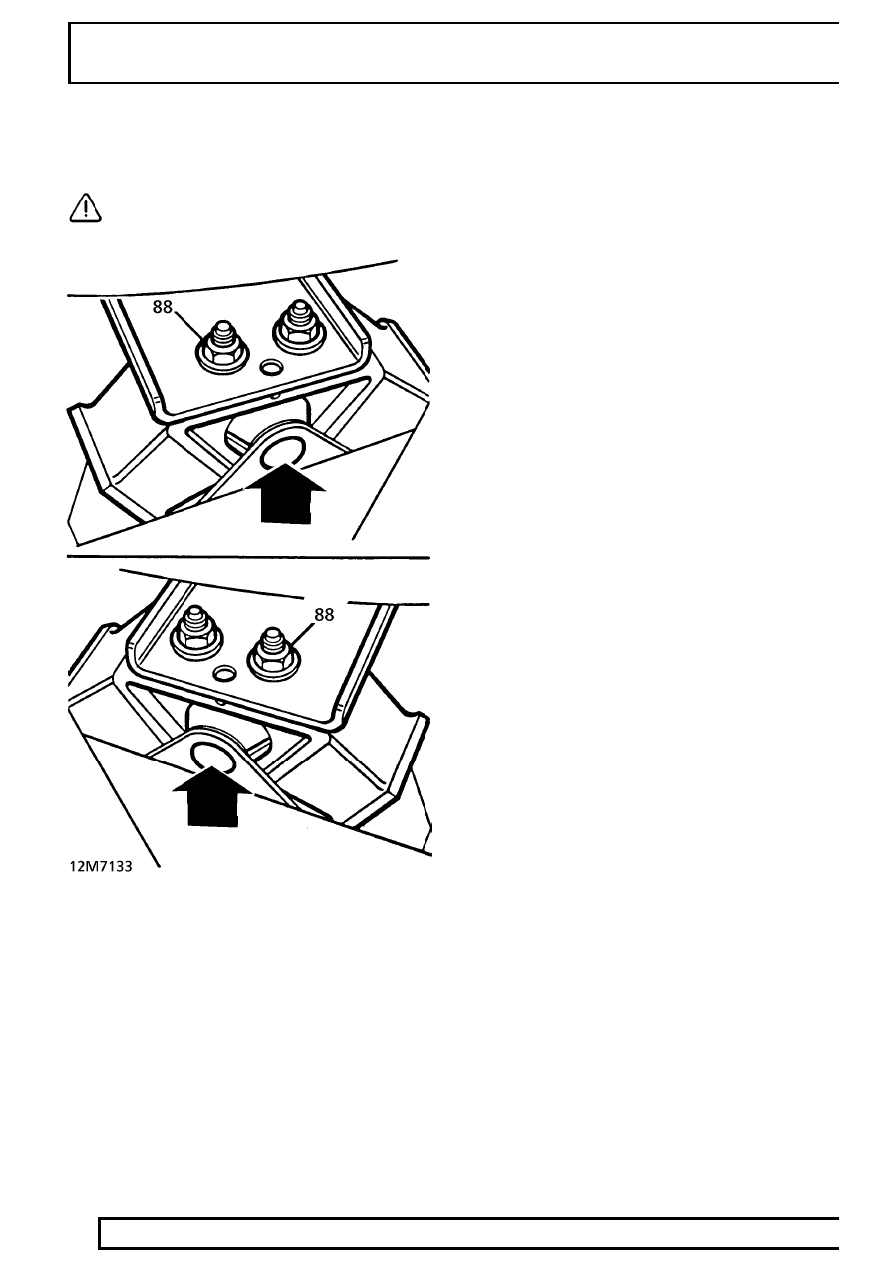

REPAIR

88. Attach mountings to chassis with new flange

nuts. Do not tighten at this stage.

CAUTION: Engine mountings must be
fitted with centre bolt head facing
outboard as shown.

89. Lower and guide engine onto mounting studs.
90. Attach engine to mountings with new flange

nuts. Do not tighten at this stage.

91. Release lifting bracket from engine lifting eyes.

Remove hoist.

92. Route gearbox harness. Secure with clips.
93. Connect multiplug to engine harness.
94. Connect multiplugs to High/Low motor and

output shaft speed sensor.

Manual Vehicles:

95. Secure gearbox harness bracket with bolt.

Tighten to

6 Nm (4 lbf.ft).

96. Connect multiplugs to reverse and neutral

switches.

97. Secure harness to gearbox bracket with clips.

Automatic Vehicles:

98. Connect multiplugs to gear selection position

switch and gearbox speed sensor.

99. Position selector cable abutment bracket to

gearbox. Secure with bolts.

100. Adjust gear selector cable.

See AUTOMATIC

GEARBOX, Adjustment.

All Vehicles:

101. Connect Lucars to transfer box fluid temperature

sensor.

102. Raise gearbox on transmission jack.
103. Align harness bracket to gearbox.
104. Raise one wheel on each axle to allow rotation

of propeller shafts.

105. Position shafts to transfer box flanges. Align

marks.

106. Secure propeller shaft flanges with nuts and

bolts. Tighten to

48 Nm (35 lbf.ft)

107. Fit propeller shaft guard. Tighten bolts.
108. Guide hand brake cable through grommet in

transmission tunnel.

109. Fit exhaust front pipe and chassis cross

member.

See MANIFOLD AND EXHAUST

SYSTEM, Repair.

110. Remove support from under transmission.
111. Tighten engine mounting nuts to

45 Nm (33

lbf.ft)
