Frelander 2. Manual - part 700

Lighting

78

L

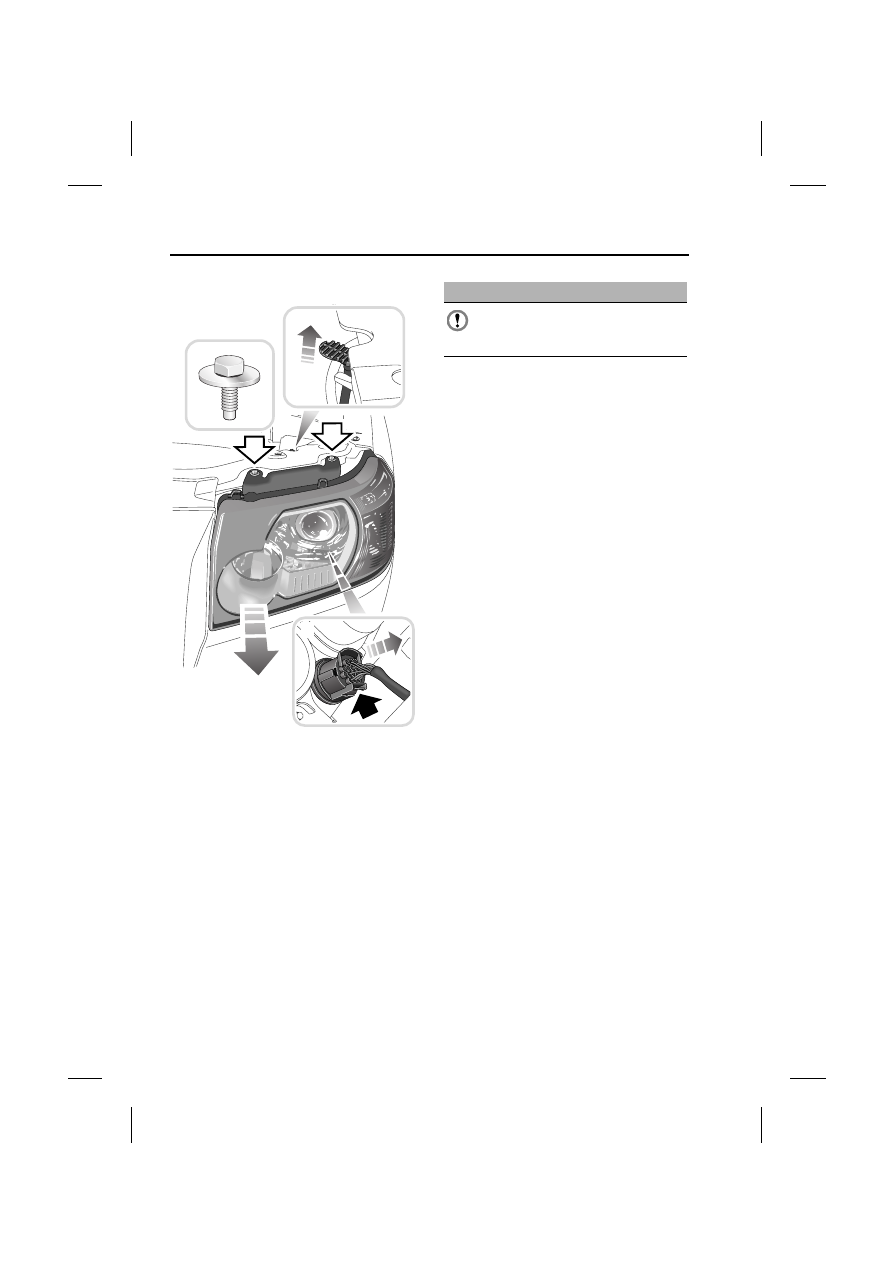

Removing the headlamp unit

In order to change a headlamp unit bulb, you
must first remove the headlamp unit.

To remove the headlamp unit :-

1. Undo and remove the two retaining bolts.

2. Pull up the locking lever to release the

headlamp unit.

3. Pull the headlamp unit forward sufficiently

to allow access to the rear of the unit.

4. Disconnect the electrical plug from the

back of the headlamp by pressing in the
locking tab and pulling the connector out.

1

3

4

1

E80991

2

1

CAUTION

Do not place the lamp unit face down
on hard or abrasive surfaces. Doing so
may scratch the surface of the lens.

79

Lighting

R

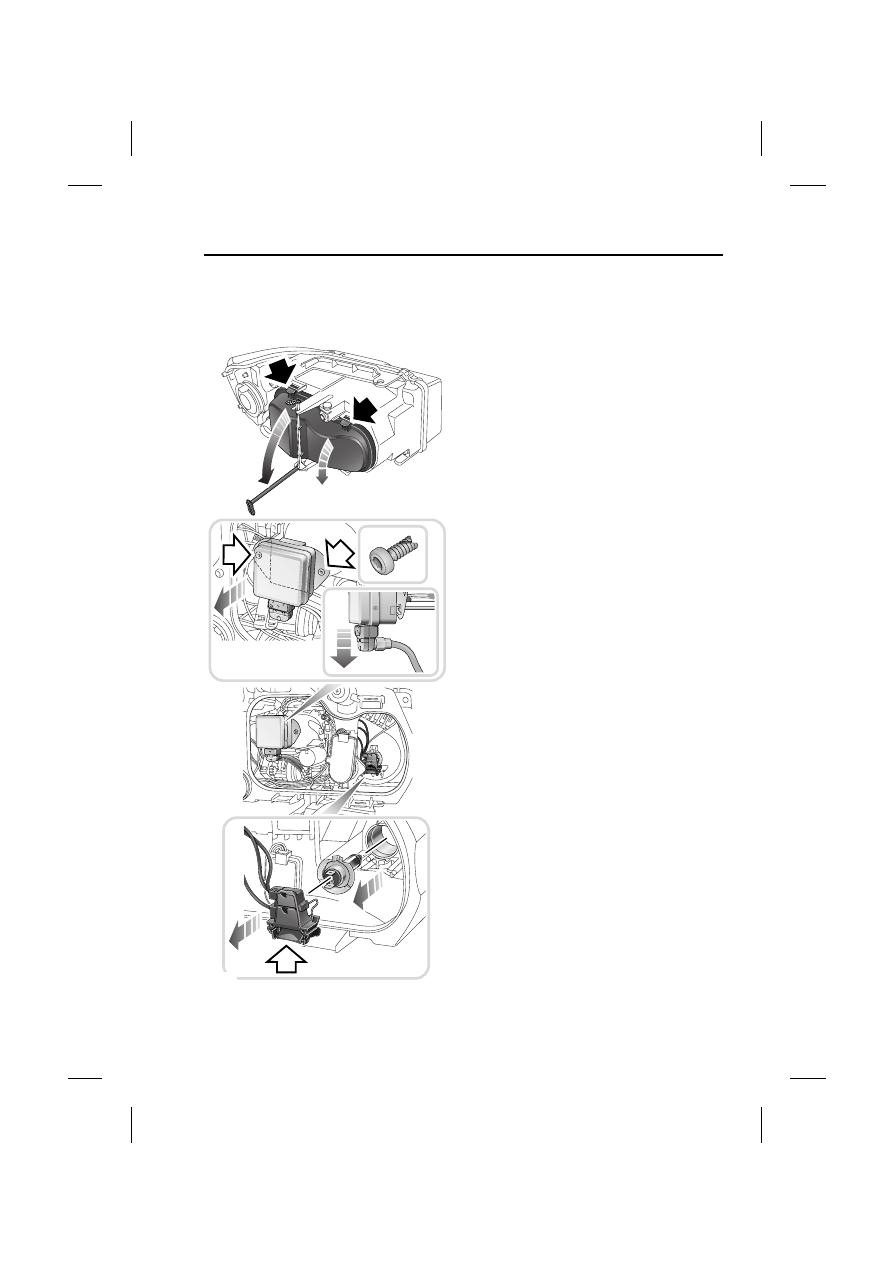

Headlamp unit bulbs

Xenon dipped/main beam with
supplementary halogen main beam

With the headlamp unit removed :-

1. Unclip the locking lever, press down the

two tabs and remove the cover.

2. Undo the two retaining screws and remove

the Xenon unit.

3. Remove the electrical connection from the

Xenon unit.

4. Pull the halogen main beam electrical

connector off of the supplementary
halogen main beam bulb.

5. Unclip the halogen bulb and remove it

from the unit.

2

4

2

5

3

E80994

1

2

Lighting

80

L

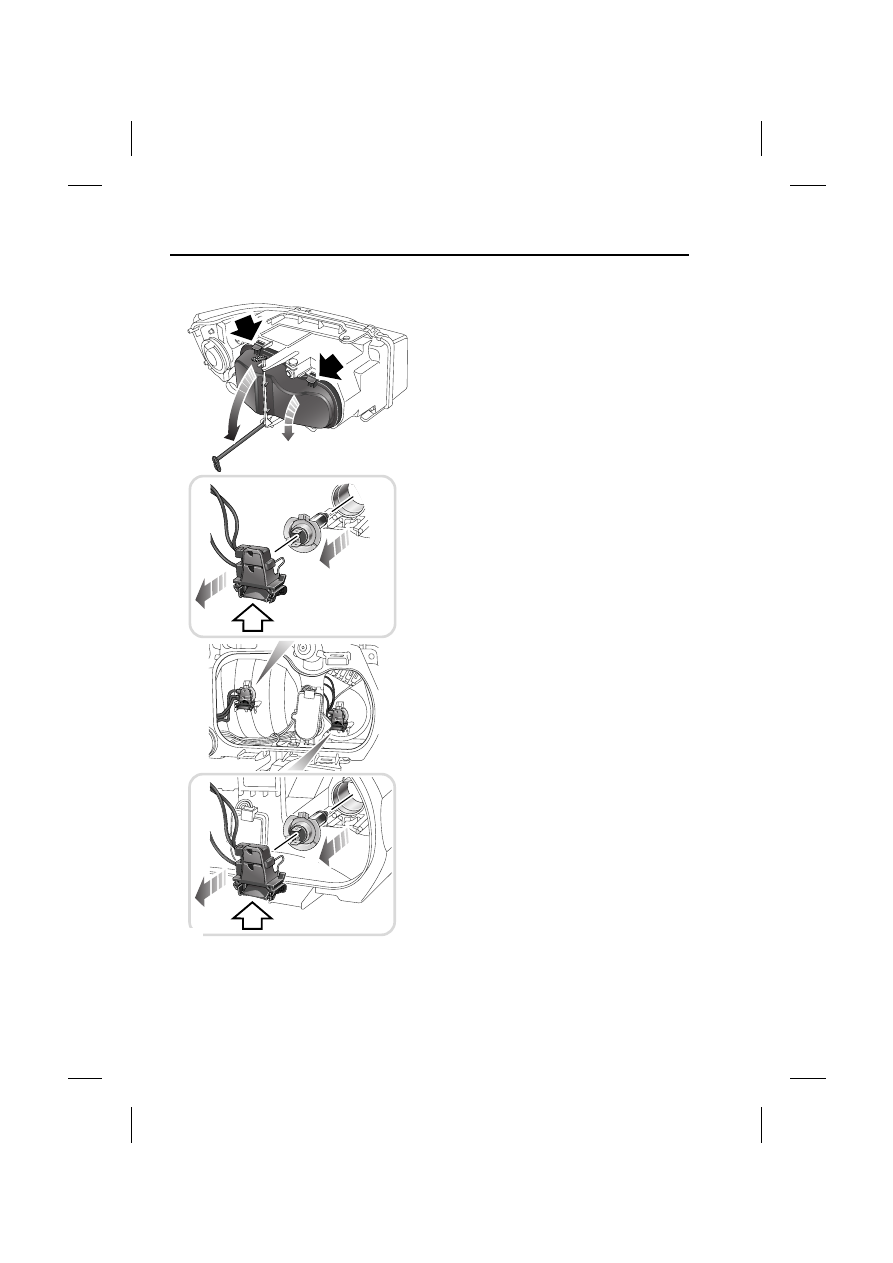

Halogen dipped and main beam

With the headlamp unit removed :-

1. Unclip the locking lever, press down the

two tabs, and remove the cover.

2. Pull the halogen dipped beam electrical

connector off of the bulb.

3. Unclip the bulb and remove it from the

unit.

4. Pull the halogen main beam electrical

connector off of the bulb.

5. Unclip the bulb and remove it from the

unit.

2

3

1

4

5

E80993

81

Lighting

R

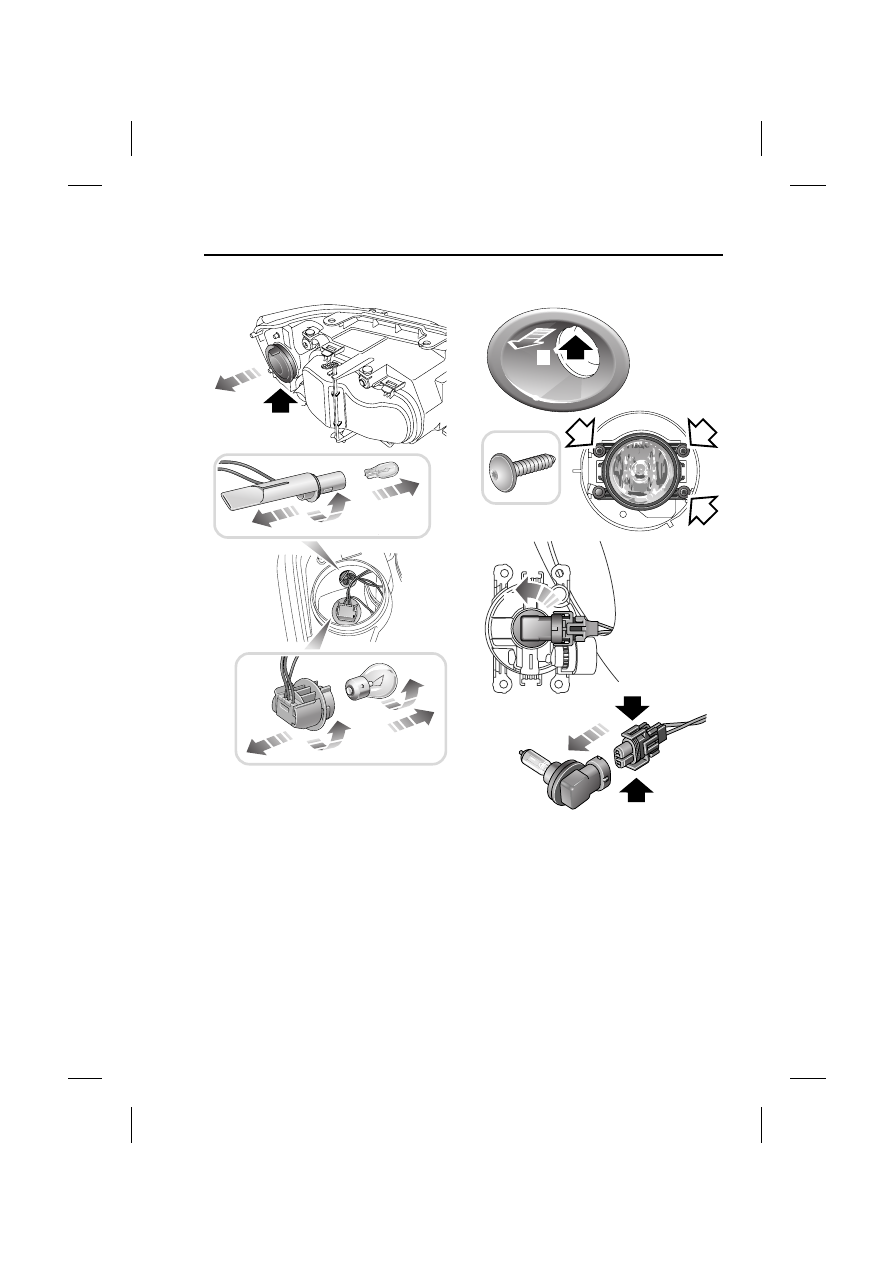

Side lamp and indicator bulbs

With the headlamp unit removed :-

1. Remove cover.

2. Twist the side lamp bulb holder and

remove it from the lamp unit.

3. Pull the bulb out of the holder.

4. Twist the indicator bulb holder, and

remove it from the lamp unit.

5. Press the bulb into the holder, then twist it

and remove from the holder.

Front fog lamp

1. Remove the trim from the fog lamp.

2. Undo the three retaining screws, and

remove the lamp unit.

3. Rotate the bulb holder (anti-clockwise)

and remove from the lamp unit.

4. Press the two clips together, and remove

the electrical connection.

E80995

2

3

4

5

1

1

2

2

2

E80999

2

3

4
