Frelander 2. Manual - part 624





Supplemental Restraint System - Side Air Bag Module

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Make the SRS system safe.

Refer to:

Standard W orkshop Practices

 (100-00 General Information,

Description and Operation).

1.

Remove the front seat backrest cover.

Refer to:

Front Seat Backrest Cover

 (501-10 Seating, Removal and

Installation).

2.

Remove the front seat backrest pad.

3.

4.

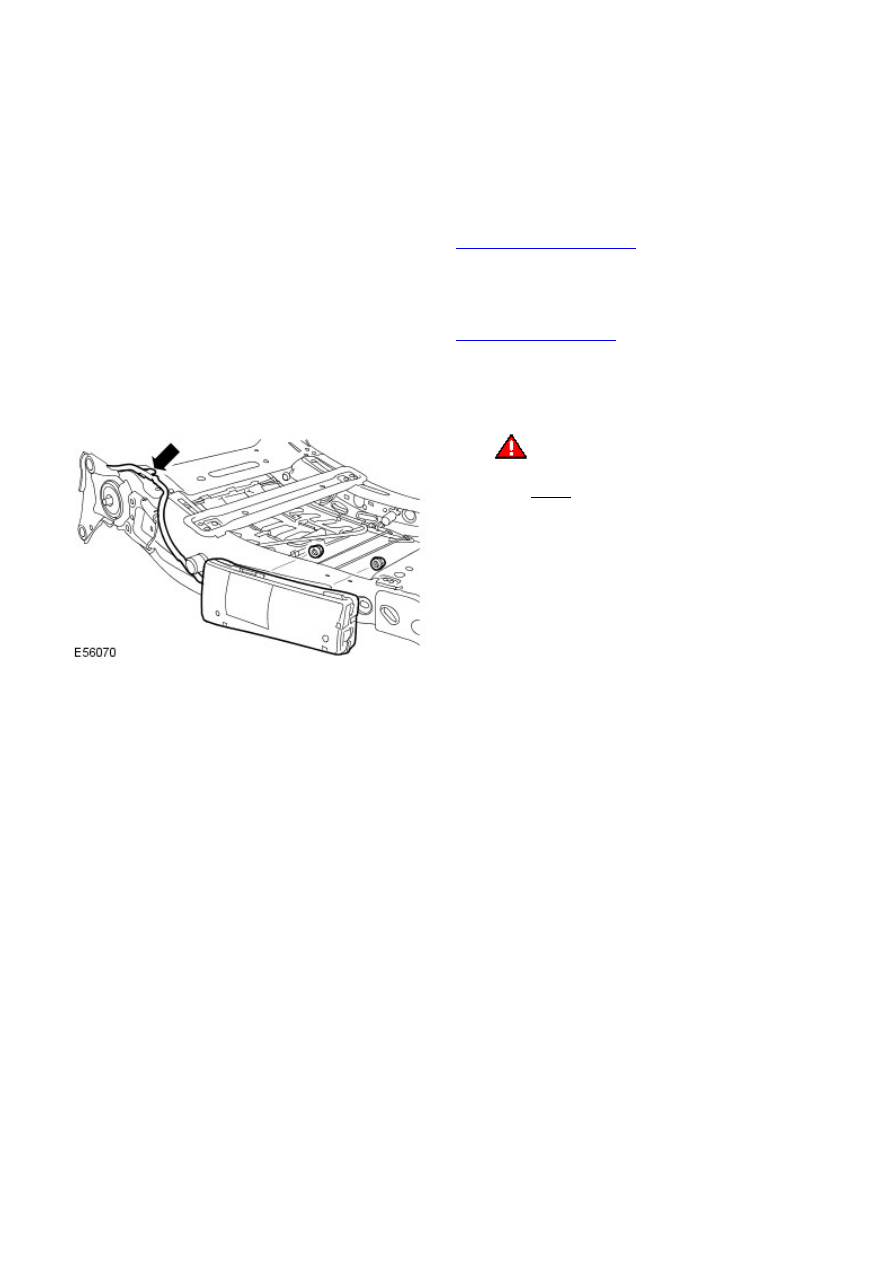

WARNING: Do not probe supplemental restraint

system (SRS) electrical connectors.

Torque: 10 Nm

4.

Installation

To install, reverse the removal procedure.

1.

Supplemental Restraint System - Side Air Curtain Module

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

Make the SRS system safe.

Refer to:

Standard W orkshop Practices

 (100-00 General Information,

Description and Operation).

2.

Remove the headliner.

Refer to:

Headliner - Vehicles Without: Tilting Roof Opening Panel

(501-05 Interior Trim and Ornamentation, Removal and Installation).
Refer to:

Headliner - Vehicles With: Tilting Roof Opening Panel

(501-05 Interior Trim and Ornamentation, Removal and Installation).

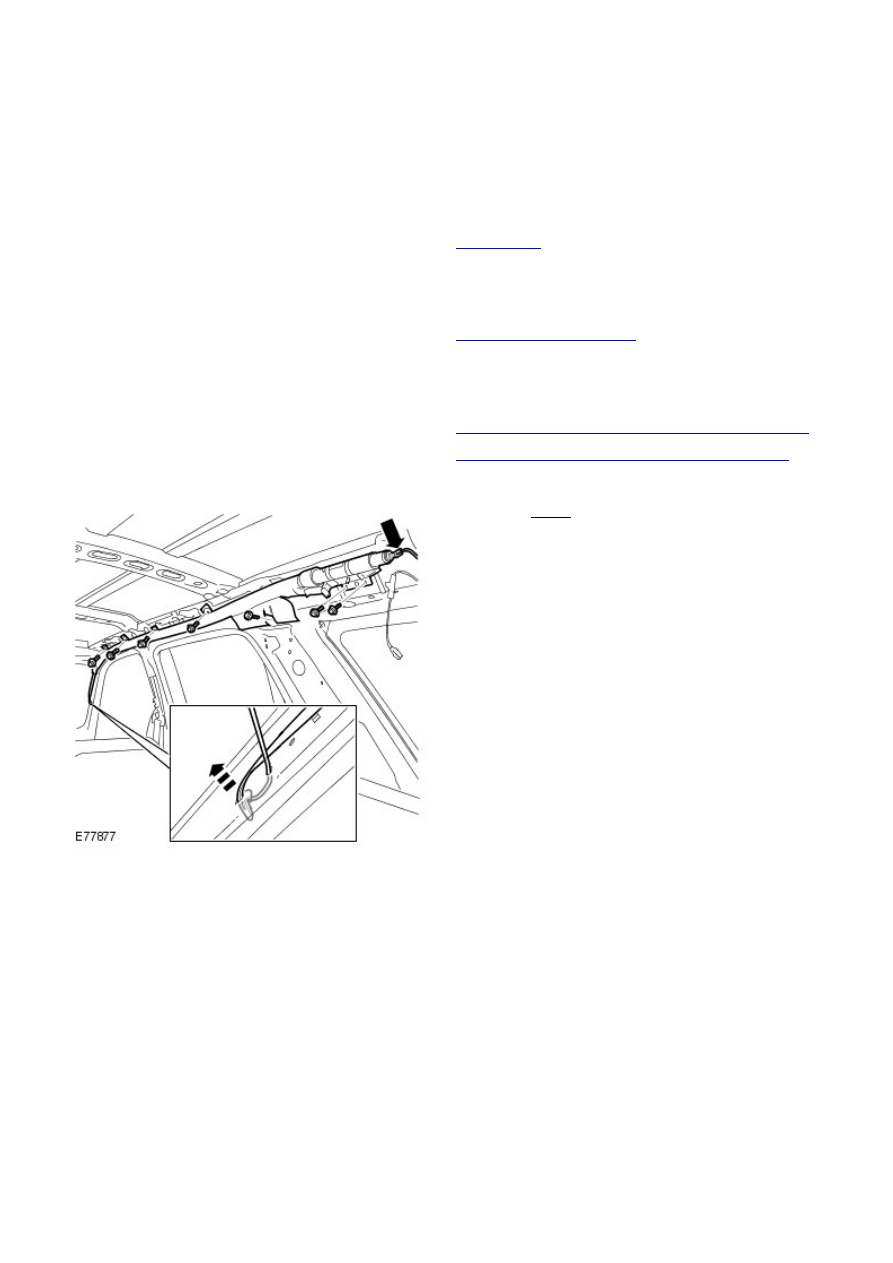

3.

Torque: 10 Nm

4.

Installation

To install, reverse the removal procedure.

1.

Supplemental Restraint System - Passenger Air Bag Deactivation (PAD)
Switch

Removal and Installation

Removal

Make the SRS system safe.

Refer to:

Standard W orkshop Practices

 (100-00 General Information,

Description and Operation).

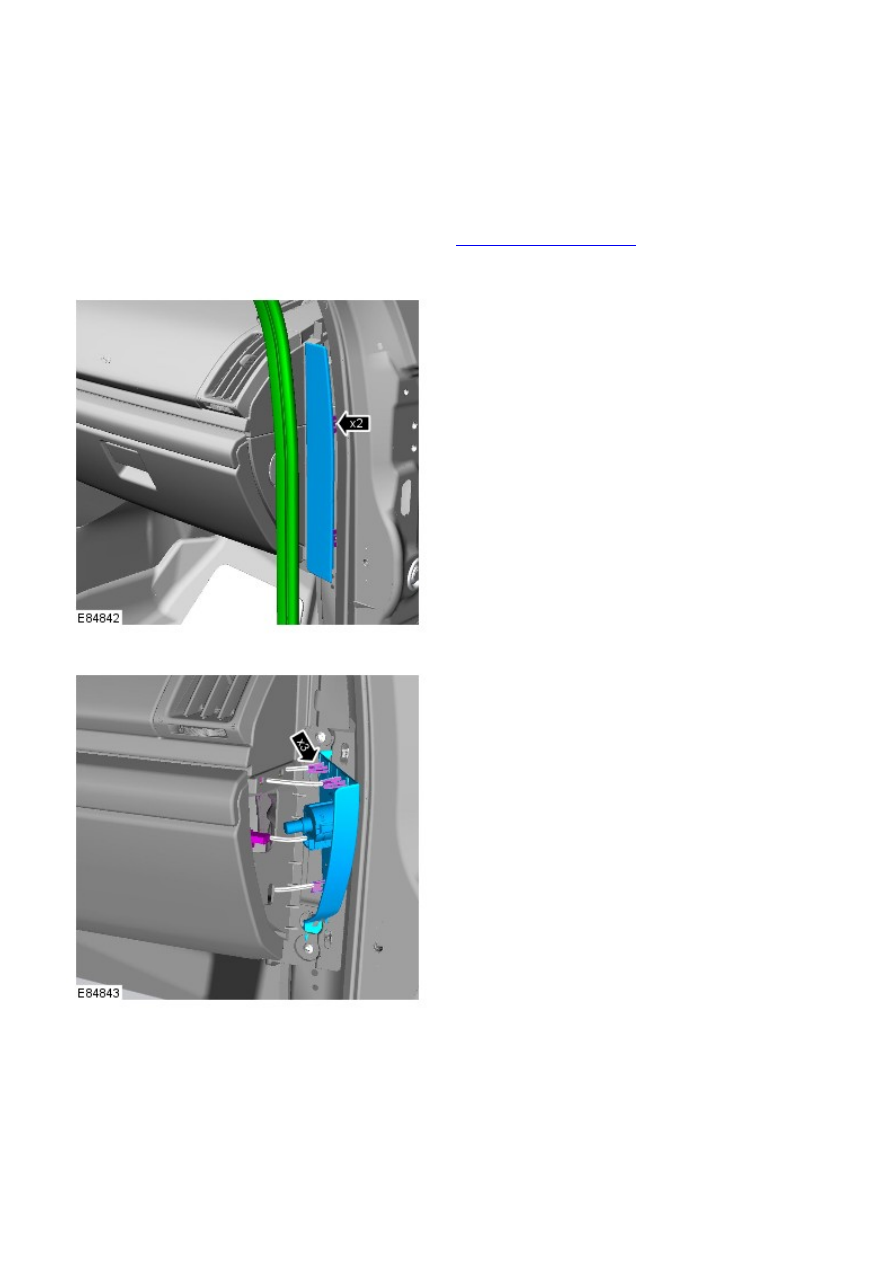

1.

2.

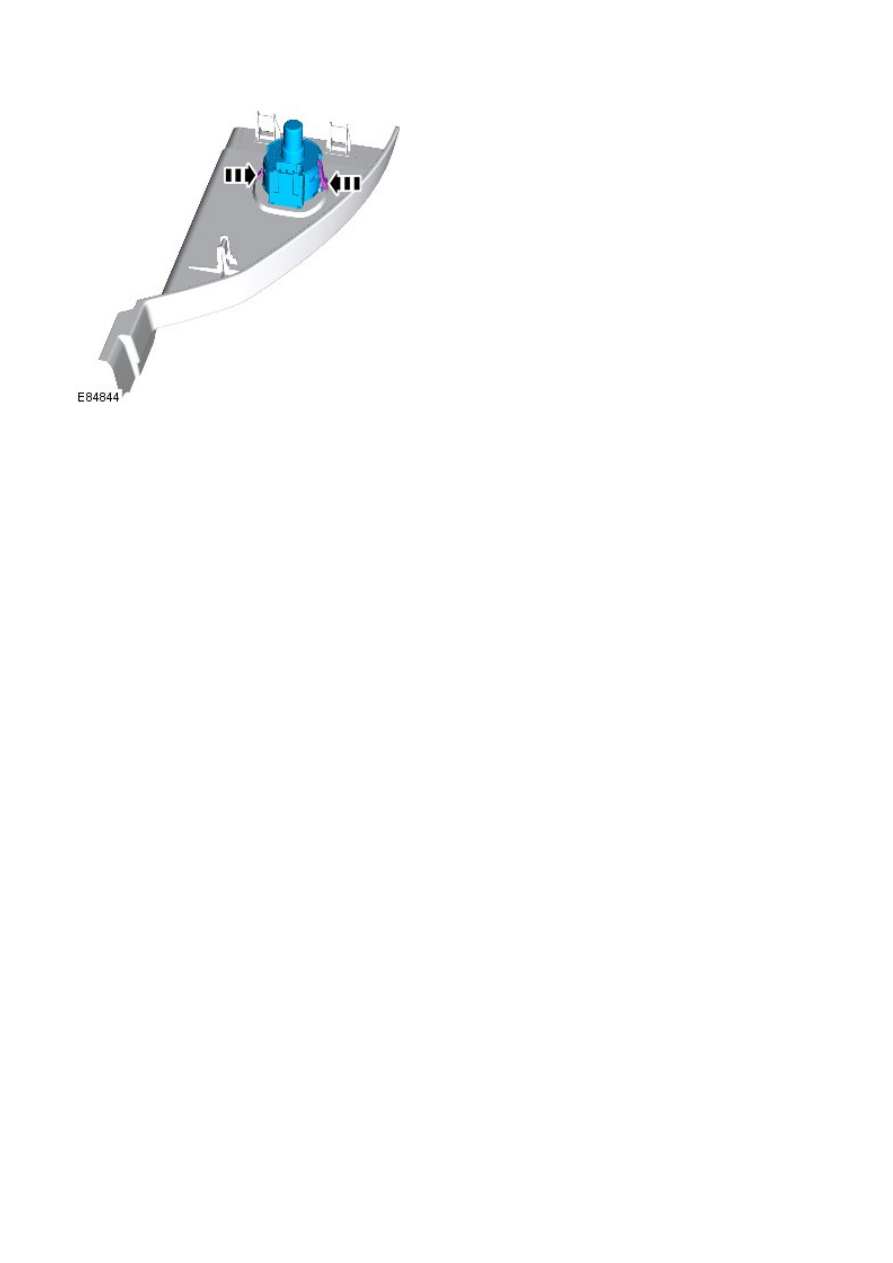

3.

4.

Installation

To install, reverse the removal procedure.

1.
