Install the wheels and tires.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

14.

Bumpers - Rear Bumper

Removal and Installation

Removal

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove both rear wheels and tires.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

2.

Remove the rear bumper cover.

Refer to:

Rear Bumper Cover

 (501-19 Bumpers, Removal and

Installation).

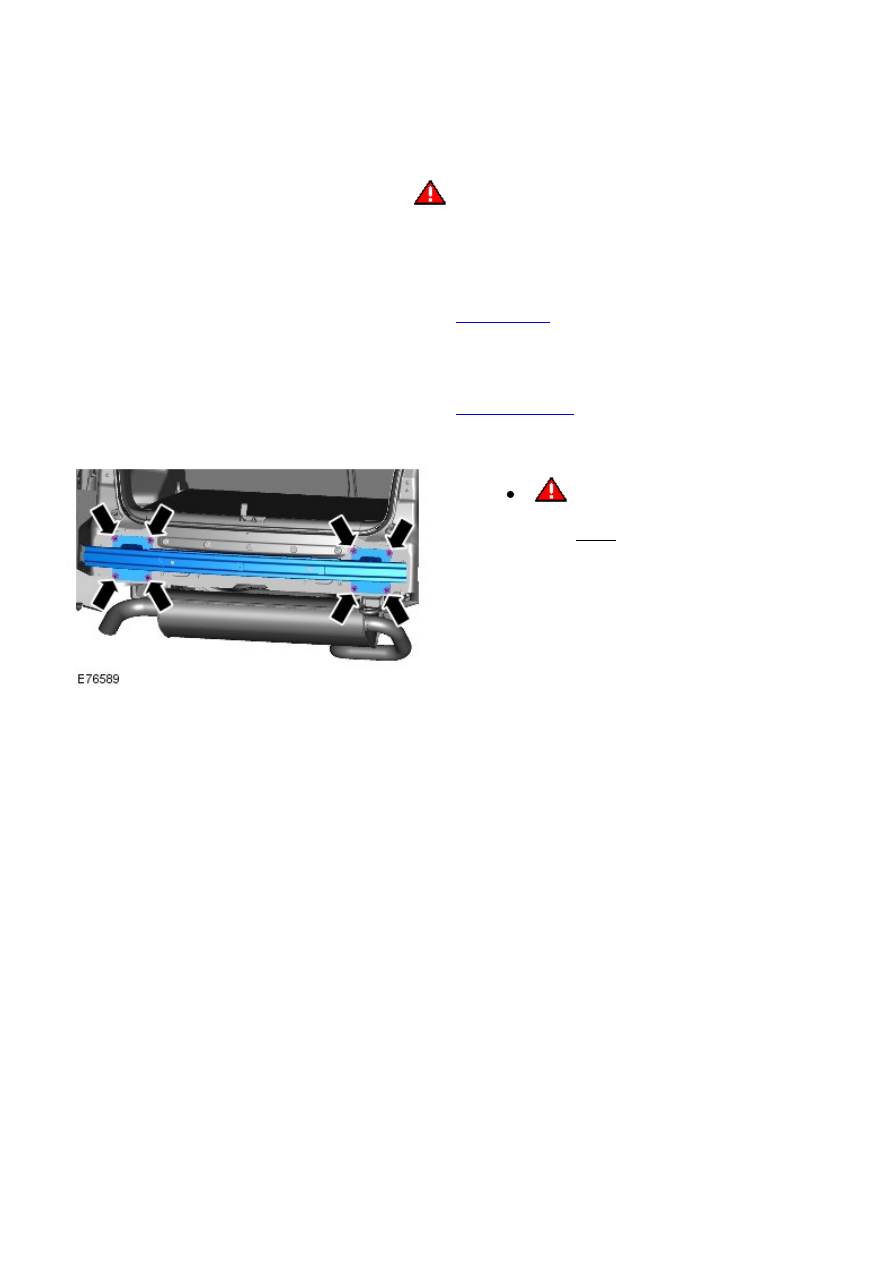

3.



•

W ARNING: Make sure that new nuts are

installed.

Torque: 30 Nm

4.

Installation

To install, reverse the removal procedure.

1.

Safety Belt System -

Torque Specifications

Description

Nm

lb-ft

Adjustable shoulder anchorage Torx bolts

25

18

Front safety belt buckle to seat Torx bolt

40

30

Front safety belt lower anchor Torx bolt*

40

30

Front safety belt retractor Torx bolt*

40

30

Front safety belt upper anchor Torx bolt*

40

30

Rear center safety belt buckle Torx bolt

55

41

Rear center safety belt lower anchor

55

41

Rear center safety belt retractor Torx bolt

35

26

Rear safety belt lower anchor

40

30

Rear safety belt upper anchor Torx bolt

40

30

Rear seatbelt retractor

40

30

W ebbing guide

8

6

* New nuts/bolts must be fitted

Safety Belt System - Safety Belt System

Description and Operation

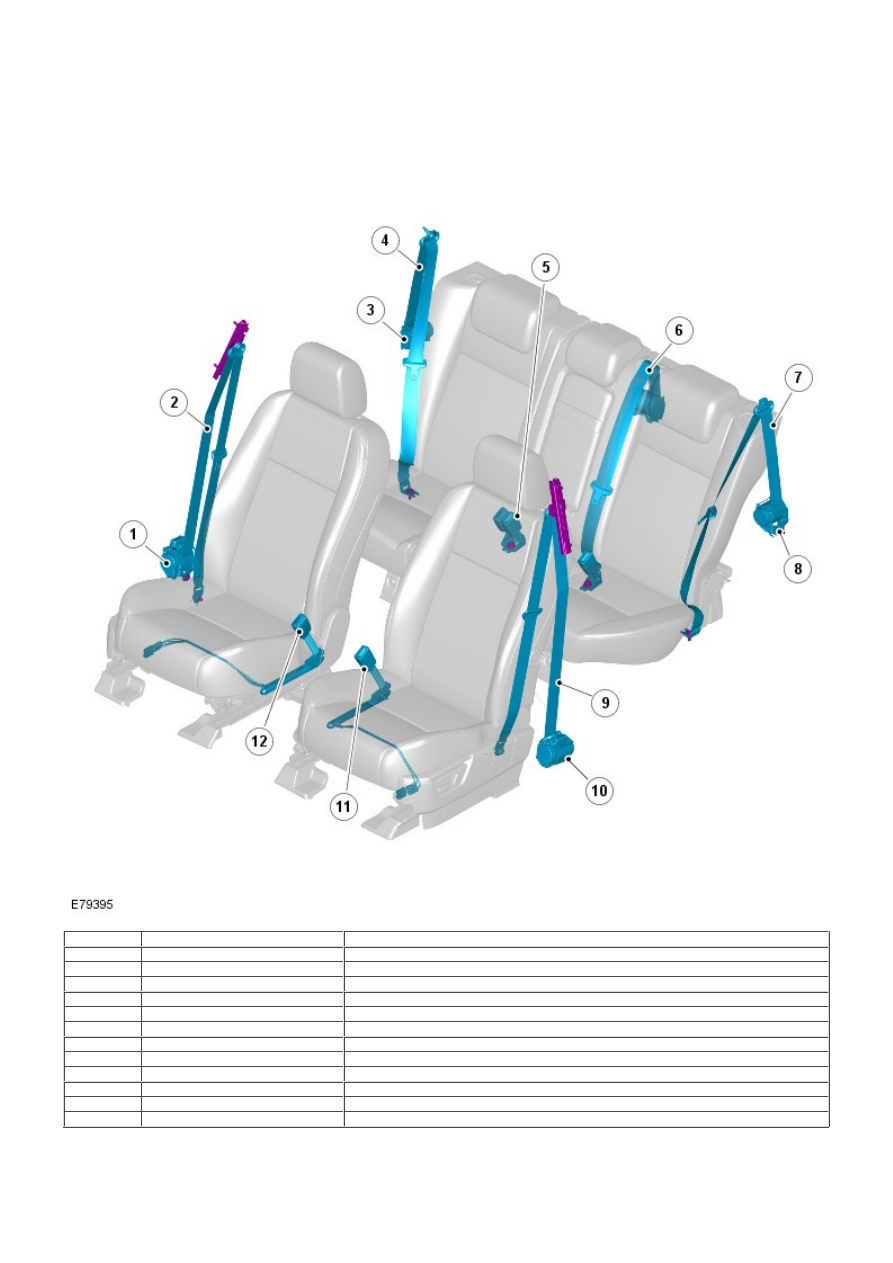

COMPONENT LOCATION

Item

Part Number

Description

1

-

Front RH safety belt retractor

2

-

Front RH safety belt

3

-

Rear RH safety belt retractor

4

-

Rear RH safety belt

5

-

Rear safety belt buckles

6

-

Center safety belt and retractor

7

-

Rear LH safety belt

8

-

Rear LH safety belt retractor

9

-

Front LH safety belt

10

-

Front LH safety belt retractor

11

-

Front LH safety belt buckle

12

-

Front LH safety belt buckle

OVERVIEW

A 3 point safety belt is installed in all seating positions. Each seatbelt has emergency locking retractor functionality.

The emergency locking retractor function incorporates a lift shaft locking system with webbing sensor and car sensing
