Instrument Panel and Console - Overhead Console

Removal and Installation

Removal

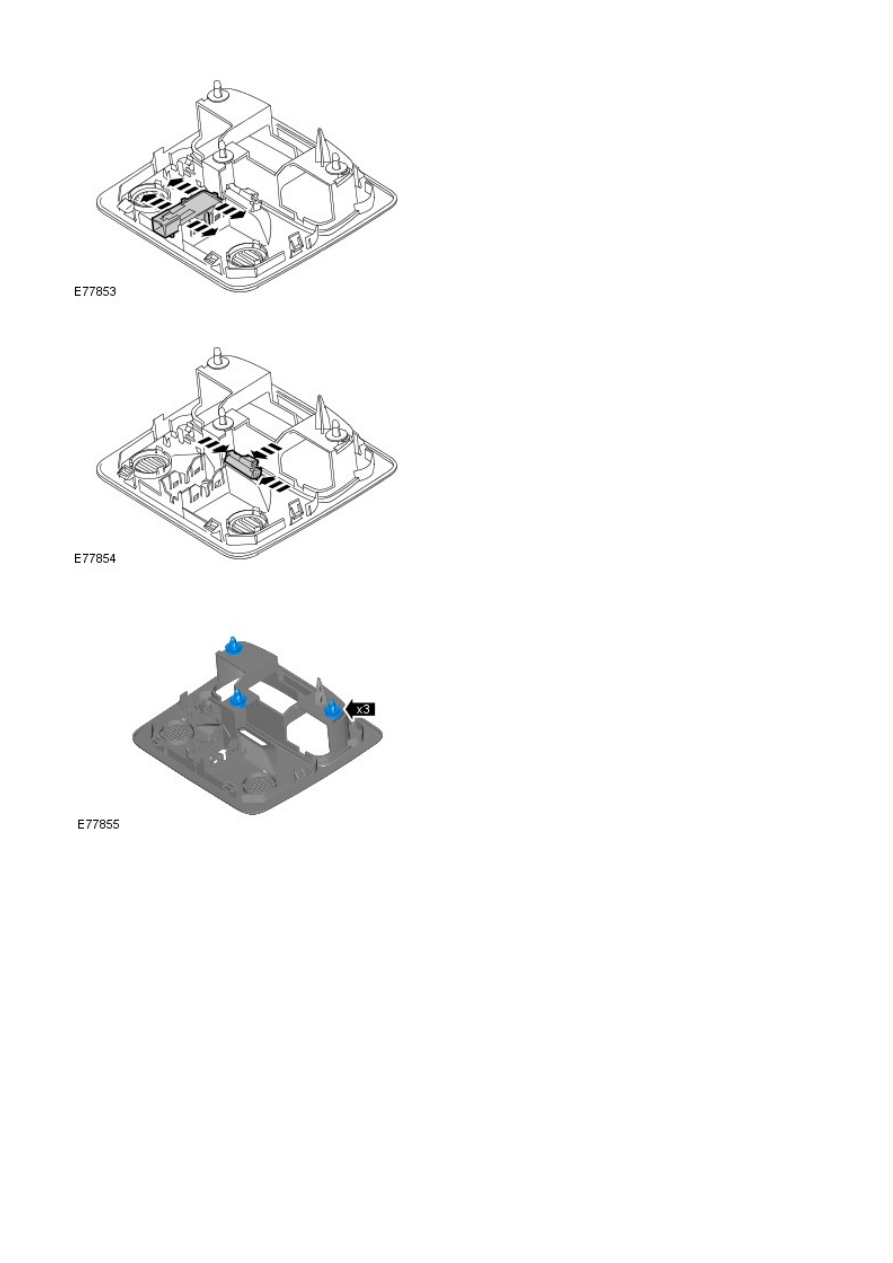

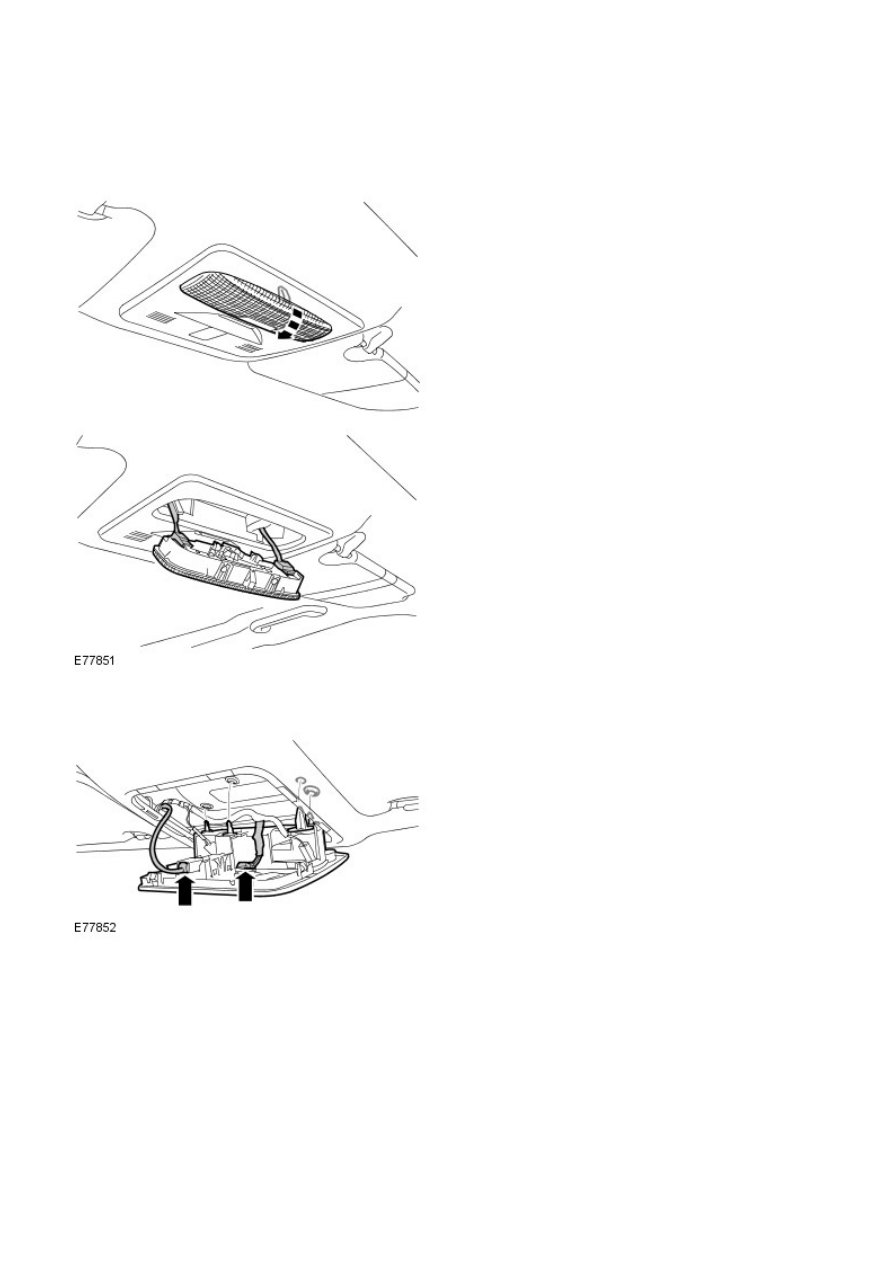

1.

2.

3. NOTE: Do not disassemble further if the component
is removed for access only.

3.

Remove the passenger air bag deactivation warning
lamp.

4.

5.

Installation

To install, reverse the removal procedure.

1.

Instrument Panel and Console - Glove Compartment

Removal and Installation

Removal

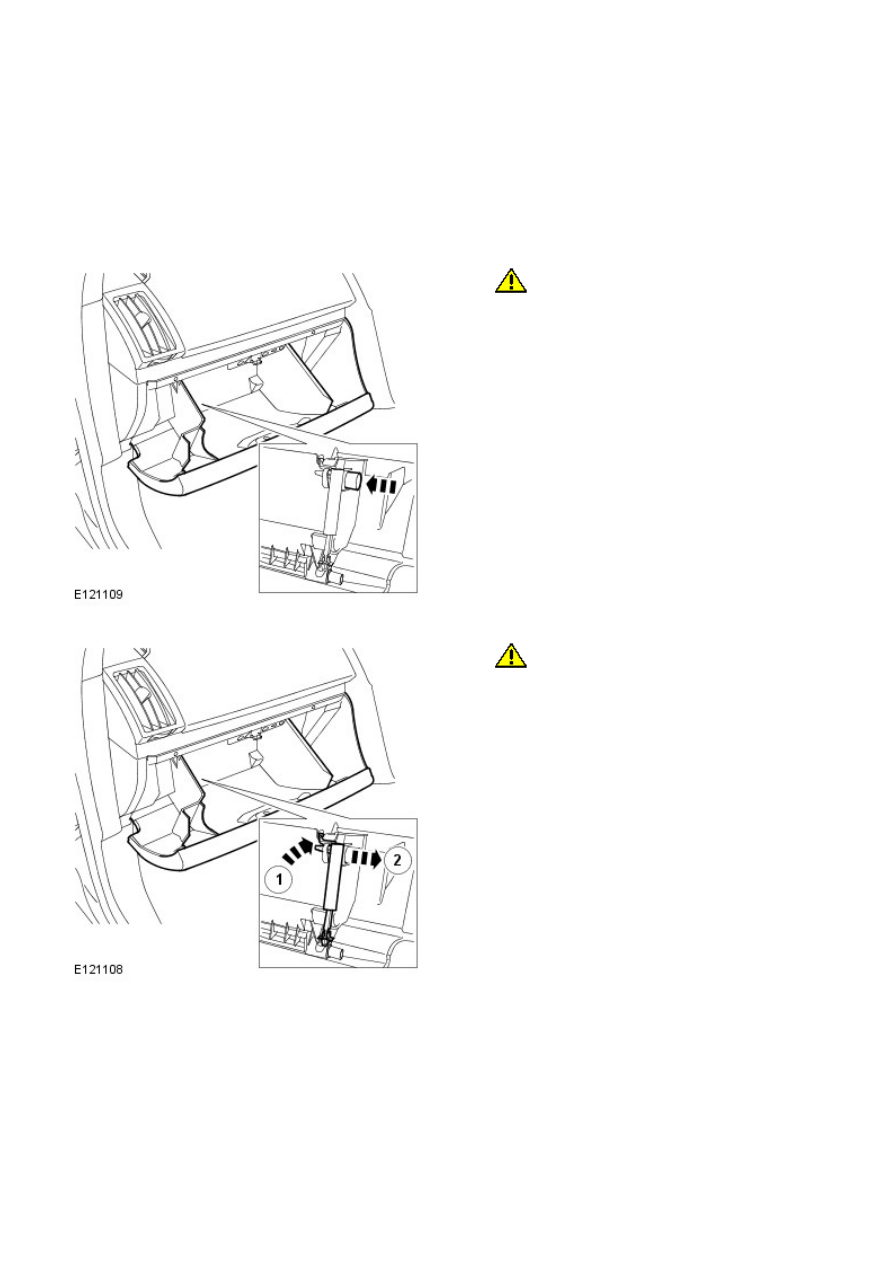

Position the front seat fully rearwards.

1.

Open the glove compartment to the service condition.

2.

3.

CAUTION: Make sure that excessive force is not

used to release the glove compartment. Failure to
follow these instructions may result in damage to the
vehicle.

Release the glove compartment.

3.

4.

CAUTION: Make sure that excessive force is not

used to release the glove compartment. Failure to
follow these instructions may result in damage to the
vehicle.

Release the glove compartment damper.

4.

Remove the glove compartment.

5.

Installation

To install, reverse the removal procedure.

1.

Handles, Locks, Latches and Entry Systems -

Torque Specifications

Description

Nm

lb-ft

Front door latch Torx screws

10

7

Hood latch interior release handle bolt

10

27

Hood latch to slam panel bolts

10

7

Hood safety hook bolts

10

7

Liftgate handle bolts

4

3

Liftgate latch Torx screws

20

15

Liftgate striker bolts

25

18

Rear door latch Torx screws

10

7
