Body Closures - Liftgate Alignment

General Procedures

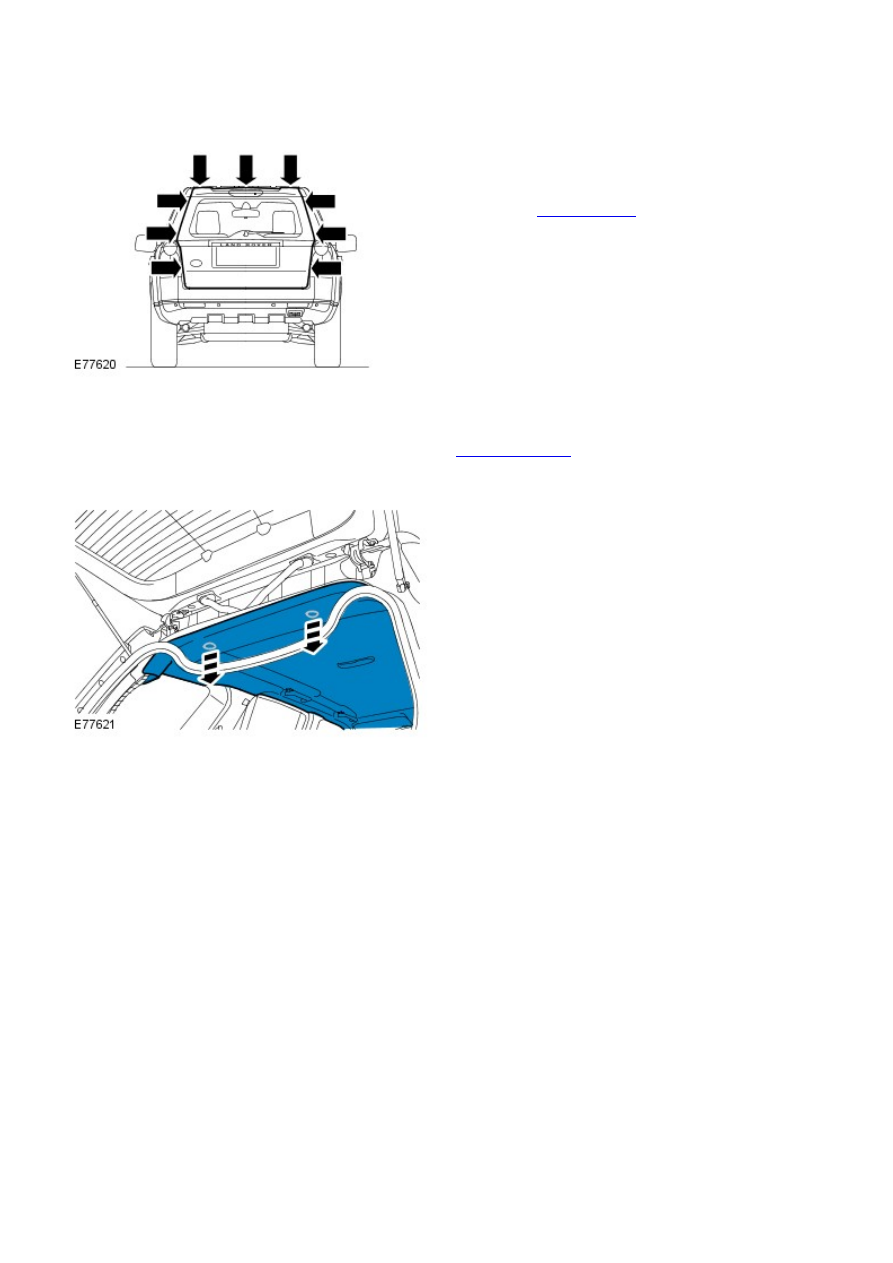

W ith the liftgate closed, check the alignment of the
liftgate to the roof panel and bodyside panel. The
liftgate should be central in its aperture.

Refer to:

Body and Frame

 (501-26 Body Repairs -

Vehicle Specific Information and Tolerance Checks,
Description and Operation).

1.

Remove the D-pillar trim panels.

Refer to:

D-Pillar Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

2.

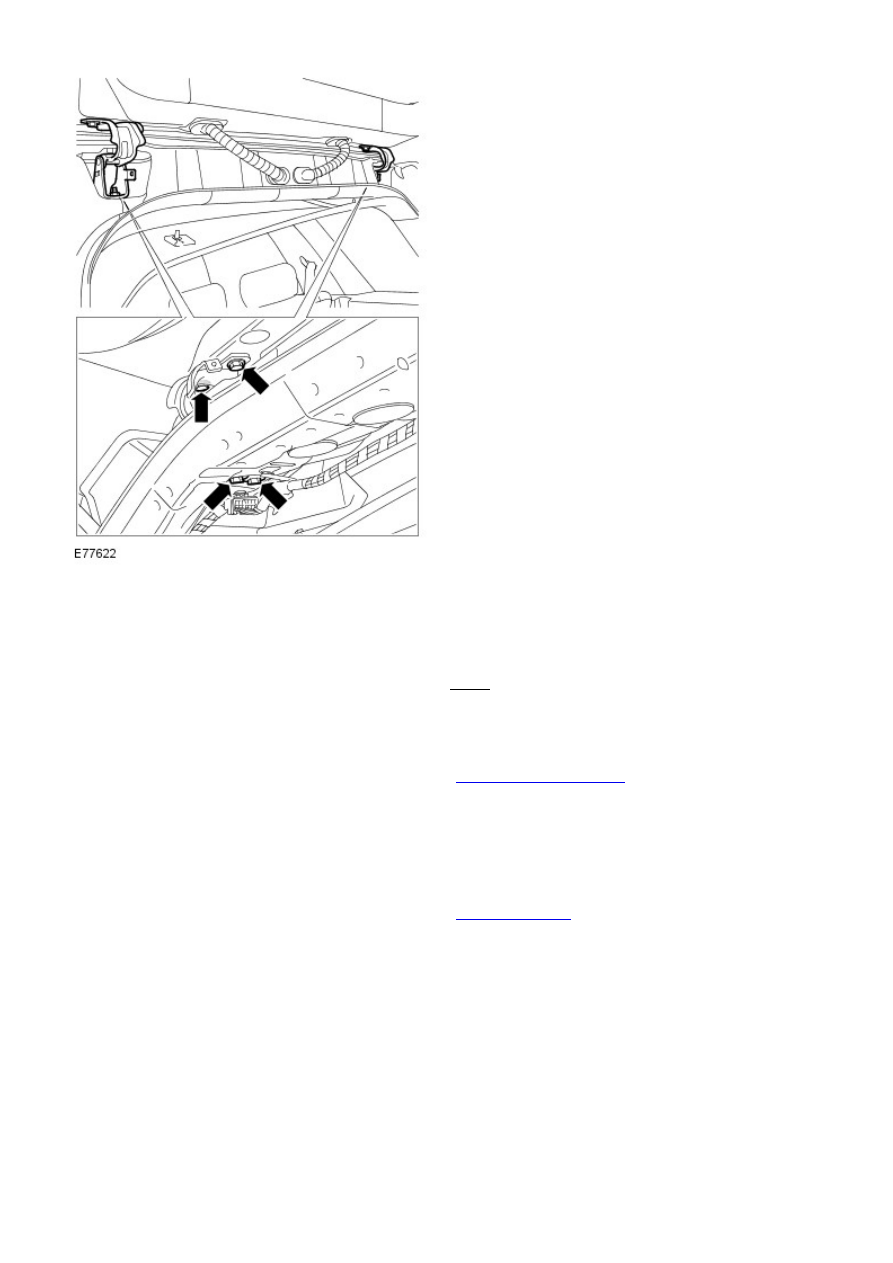

Release the rear of the headliner.

3.

Loosen, but do not remove the liftgate hinge bolts.

4.

Position the liftgate central to the aperture.

5.

Tighten the liftgate hinge bolts.

Torque: 24 Nm

6.

Check for correct operation of the liftgate, and if necessary adjust
the liftgate striker.

Refer to:

Liftgate Striker Adjustment

 (501-14 Handles, Locks,

Latches and Entry Systems, General Procedures).

7.

Attach the rear of the headliner.

8.

Install the D-pillar trim panels.

Refer to:

D-Pillar Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

9.

Body Closures - Front Door

Removal and Installation

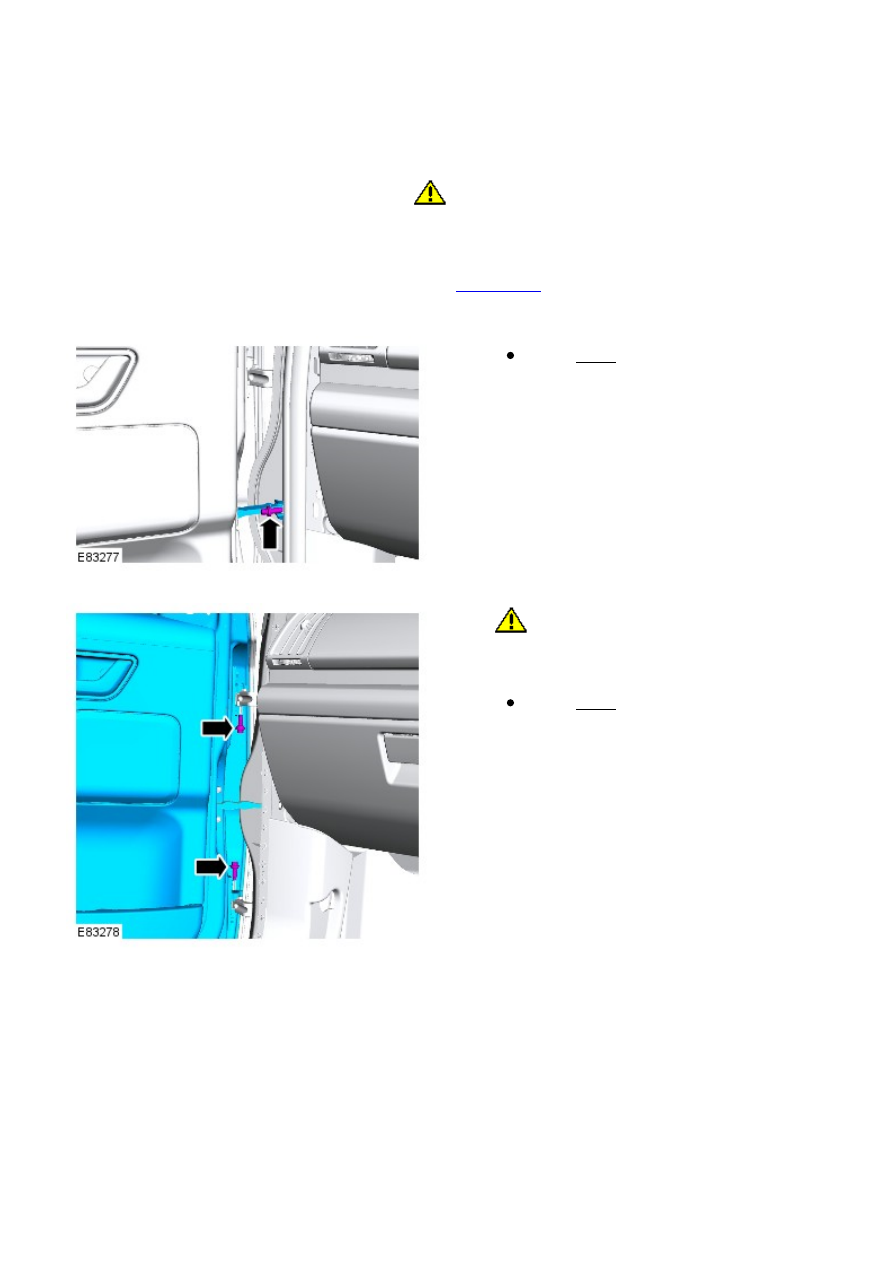

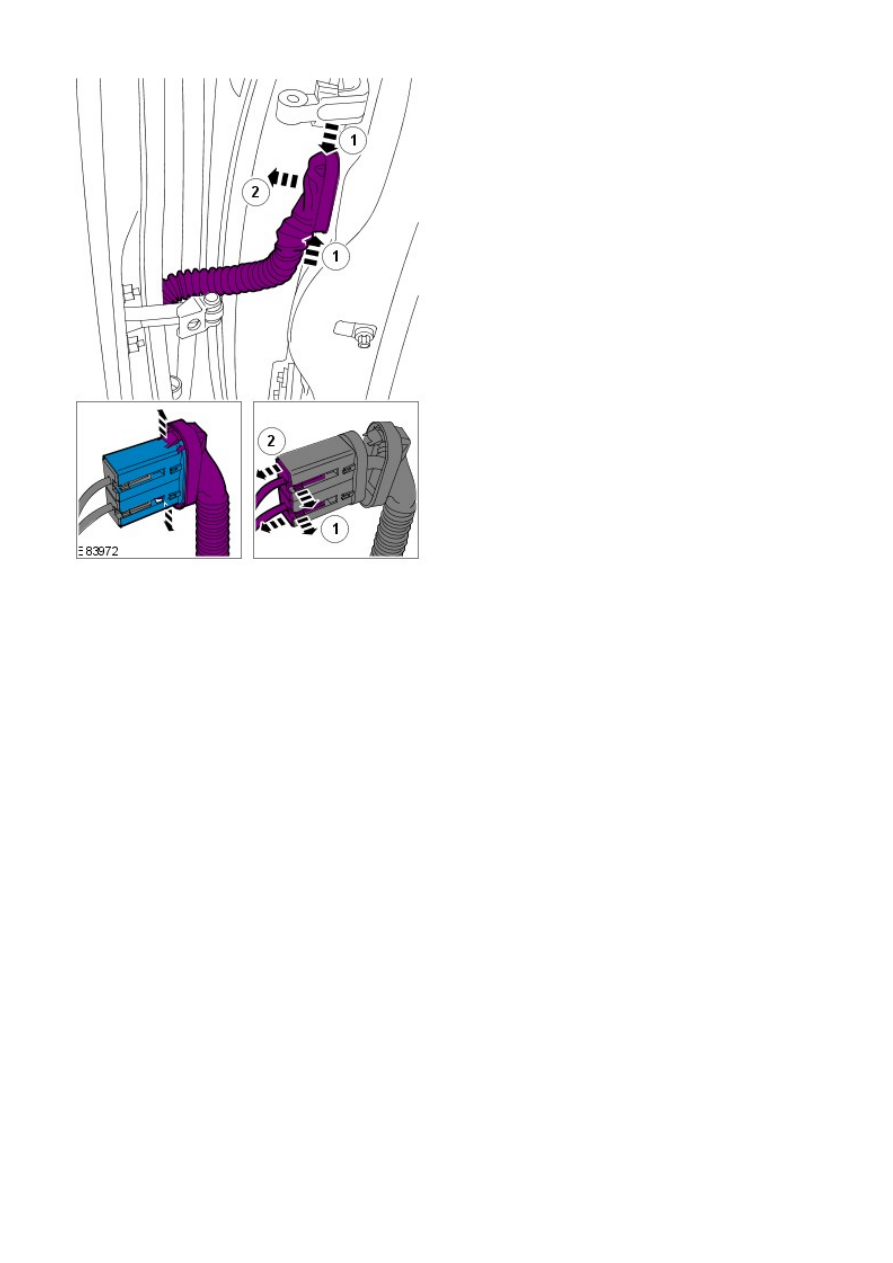

Removal

1.

CAUTION: After switching off the ignition, wait for 2 minutes

before disconnecting the battery. Failure to wait for 2 minutes will
damage the navigation computer.

Disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.



Torque: 24 Nm

2.

3.

CAUTION: Protect the surrounding trim to avoid

damage.

• NOTE: This step requires the aid of another
technician.

Torque: 30 Nm

3.

4. NOTE: With assistance, support the door.

4.

Installation

To install, reverse the removal procedure.

1.
