Frelander 2. Manual - part 524

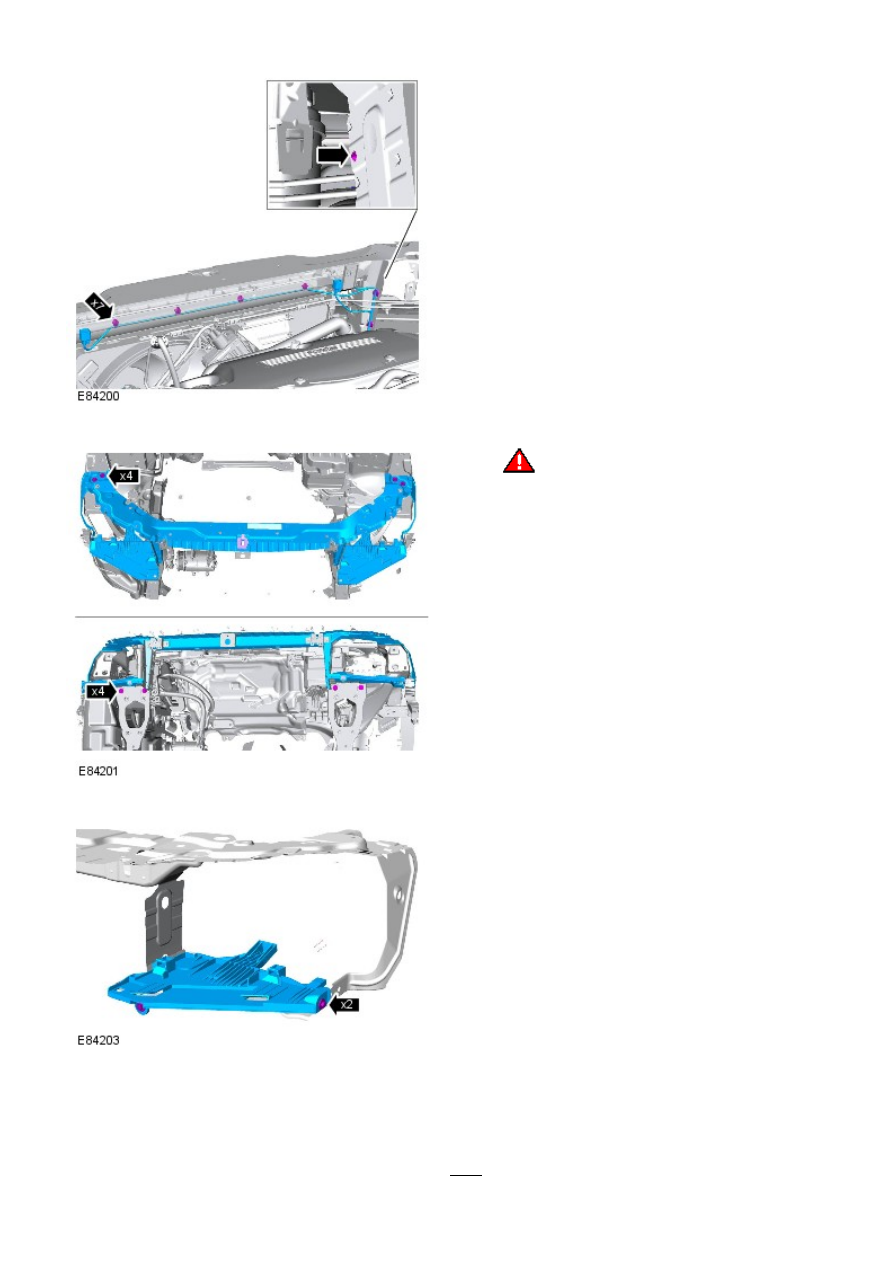

Release the hood latches.

7.

8.

Release the harness.

9.

10.

WARNING: This step requires the aid of

another technician.

10.

11. NOTE: Do not disassemble further if the component
is removed for access only.

11.

Installation

Install the headlamp brackets.

Torque: 6 Nm

1.

2.

WARNING: This step requires the aid of another technician.

Install the hood latch panel.

Torque: 24 Nm

2.

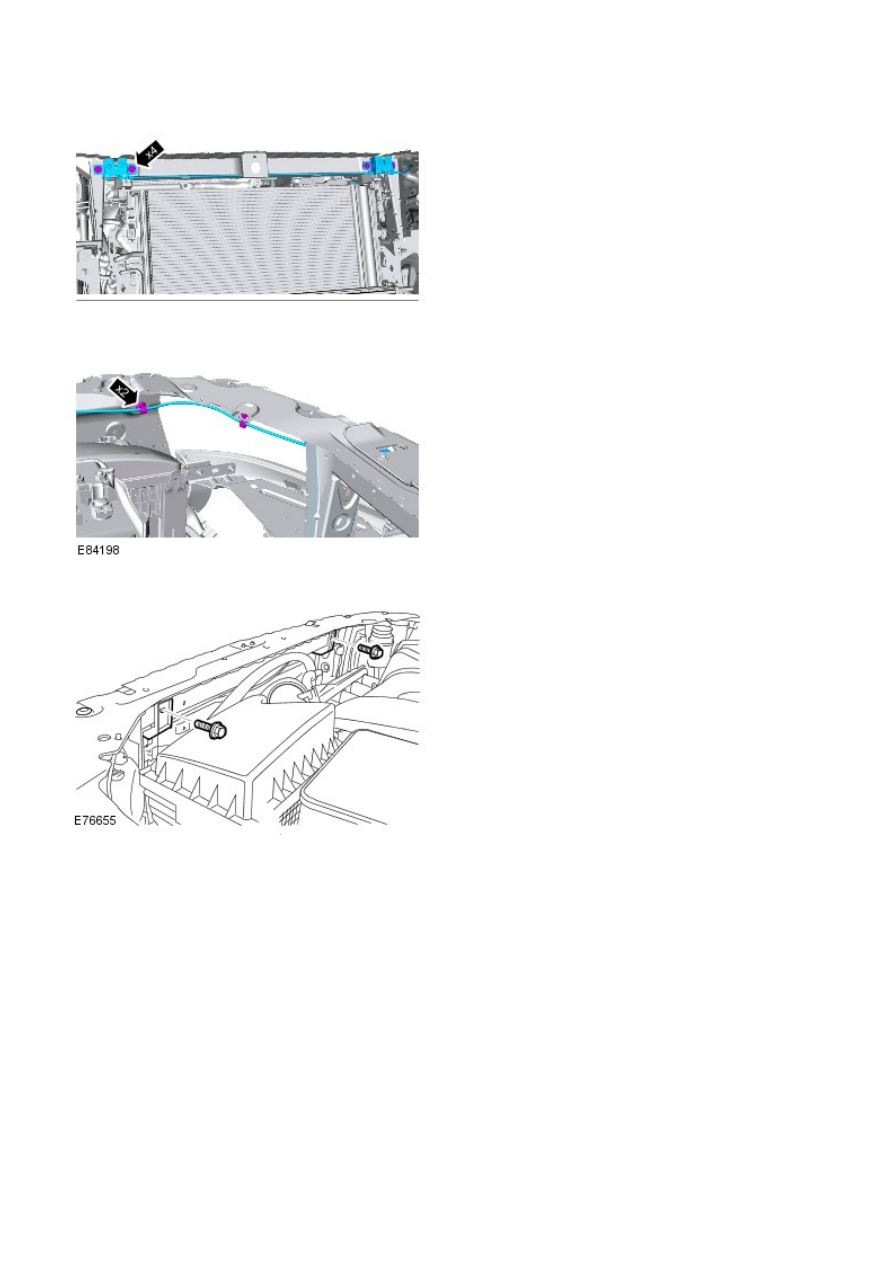

Secure the electrical harness.

3.

Install the radiator mountings.

Torque: 6 Nm

4.

Install the hood latches.

Torque: 10 Nm

5.

Install the windshield washer reservoir filler neck.

Torque: 6 Nm

6.

Install the power steering fluid reservoir.

7.

Install the front impact sensors.

Refer to:

Front Impact Severity Sensor

 (501-20B Supplemental

Restraint System, Removal and Installation).

8.

Install the front fenders.

Refer to:

Fender

 (501-02 Front End Body Panels, Removal and

Installation).

9.

Install the headlamps.

Refer to:

Headlamp Assembly

 (417-01 Exterior Lighting, Removal

and Installation).

10.

Body Closures -

Torque Specifications

Description

Nm

lb-ft

Front door check strap

24

18

Front door hinge bolts

30

22

Hood hinges

24

18

Liftgate hinge bolts

24

18

Liftgate support strut spigot

24

18

Rear door check strap

24

18

Rear door hinge bolts

30

22
