Frelander 2. Manual - part 507





Wiring Harnesses - Engine Wiring HarnessI6 3.2L Petrol

Removal and Installation

Removal

Remove the cover and disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

2.

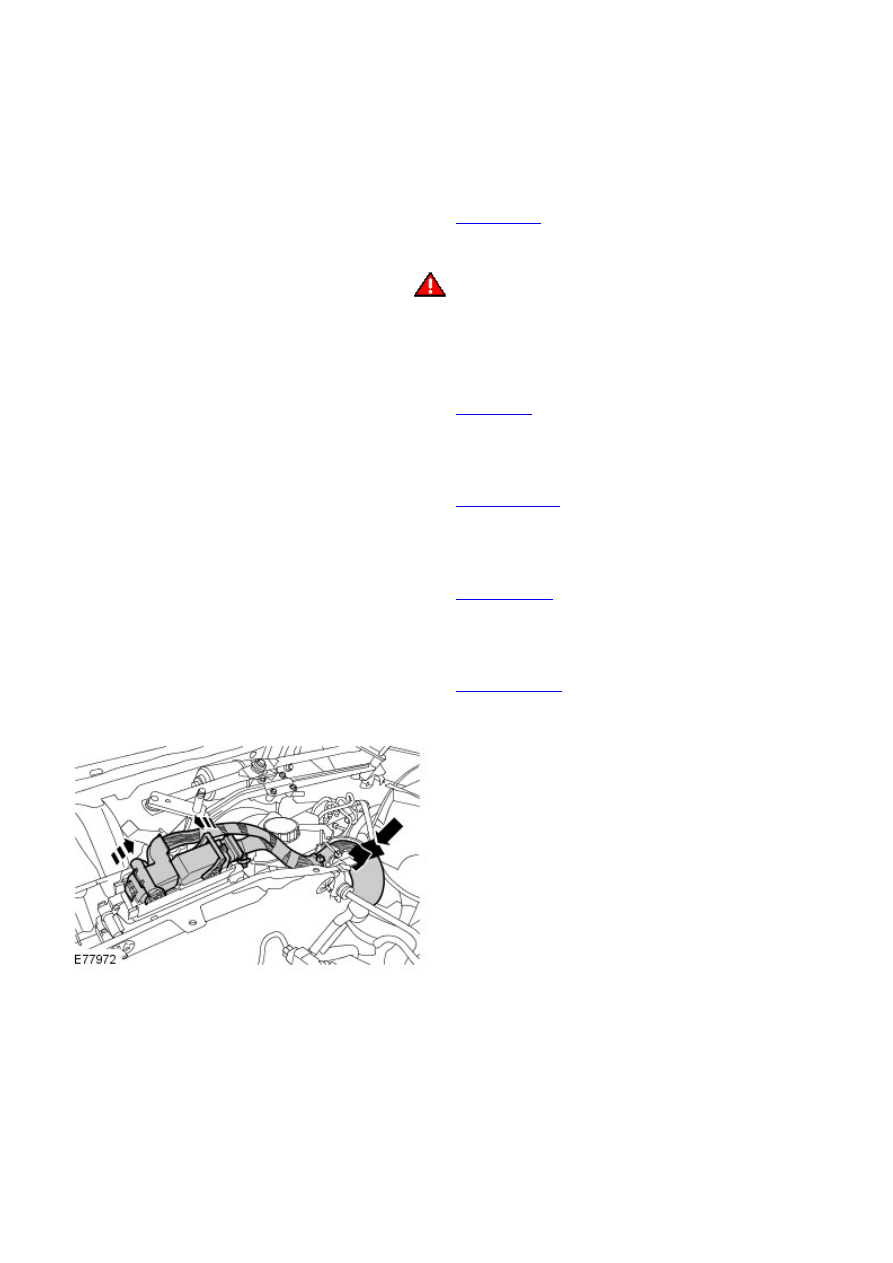

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

2.

Remove the battery tray.

Refer to:

Battery Tray

 (414-01 Battery, Mounting and Cables,

Removal and Installation).

3.

Remove the plenum chamber.

Refer to:

Plenum Chamber

 (412-01 Climate Control, Removal and

Installation).

4.

Remove the intake manifold assembly.

Refer to:

Intake Manifold

 (303-01A Engine - I6 3.2L Petrol, Removal

and Installation).

5.

Remove the RH engine mount.

Refer to:

Engine Mount RH

 (303-01A Engine - I6 3.2L Petrol,

Removal and Installation).

6.

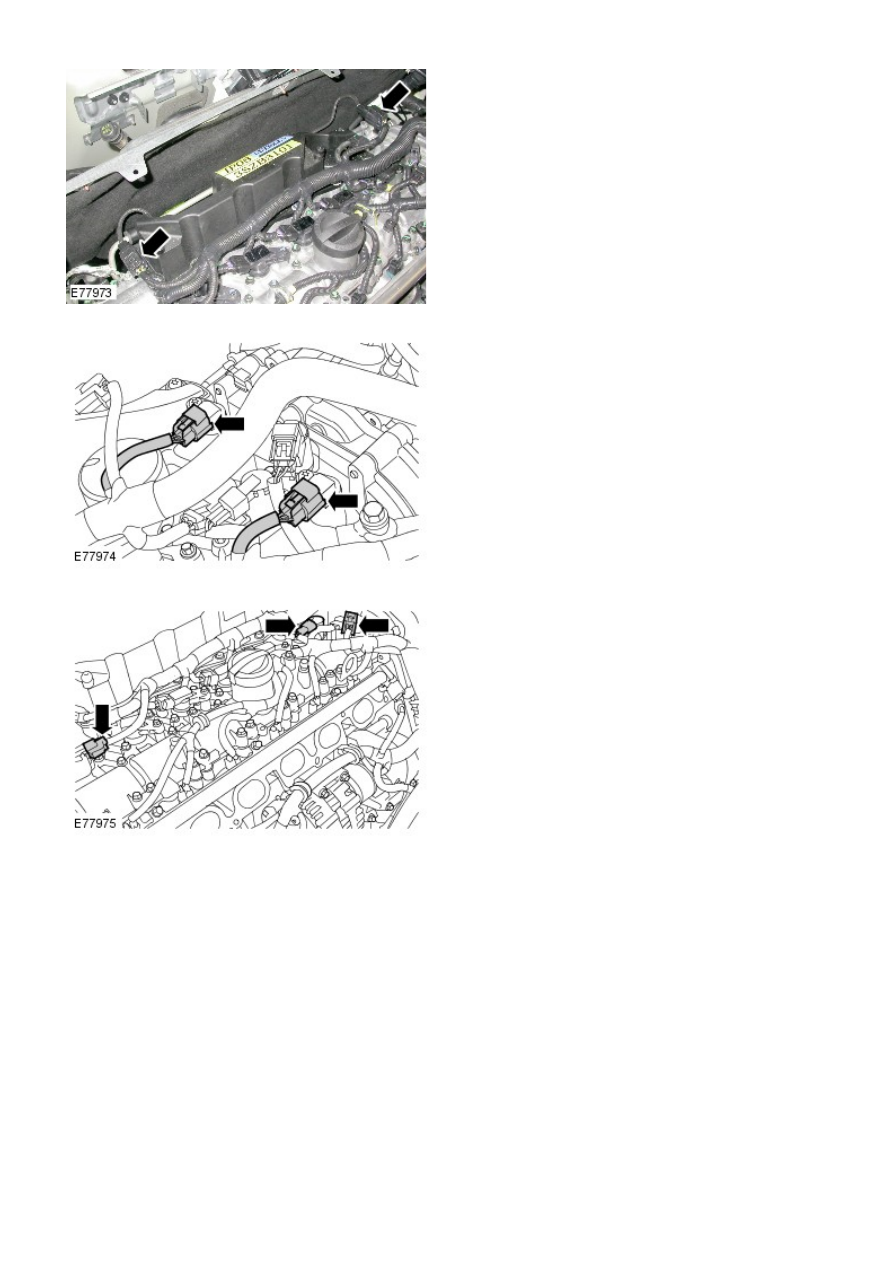

Disconnect the 2 engine control module electrical
connectors.

7.

Release and disconnect the 2 LH HO2S electrical
connectors.

8.

Disconnect the 2 camshaft position (CMP) sensor
electrical conectors.

9.

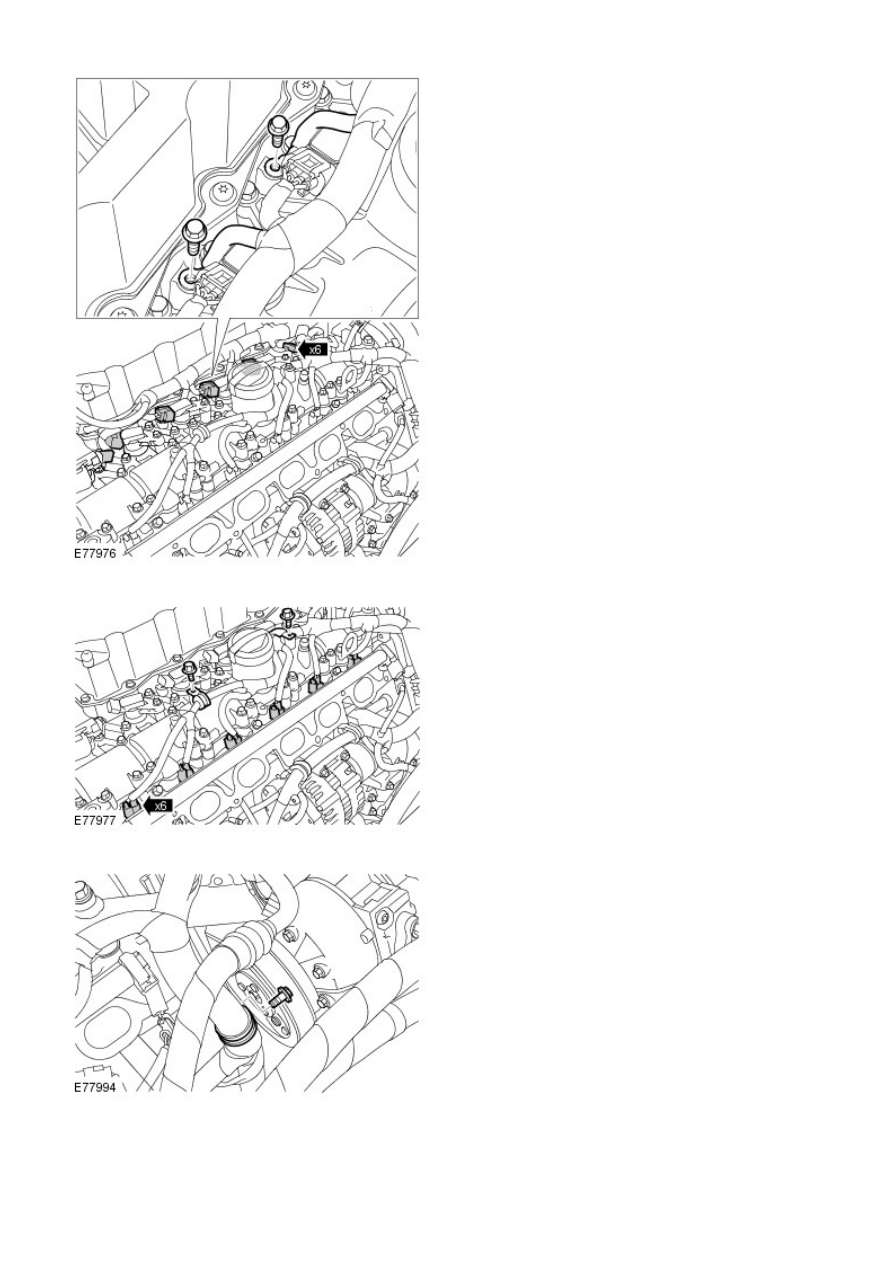

Disconnect the 3 variable camshaft timing solenoid
electrical connectors.

10.

Disconnect the 6 ignition coil-on-plugs.

11.

Disconnect the 6 fuel injector electrical connectors.

12.

13.

Disconnect the engine coolant temperature (ECT) sensor electrical
connector.

14.

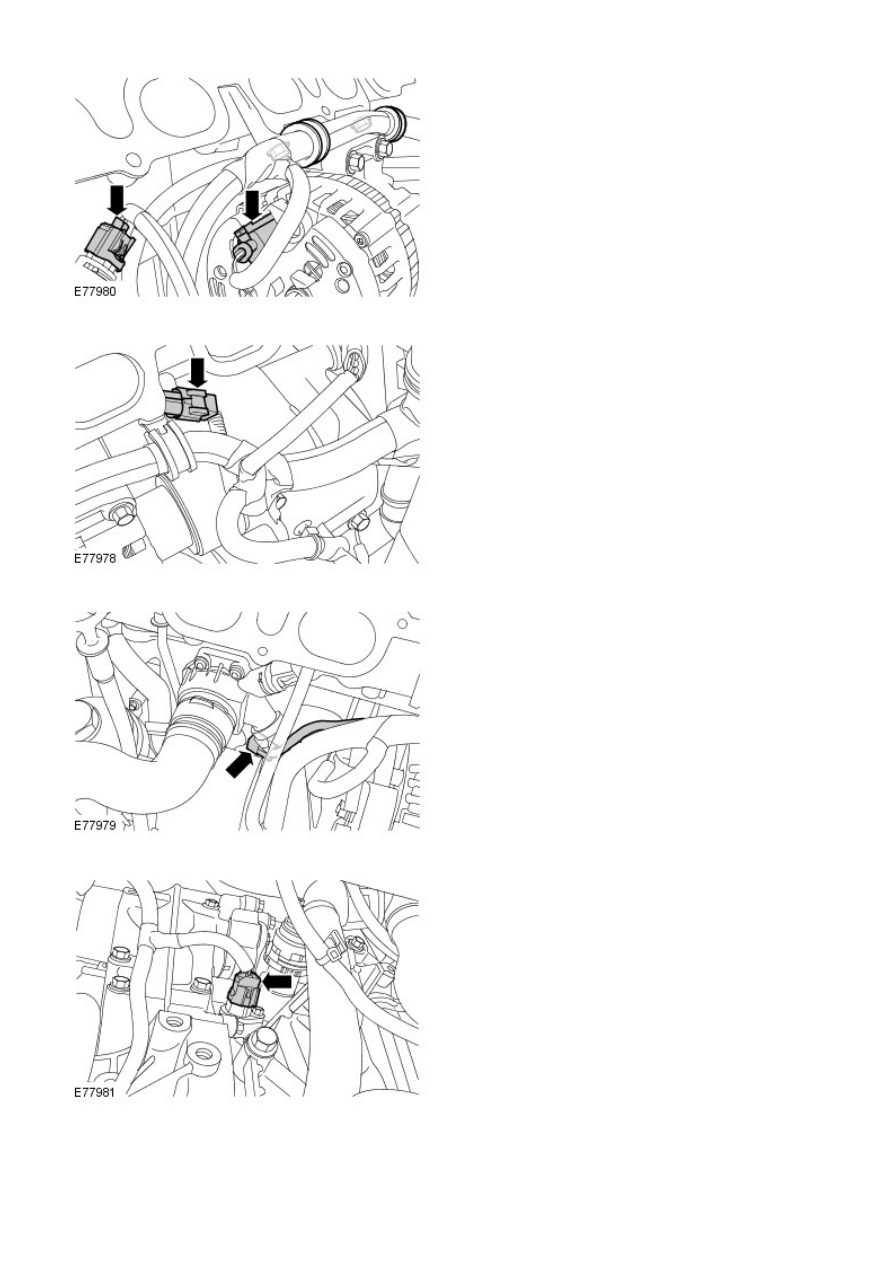

Disconnect the generator connector.

15.

Disconnect the front knock sensor (KS) connector.

16.

Disconnect the rear knock sensor (KS) connector.

17.

Disconnect the crankshaft position (CKP) sensor
electrical connector.

18.
