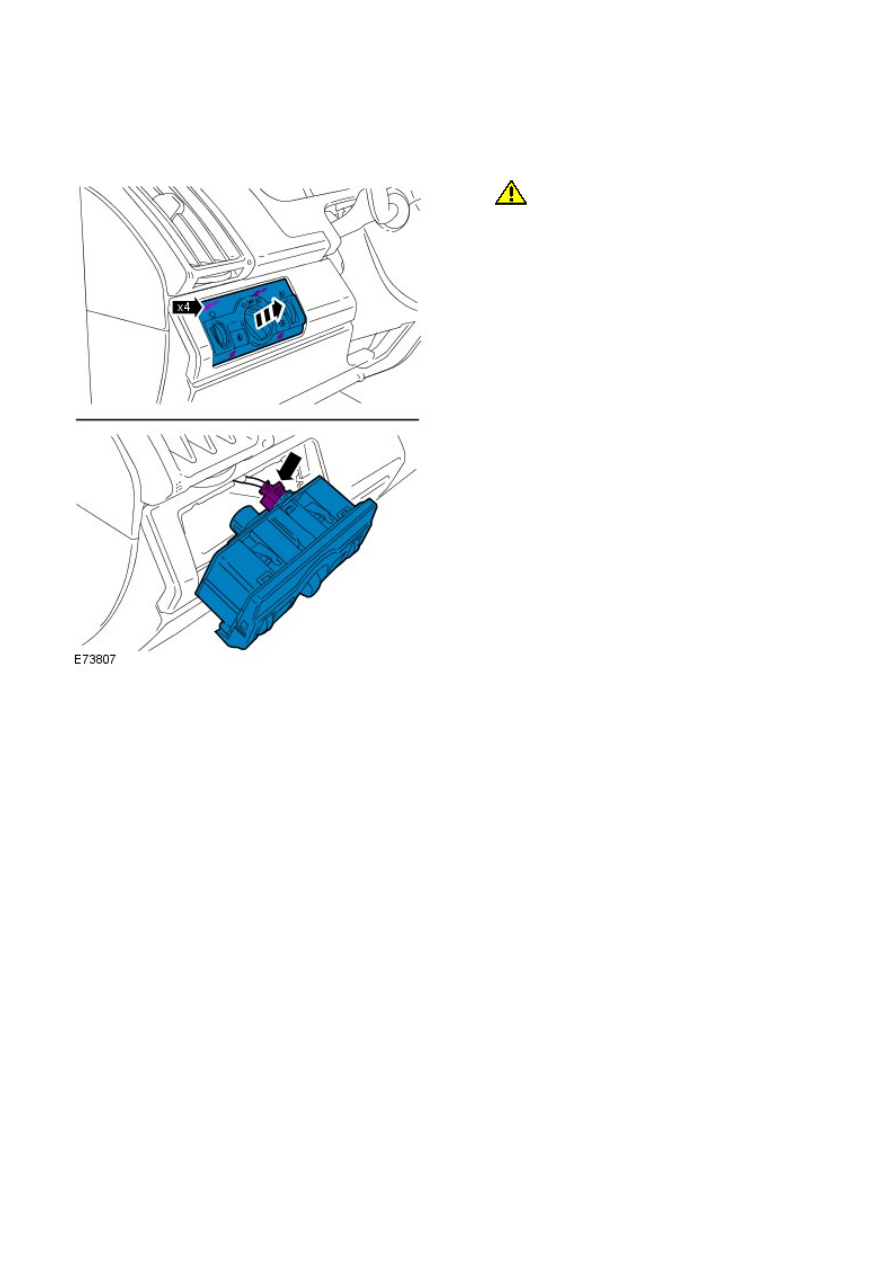

Exterior Lighting - Headlamp Switch

Removal and Installation

Removal

1.

CAUTION: Protect the surrounding trim to avoid

damage.

1.

Installation

To install, reverse the removal procedure.

1.

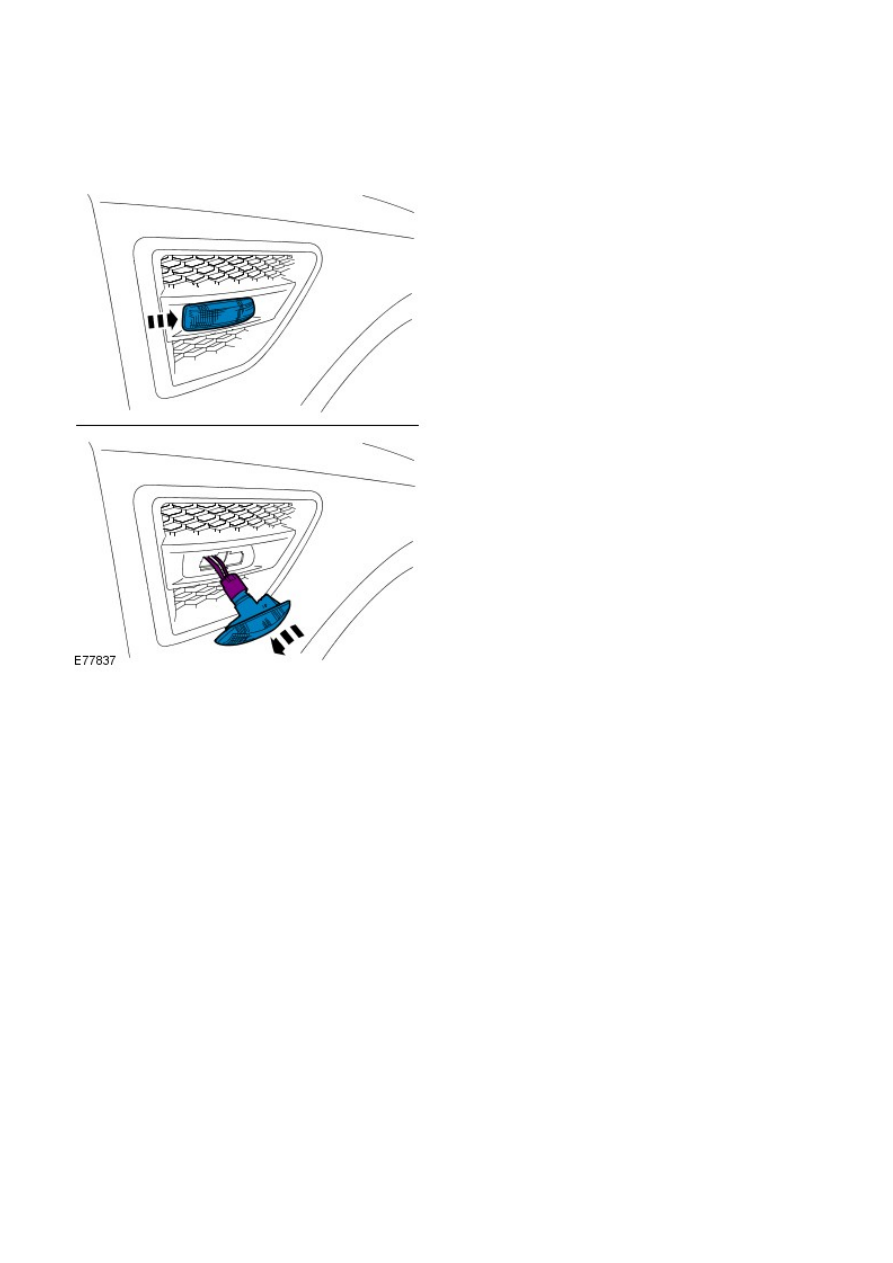

Exterior Lighting - Side Turn Signal Lamp

Removal and Installation

Removal

1.

Installation

To install, reverse the removal procedure.

1.

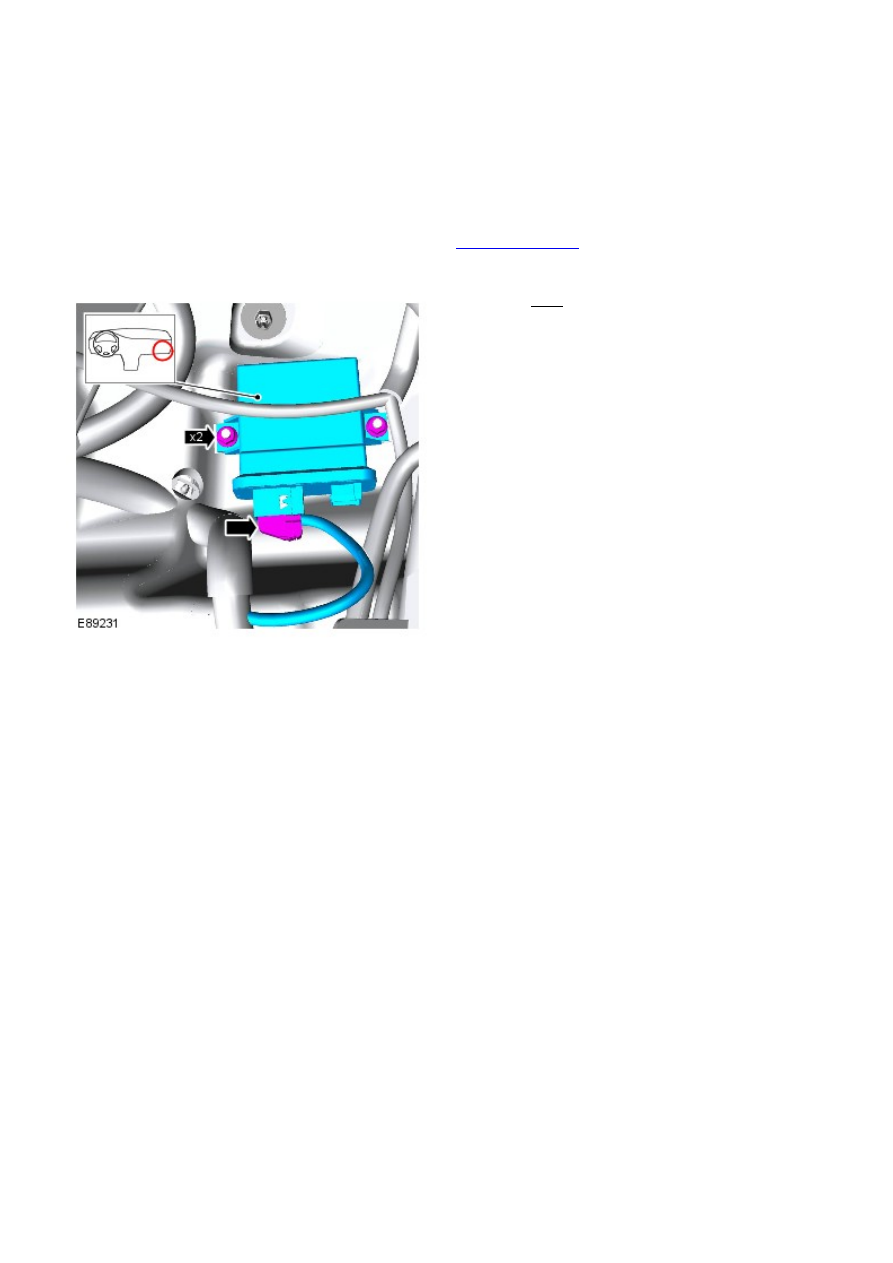

Exterior Lighting - Headlamp Leveling Module

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Remove the glove compartment.

Refer to:

Glove Compartment

 (501-12 Instrument Panel and

Console, Removal and Installation).

1.

Torque: 7 Nm

2.

Installation

To install, reverse the removal procedure.

1.

Using the Land Rover approved diagnostic system, calibrate a new
module.

2.

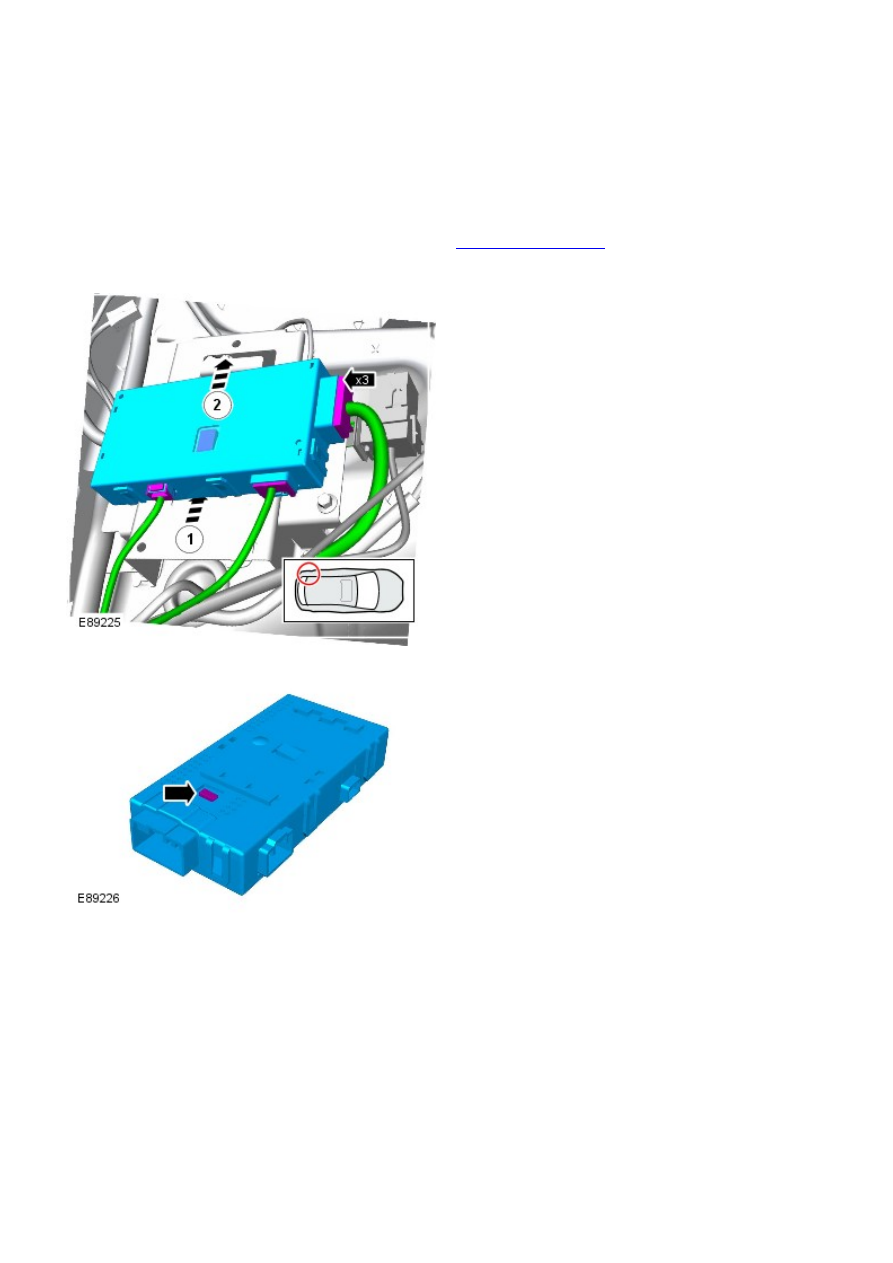

Exterior Lighting - Trailer Module

Removal and Installation

Removal

• NOTE: The trailer module is fitted with a replaceble fuse.

Remove the LH rear quarter trim panel.

Refer to:

Rear Quarter Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

1.

Remove the trailer module.

2.

3. NOTE: Do not disassemble further if the component
is removed for access only.

Remove the fuse.

3.

Installation

To install, reverse the removal procedure.

1.

Using the Land Rover approved diagnostic system, calibrate a new
module.

2.
